Hub TST EXTERNAL VIDEO CAMERA DISTRIBUTION POINT EXPERT-POE/OTD-8G2GSFP 8 PoE + 2 x SFP
349.00 €
Kuumakse alates 9,89 €
3641068 EXPERT-POE/OTD-8G2GSFP
5902887085963
Tarneaeg 11-15 t.p.
Kauba vastu huvi?
Kõik toote kohta

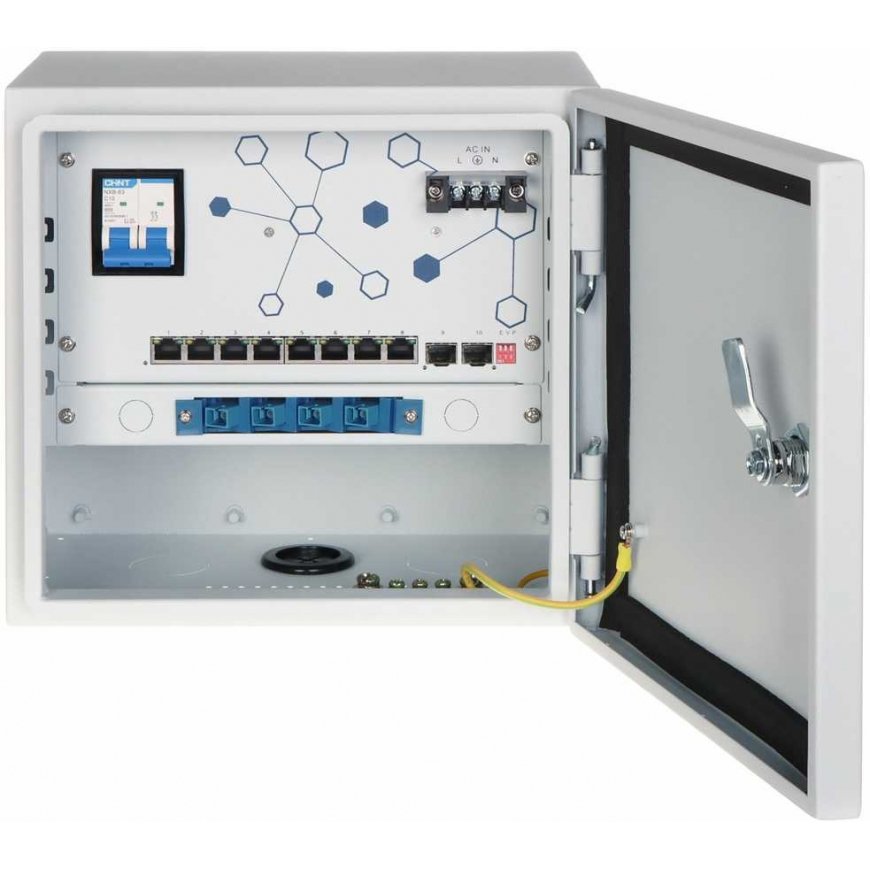

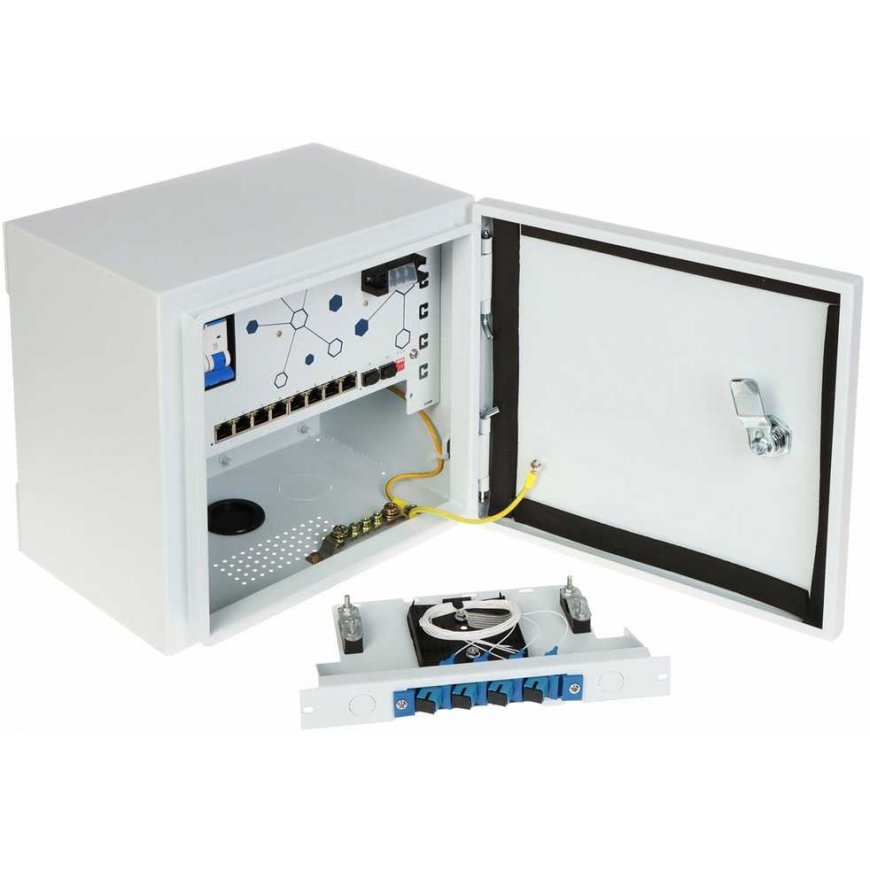

EXPERT-POE/OTD-8G2GSFP kit consists of an 8-port PoE switch with 2 additional SFP ports. Uplink integrated into the fiber optic switch, as well as fuse and lightning arrester, housed in an IP55 outdoor housing.
Switch PoE :
| LAN ports : | 8 x RJ45 10/100/1000 Base-T ( 8 x PoE (802.3af/at) ), 2 x SFP (Uplink) 1000 Base-X |
| Management : | - |
| LED diodes : | Power, Link/Act, PoE |
| Transmission speed : | 10 / 100 / 1000 Mbps : 8 LAN & PoE ports, 1000 Mbps : 2 SFP (Uplink) ports |
| Maximum output power : | 30 W @ PoE (802.3af/at) - 1 ... 8 ports |
| Maximum total power : | 115W |
| MAC address table : | 16k |
| Working mode : | E - EXTEND mode - ports 1, 2, 3, 4, 5, 6, 7, 8 support transmission up to 250 m V - VLAN mode, ports 1 ... 8 are separated from each other and work separately with ports 9, 10 P - PoE Auto-check mode - monitoring of ports that supply PoE to devices and automatic reconnection after power loss, detecting an unresponsive device |

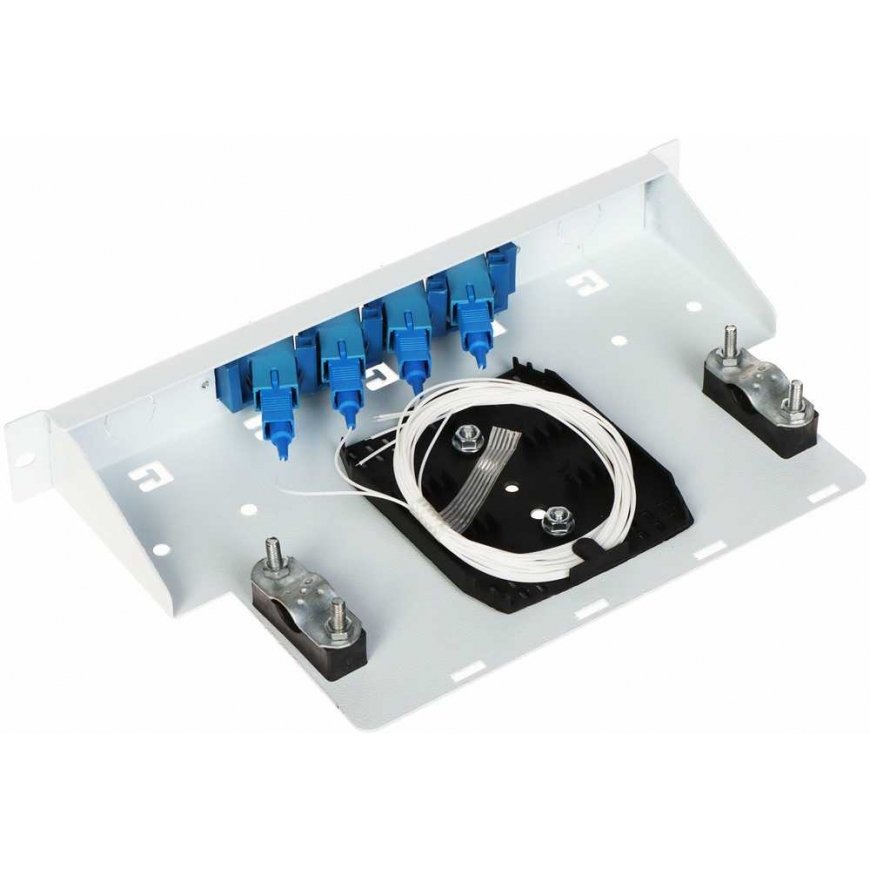

Fiber optic switch :
| Number of line cables : | 2 |
| Number of splice cassettes : | 1 |
| Place for joints : | 8 |
| Connector type : | SC/PC single-mode (SM) |
| Number of adapters : | 4 |
| Number of pocket threads : | 4 single-mode (SM) |
Body :
| Material : | Metal |
| Color : | Gray |
| Tightness class : | IP55 |
| Cable gaps : | 3 pcs. from the bottom Ø 39 mm |
| Main features : | The door is locked with a padlock. Integrated fan |

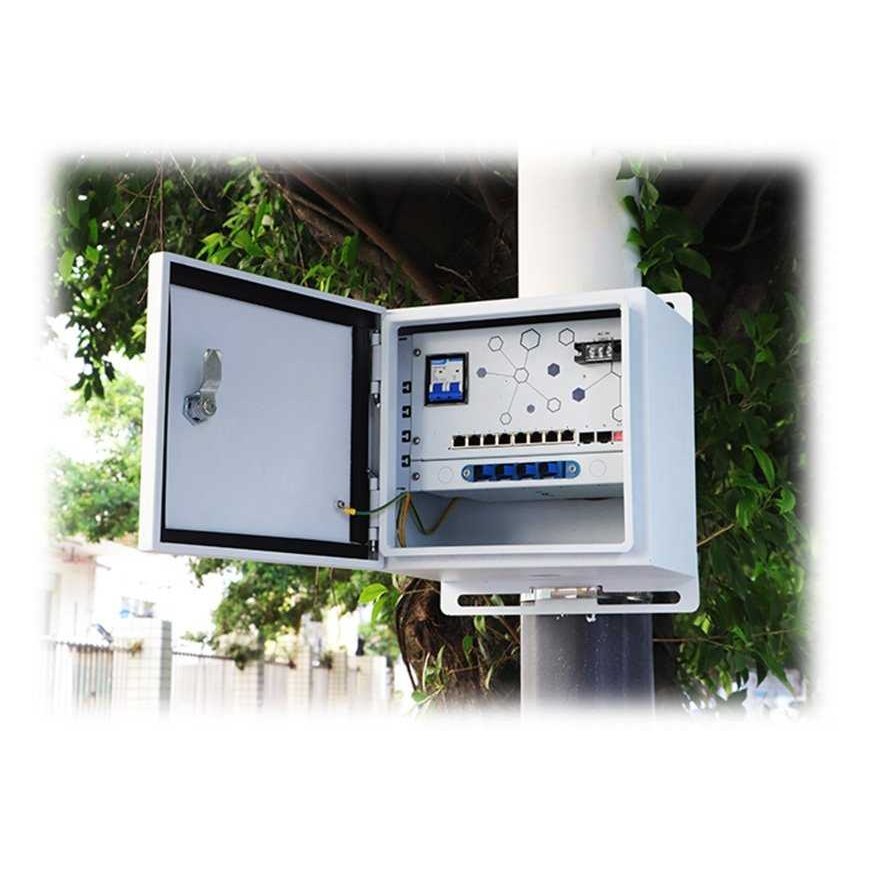

| Maximum pole diameter : | 350mm |
| External dimensions : | 280 x 260 x 210 |
General data :
| Certificates : | CE, RoHS |
| Protective measures : | Protection against electrostatic discharge - Contact/Air (ESD/EMP) : 6 / 8 kV Drive switch: C10, protected lines L+N Lightning protection: Maximum voltage: 385 V AC Nominal discharge current: 20 kA (8/20µs) Maximum discharge current: 40 kA (8/20µs) |
| Power supply : | 100 ... 240 V AC , 50 / 60 Hz - Screw terminals |
| Working temperature : | -20°C ... 65°C |
| Weight : | 5.65 kg |
| Dimensions : | 280 x 260 x 205 mm |
| Warranty : | 2 years |
