DFRobot FireBeetle ESP32 IoT Wi-Fi, Bluetooth
29.00 €
3640714 AN-09153
5904422337612
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

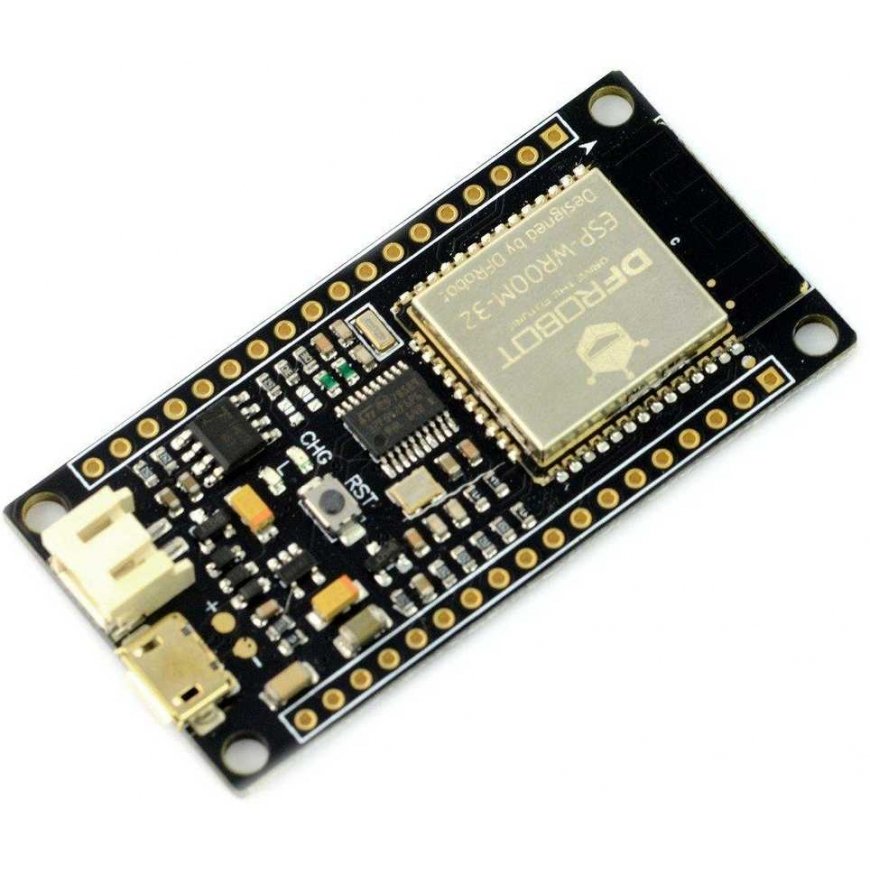

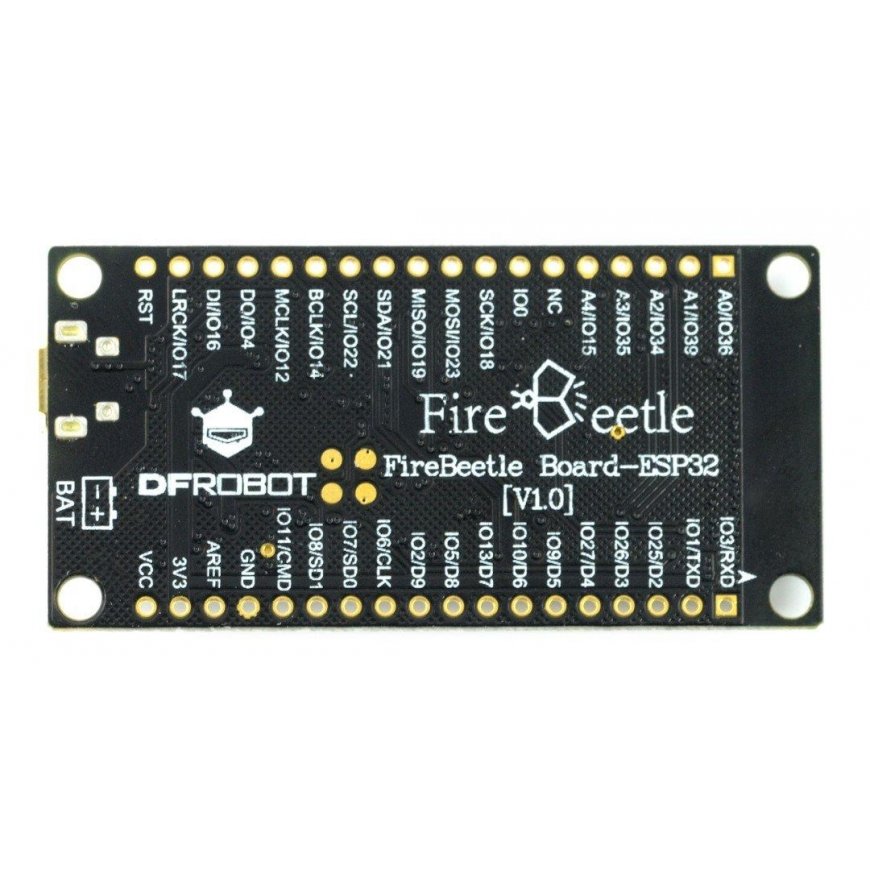

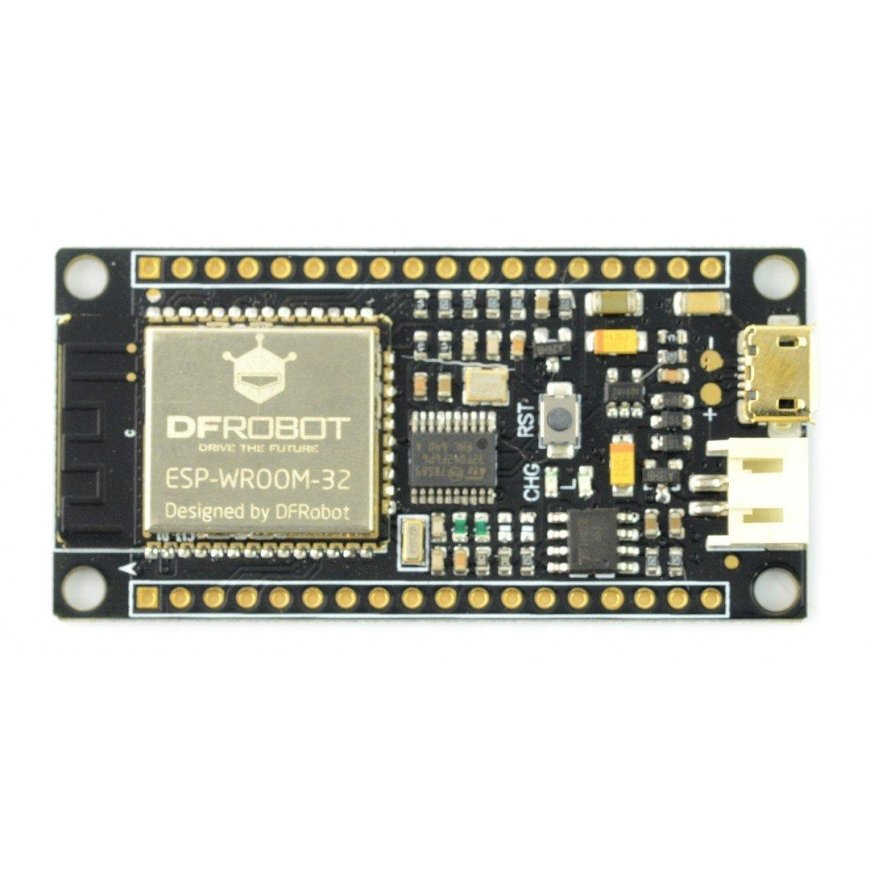

The FireBeetle microcontroller is compatible with Arduino Uno. It integrates a dual-core ESP-WROOM-32 module that supports MCU, Wi-Fi, and Bluetooth communication modes. It is designed for IoT
projects. Supports two USB power sources and an external 3.7V battery. The board has a reset button. The microcontroller is programmed with the Arduino IDE. The kit includes 4 x 2.54 mm 18-pin headers and 4 x 2.54 mm 18-pin headers.
Specifications:
- Supply voltage: 3.3V/5V
- Supports USB charging
- CPU: dual-core Tensilica LX6
- Frequency: 240MHz
- SRAM: 520KB
- Flash: 16 Mbit
- Wi-Fi: 802.11 b/g/n/d/e/l/k/r
- Bluetooth standard: v4.2
- MicroPython support
- Operating temperature: -40℃ to 85℃
- Dimensions: 24 x 53 mm
- Mounting hole diameter: 3.1 mm, 6 mm from the outside
