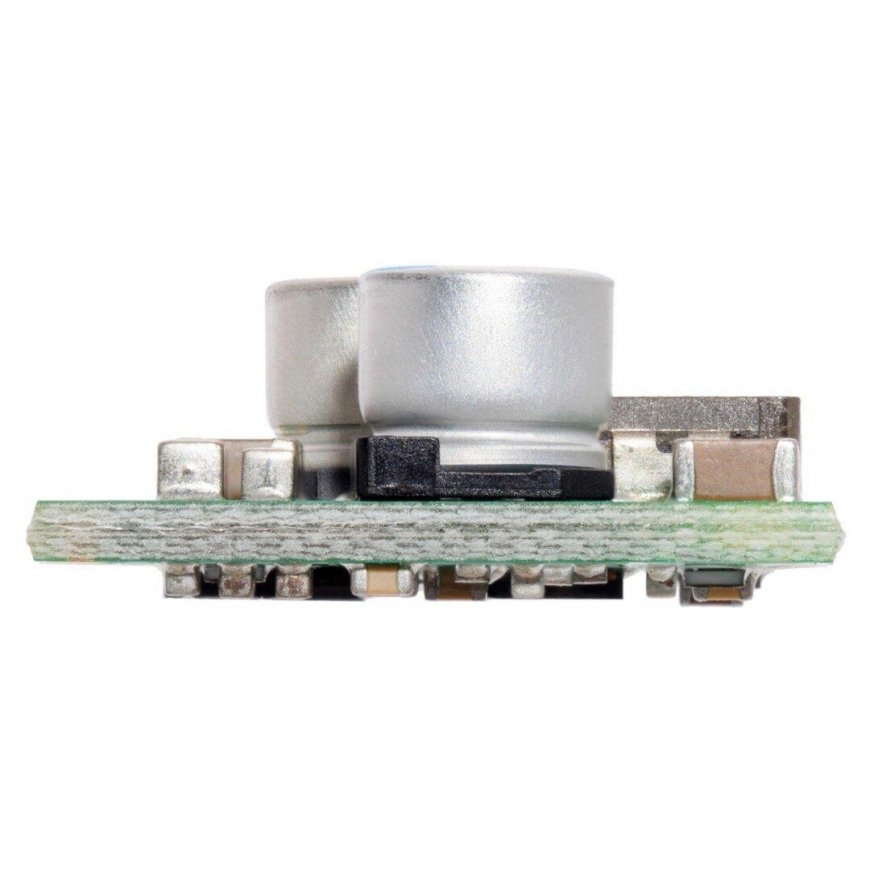

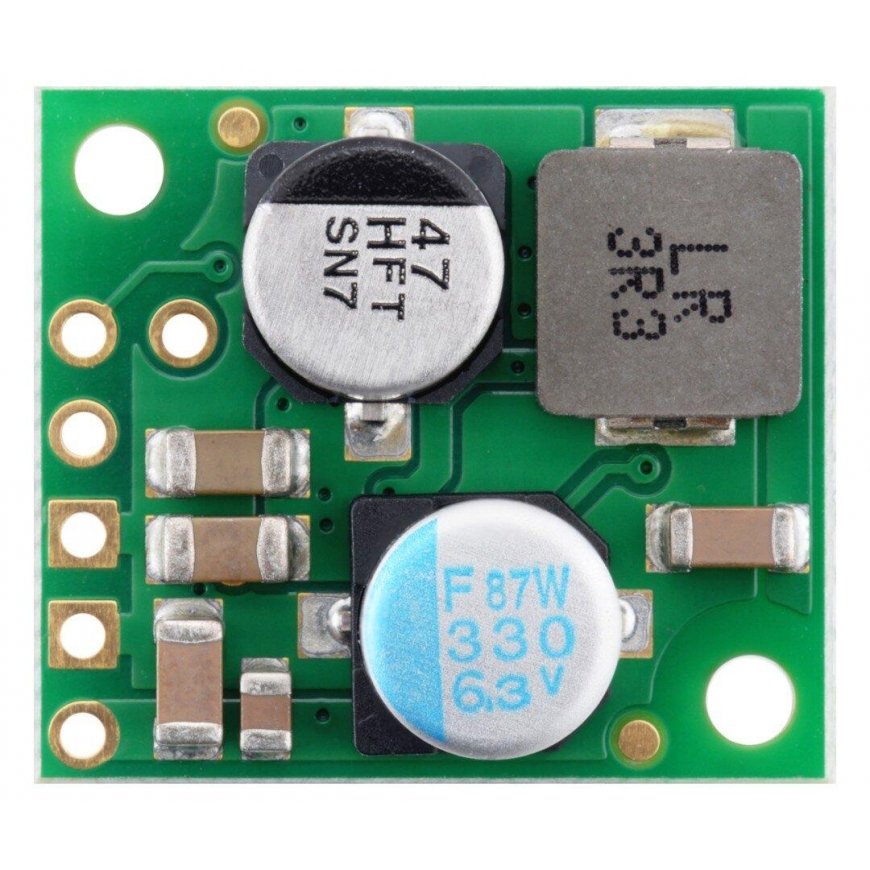

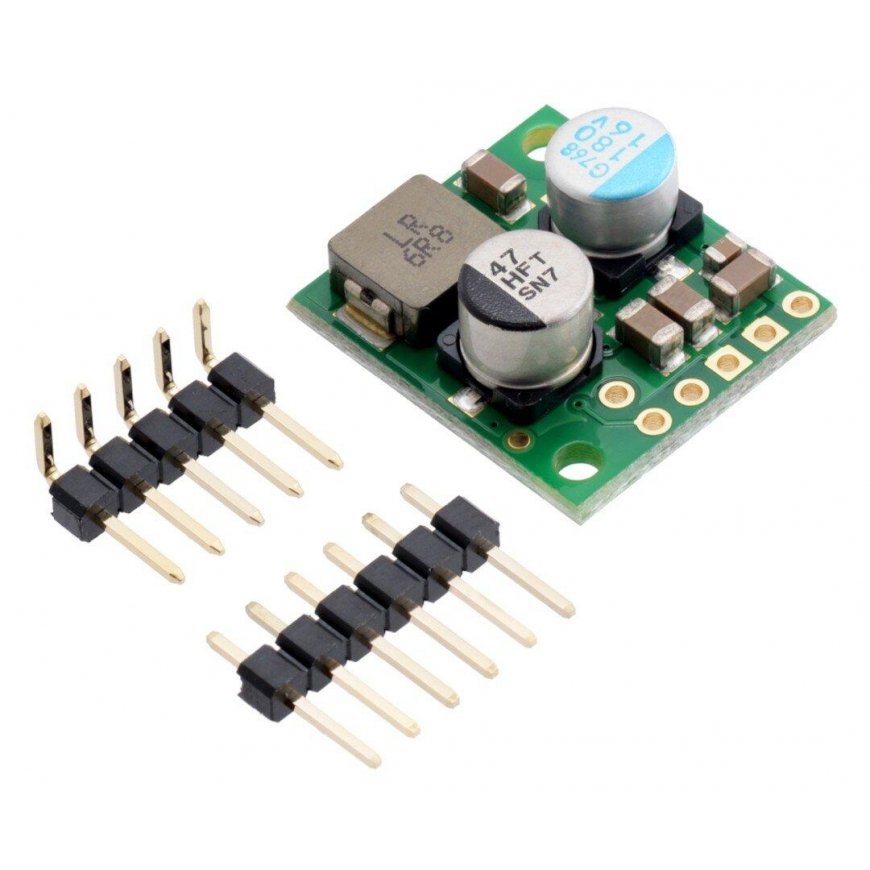

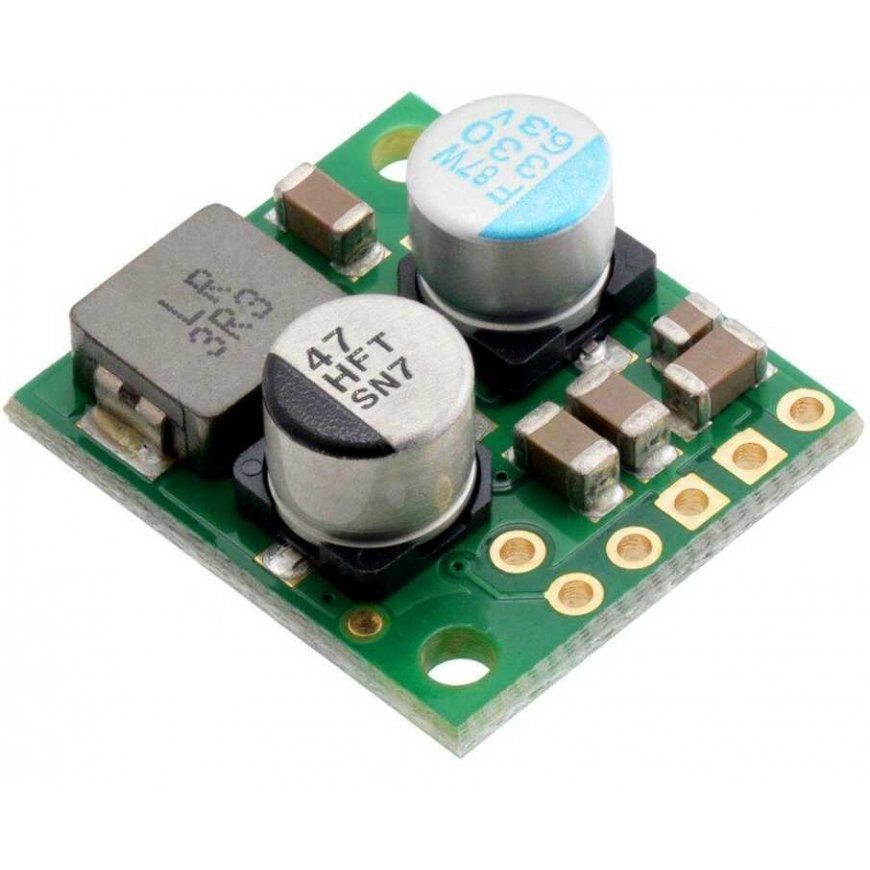

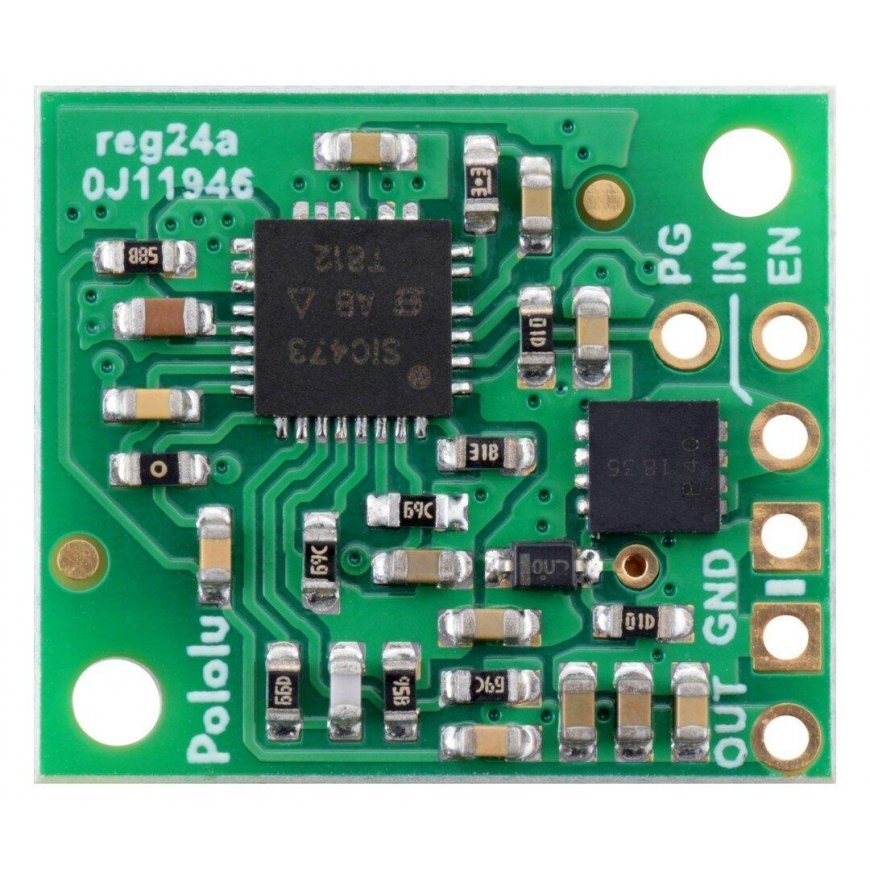

Step-Down voltage converter D36V28F5, 5V 3.2A, Pololu 3782
39.00 €
Kuumakse alates 1,90 €
3639433 AN-17169
5903351242837
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
Step-Down converter with 5 V output voltage and current capacity from 2.5 A to 4 A (typically 3.2 A). Supported input voltage is from 5.3 V to 50 V. Module dimensions are 20 x 18 mm.
Specifications:
- Input voltage: 5.3V to 50V
- Output voltage: 5V
- Output voltage accuracy: 4%
- Continuous output current: 3.2 A
- Efficiency 80% - 90%
- Reverse polarity protection and overcurrent, overvoltage and overtemperature protection
- Switching frequency: approx. 500 kHz
- Soft start function
- Two 2.2 mm (M2) mounting holes
- Dimensions: 20 x 18 mm
- Weight: 3.3 g
Links:
Manufacturer's page
