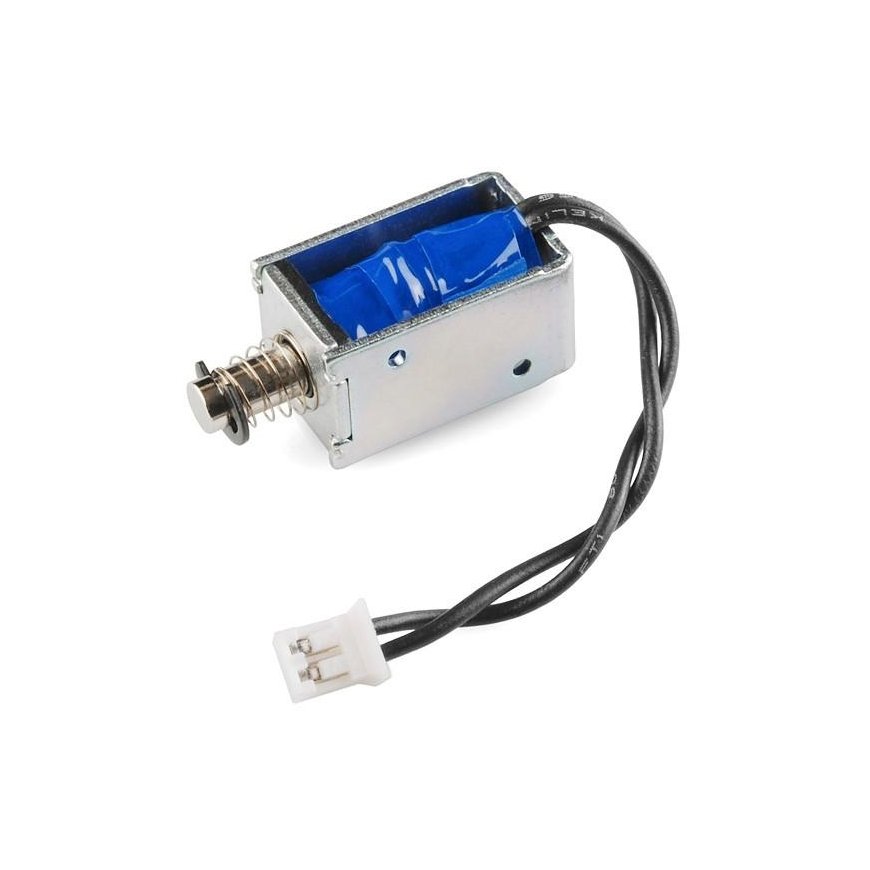

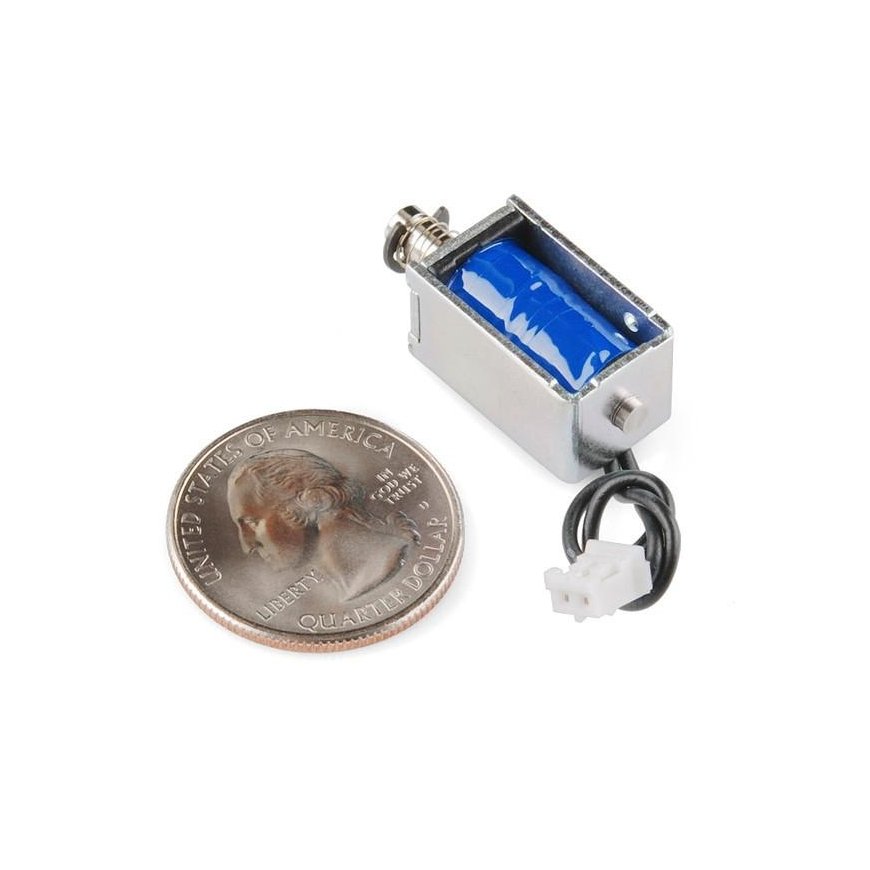

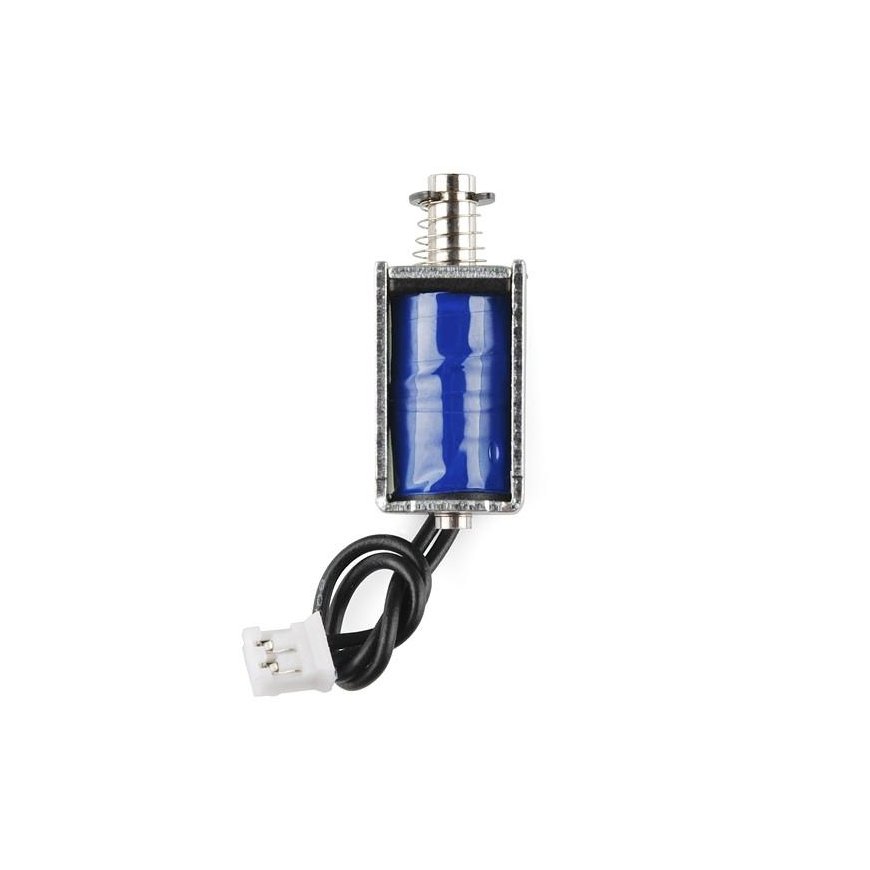

Solenoid electromagnet SparkFun ROB-11015 5V
19.62 €
3638484 AN-01996
5904422306960
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
The solenoid allows you to push or pull using a 5V signal. The pin spacing is approximately 4.5mm. The devices have 1.6mm diameter mounting holes suitable for M2 threaded screws. The 5cm long power cables are terminated with a JST connector. Can control devices that operate on 5V voltage, such as Arduino modules with an appropriate transition device, such as an opto-isolator.
Technical data:
- Supply voltage: 5V
- Current consumption: 900 mA
- Wires: JST 50mm long
- Pin length: 4.5mm
- Mounting holes with a diameter of 1.6mm
- Dimensions: 20 x 12 x 11 mm (without pin) / 29 x 12 x 11 mm (with pin)
- Weight: about 62g
