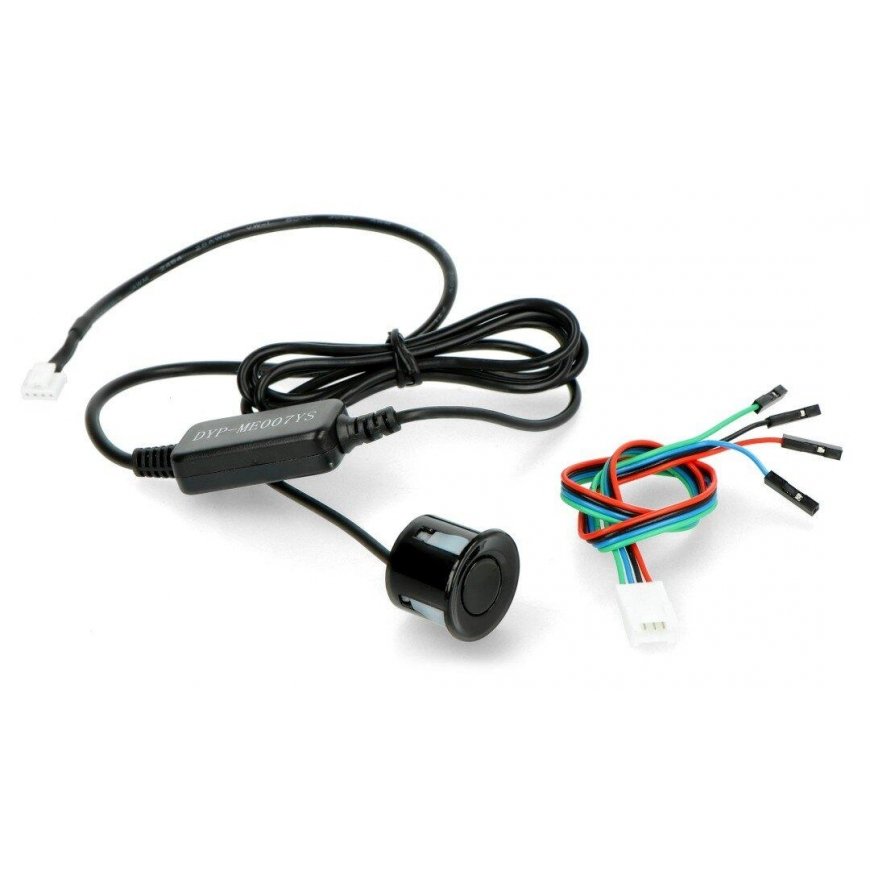

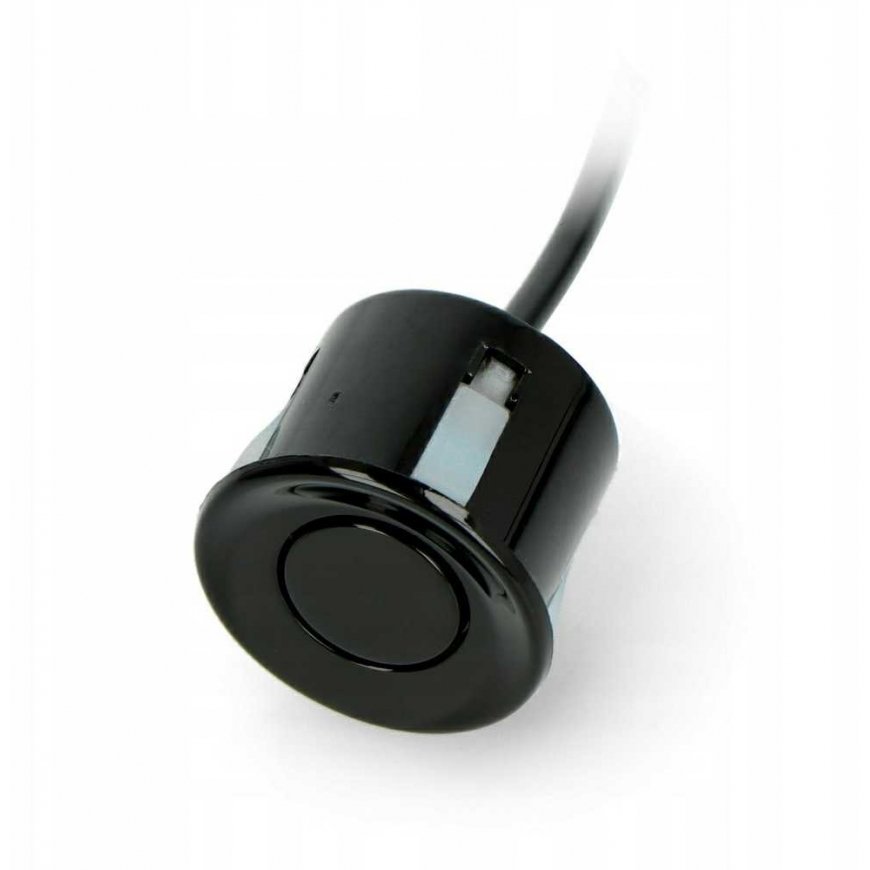

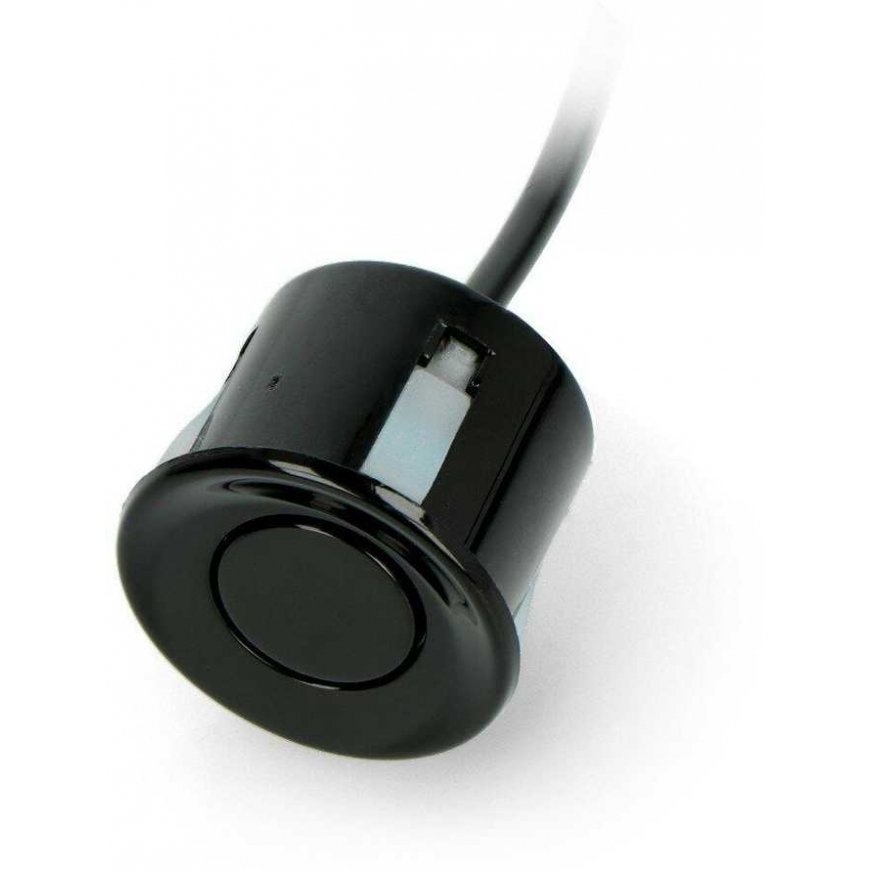

ME007YS ultrasonic distance sensor 28-450cm, waterproof, DFRobot SEN0312
39.00 €
Kuumakse alates 1,90 €
3634691 AN-15715
5904422343682
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
Distance sensor that measures the time between sending and receiving a pulse. ME007YS measures distances from 28 to 450 cm and communicates via the serial interface UART. The module is powered by 5 V. Thanks to its housing with IP67 protection class, it is resistant to water and dust.
Specifications:
- Operating voltage: 5 V
- Average current consumption: 8 mA
- Maximum current consumption: 50 mA
- Blind area: 28 cm
- Measurement range: from 28 cm to 450 cm
- Interface: UART
- Response time: 100ms
- Probe center frequency: 40 kHz ±1 kHz
- Operating temperature: -15 °C to 60 °C
- Storage temperature: -25°C to 80°C
- Operating humidity: up to 80%
- Storage humidity: up to 90%
- Measuring angle: 44°
- Leakage class: IP67
