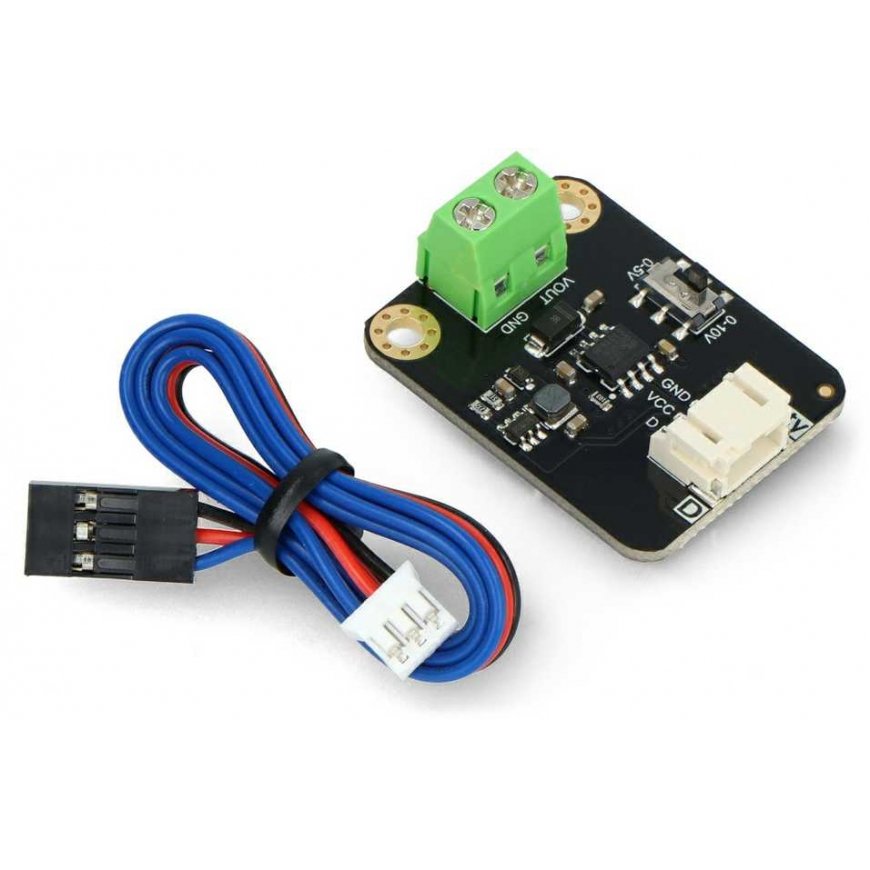

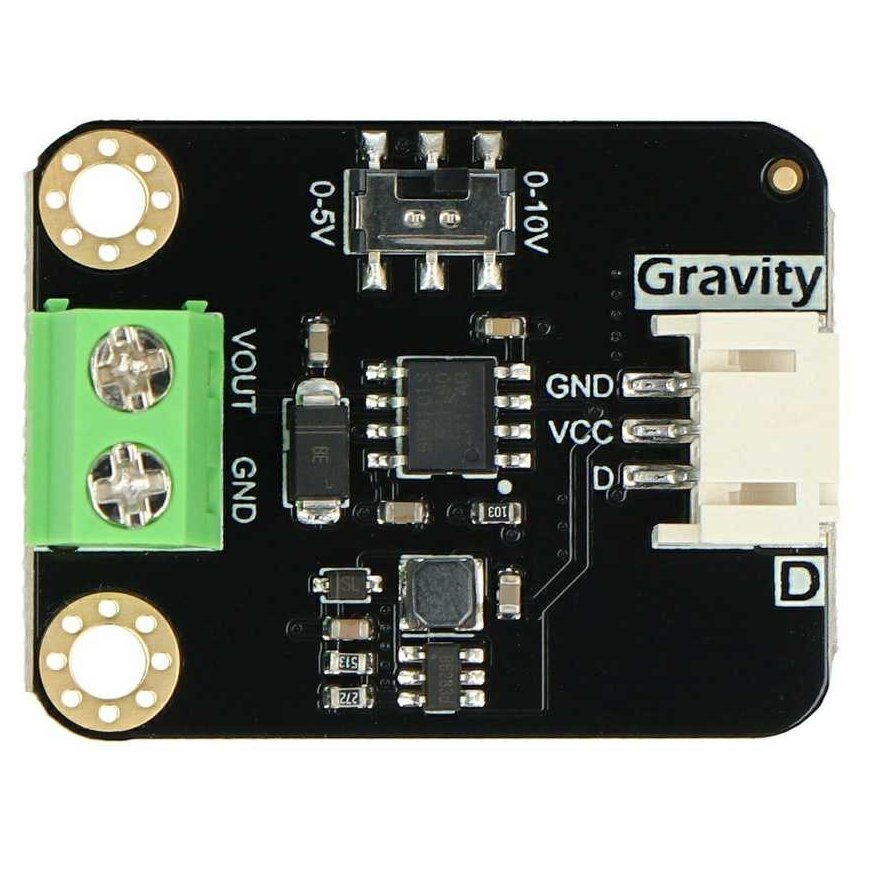

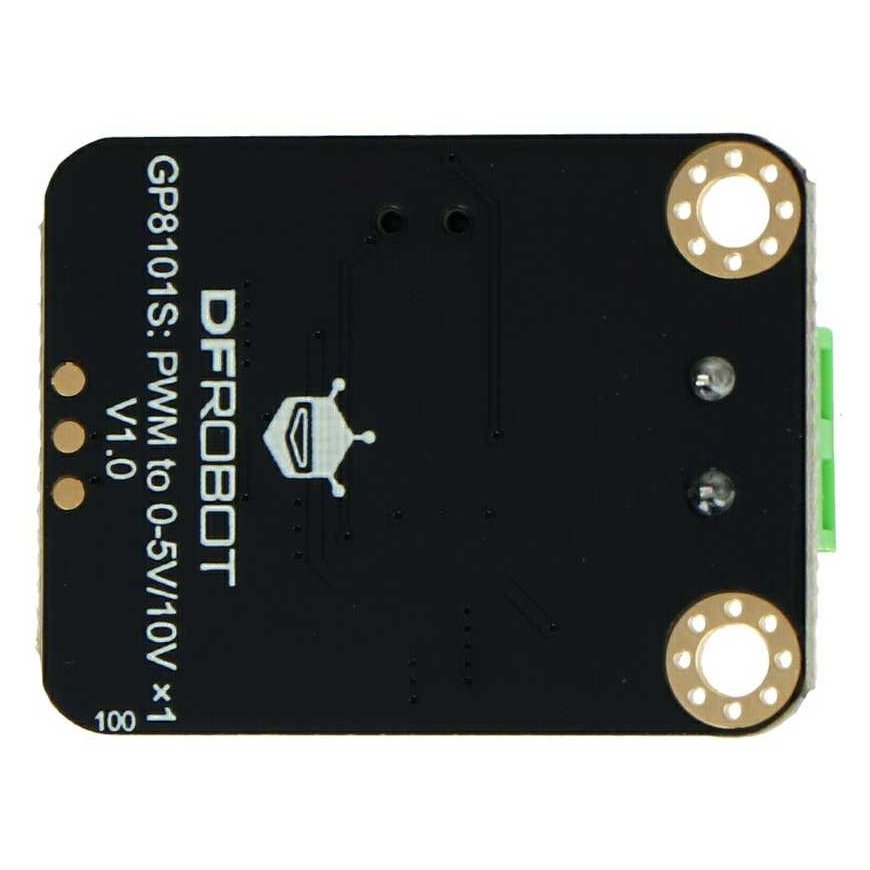

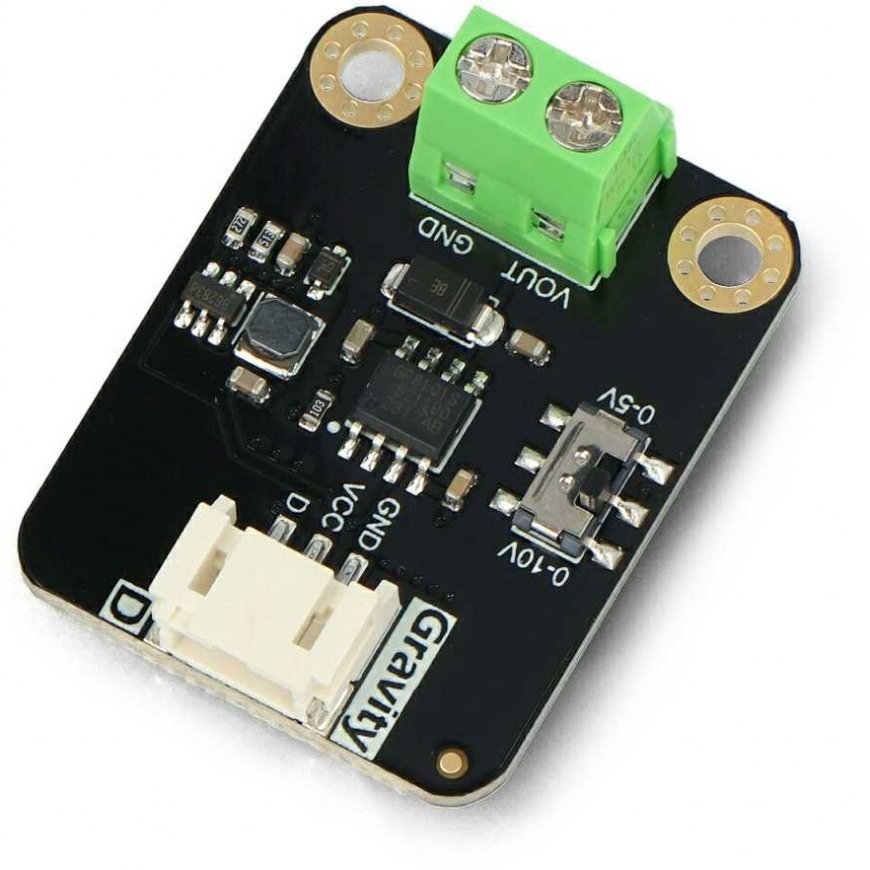

Dfrobot Gravity – 1-channel digital-to-analog converter GP8101S 0-5/10V – PWM DAC – DFR1036
22.03 €
3631613 AN-24116
6959420924295
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
The GP8101S is a 1-channel digital-to-analog converter (DAC) that communicates via a PWM signal. The module offers a voltage range of 0V to 5V or 10V, making it ideal for a variety of automation applications. The GP8101S supports a 3.3V to 5V power supply and has low output voltage error and linearity, ensuring accurate and stable operation. Features:
- Supply voltage support from 3.3V to 5V - compatible with many microcontrollers
- Low output voltage error – less than 0.2%, ensuring high accuracy
- Linear output voltage error – only 0.1%
- Two output voltage ranges - 0V to 5V or 0V to 10V, flexible for various applications
- Gravity interface – facilitates integration with other Gravity modules
- PWM communication – simple control via digital MCU ports
Specifications:
- Supply voltage: from 3.3 to 5V
- Communication method: PWM
- Chip type: GP8101S
- Audio signal resolution: 8 bits
- Number of channels: 1
- Voltage signal generation: from 0V to 5V or 10V
- Output voltage error: 0.01%
- Dimensions: 27x35mm
