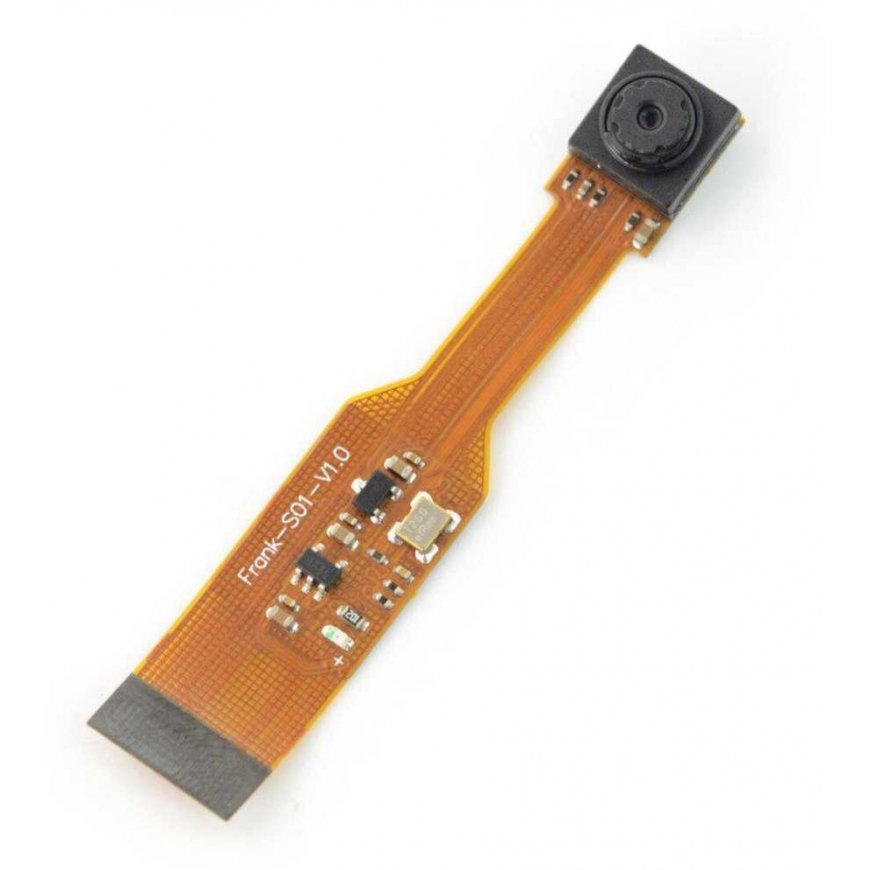

Odseven Camera ZeroCam OV5647 5MPx for Raspberry Pi Zero
29.90 €
3631060 AN-12746
5904422319960
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
Camera module compatible with Raspberry Pi Zero v1.3. The device has an OV5647 matrix with a resolution of 5 Mpx 2592x1944px, supports HD 1080p at 30 Fps. Raspberry Pi has hardware support for this camera due to the fact that the device does not use processor resources.
Specifications:
- Camera compatible with Raspberry Pi Zero
- Matrix: 5 MPx
- Sensor: OV5647
- AVDD: 2.7V to 3.3V
- DVDD: from 1.45 to 1.8”
- DOVDD: 1.7V to 3.3V
- Lens structure: 4P (650 nm)
- EFL: 3.52
- FNO: 2.8
- Output format: YUV or RAW WGB
- Resolution: 1080p/30fps / 720p/60fps / 480p/90K/s
- Lens: F2.9, focal length 3.6 mm
- Horizontal angle: 53.5°
- Vertical angle: 41.41°
- Dimensions: 60 x 11.4 x 5.1 mm
