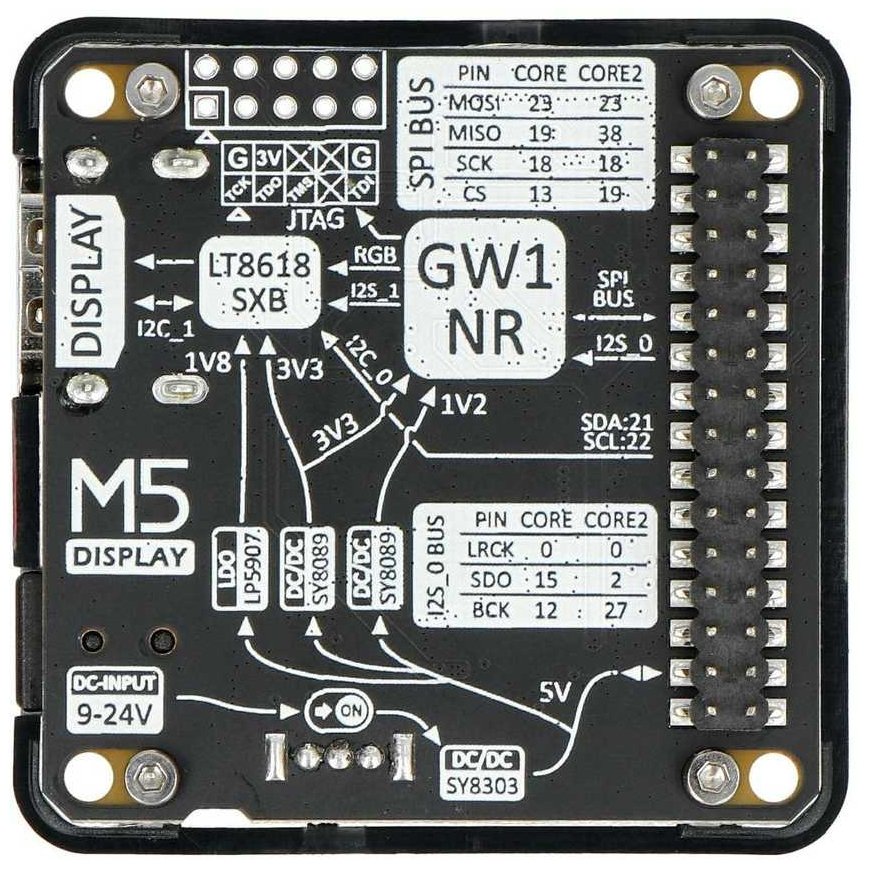

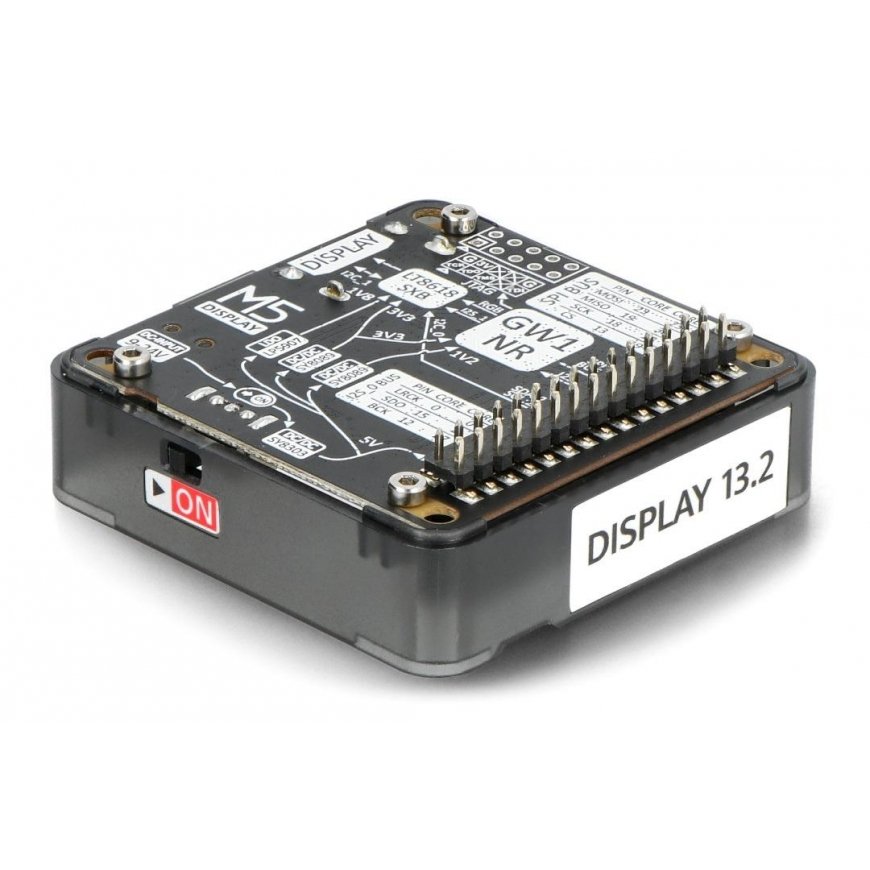

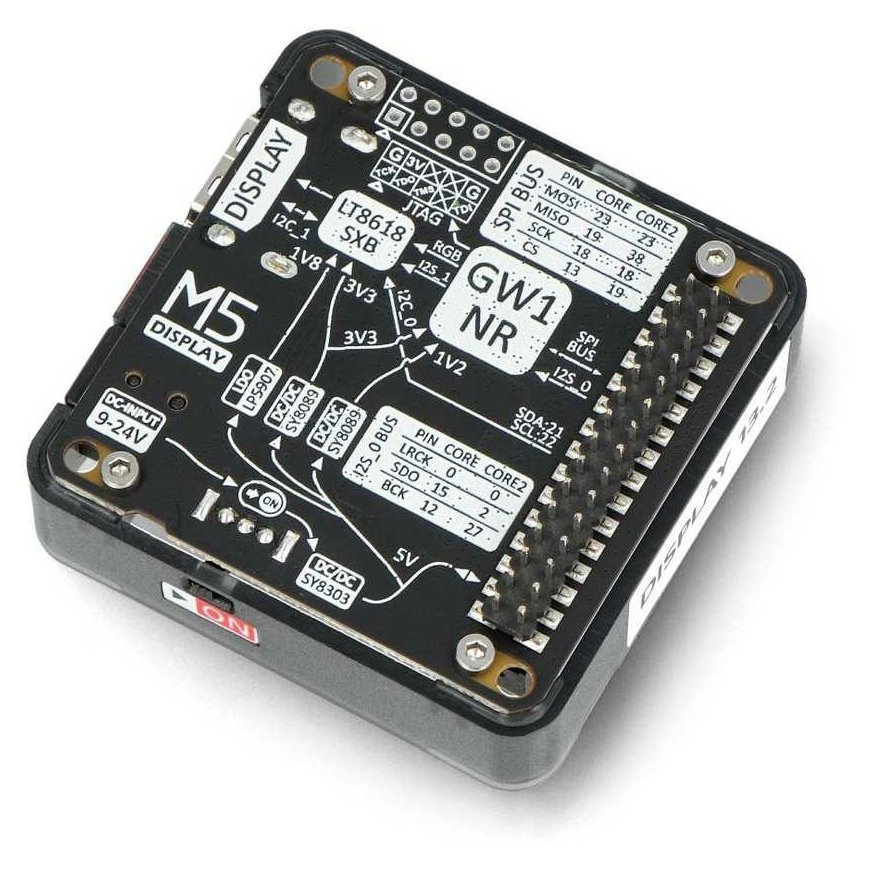

The Display Module 13.2 is an extension developed by M5Stack for the M5Stack Core and M5Stack Core2 development modules. It is an HD audio and video module that uses GAOYUN GW1NR series FPGA to output the display signal. It is equipped with an LT8618S output conditioning chip that supports 24-bit RGB input and up to 8-channel audio input. It also has built-in voltage conversion circuits, which allows it to be powered from 9V to 24V.

Main features:
  • 24-bit RGB input supported
  • Resolution up to 1080P (1920x1080px)
  • Supports up to 8 audio input channels
  • Has built-in voltage converters and LDO circuit from 5V to 1.8V

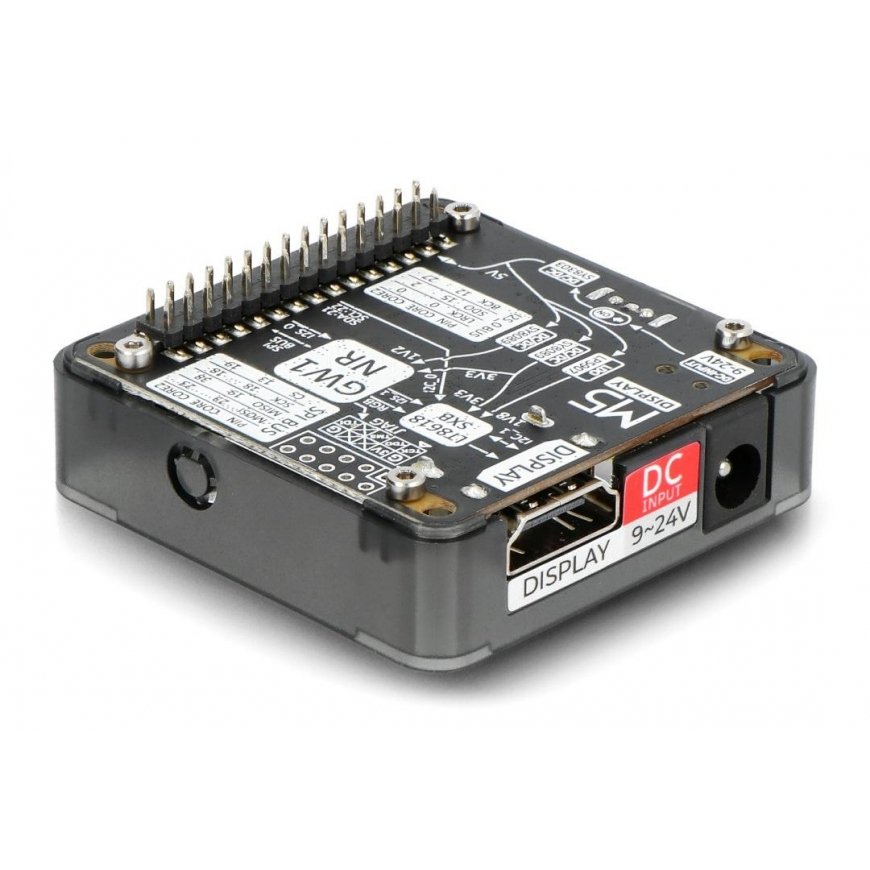

  • HD audio and video interface, JTAG download interface
  • Supply voltage from 9 V to 24 V DC
  • Manual power button
Specifications:

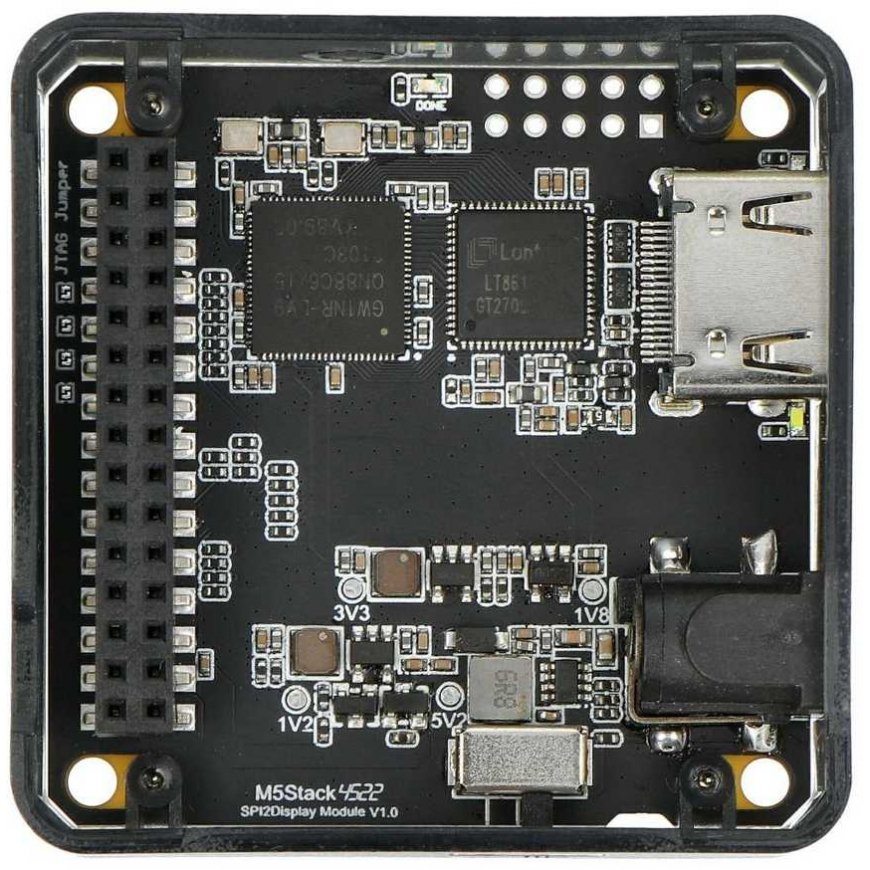

  • Audio and video signal acquisition system: GW1NR-LV9QN88C6-I5 FPGA
  • Audio and video signal processing chip: LT8616SXB
  • Voltage converter:
    • 9V to 24V to 5V DC: SY8303
    • 5V to 3.3V and 1.2V: SY8089
    • 5V to 1.8V LDO: LP5907
  • Maximum resolution: 1090P (1920x1080px)
  • Supply voltage: 9 V to 24 V
  • Dimensions: 54 x 54 x 14.2 mm
  • Weight: 21.6 g
