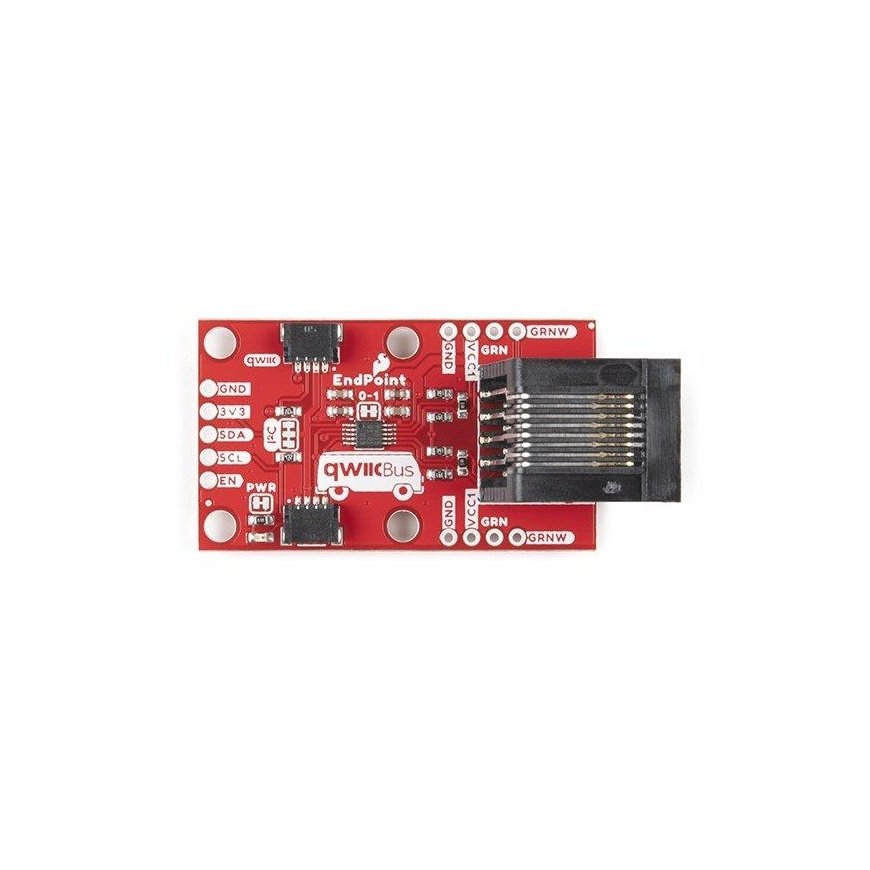

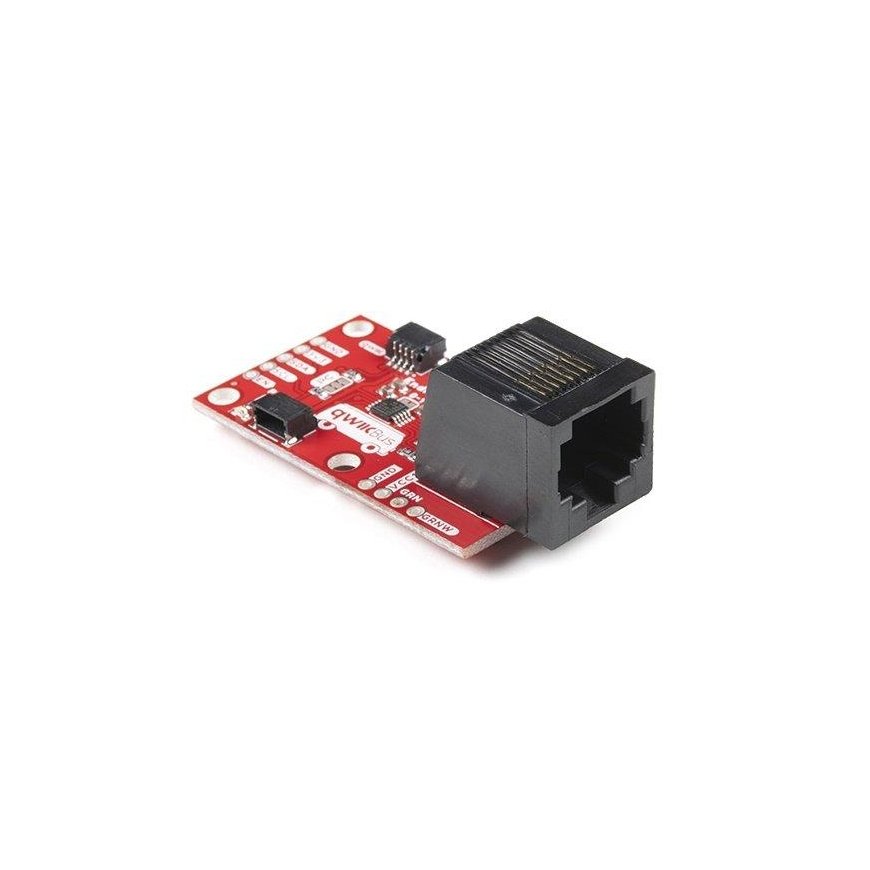

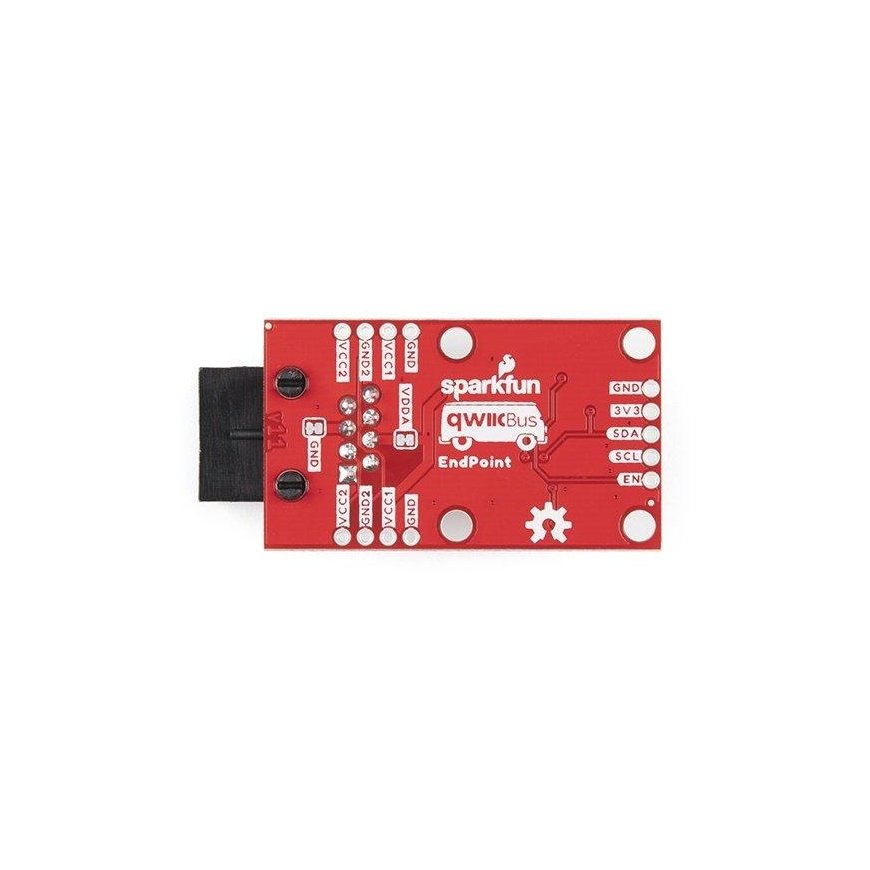

QwiicBus EndPoint, SparkFun COM-16988
39.00 €
Kuumakse alates 1,90 €
3629850 AN-19394
5904422370121
Tarneaeg 8-15 t.p.
Kauba vastu huvi?
Kõik toote kohta
A component of the QwiicBus system that allows you to extend the range of the I2C communication bus. It uses the NXP PCA9615 chip, which converts two default I2C signals (the SDA data line and the SCL clock line) into four differential signals: two SCL and two SDA. They are transmitted via an Ethernet cable connected to the QwiicBus EndPoint via the RJ-45 socket built into the board. The maximum distance of such transmission is about 30 meters. The product is an endpoint of the QwiicBus system. An Ethernet cable is not included.Specifications:
- I2C supply voltage: 2.3 V to 5.5 V
- Differential supply voltage: 3.5 V to 5.5 V
- Embedded IC type: PCA9615
- Pin solder pattern: 2.54 mm
- Maximum transmission distance using QwiicBus: up to 30 m
