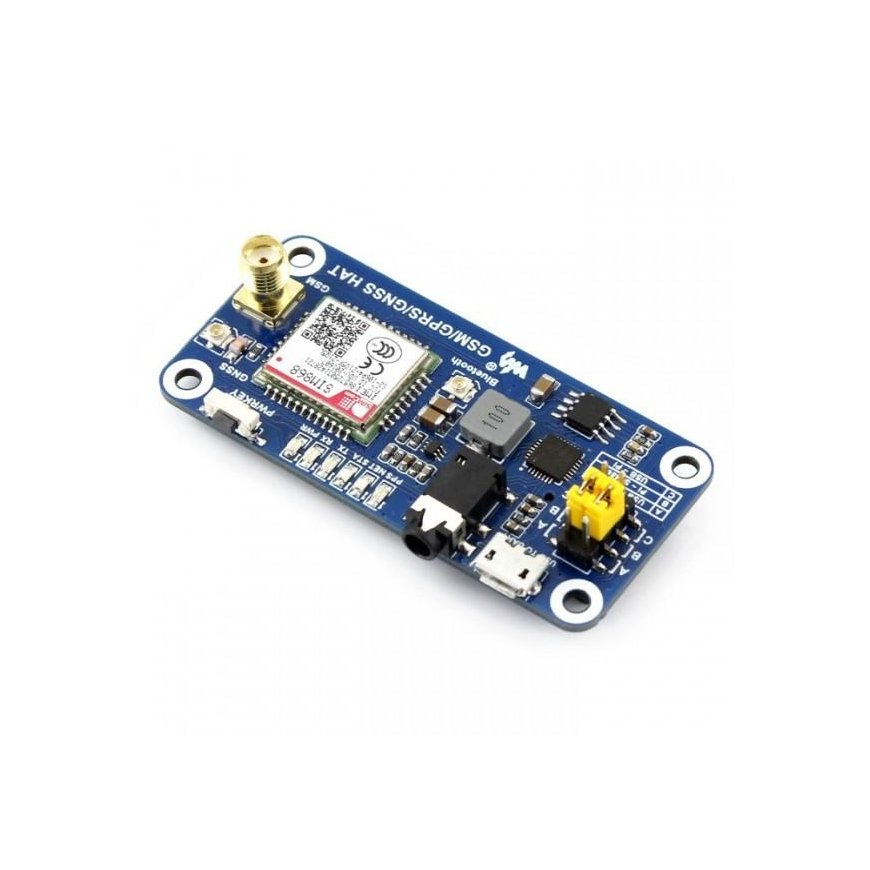

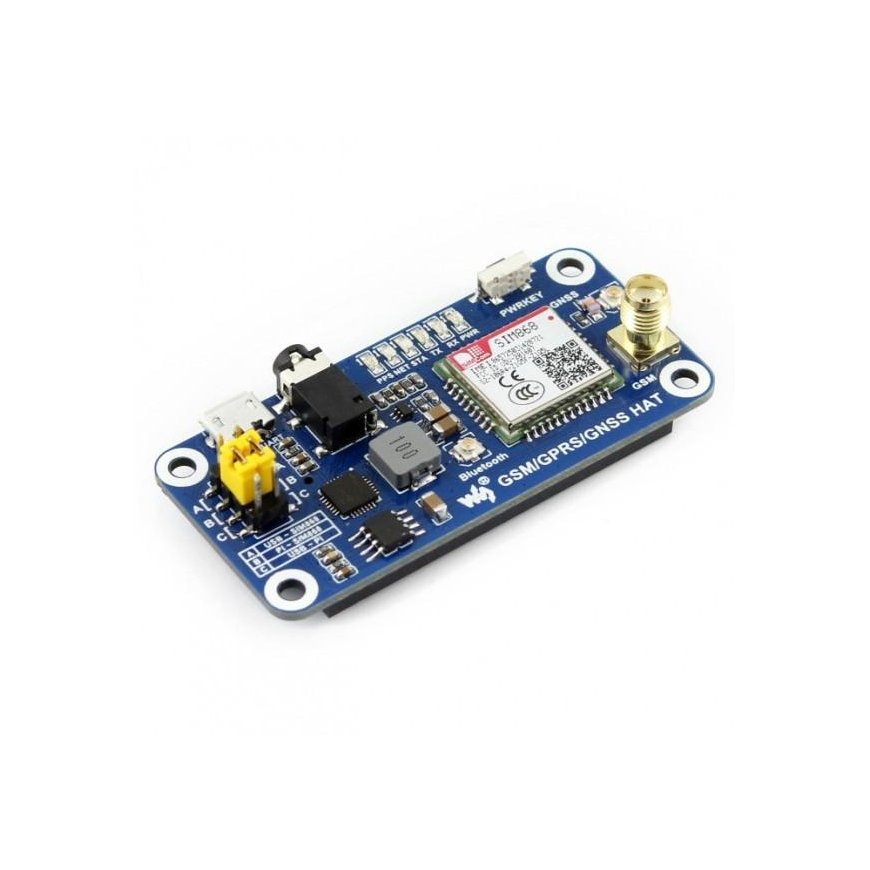

Waveshare HAT GSM/GPRS/GNSS/Bluetooth - Raspberry Pi Kit
3629105 AN-09893
4779044516018
Tarneaeg 9-14 t.p.
Kõik toote kohta
Waveshare HAT is a Raspberry Pi add-on designed for low-power GSM, GPRS, GPS, GNSS and Bluetooth communication. It allows you to make and receive calls, write and receive SMS messages, use mobile Internet, use global positioning systems (GPS), communicate via Bluetooth and otherwise adapt the capabilities of a regular phone to the Raspberry Pi microcomputer. The LEDs on the module allow you to visually check its status. The kit includes a user manual with application examples and explanations.
Technical data:

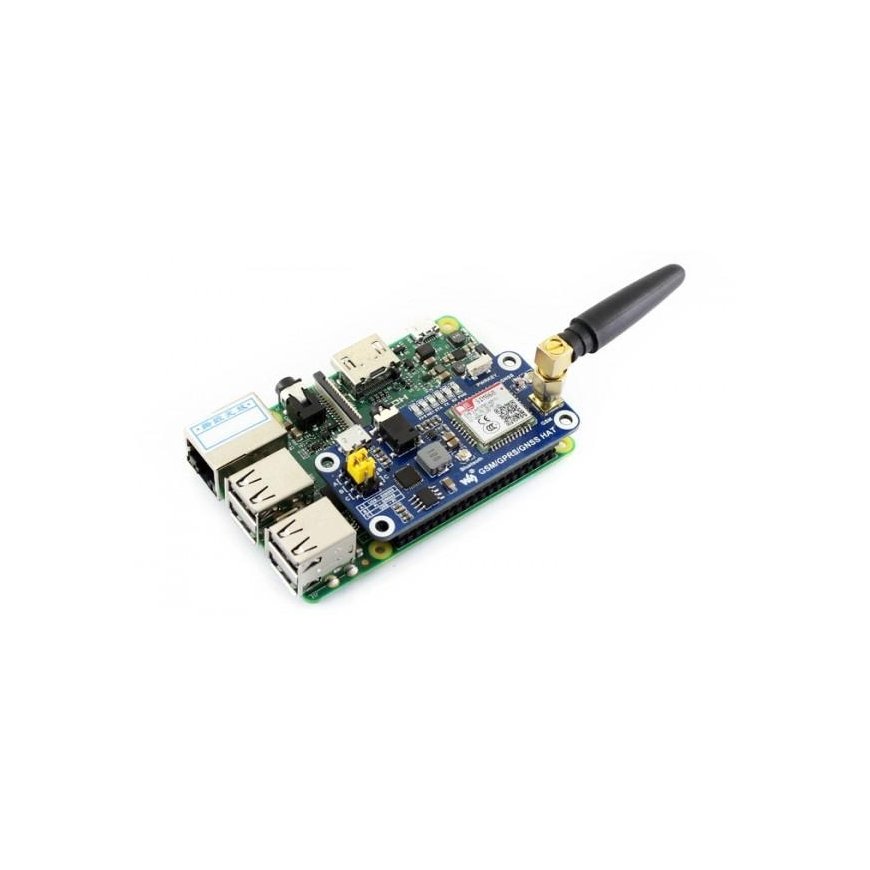

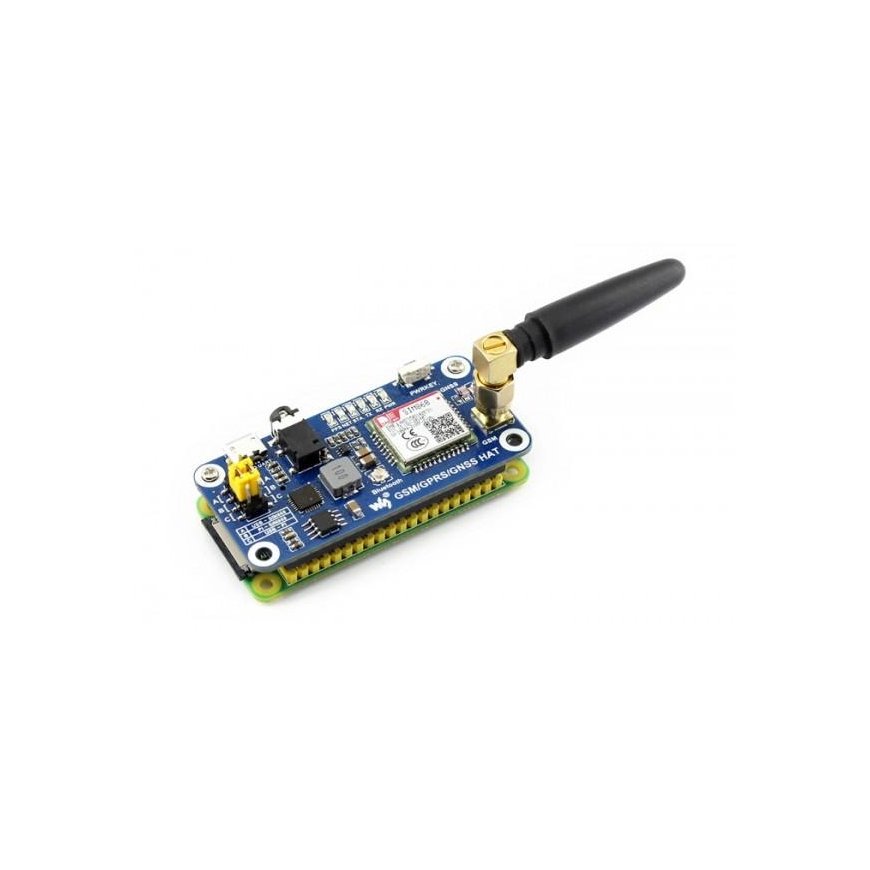

● Suitable for: Raspberry Pi 2B/3B/Zero/Zero W microcomputers
● Supports: SMS, calls, GPRS, DTMF, HTTP, FTP, MMS, email, etc.

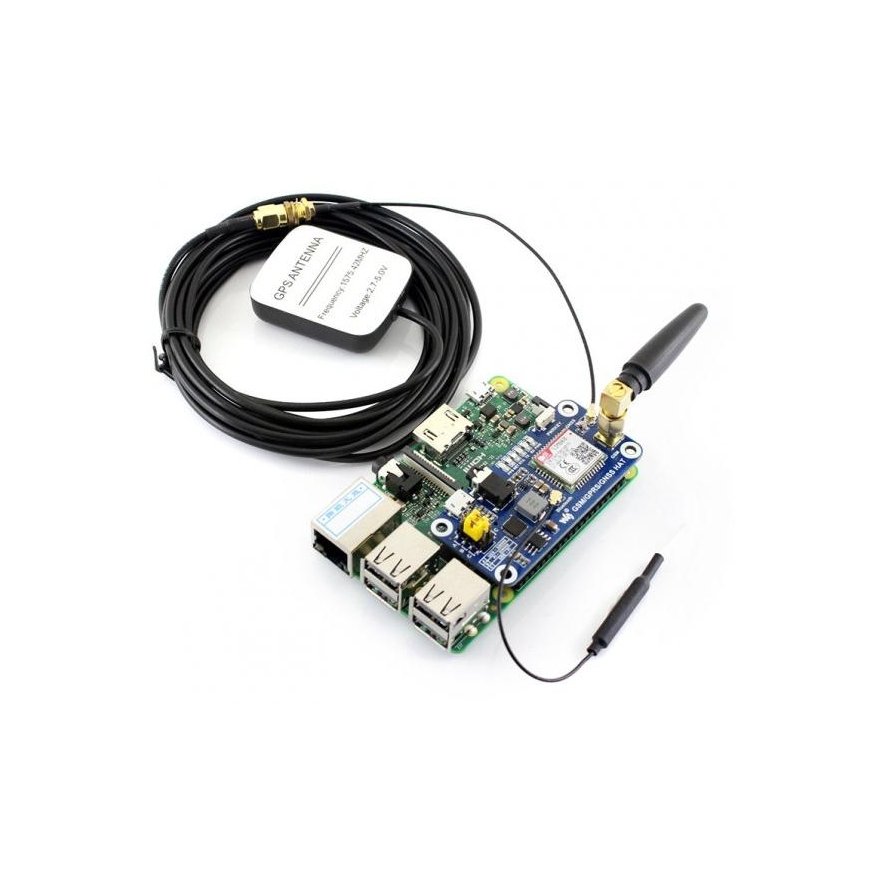

● Positioning systems: GPS, COMPASS, Glonass, LBS, omni-positioning
● Bluetooth 3.0
● Built-in USB to UART conversion
● 1.8V/3V SIM slot
● Automatic data rate setting (1200bps ~115200bps)
● Supports SIM application toolkit: GSM 11.14 Release 99
● Power supply voltage: 5V DC
● Operating temperature: -40°C ~ 85°C
● Dimensions: 30.2mm x 65mm
References and application:
● Manufacturer's description
● User manual
