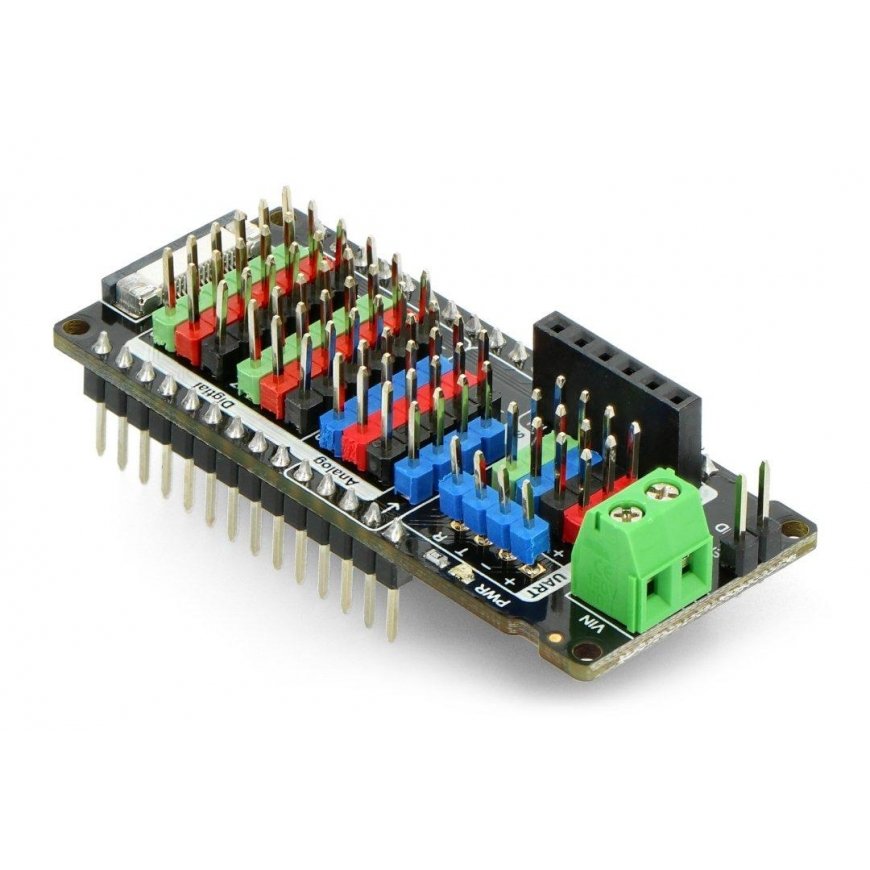

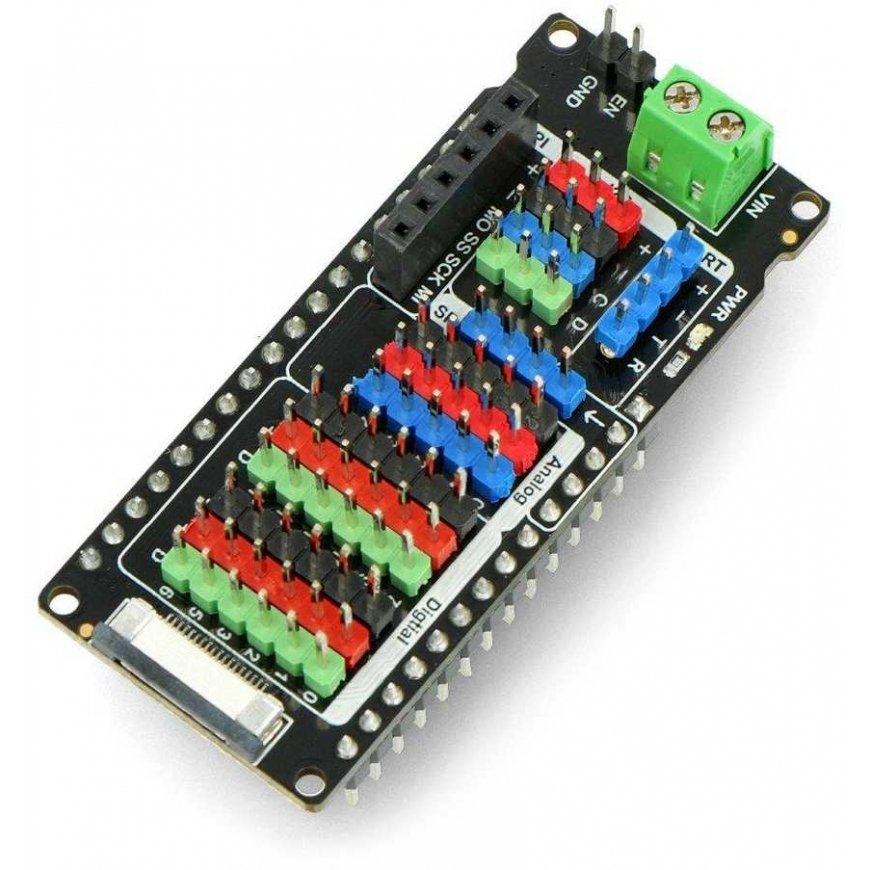

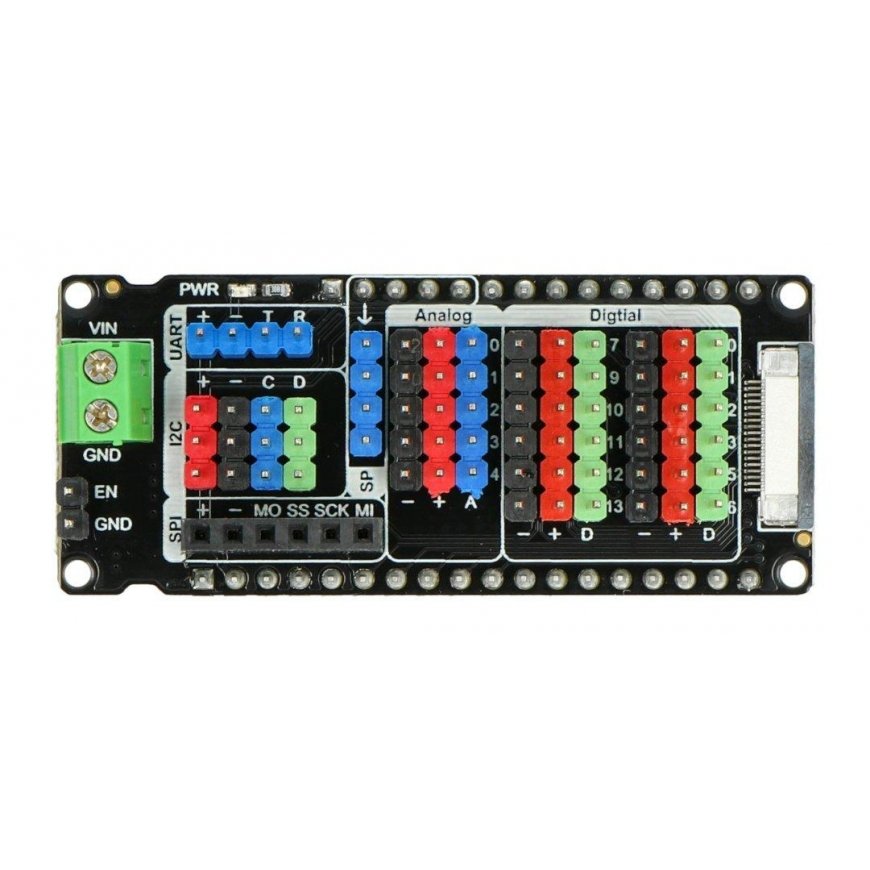

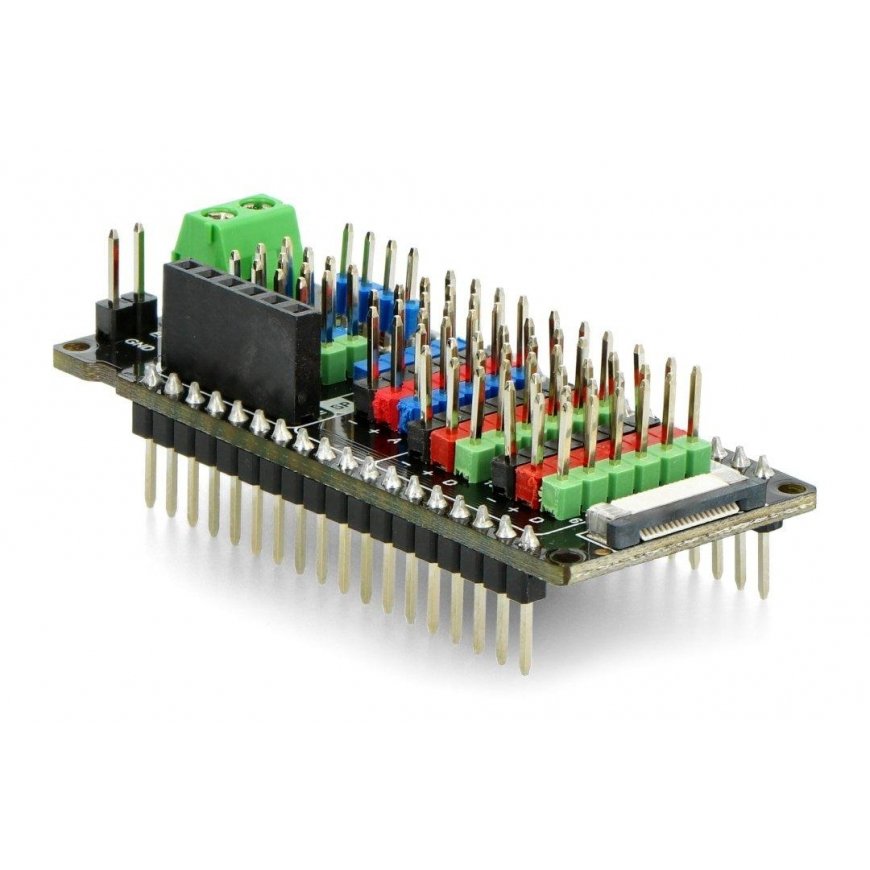

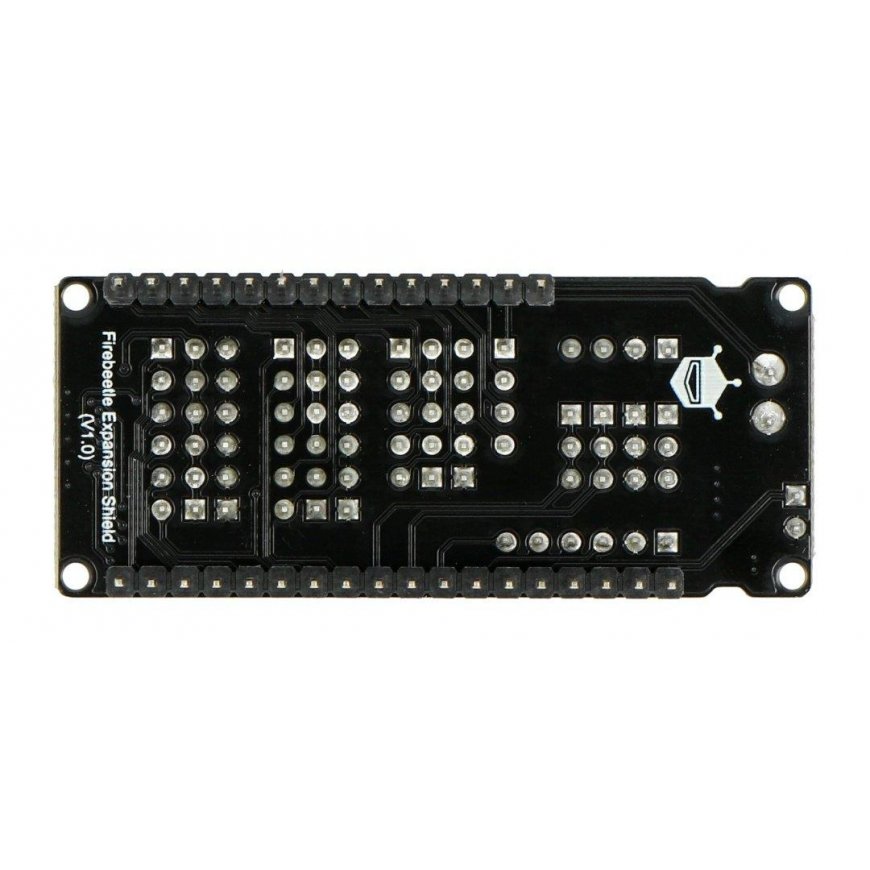

Gravity - I/O board - FireBeetle M0 and ESP32-E expansion - DFRobot DFR0762
19.00 €
3629074 AN-20375
5903351246323
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
The expansion provides a convenient connection between DFRobot Gravity sensors and the FireBeetle 2.0 series. It offers the most commonly used ports, including digital, analog, I2C, UART, SPI and others. All pins are made as socket connectors, so no additional soldering is required. The I/O board also has a power supply port with a voltage range of 3.3V to 5.5V, with a PH2.0 connector, making it perfect for mobile projects.Main features:
- Support for FireBeetle 2.0 series motherboards, including M0 and ESP32-E (does not work with the main FireBeetle series)
- Pin sequencing support for Gravity series modules
- Integrated SD card module support
- GDI display interface support
- Possibility to connect an external power supply
- Equipped with a power pin to turn off power from the board
- No soldering required
- Plug & Play
- Pinouts grouped by color
- 12 digital ports
- 5 analog ports
- 3 I2C ports (parallel)
- 1 UART port
- 1 SPI port
- GDI display interface
- Screw connection for external power supply
- Board dimensions: 60 x 25.4 mm
- Mounting hole diameter: 2 mm
