Toote toon ja tegelik värvus võivad erineda pildil kujutatust, kuna pildid on illustratiivse iseloomuga. Samuti on toote kirjeldus üldine ega pruugi sisaldada kõiki toote omadusi.

Sub-micro DC motor 136:1 500 RPM Pololu 2358

31.86 €
3627049

AN-02376

5904422367800

Tarneaeg 11-18 t.p.

Kauba vastu huvi?
(Lugege teenusetingimusi)

Kõik toote kohta

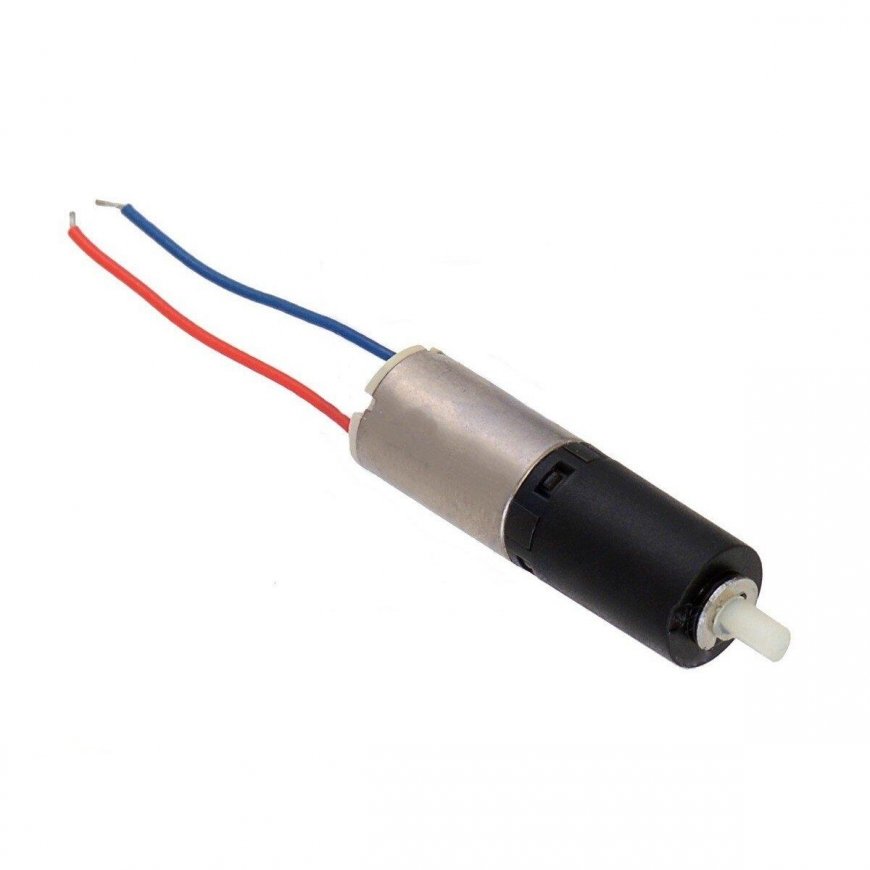

Small, cylindrical, brushless motor with planetary gear 136: 1, driven by 3 - 6 V. The rotation speed is 500 rpm, the torque is 0.6 kg * cm. The outer diameter is 6 mm, the length is 16 mm, and the total weight is 1.3 g. This is an excellent motor for miniature robots and small mechanisms.

Specification:

  • Supply voltage: 3 - 6 V
  • Average current consumption (6 V): 45 mA
  • Maximum power consumption (6 V): 400 mA
  • Gearbox type: planetary - plastic
  • Gear ratio: 136:1
  • Speed: 500 rpm
  • Torque: 0.6 kg*cm
  • Outer diameter: 6 mm
  • Length: 18.4 mm
  • Shaft diameter: 2 mm
  • Weight: 1.3 g
