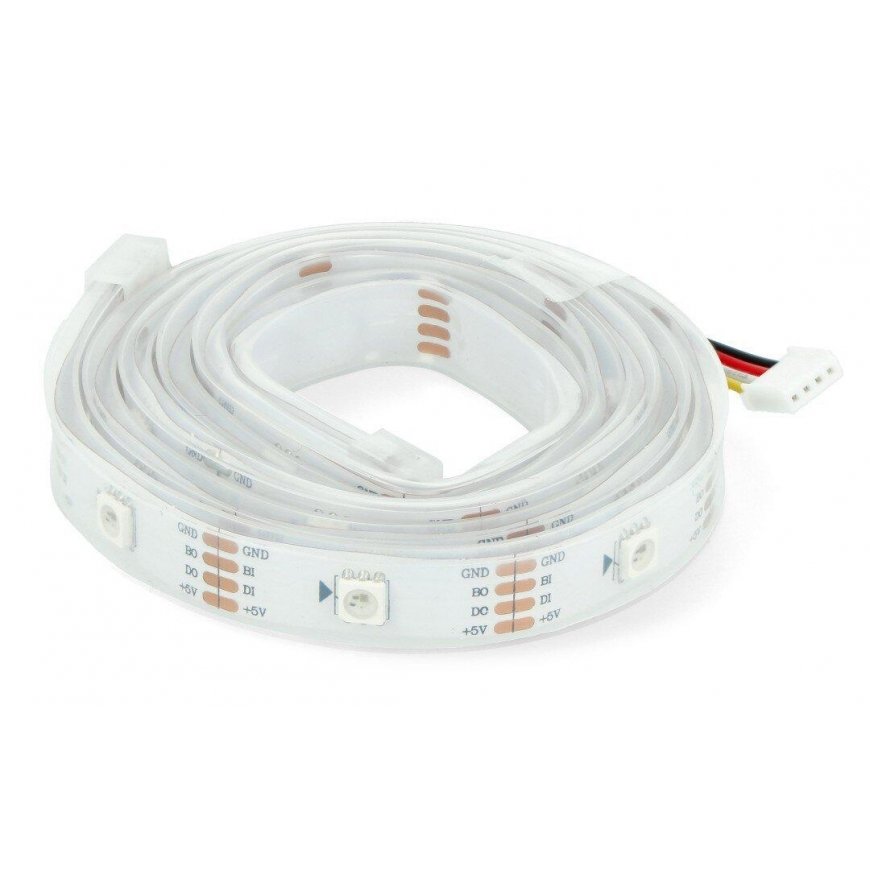

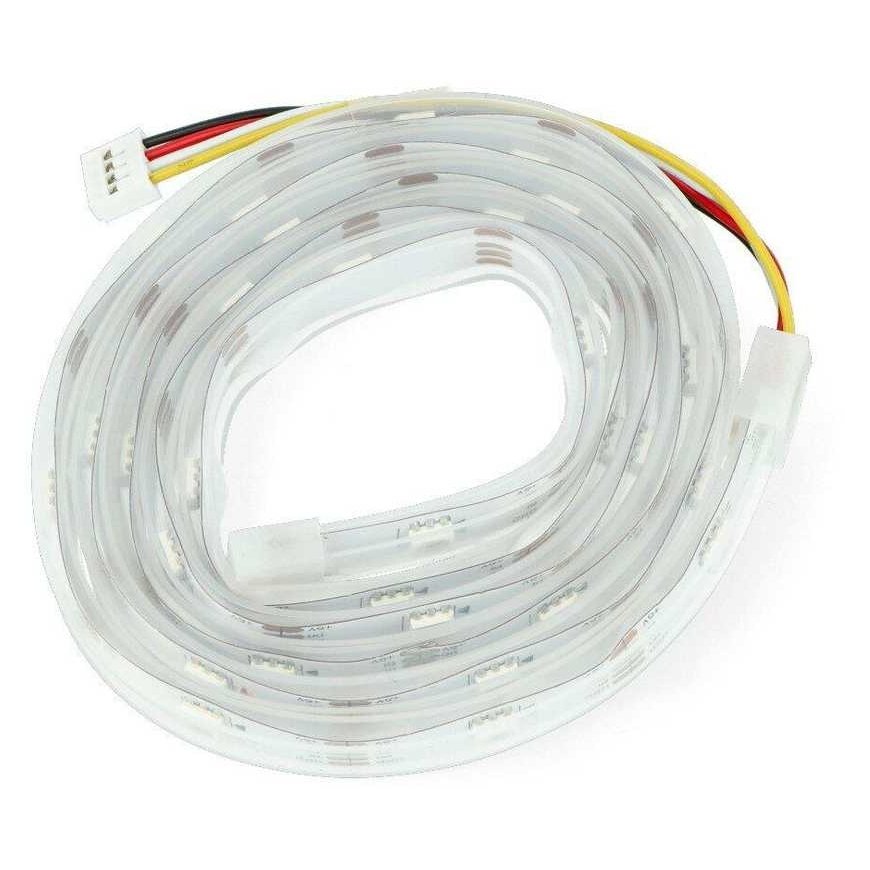

Seeed Studio Grove RGB LED strip WS2813 digital addressable IP65 30 LED/m 9W/m 5V 1m

Kõik toote kohta

RGB LED strip with Grove connector is equipped with digital, individually addressable WS2813 diodes, the density of which reaches 30 pcs. around the perimeter. The diodes were sealed with a silicone layer, ensuring water resistance in the IP65 class. The strip is powered by 5V and consumes 9W. One microcontroller pin (e.g. Arduino) is enough to control the module. The strip can display a 24-bit color palette.
Main features:

• Grove compatible - simply connect the LED strip to the Seeeduino or Arduino BaseShield via the Grove cable
• WS2813 is an improved version of WS2812, which is more stable and robust
• Electronic components are integrated into the LEDs
• The band is covered with a removable silicone case
• LED type WS2813B IC, 5050 LED
• IP class: IP65
• Colorful RGB, 16777216 colors, 256 brightness levels


Specification:

• Supply voltage: 5V
• Power consumption: 1.8 A/m / 0.06 A/diode
• Power consumption: 9 W/m / 0.3 W/diode
• Scanning frequency: 2 kHz
• Maximum data transfer speed: 800 kB/s
• Reset time: 280 us (typically 300 us)
• Diode life: 50000 h
• Operating temperature: -40°C to 70°C
• Storage temperature: -50°C to 80°C
• Dimensions: 1000x12x4mm
• Weight: 41g
