Seeed Studio Grove, 125kHz RFID reader with antenna
29.00 €
3615086 AN-04417
5903351246675
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

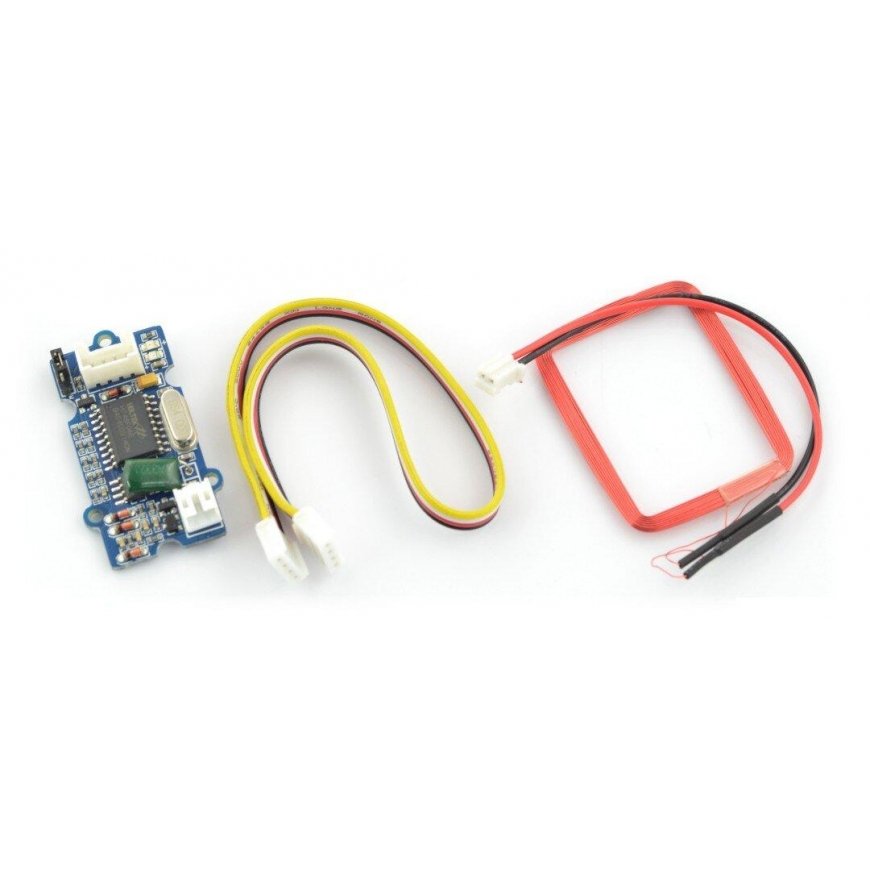

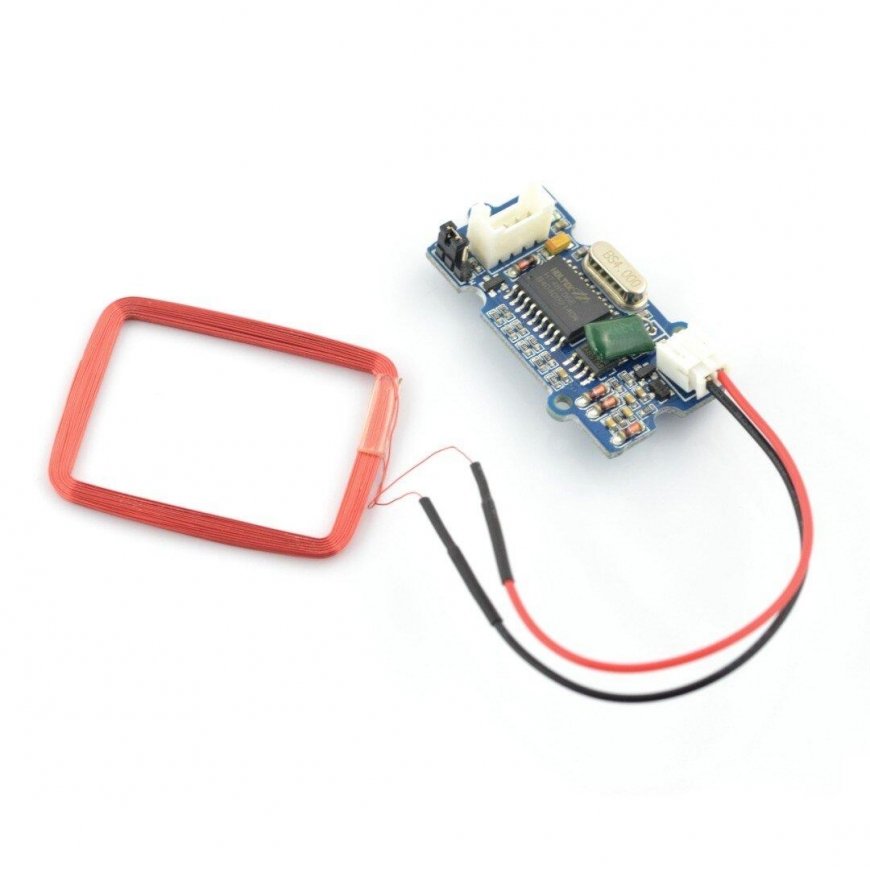

Easy-to-use module RFID reader with UART and Wiegand interface. Works with UEM4100 RFID modules. Includes an antenna that allows interaction up to 7 cm. Includes a cable adapted for Seeedstudio Base Shield v2.0.
Specifications:
- Supply voltage: 4.75 V to 5.25 V
- Operating frequency: 125 kHz
- Selectable output format: UART or Wiegand (jumper selection)
- UART: 9600 baud, 8 data bits, 1 stop bit, no check bits
- Wiegand: 26-bit Wiegand format, 1 parity bit, 24-bit data and 1 bit odd parity
- Maximum reading range: 7 cm
- Equipped with 4-pin Grove connector, 2 mm
- Dimensions: 40 x 20 mm
