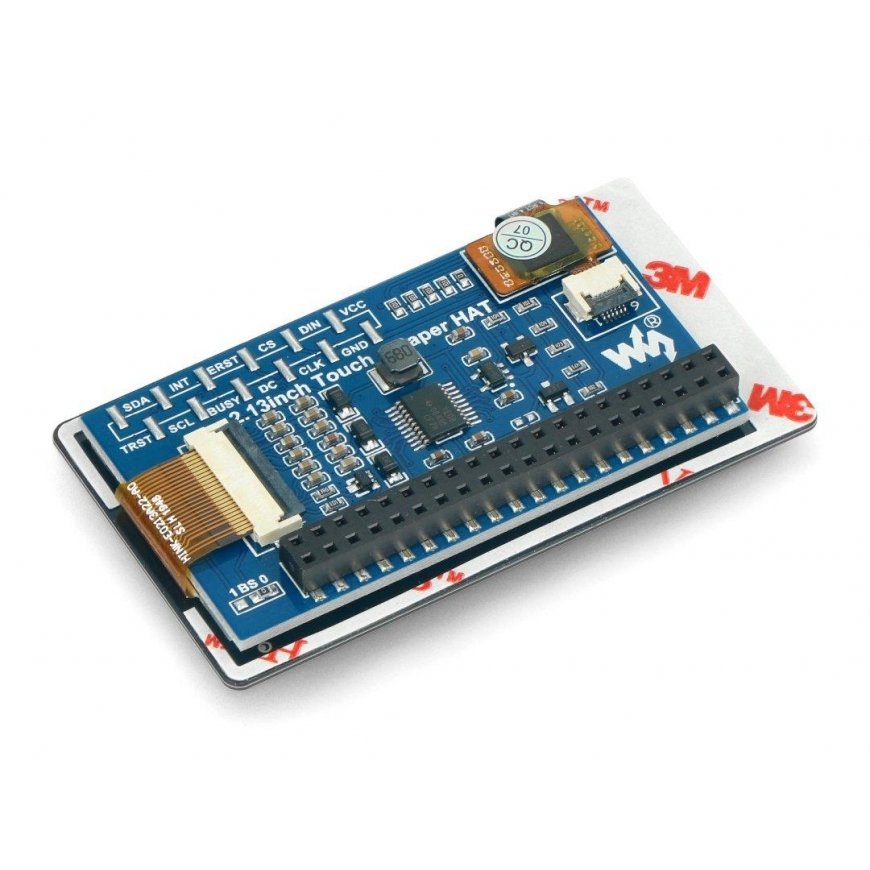

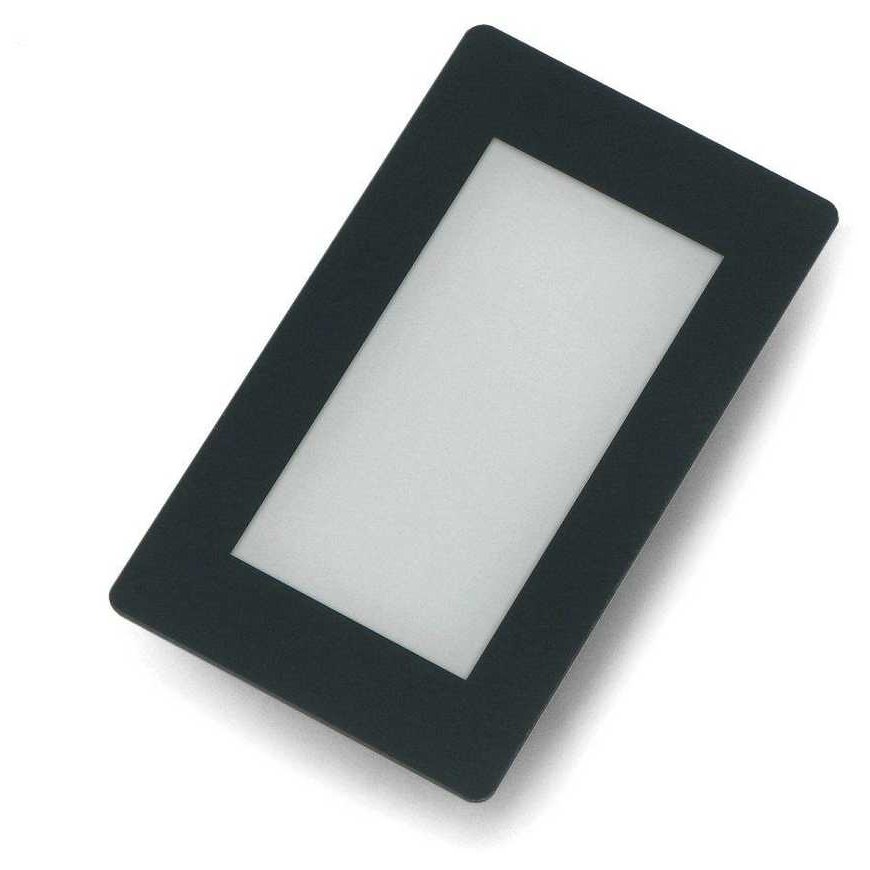

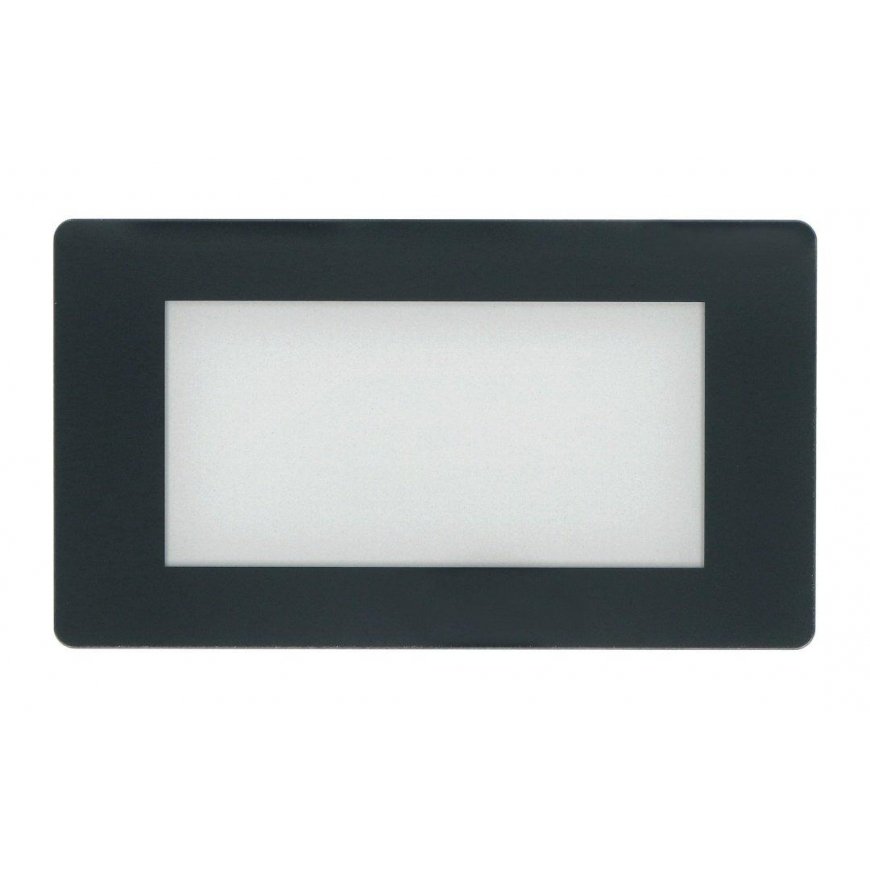

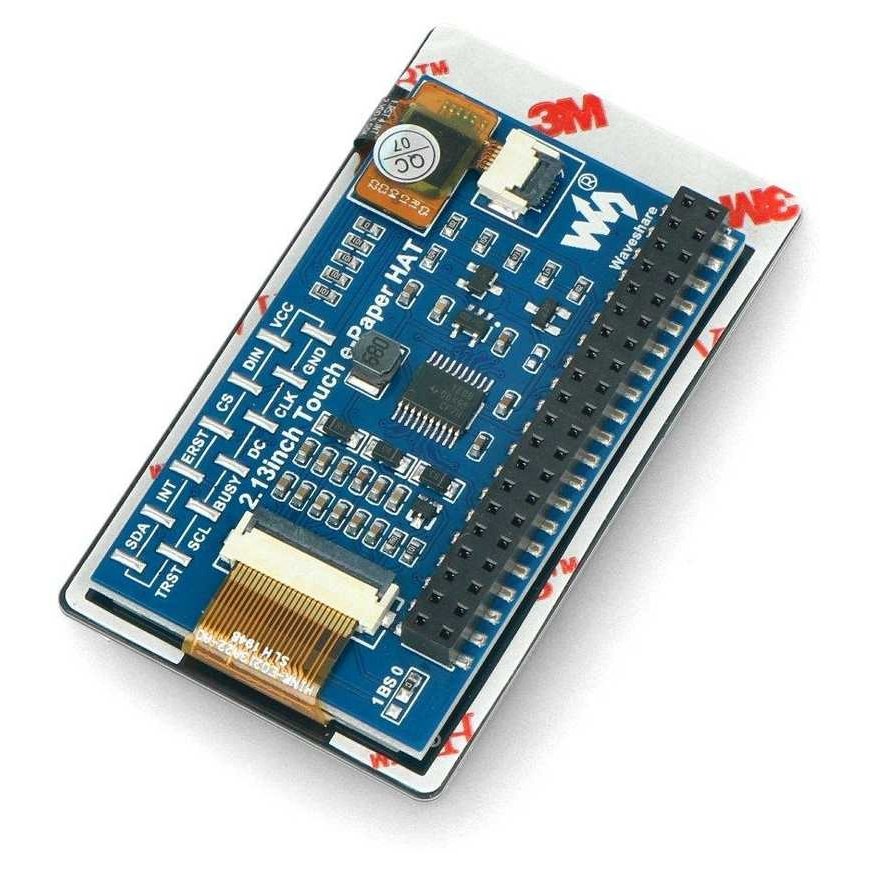

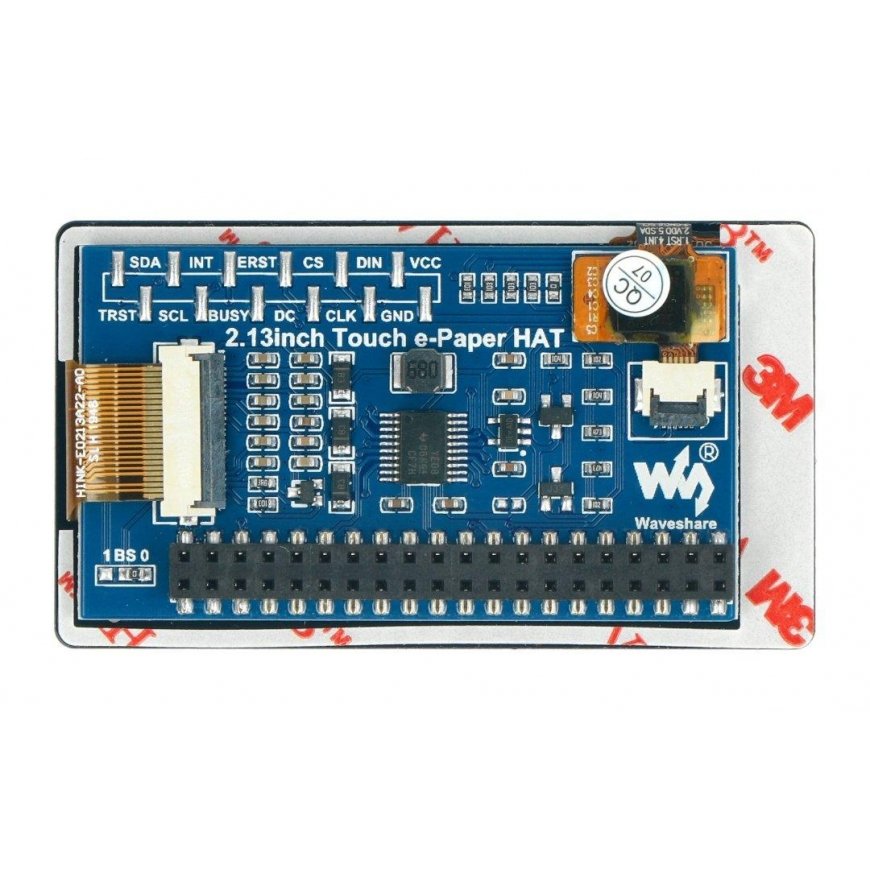

E-paper touch screen, 2.13" 250x122px, black and white, Raspberry Pi, Waveshare 19493
39.00 €
Kuumakse alates 1,90 €
3609555 AN-19360
5904422371784
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
Raspberry Pi add-on in the form of a capacitive touch e-paper screen. This type of screen uses electrophoretic microcapsule technology to display images. This provides a wide viewing angle and a properly contrasted and clear image. The screen resolution is 250x122px, and the diagonal is 2.13". The Waveshare add-on can also be used with Arduino or STM32.Main features:
- Made using e-paper technology, the image is displayed in two colors
- The presented image does not contain blue glow, which has a positive effect on the user's vision
- Passive reflective screen providing a wide viewing angle of up to 180°
- Durable screen made of tempered glass
- Can be used as a reader
- Ultra-low power consumption and display of the last reading value even when switched off
- Supports power-on using a user-defined gesture
- Uses SPI interface to connect to controller boards such as Arduino or STM32
- Type: set-top box - capacitive screen
- Technology: e-paper
- Touch screen: yes
- Touch points: 5
- Supply voltage: 3.3V
- Interface: SPI 3-wire / SPI 4-wire
- Screen resolution: 250x122px
- Diagonal: 2.13"
- Pixel size: 0.194 x 0.194 mm
- Colors shown: black and white
- Grayscale: 2
- Full refresh time: 2s
- Refresh power: 26.4 mA
- Viewing angle: >170°
- Screen dimensions: 48.55 x 23.7 mm
- Module dimensions: 69.15 x 38.9 mm
