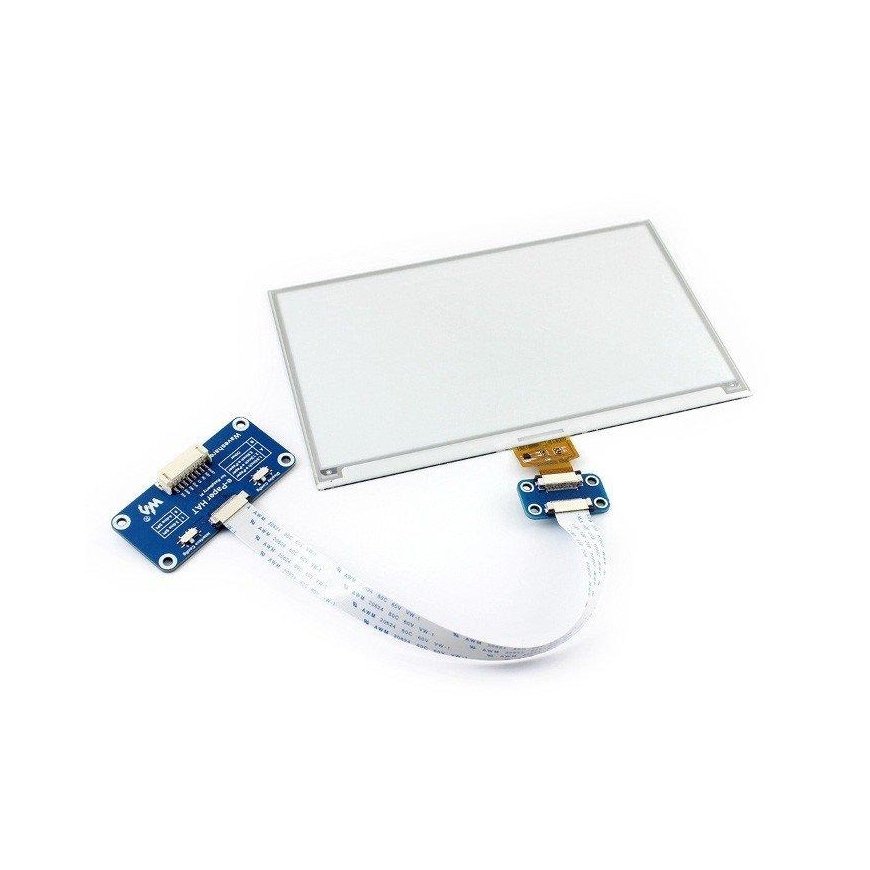

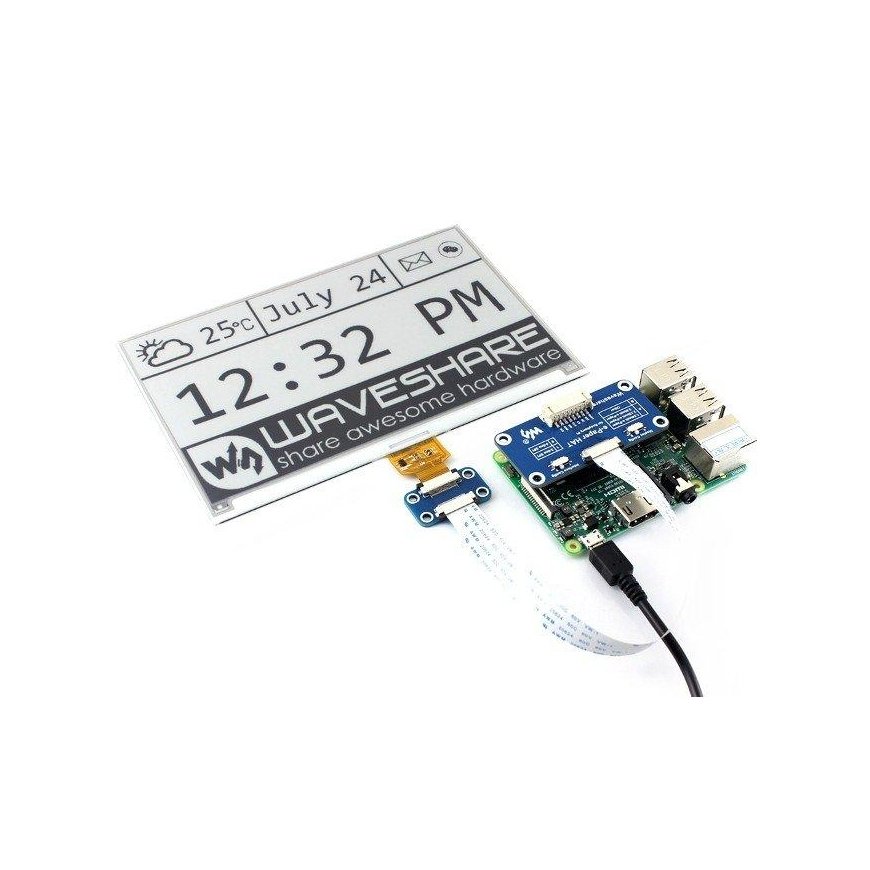

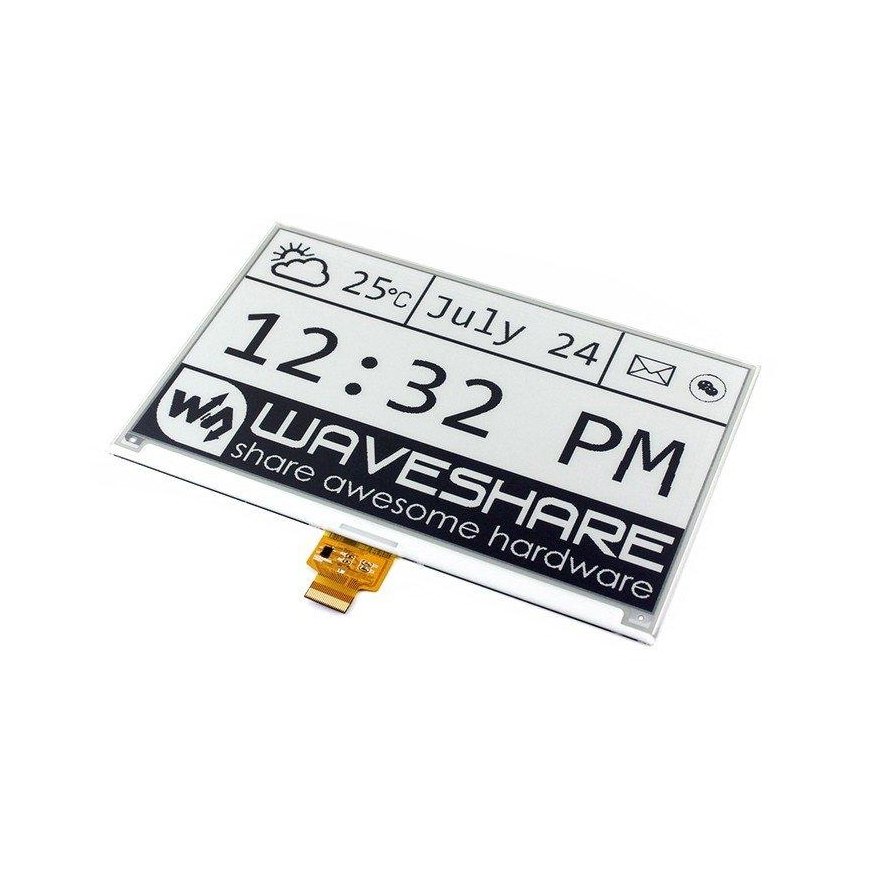

E-paper E-Ink 7.5 800x480px, display with attachment for Raspberry Pi, Waveshare 13504
99.00 €
Kuumakse alates 3,45 €
3608267 AN-09891
5904422338558
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
E-paper screen with a diagonal of 7.5", uses E-Ink technology, resolution 800x480px. Operates with 3.3 V or 5 V voltage. Intended for use with the main module. Interacts via SPI. The kit includes an add-on for Raspberry Pi.
Specifications:
- Supply voltage: 3.3V or 5V
- Power: 38 MW
- Interface: SPI
- External dimensions: 170.2 x 111.2 mm
- Screen size: 163.2 x 97.92 mm
- Pixel: 0.205 x 0.204 mm
- Resolution: 800x480px
- Screen color: black, white
- Full refresh time: 5s
- Refresh power: 38 mW
- Standby power: up to 0.017 mW
- Grayscale level: 2
- Viewing angle: 170°
