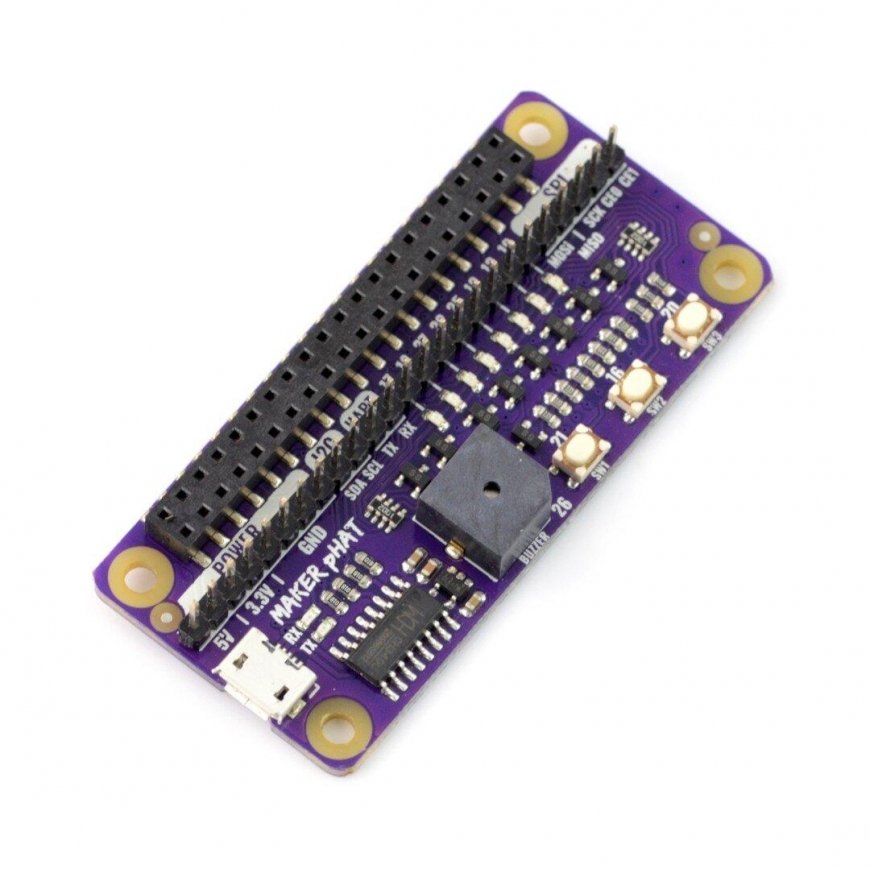

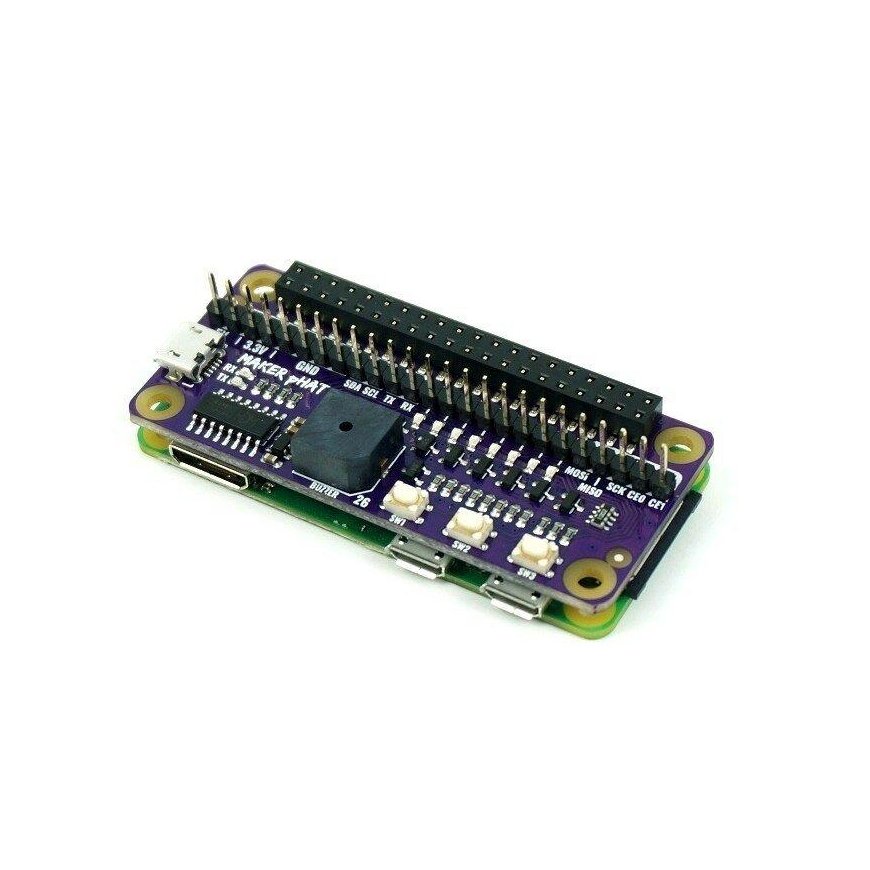

Cytron Maker pHAT - GPIO expansion for Raspberry Pi
29.00 €
3606920 AN-13451
5904422377281
Tarneaeg 8-15 t.p.
Kauba vastu huvi?
Kõik toote kohta

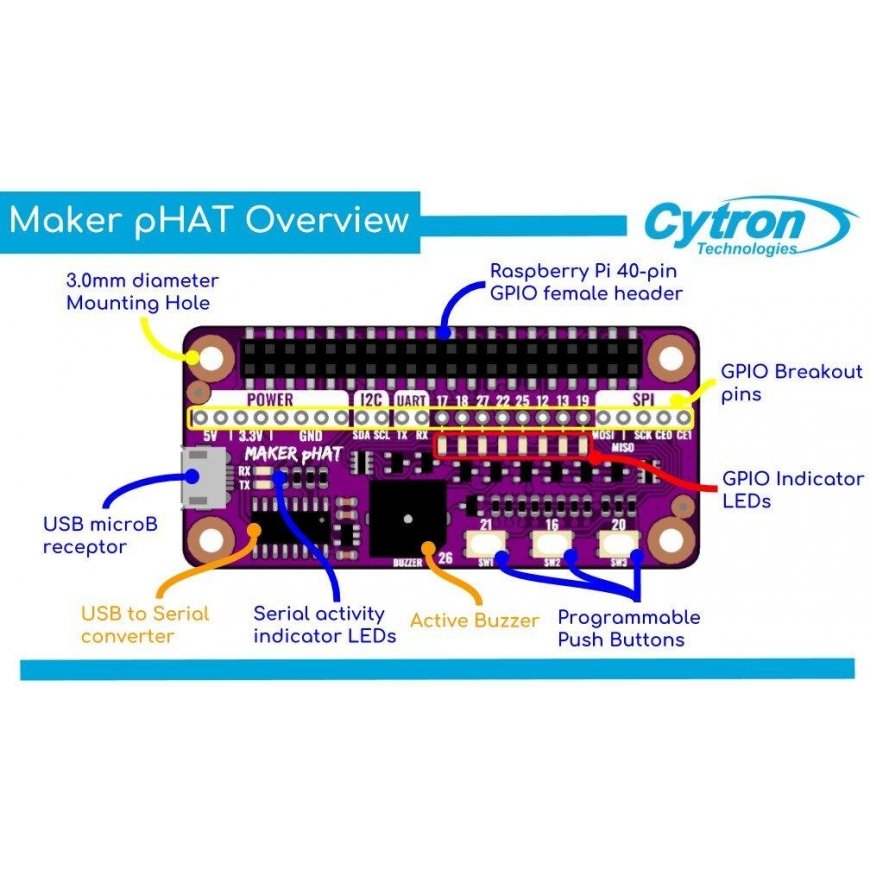

The PHAT for Raspberry Pi has labeled GPIO pins for easy identification of individual pins, three programmable buttons, GPIO port status LEDs, and an active buzzer.Main features:
- Raspberry Pi Zero size

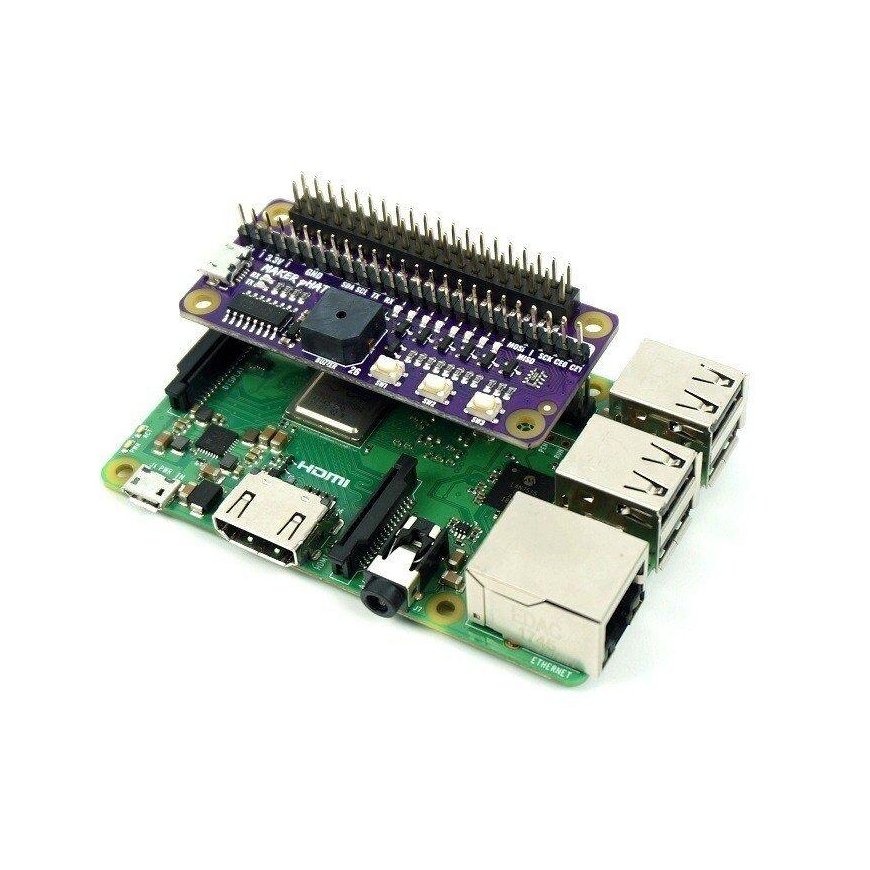

- Compatible with Raspberry Pi 3B+ / 3B and Raspberry Pi Zero / W / WH
- Standard Raspberry Pi GPIO pins
- LED array for selected GPIO pins (GPIO 17, 18, 27, 22, 25, 12, 13, 19)
- 3 programmable buttons (GPIO 21, 19 and 20 must be configured as pull-up input)
- Active buzzer (GPIO 26)

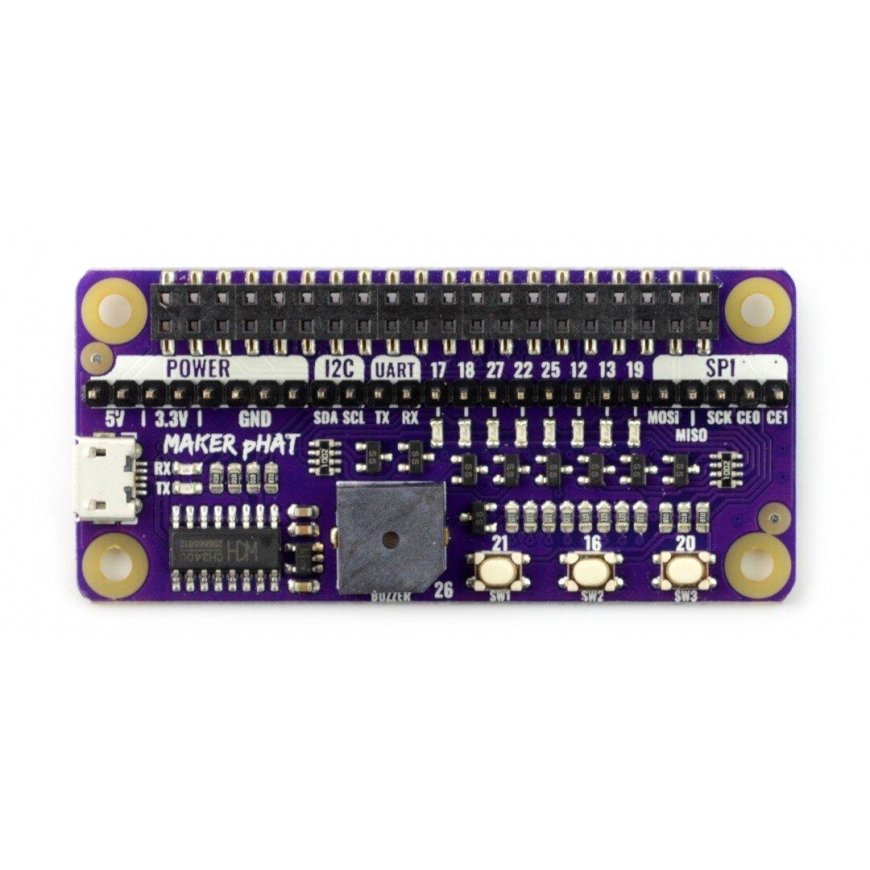

- Labeled GPIO, it contains SPI, UART, I2C, 5V, 3.3V, and GND
- MicroUSB for 5V power supply and UART interface
- Serial USB interface supported by CH340 chip
- 5V input voltage
- Purple PCB
- Maker pHAT Plug-in
- 1x gold pin strip 2x20 - pin
