Feather M0 data logger with Micro SD card reader, compatible with Arduino, Adafruit 2796
3604706 AN-06568
5904422354442
Tarneaeg 11-18 t.p.
Kõik toote kohta

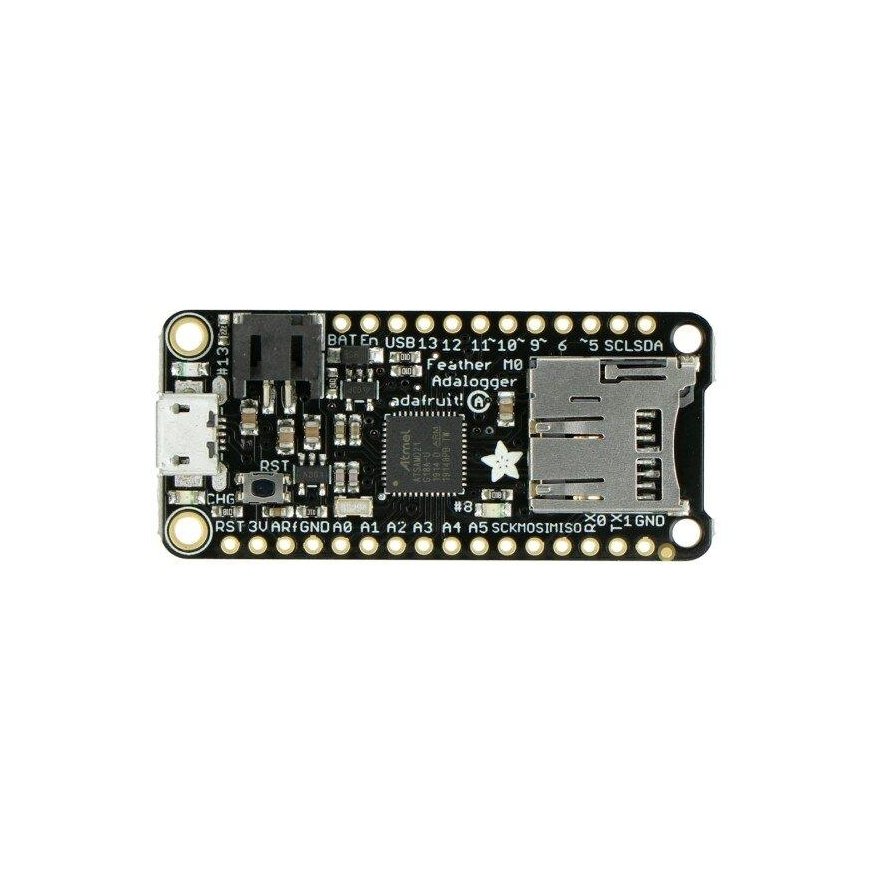

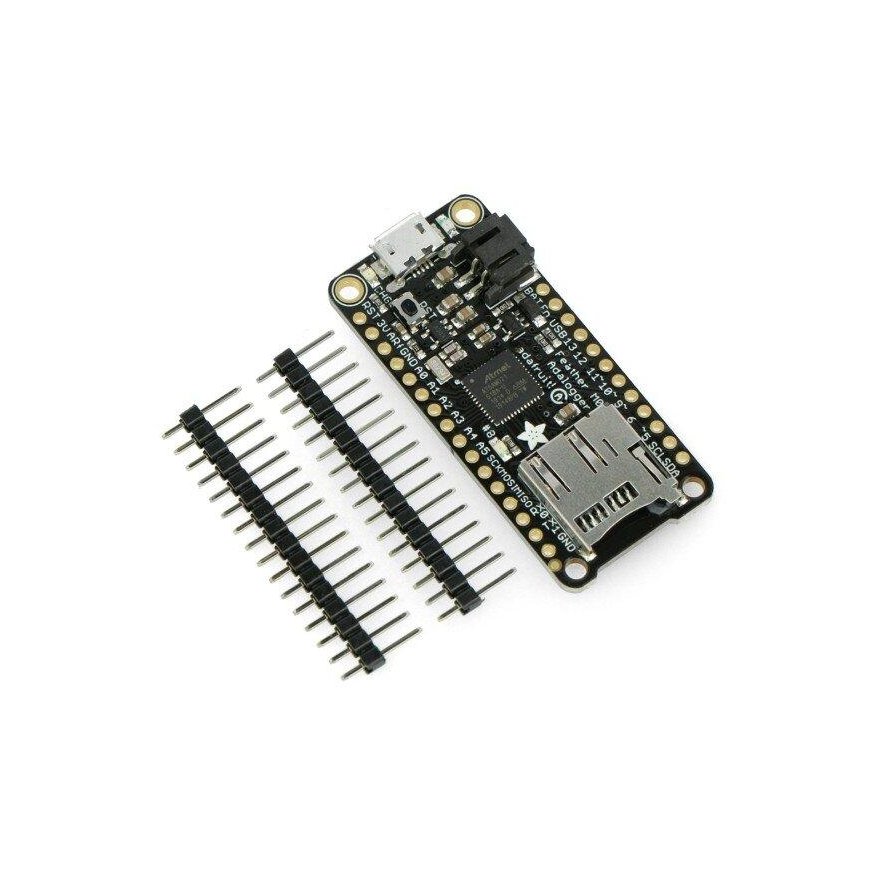

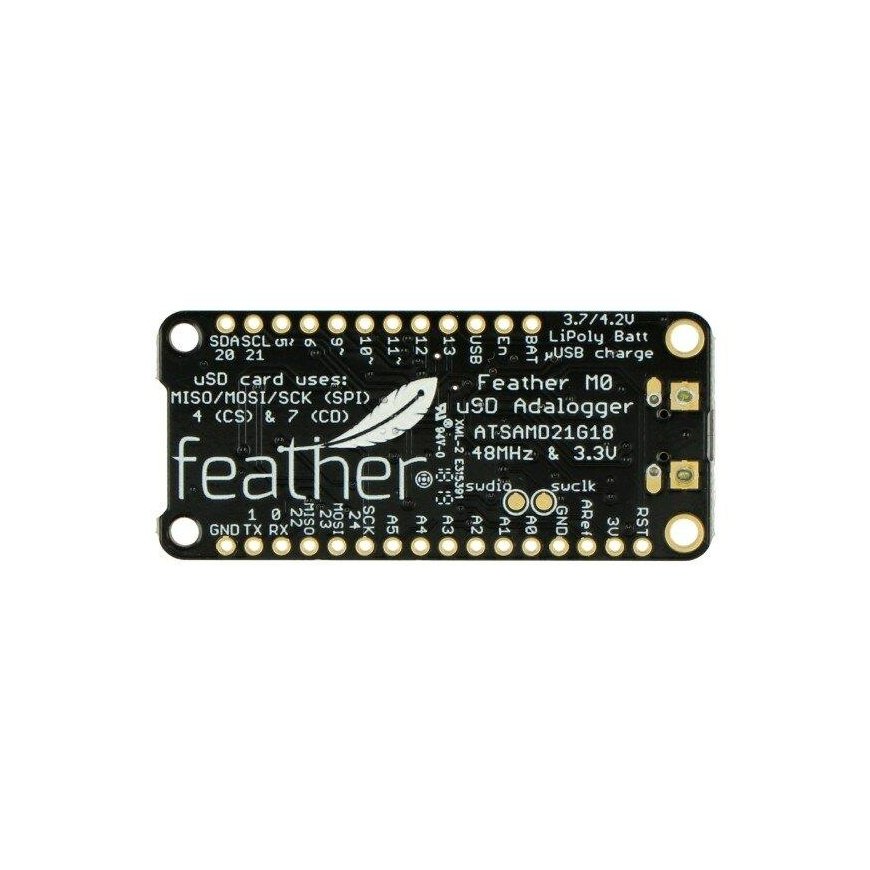

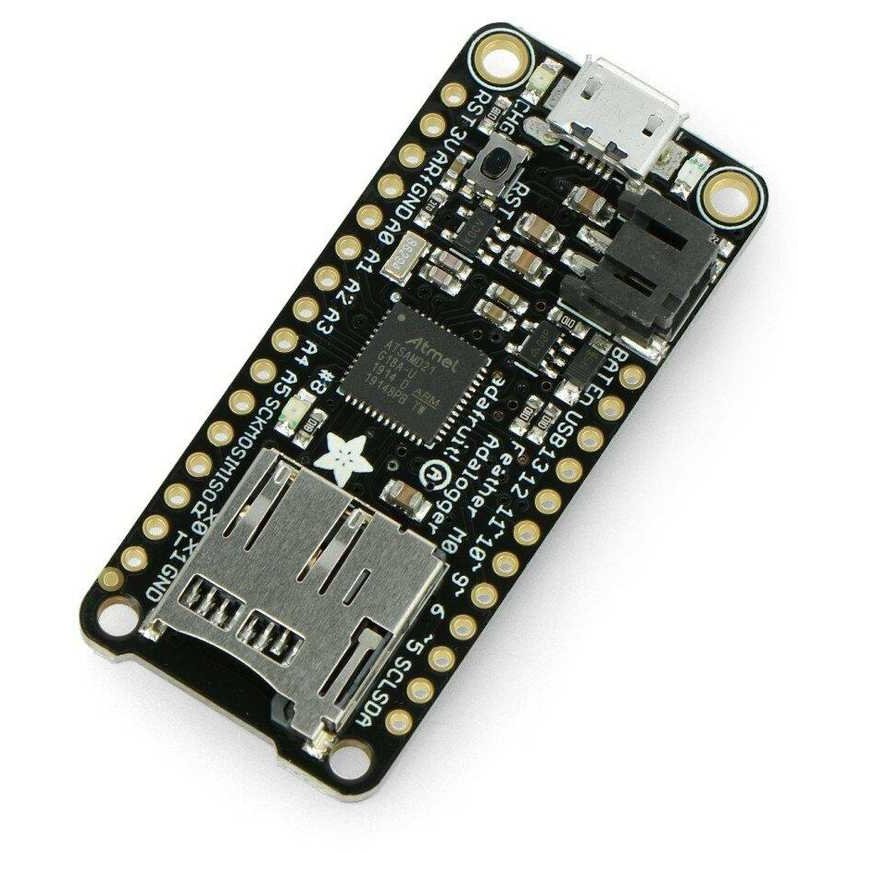

A small module of the Feather family with a 32-bit microcontroller ARM Cortex M0 ATSAMD21G18, known from the Arduino M0. Feather is designed for portable projects. Thanks to the microUSB connector and the loaded bootloader, the module can be programmed directly from the Arduino IDE. The board is small in size (51 x 23 x 8 mm), it can be powered by a USB port or a 3.7 V Li-Pol rechargeable battery. The module has a microSD memory card slot, where large amounts of data can be stored.
Specifications:
- Power supply: Li-Pol 3.7 V or USB 5 V socket
- ATSAMD21G18 ARM Cortex M0 3.3V Microcontroller:
- Flash memory: 256 KB
- SRAM: 32KB
- Clock frequency: internal oscillator 48 MHz
- Arduino bootloader installed
- Works with a modified version of the Arduino IDE
- MicroSD card slot for recording and reading data
- MicroUSB connector for programming
- Built-in 3.3V voltage regulator with current supply up to 500mA

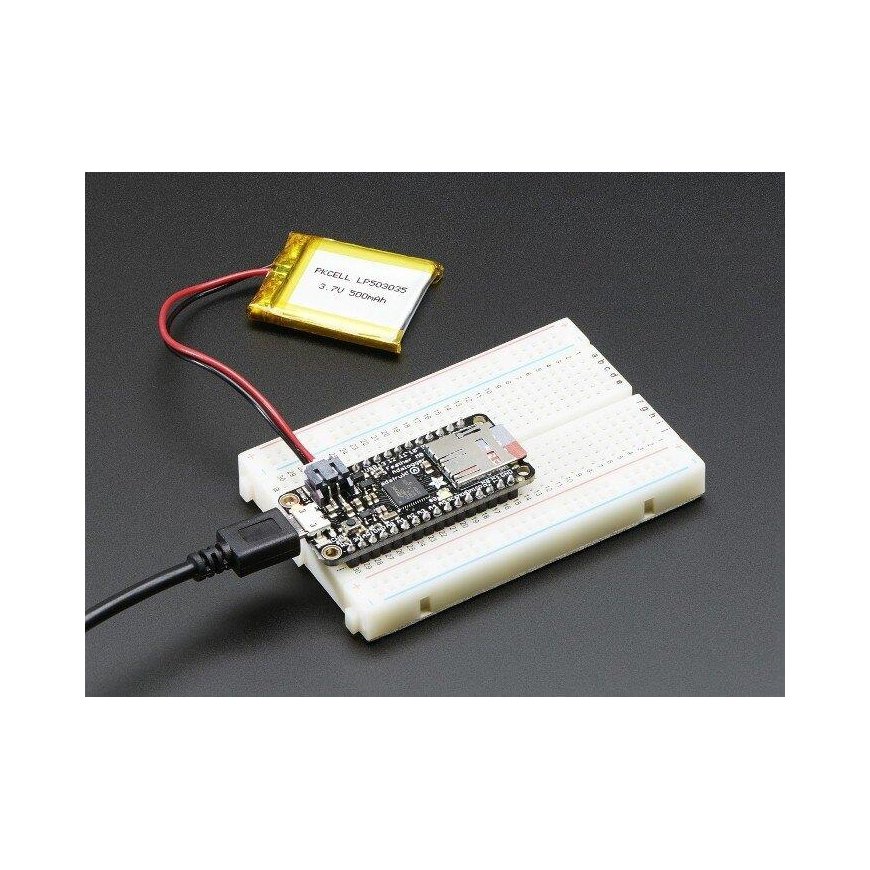

- Powered by USB port or using a 3.7 V Li-Pol battery
- 20 GPIO pins
- 8 PWM pins
- 10 analog inputs (one for battery voltage measurement)
- Built-in Li-Pol charging module 100 mA with LED indicator that informs about the status
- LED for pin 13
- Reset button
- Dimensions: 51 x 23 x 8 mm
- Weight: approximately 5.3 g
