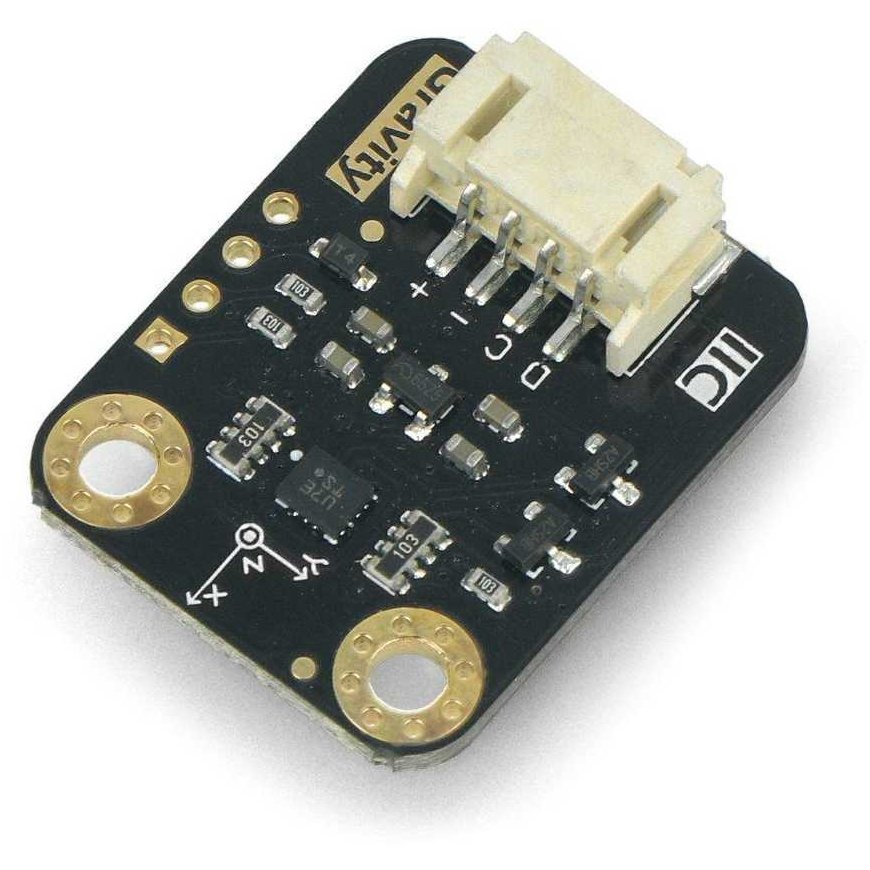

Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250

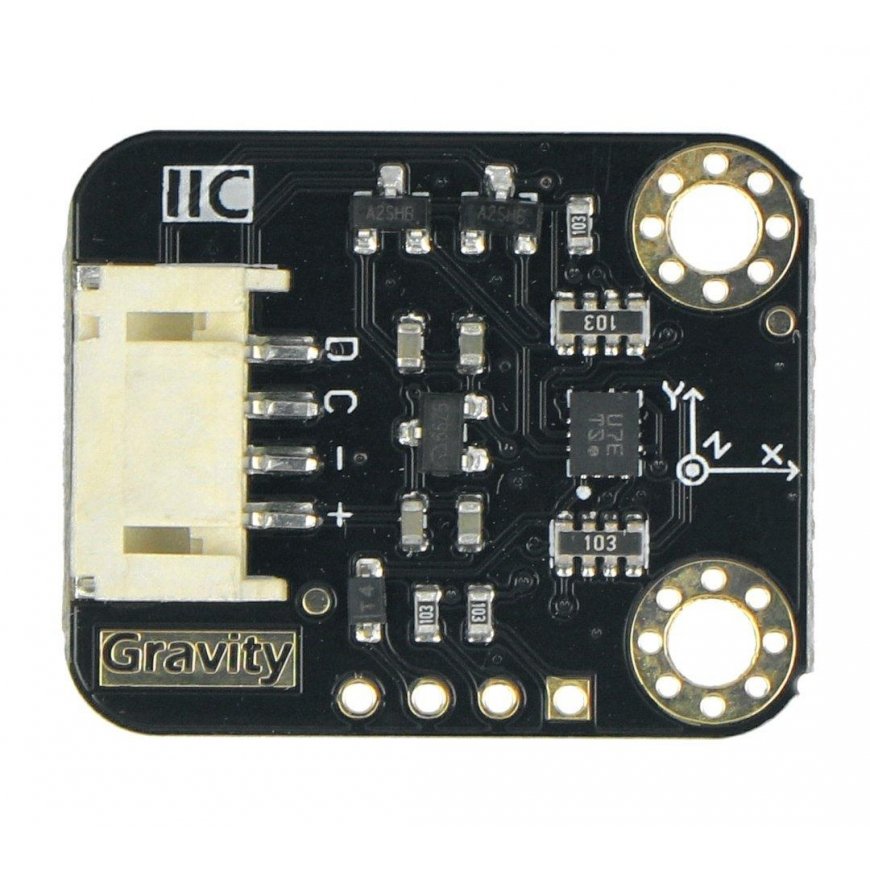

Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250 – 2

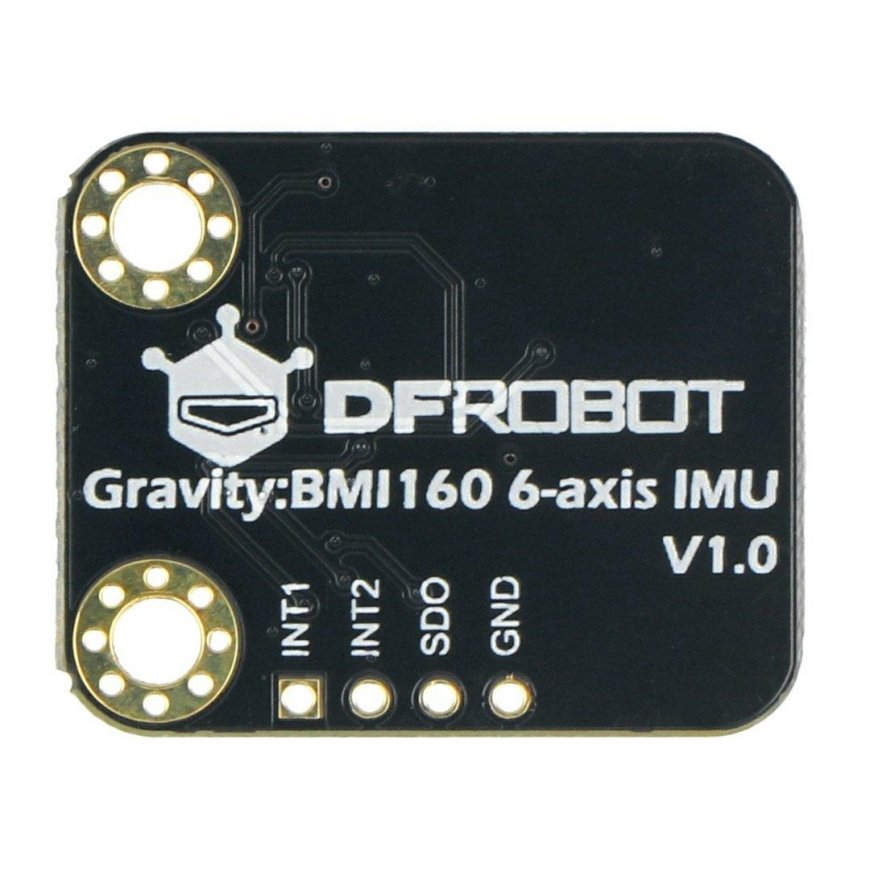

Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250 – 3
Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250 – 4
Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250
Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250
Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250
Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250
Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250
Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250
Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250
Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250
Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250
Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250
Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250
Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250

Toote toon ja tegelik värvus võivad erineda pildil kujutatust, kuna pildid on illustratiivse iseloomuga. Samuti on toote kirjeldus üldine ega pruugi sisaldada kõiki toote omadusi.

Gravity, BMI160 6DoF IMU, 3-axis accelerometer and gyroscope, DFRobot SEN0250

23.15 €
3604459

AN-19380

5904422346485

Tarneaeg 11-18 t.p.

Kauba vastu huvi?
(Lugege teenusetingimusi)

Kõik toote kohta

6-axis inertial sensor with Bosch BMI160 MEMS chip. The module integrates a 16-bit 3-axis accelerometer and a 3-axis gyroscope. It is used to measure linear acceleration ± 2 g / ± 4 g / ± 8 g / ± 16 g and angular velocity ± 125 dps / ± 250 dps / ± 500 dps / ± 1000 dps / ± 2000 dps. It is characterized by low power consumption and high reading accuracy. Used as an additional element for smartphones, tablets and other mobile devices. It can be used to count steps, as a fixer during running and other exercises. It has a built-in LDO power management circuit, operates in a voltage range from 3.2 V to 6 V. Uses the I2C bus for interaction with the controller module.

Main features:
  • 6-axis motion sensor with Bosch BMI160 MEMS chip, which is a combination of a 3-axis accelerometer and a 3-axis gyroscope
  • Low energy consumption with high measurement accuracy
  • Integrated LDO for power management
  • Compatible with 3.3V and 5V controllers
  • Used for counting steps, determining acceleration, and determining incline angles
Specifications:
  • Type: 6-axis motion sensor IMU
    • 3-axis accelerometer
    • 3-axis gyroscope
  • Integrated circuit: MEMS Bosch BMI160
  • Operating voltage range: 3.2 V to 6 V
  • Current consumption: <1 mA
  • Interface: I2C
  • Connection: Gravity
  • Accelerometer measurement range: ± 2 g / ± 4 g / ± 8 g / ± 16 g
  • Accelerometer zero-g offset: ± 40 mg
  • Gyroscope measurement range: ±125 dps / ±250 dps / ±500 dps / ±1000 dps / ±2000 dps
  • Zero-g gyro offset: ±10 dps
  • Frequency range: 25 Hz to 1600 Hz
  • Data output: 16 bit
  • Impact resistance: 1000 gx 200 us
  • FIFO: built-in, 1024 bytes
  • Operating temperature range: -40°C to 85°C
  • Module dimensions: 22 x 27 mm

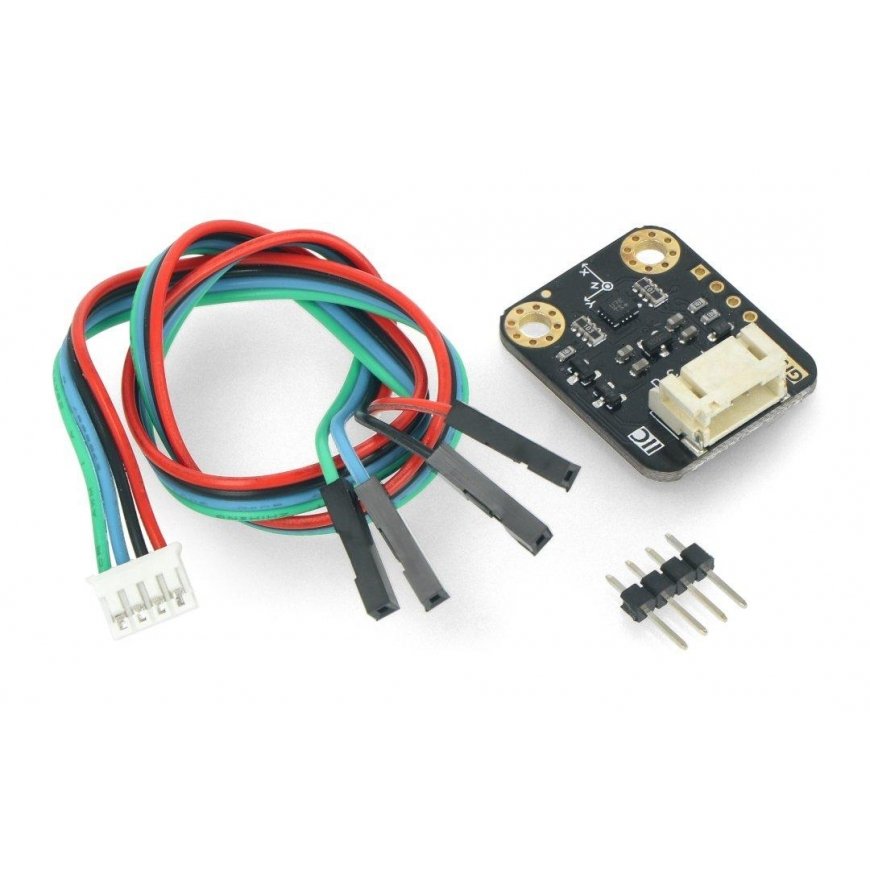

Included:
  • Gravity - BMI160 6-axis IMU sensor from DFRobot
  • I2C/UART connection cable with Gravity connector
  • 1x4 gold pin strip - 2.54 mm
