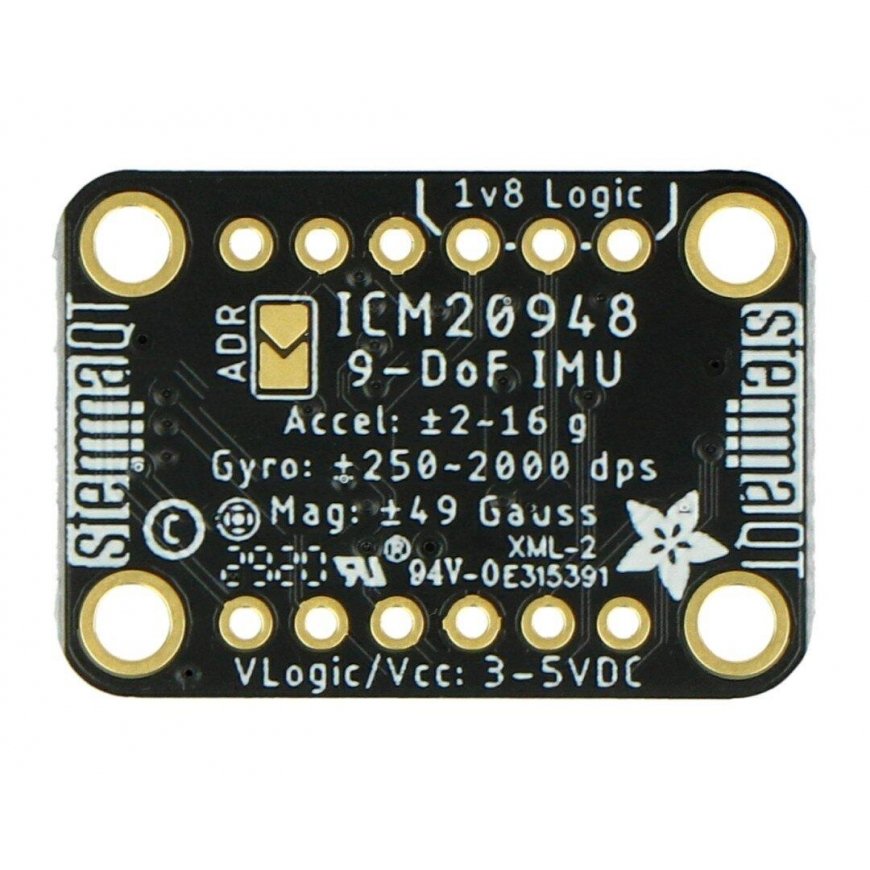

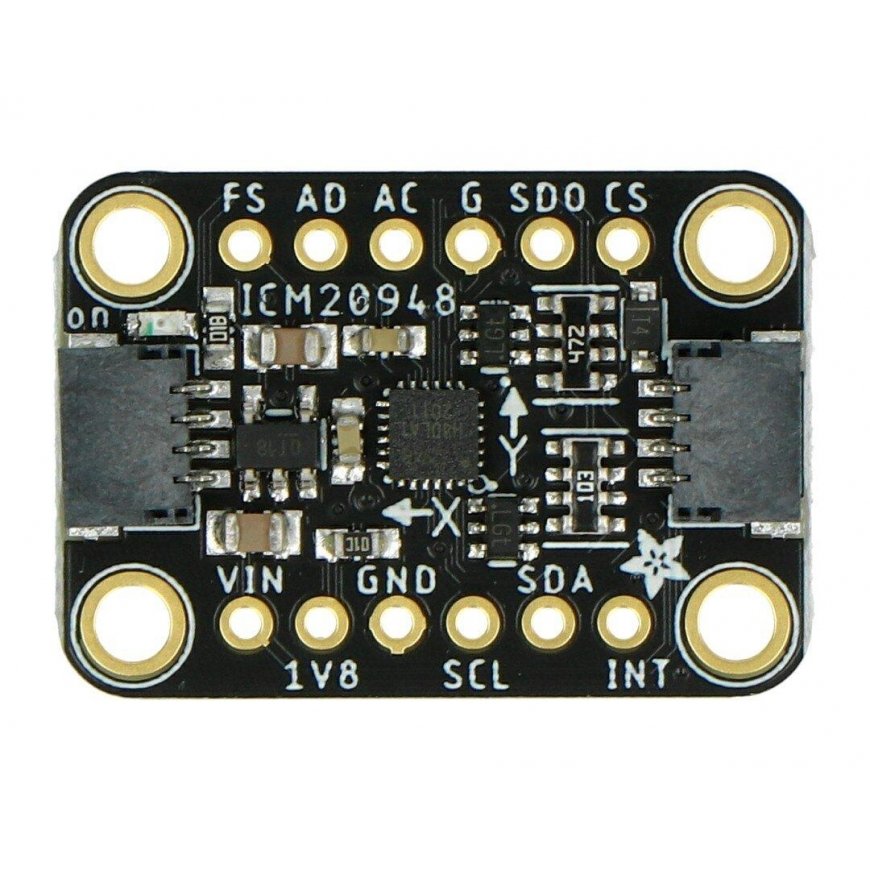

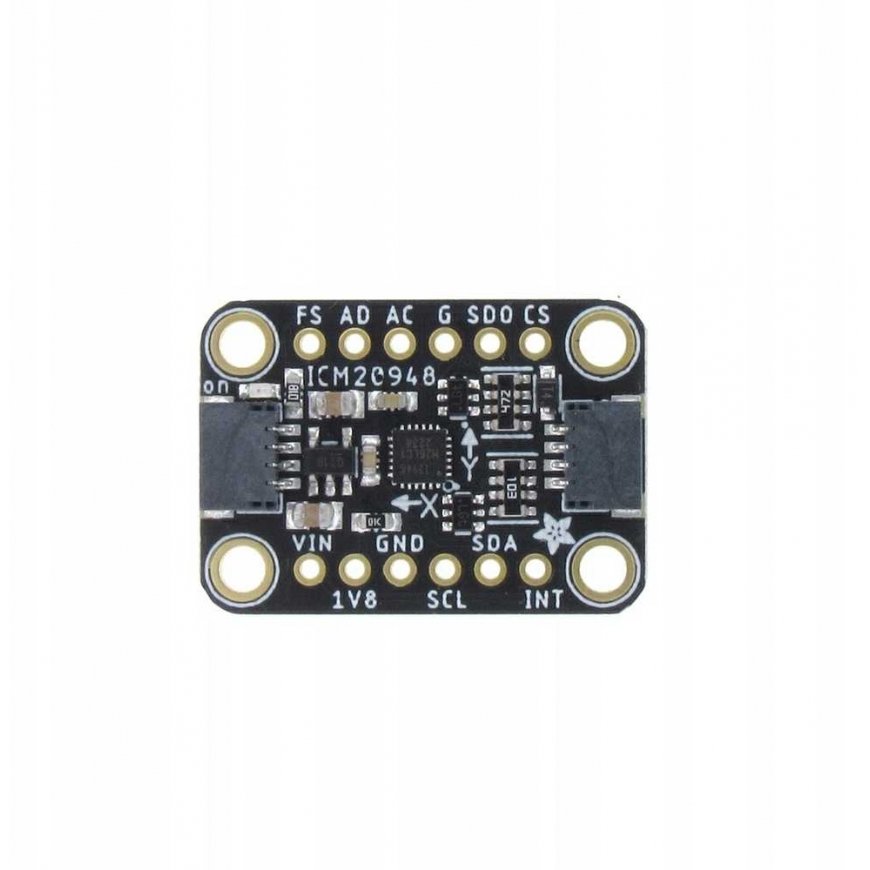

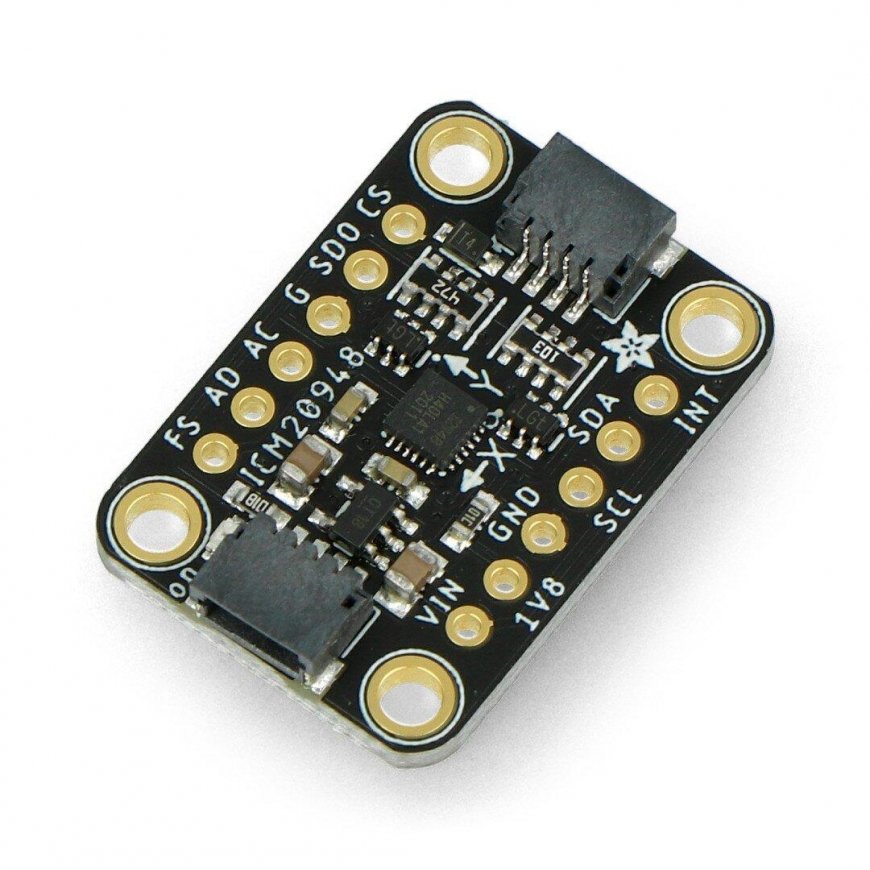

ICM-20948 9DoF, 3-axis accelerometer, gyroscope and magnetometer I2C/SPI Qwiic, Adafruit 4554
39.00 €
Kuumakse alates 1,90 €
3597638 AN-17709
5904422378677
Tarneaeg 8-15 t.p.
Kauba vastu huvi?
Kõik toote kohta
The Adafruit module is a combination of a 3-axis gyroscope, accelerometer and compass. It allows you to measure acceleration, magnetic field and angular velocity. The measurement ranges are fully configurable. It has a built-in digital DMP processor. The module has an SPI / I2C communication interface. It is powered from 1.71 V to 3.6 V.
Specifications:
- Gyroscope:
- 3 axes: X, Y, Z
- Adjustable range: ±250, ±500, ±1000, ±2000 °/s
- Accelerometer:
- 3 axes: X, Y, Z
- Adjustable range: ±2 g, ±4 g, ±8 g, ±16 g
- Magnetometer (compass)
- 3 axes: X, Y, Z
- Application range: ±4900 µT
- Integrated Digital Motion Processor (DMP)
- Android support
- Interface: I2C, SPI
- Frequency
- SPI: 7 MHz
- I2C: 400kHz
- 16-bit ADC on chip and programmable filters
- Temperature sensor with digital output
- RoHS and Green compliant
- Dimensions: 25.7x 17.7x 4.6mm

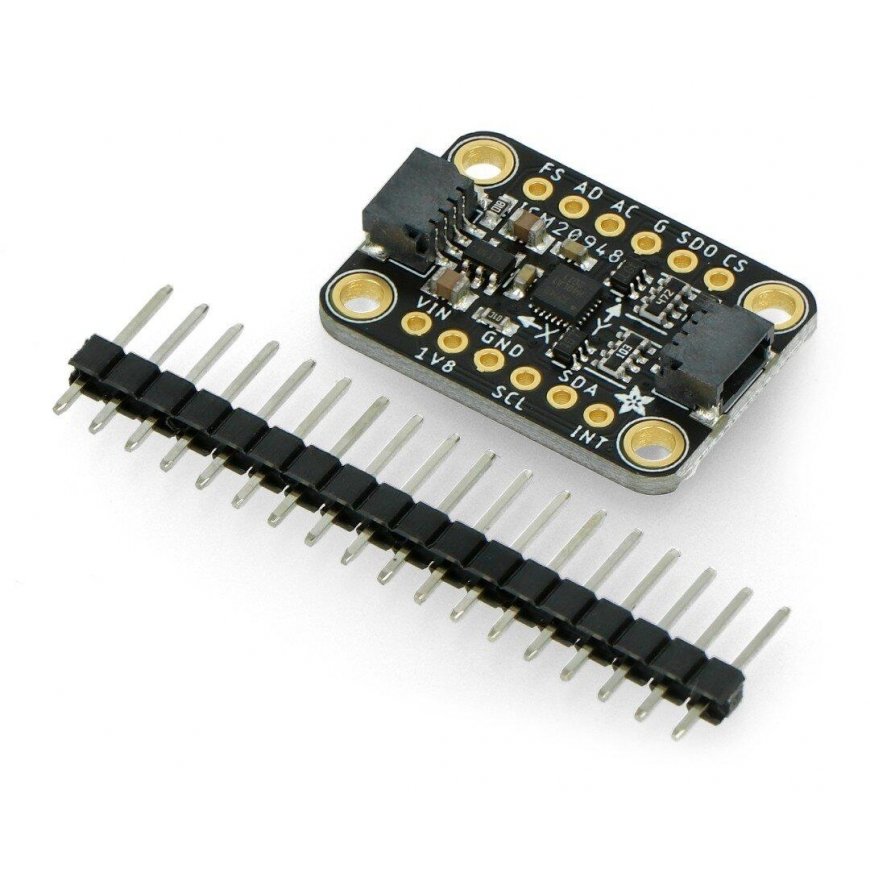

Included:
- Sensor module
- Goldpin connectors
