IR thermal camera MLX90641 16×12px, 55 FOV - I2C - Waveshare 20465
88.99 €
Kuumakse alates 3,19 €
3597493 AN-20551
5904422381653
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

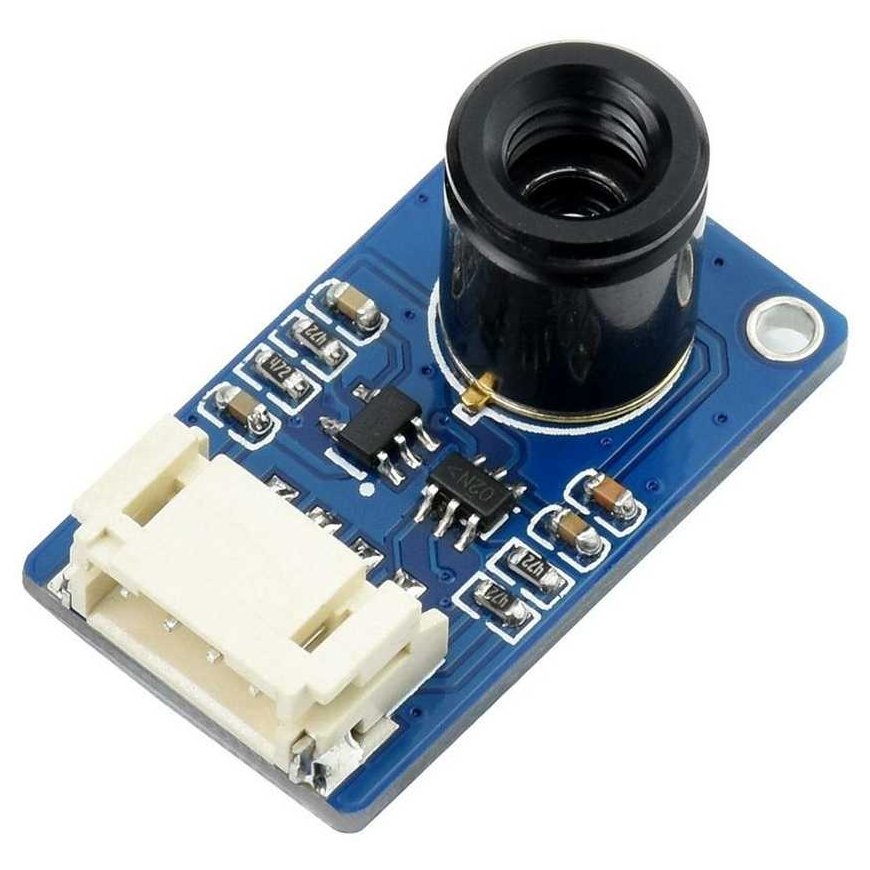

A thermal module based on the MLX90641 chip has a resolution of 16x12px. It can measure the temperature of an object in the range from -40 °C to 300 °C with an accuracy of ±2 °C. The module communicates with the microcontroller via the I2C interface. The camera FOV is 55°x35°. The camera is powered by 3.3 V or 5 V.Specifications:
- Supply voltage: 3.3V or 5V
- Field of view: 55°x35°
- Interface: I2C
- Measuring range: -40 °C to 300 °C
- Current consumption: ~ 12 mA
- Accuracy: ± 2 °C (ambient temperature 0 °C to 50 °C)
- Refresh rate: 0.5 Hz to 64 Hz
- Operating temperature: -40 °C to 125 °C
- Dimensions: 25 x 16 mm
