Toote toon ja tegelik värvus võivad erineda pildil kujutatust, kuna pildid on illustratiivse iseloomuga. Samuti on toote kirjeldus üldine ega pruugi sisaldada kõiki toote omadusi.

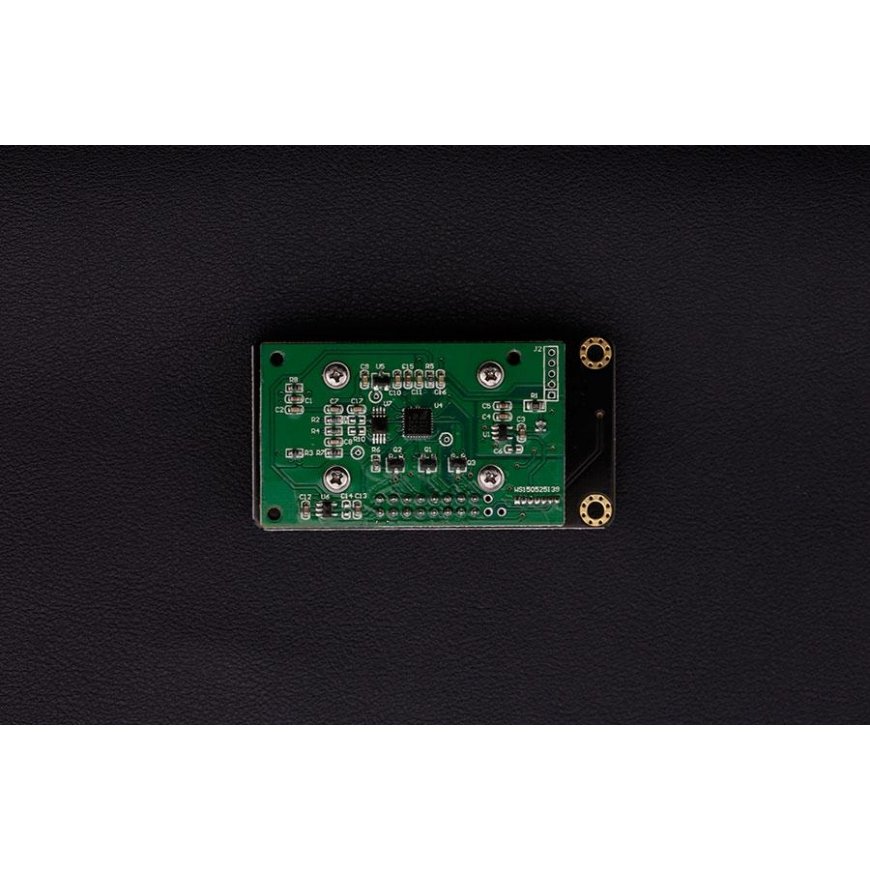

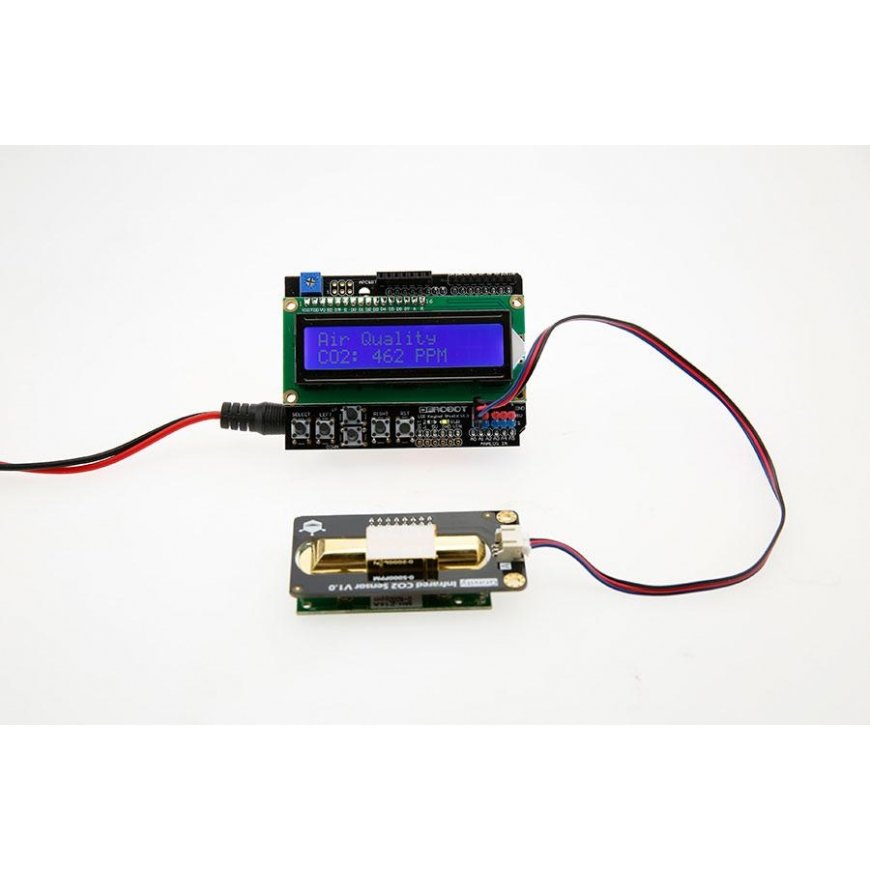

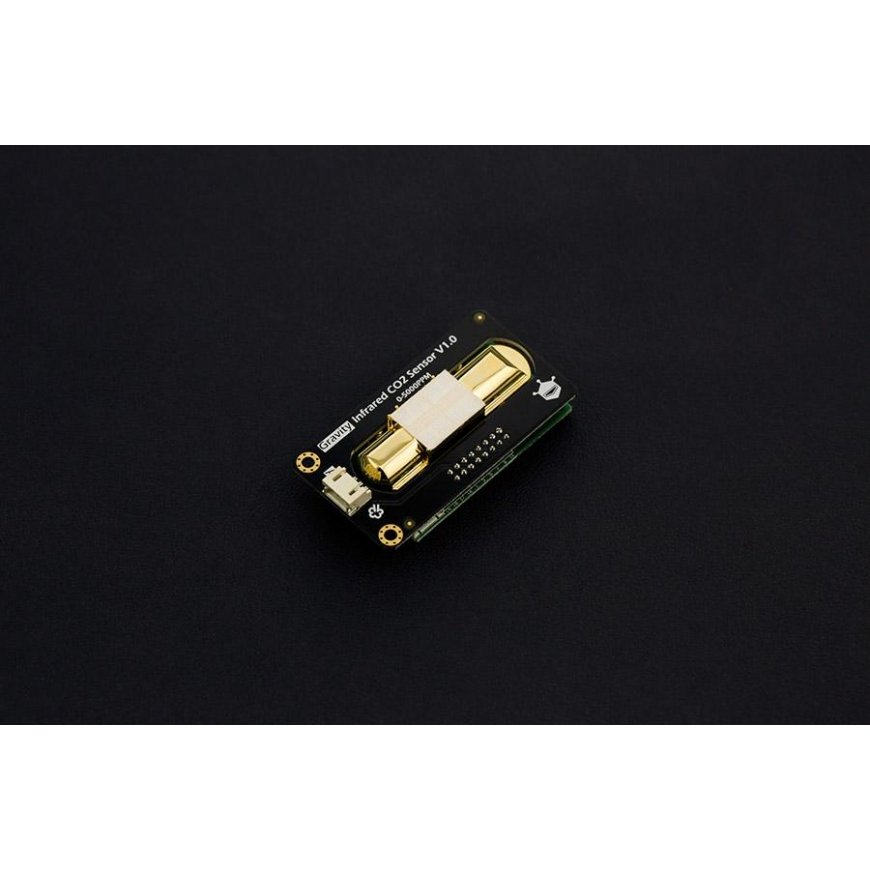

DFRobot Gravity Analog Infrared CO2 Sensor 4.5~5.5V DC 0~5000ppm ±(50ppm+3%) 0~50C
3596939 AN-07592
5904422375560
Tarneaeg 11-18 t.p.
Kõik toote kohta
DFRobot Gravity Analog Infrared CO2 Sensor measures CO2 concentration in the air in the range of 0~5000ppm. It uses non-dispersive infrared (NDIR) technology, integrated temperature compensation system, DAC data transmission. Perfect for use with most microcontrollers that support DAC function.
Technical data:
Gas type: CO2
Operating voltage: 4.5~5.5V DC
Operating current: <60mA @ 5V
Maximum operating current: 150mA @ 5V
Data signal voltage range: (0.4 ~ 2V)
CO2 measurement range:0~5000ppm
CO2 measurement accuracy: ± (50ppm + 3%)
Warm-up time: 3min
Response time: 120s
Operating temperature: 0~50℃
Operating humidity: 0~95%RH
Service life: >5 years
Dimensions: 37mm * 69mm
Weight: 34g
Additional information:
Package:

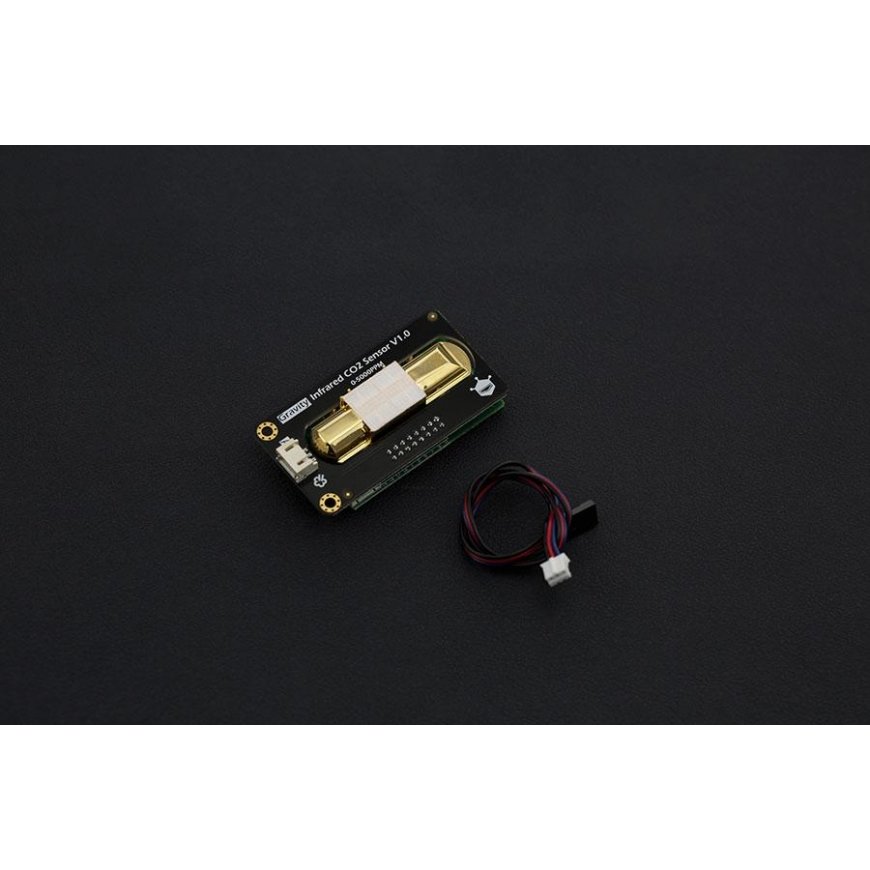

Gravity: Analog Infrared CO2 Sensor for Arduino x1
Analog sensor cable for Arduino x1
