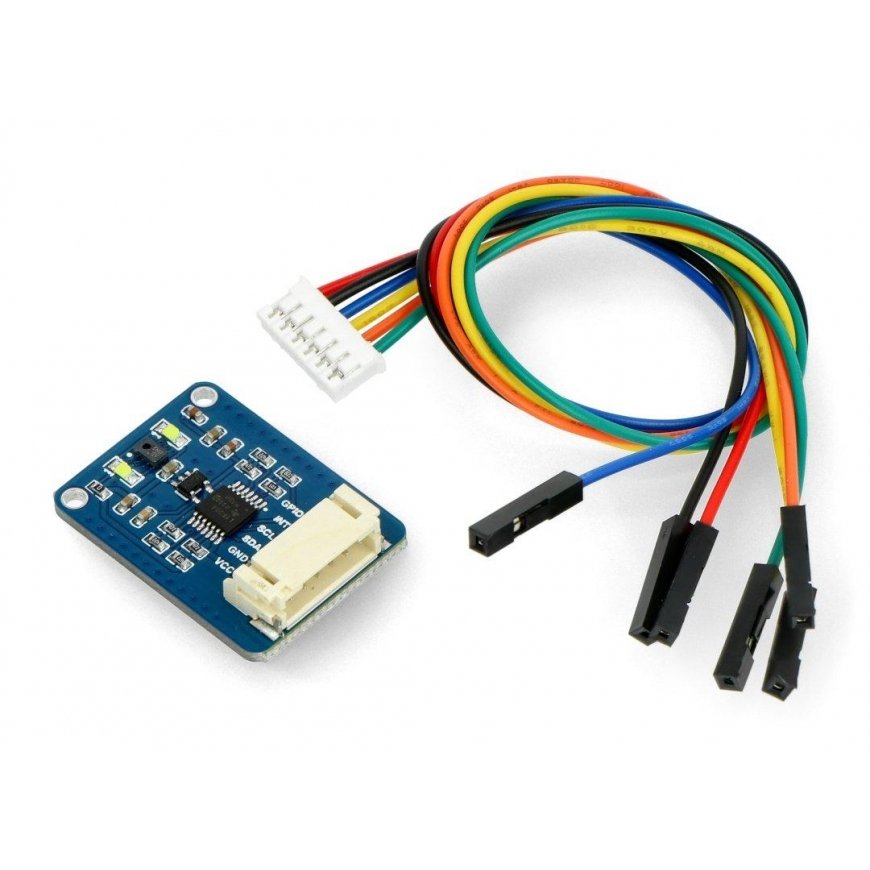

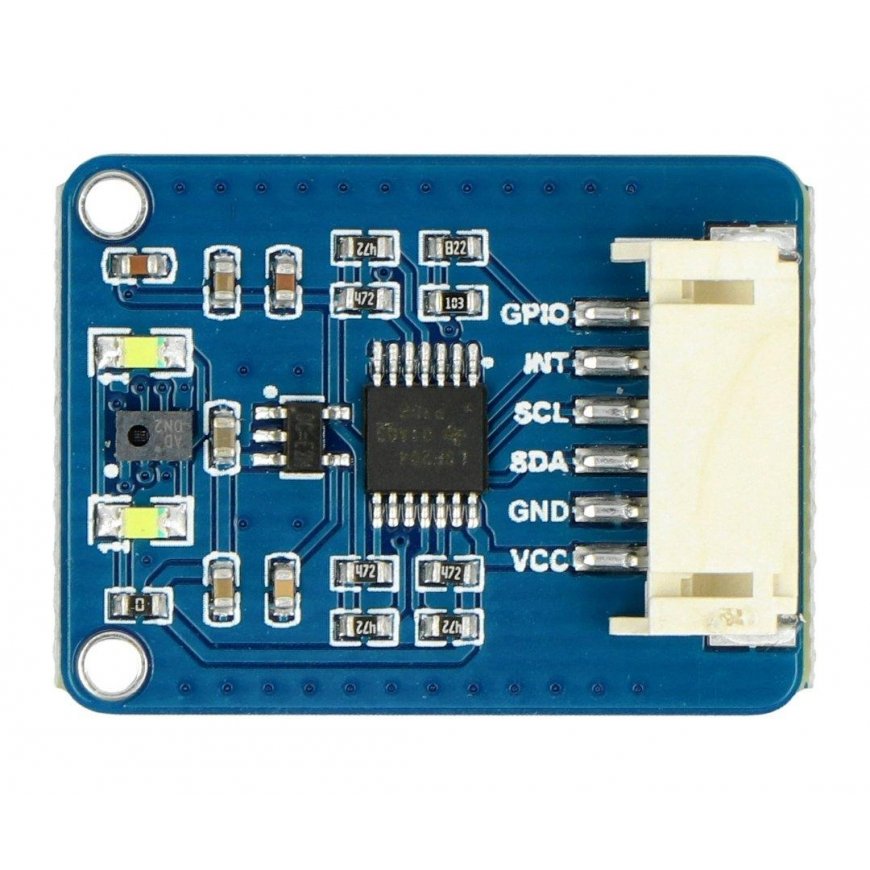

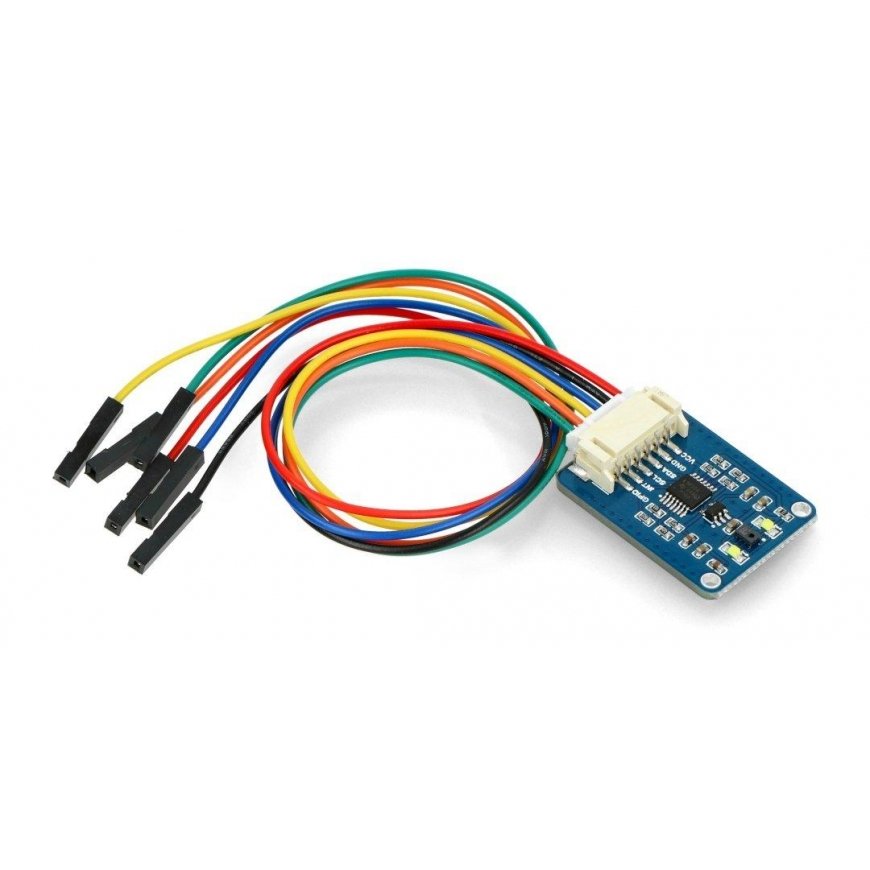

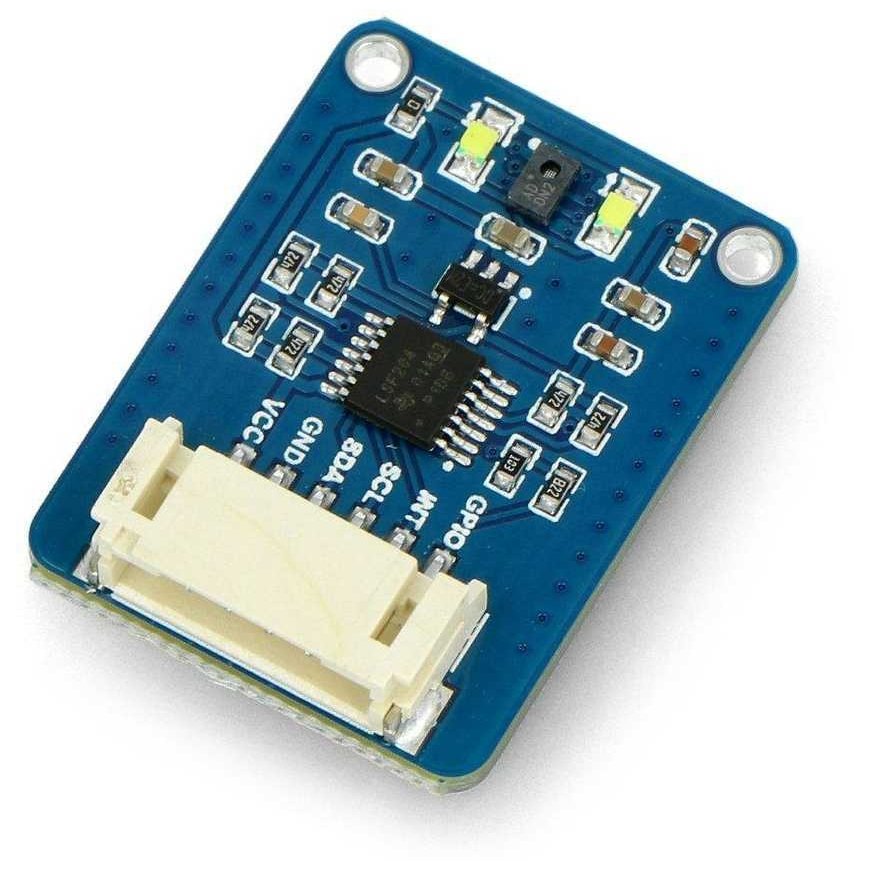

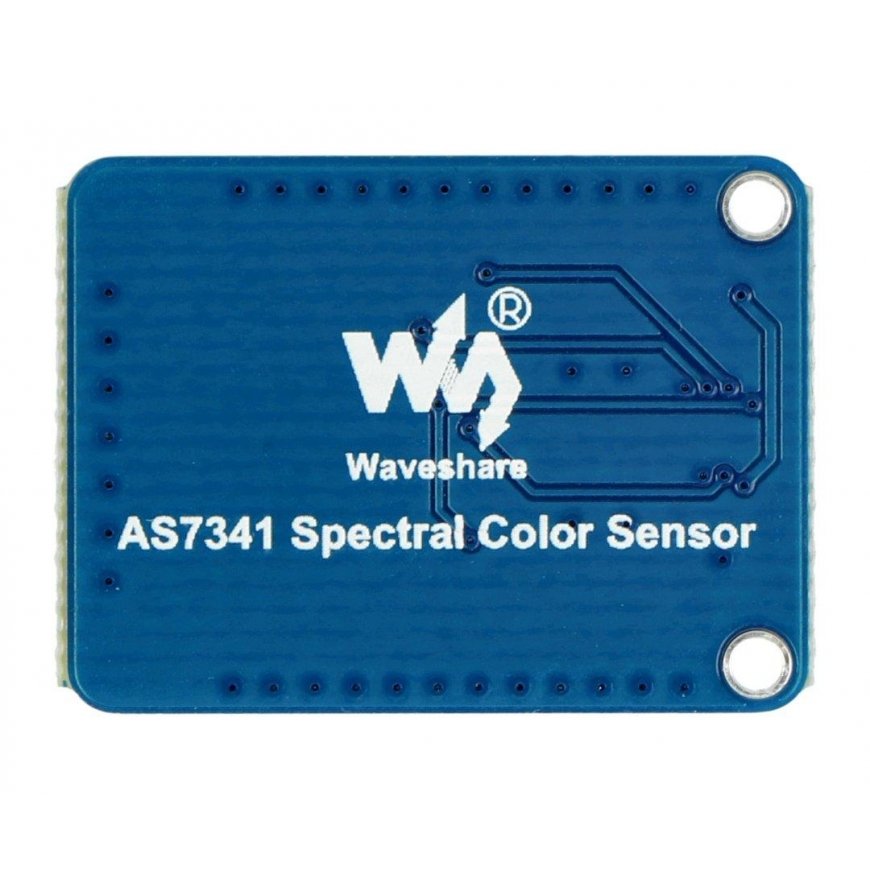

AS7341, multi-channel light and color sensor, I2C, Waveshare 19564
32.38 €
3594193 AN-19712
5904422348717
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
The multi-channel light and color sensor based on the AS7341 chip can be used, for example, in developing portable spectrometer projects based on popular platforms such as Arduino, STM32 or Raspberry Pi. The AS7341 chip has 8 light spectrum channels, 1 infrared channel and 1 unfiltered channel. The built-in 6 independent 16-bit ADCs enable efficient parallel data processing. The module uses the I2C interface to interact with microcontrollers.Main features:
- 8 channels of light spectrum, 1 channel infrared, 1 channel without filter
- 6 independent 16-bit ADCs for efficient data processing
- A special channel to detect ambient light flashing at a certain frequency
- 2 high-brightness LEDs, can be used as a backlight in low ambient light conditions
- Interrupt pin for real-time output of internal ADC operating status
- Spectrum interruption detection with programmable high/low thresholds
- GPIO pin
- Voltage regulator compatible with 3.3 V and 5 V
- Chip: AS7341
- Interface: I2C
- Supply voltage: 3.3V or 5V
- Dimensions: 30 x 23 mm
- Mounting hole: 2 mm
