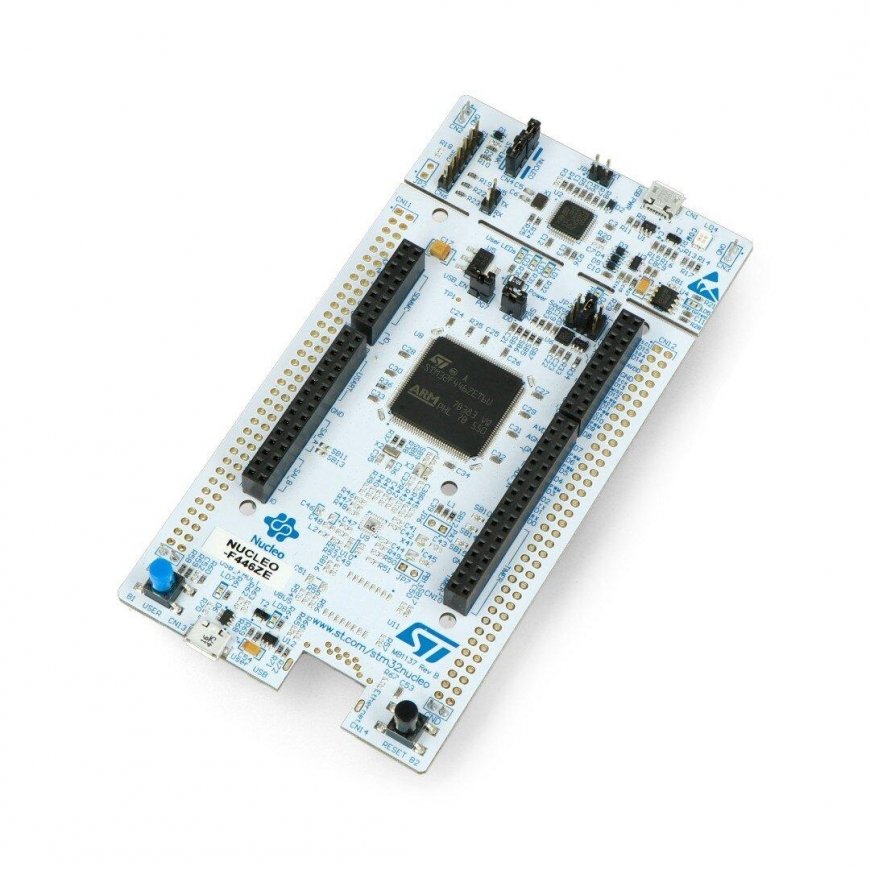

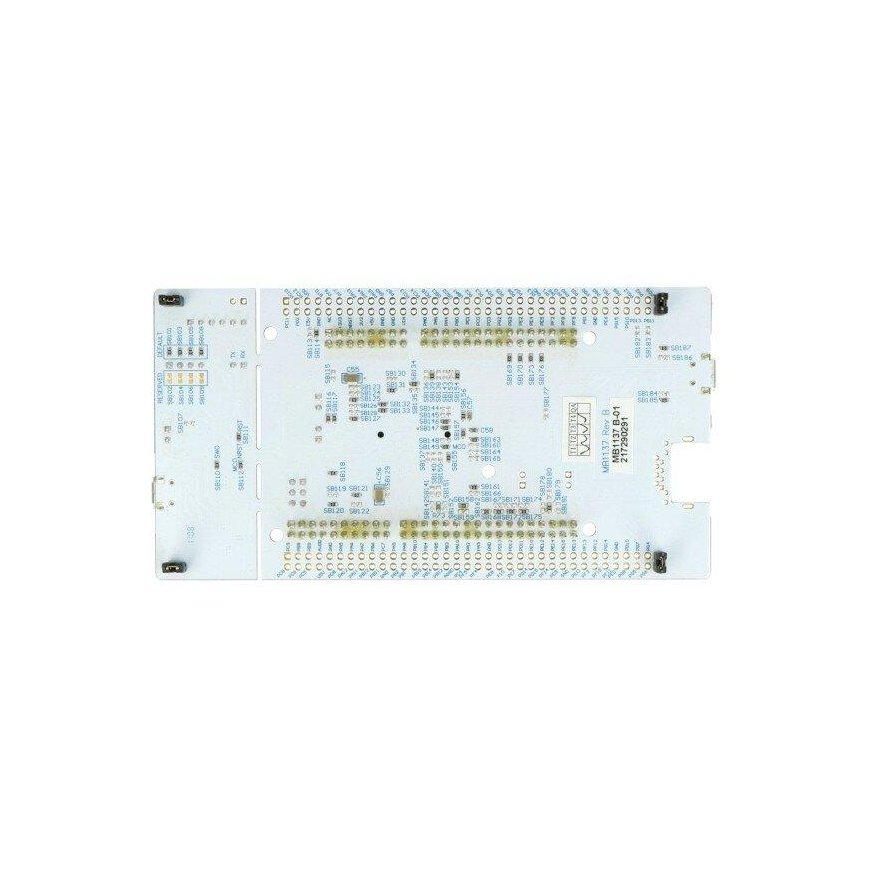

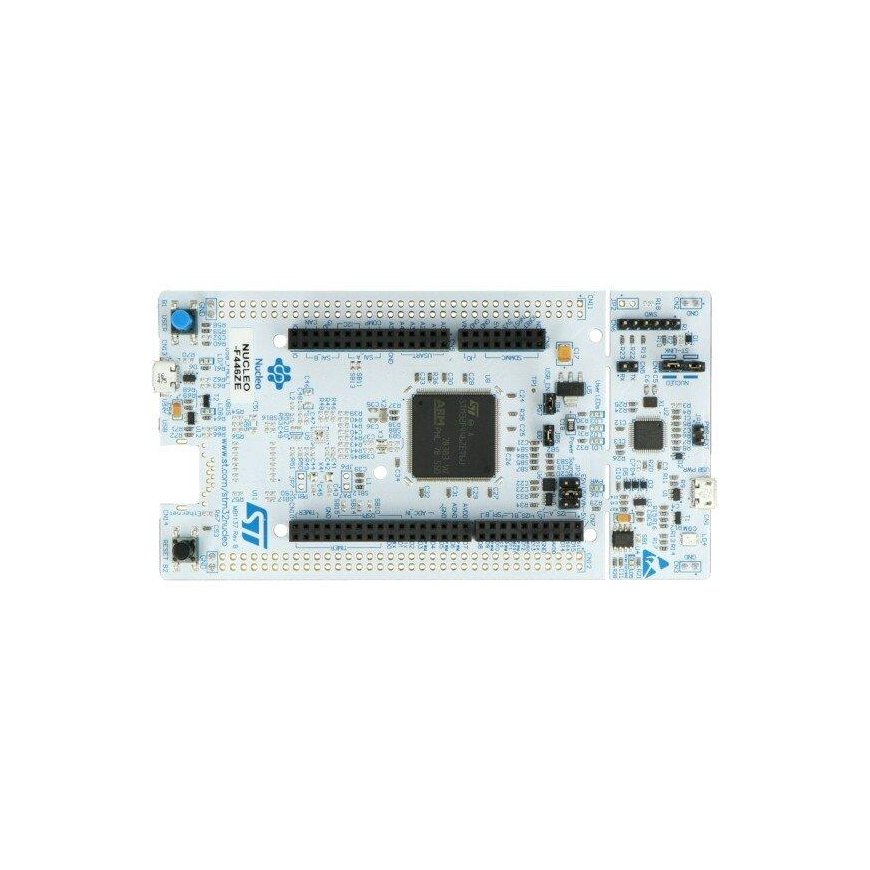

Stmicroelectronics STM32 NUCLEO-F446ZE module - STM32F446ZET6 ARM Cortex M4
59.00 €
Kuumakse alates 2,42 €
3594144 AN-05526
5904422364946
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
Module with 32-bit microcontroller with ARM Cortex M4, 180 MHz, 512 KB Flash, 128 KB SRAM. Nucleo is compatible with the mbed platform, has connectors for connecting Arduino add-ons.Specifications:
- Microcontroller: STM32F446ZET6
- Core: ARM Cortex M4 32-bit
- Clock frequency: 180 MHz
- Flash memory: 512 KB
- RAM: 128KB
- Analog-to-digital converter (ADC): 12-bit, 24 channels
- Digital-to-analog converter (DAC): 12-bit, 2 channels
- Number of 16-bit timers: 12
- Number of 32-bit timers: 2
- Interfaces: 4x I2C, 4x SPI, 3x I2S, 2x CAN, 4x USART, 4x UART, USB OTG
- Two types of connections:
- Set-top box connectors compatible with Arduino Uno Rev3
- Standard pins STMicroelectronics Morpho provides access to microcontroller pins
- The module is compatible with the mbed system (mbed.org)
- The ST-Link/V2 debugger is placed on the board with the ability to work as a standalone device with SWD output
- Possibility of power supply via USB connection
- Three LEDs are embedded:
- 1 x for power supply voltage indication
- 1 x connector for indication
- 1 x at the user's disposal
- Two buttons:
- 1 x RESET
- 1 x at the user's disposal
- Three different interfaces via miniUSB connector (USB re-enumeration):
- Virtual COM port
- Mass storage
- Programming/debug port
- The module supports most popular environments, such as IAR, Keil, and platforms based on the GCC compiler.
