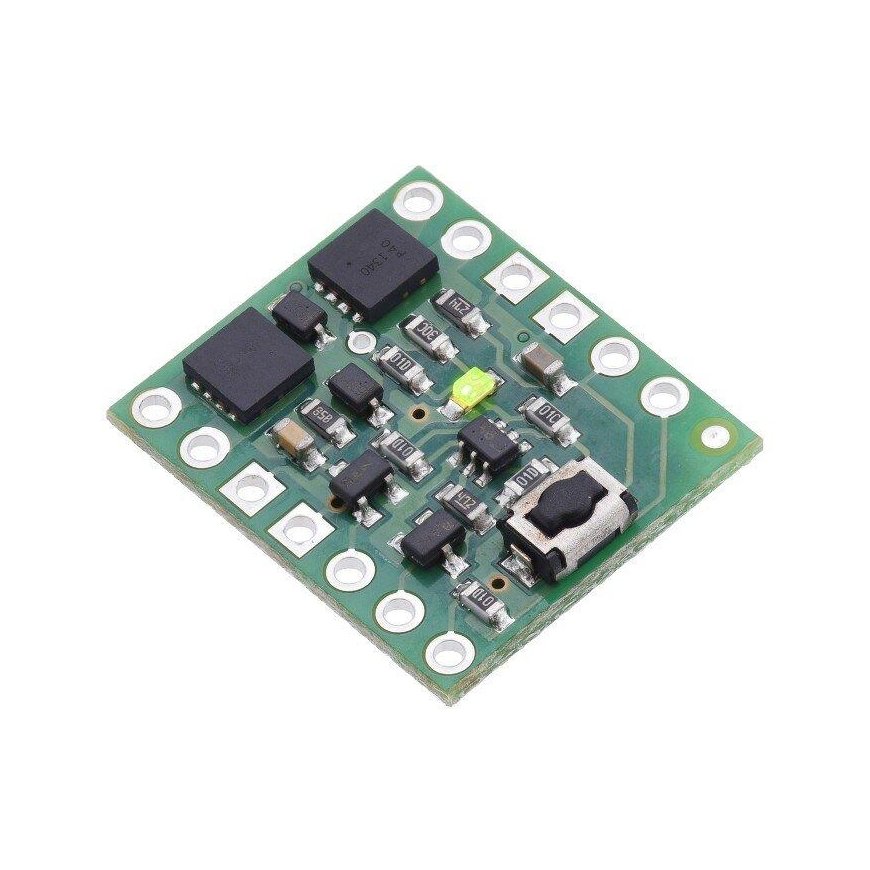

Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809

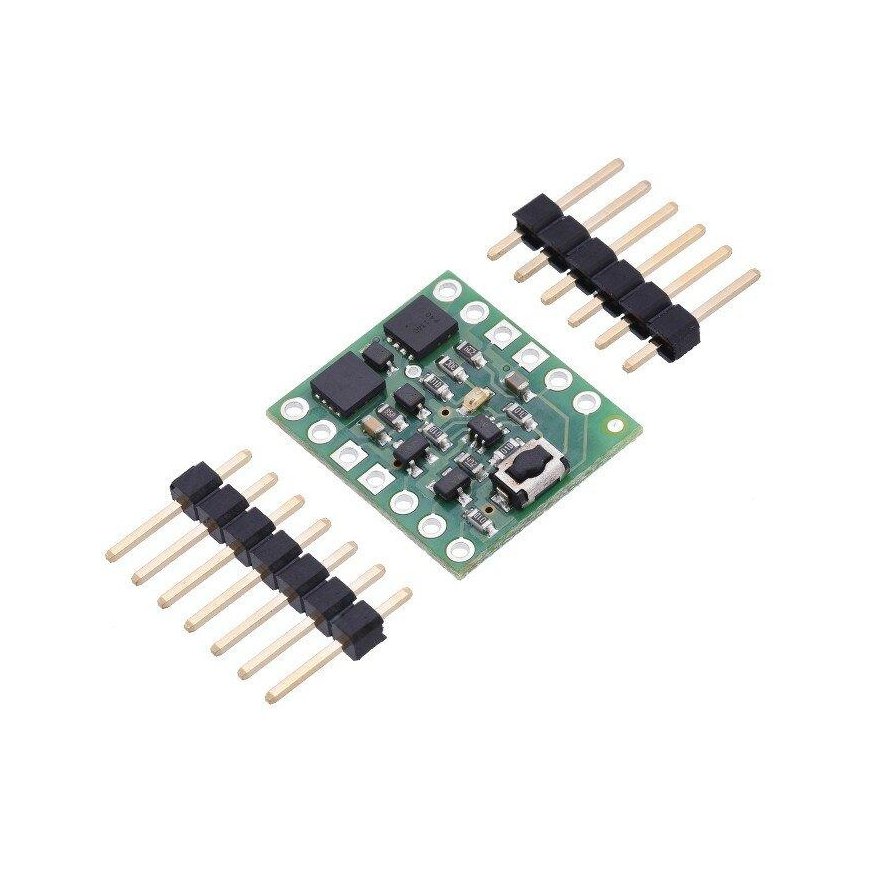

Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809 – 2
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809 – 3

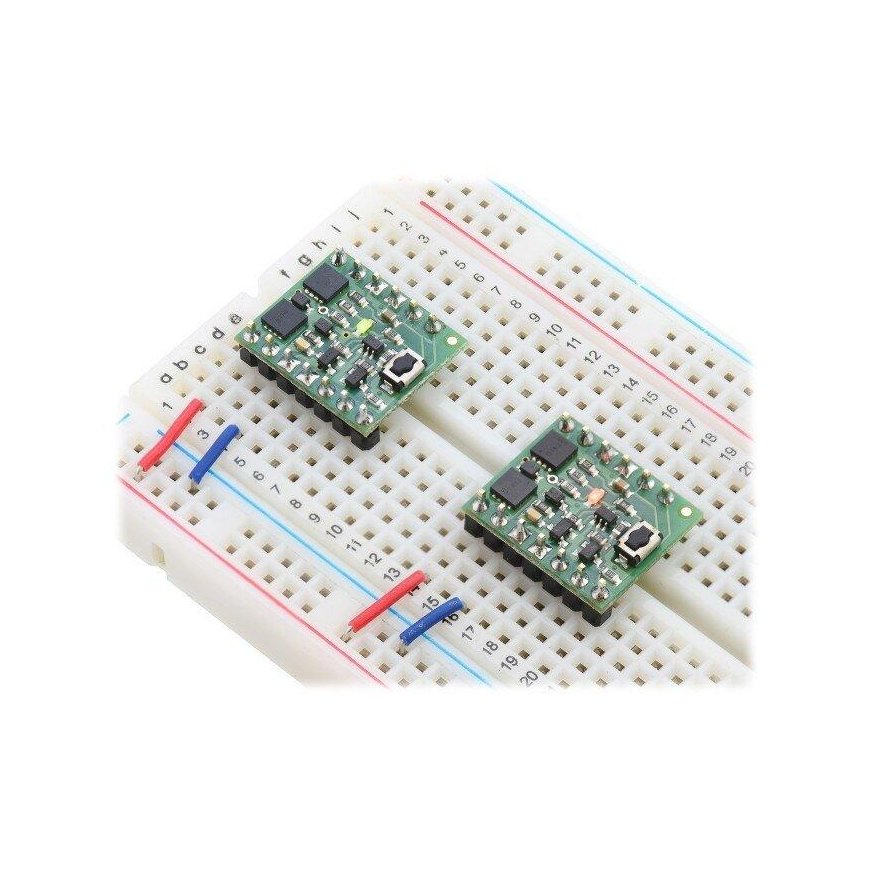

Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809 – 4

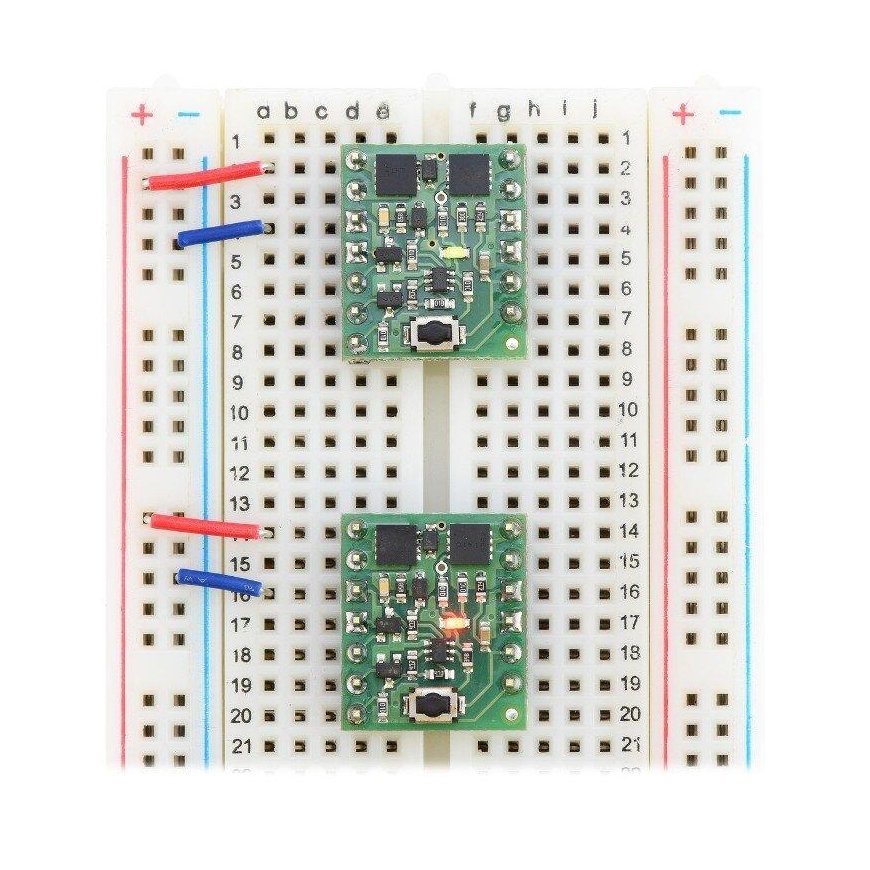

Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809 – 5
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809
Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809

Toote toon ja tegelik värvus võivad erineda pildil kujutatust, kuna pildid on illustratiivse iseloomuga. Samuti on toote kirjeldus üldine ega pruugi sisaldada kõiki toote omadusi.

Mini switch Push MOSFET SV 4.5-40V/4A, with reverse current protection, Pololu 2809

19.96 €
3592426

AN-04854

5904422300036

Tarneaeg 11-18 t.p.

Kauba vastu huvi?
(Lugege teenusetingimusi)

Kõik toote kohta

The module with a button is an alternative to mechanical buttons. The switch is bistable, one press turns on the power, another press turns it off. Additional inputs allow, for example, automatic shutdown. The module operates from 4.5 V to 40 V with a current consumption of up to 4 A. The board has a small button, allowing you to connect external buttons. The switch current does not affect the controlled system, so you can use different buttons to control a significant amount of energy.

Specifications:

  • Maximum voltage: 40 V
  • Recommended operating voltage: 4.5 to 32 V
  • Continuous current at 55 °C: 2 A
  • Continuous current at 150 °C: 4.3 A
  • Maximum current: 7.2 A
  • LED color: green

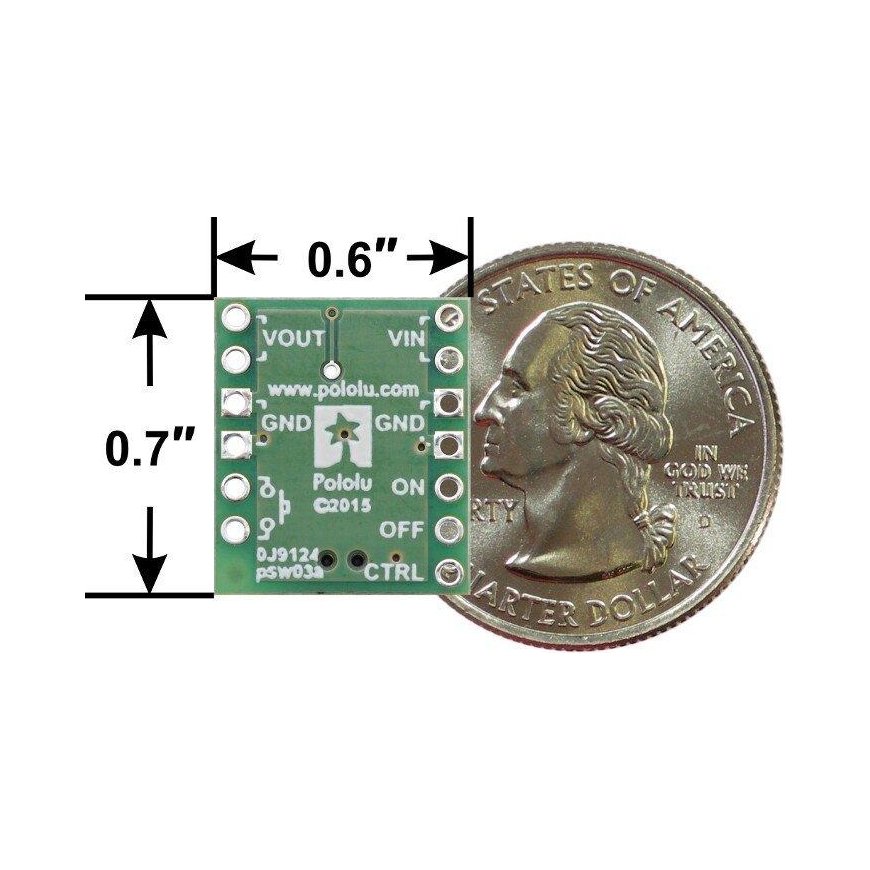

  • Dimensions: 15 x 18 x 3 mm
  • Weight: 0.6 g

Links:
Manufacturer's page
