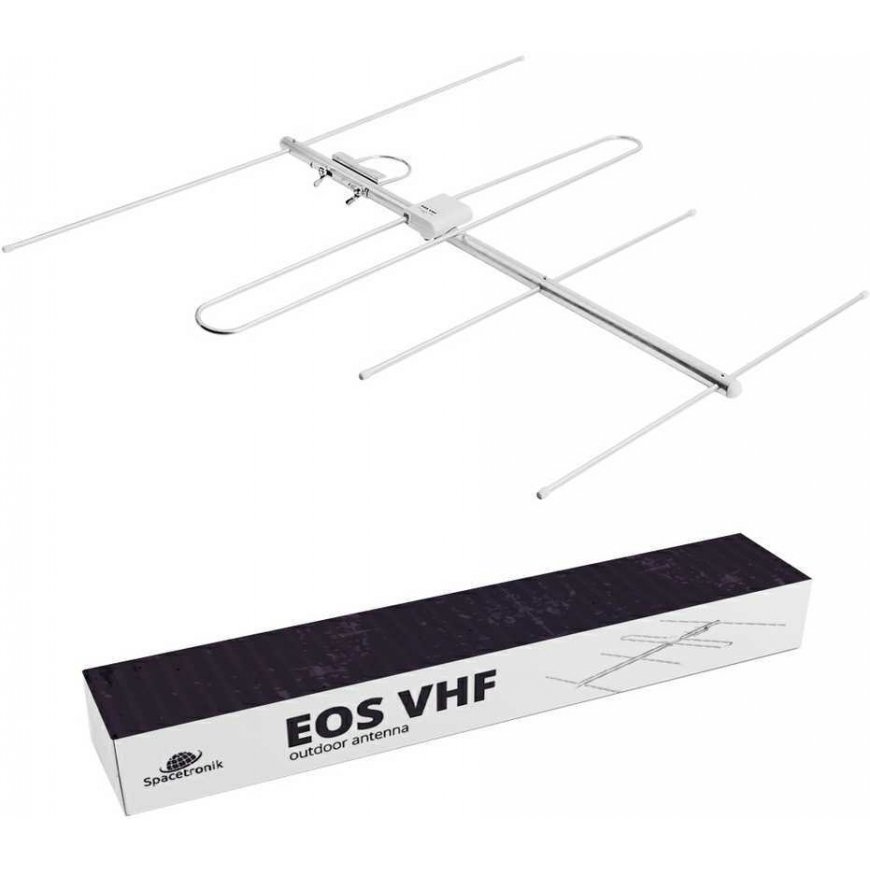

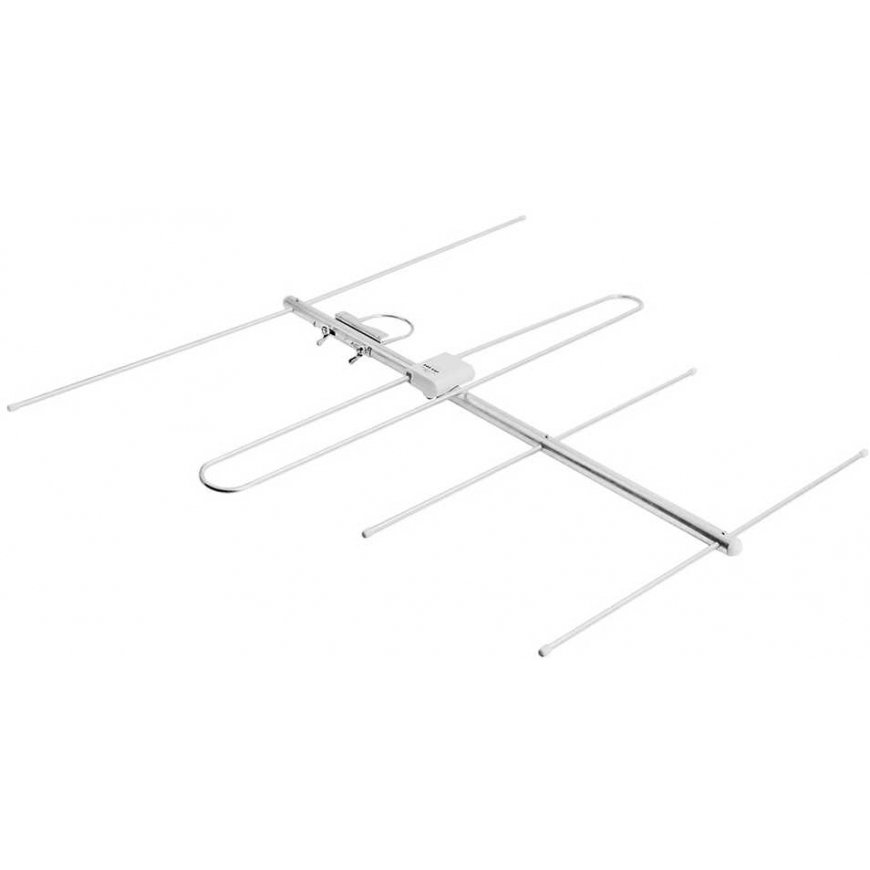

Antenna DVB-T/T2 Spacetronik EOS VHF pol. H is white

Kõik toote kohta

Directional antenna for receiving DVB-T/T2 VHF MUX-8 digital terrestrial television programs and DAB+ digital radio signal Spacetronik EOS VHF

The larger directional antenna is used to receive digital, DVB-T and DVB-T2 television signals in Full HD, Ultra HD – 4K and 3D quality. The professionally designed antenna construction makes it stable and easy to install. Strong and durable elements are anti-corrosion and waterproof. The antenna is highly weatherproof and its construction does not require tools for installation. Due to its modern, designer appearance, EOS VHF is used in modern city buildings, but not only.

DVB-T/T2 VHF MUX8 terrestrial signal reception
VHF antenna designed to receive digital terrestrial television signals in the VHF band, where multiplex 8 (MUX8) is transmitted. Multiplex 8 currently broadcasts the following channels: Zoom TV, Metro, Nowa TV, Telewizja WP

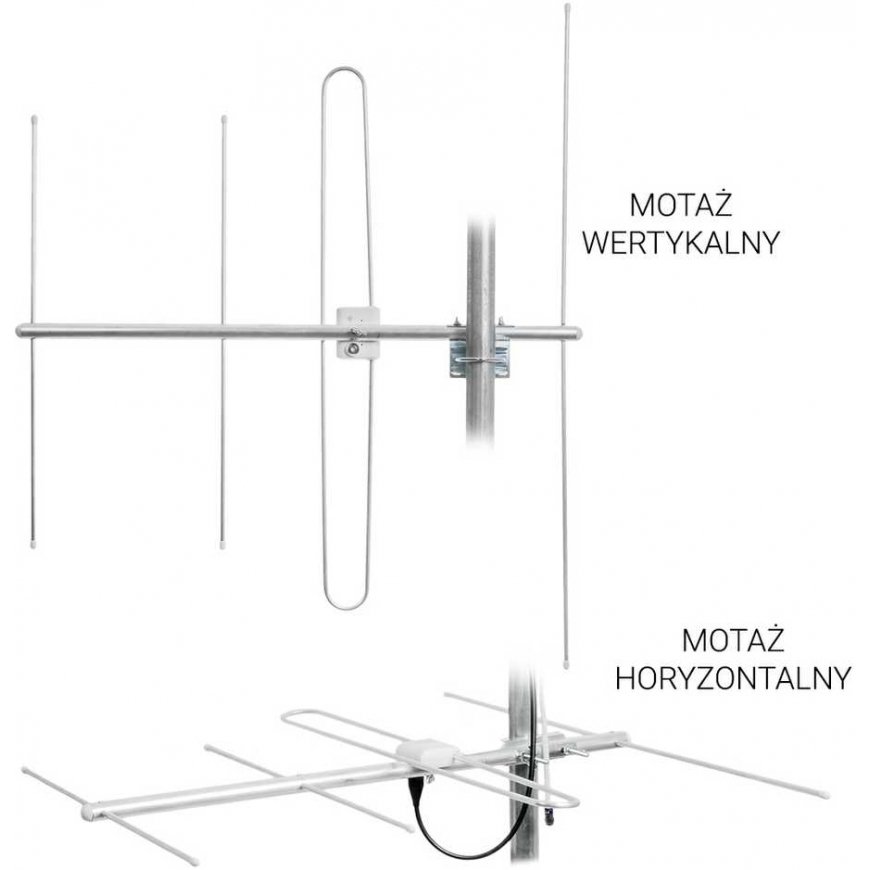

Antenna polarization changed to horizontal H or vertical V using an additional antenna bracket (not included)



The choice of reception polarization for the VHF part depends on the polarization of the transmitter. The polarization of the signal emitted by the nearest transmitter can be checked at: https://emimaps.emitel.pl/
Multiplex 8 in horizontal (H) or vertical (V) polarization.


The antenna allows you to receive the digital radio standard DAB+
DAB+ is a digital radio standard. This standard is widespread in Europe and around the world.
Digital radio allows you to fit many more radio programs into a single frequency block than analog FM radio. In the case of DAB+, you can fit anywhere from a few to a dozen programs into a single frequency block.
In addition, DAB+ offers additional services that are not available on analogue radio. Examples:
- SPI – i.e. program manager
– Slideshow – the ability to present images, such as album covers, etc.
- Journaline - extensive text service

The biggest advantage of DAB+ is the ability to change the sound quality depending on the bitrate of the data stream used. By using a lower bitrate for a program that is mainly based on talk and interviews, the excess can be used to improve the quality of a music program, for example, for classical music. This also includes the use of a 5.1 sound system

Digital radio also means ease of use. DAB+ receivers display a list of available programs from which we select the program we are interested in. The program list is set automatically, so we do not have to focus on finding the right "frequency".

High weather resistance

Spacetronik EOS VHF is highly resistant to adverse weather conditions. It is not afraid of rain, storm, snow, severe frost or heat. The antenna is completely waterproof and resistant to sunlight. Under their influence, it does not fade or deform. The metal elements are high-quality and rust-proof.

Excellent technical parameters and quality, what matters

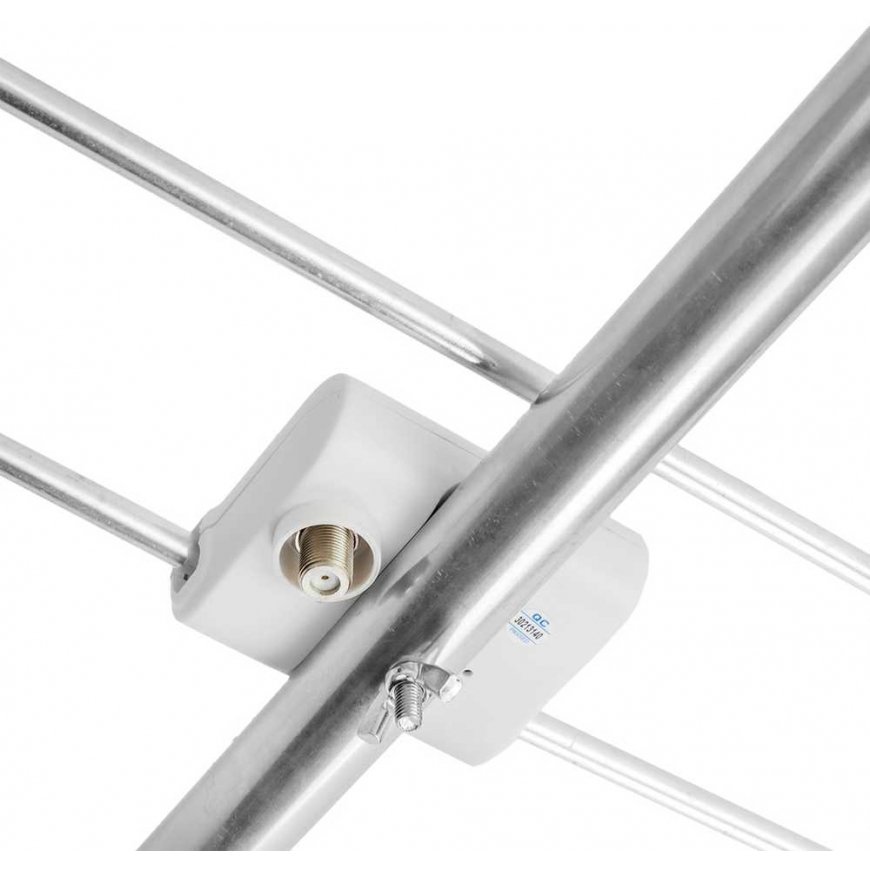

The antenna has a shielded balun enclosed in a sealed housing. The structure not only looks solid, but it really is. Excellent technical parameters guarantee a high-quality signal, which translates into clear image and sound.

Get the highest quality DVB-T/T2 TV

Watch DVB-T and DVB-T2 TV channels in Full HD, Ultra HD - 4K and 3D. In addition, the antenna is ready to receive TV with the new DVB-T2 H.265 compression, which will be introduced throughout the European Union by the end of 2022.

Easy, even trivial, assembly

The antenna is very easy to assemble and install. Its design does not require the use of any specialized tools during assembly. Every user should be able to install the antenna without any problems.

Antenna for professionals

Spacetronik EOS VHF is a universal device designed for professional and large installations. It offers unrivaled quality of reception and transmission of television signals. Thanks to its advanced design and technology, the VHF antenna ensures excellent performance and reliability in difficult weather conditions. The latest innovations in materials and technologies were taken into account when developing the VHF antenna, which means not only efficiency, but also durability and resistance to weather conditions. Made of high-quality materials, the antenna is resistant to wind, rain, snow and other factors, which guarantees a long service life. In order to receive all television channels, it is necessary to install two antennas - UHF (not included) and VHF.

Technical specifications

Material: High quality elements, weatherproof and anti-corrosion
Reception band: VHF polar horizontal H
Channels: 5-12
Frequency [MHz]: 174-230
Output impedance [ohms]: 75
Polarization: horizontal
Connector: F-type
Maximum installation diameter: 60 mm
white color
