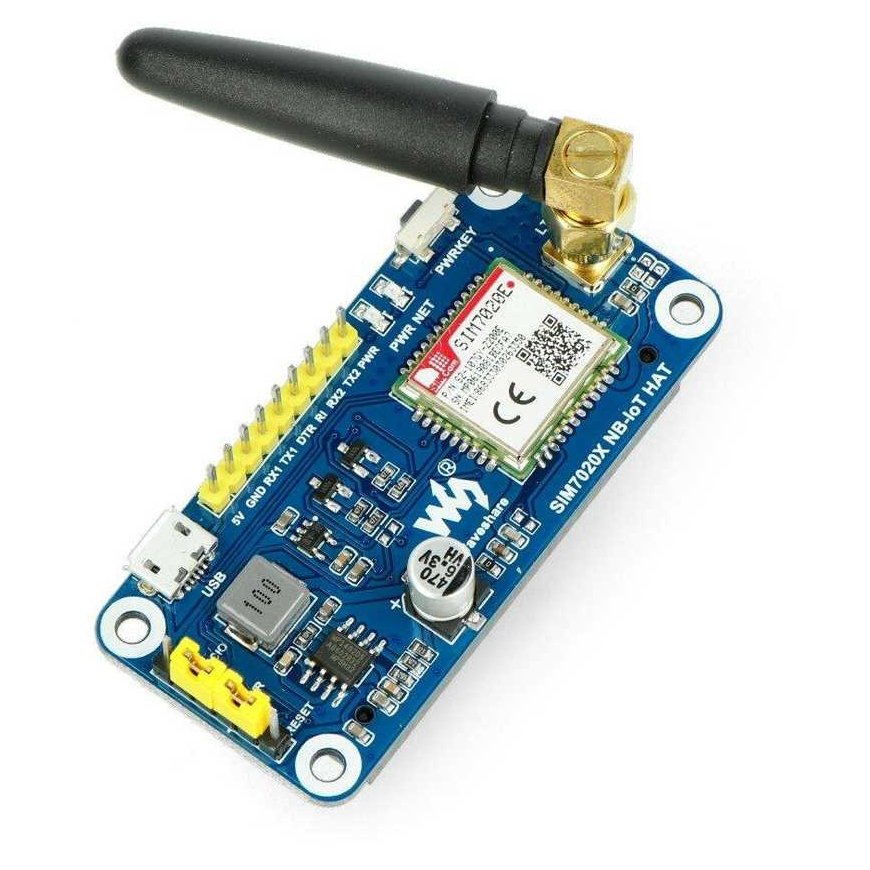

NB-IoT HAT, GSM SIM7020E, Raspberry Pi 4B/3B+/3B/2B/Zero add-on, Waveshare 15936
39.00 €
Kuumakse alates 1,90 €
3592176 AN-14779
5904422322533
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
NB-IoT add-on for Raspberry Pi, allowing you to create GSM network connections. Supports communication protocols such as LWM2M / COAP / MQTT. Interacts via serial interface UART (RX, TX) via AT commands.
Main features:

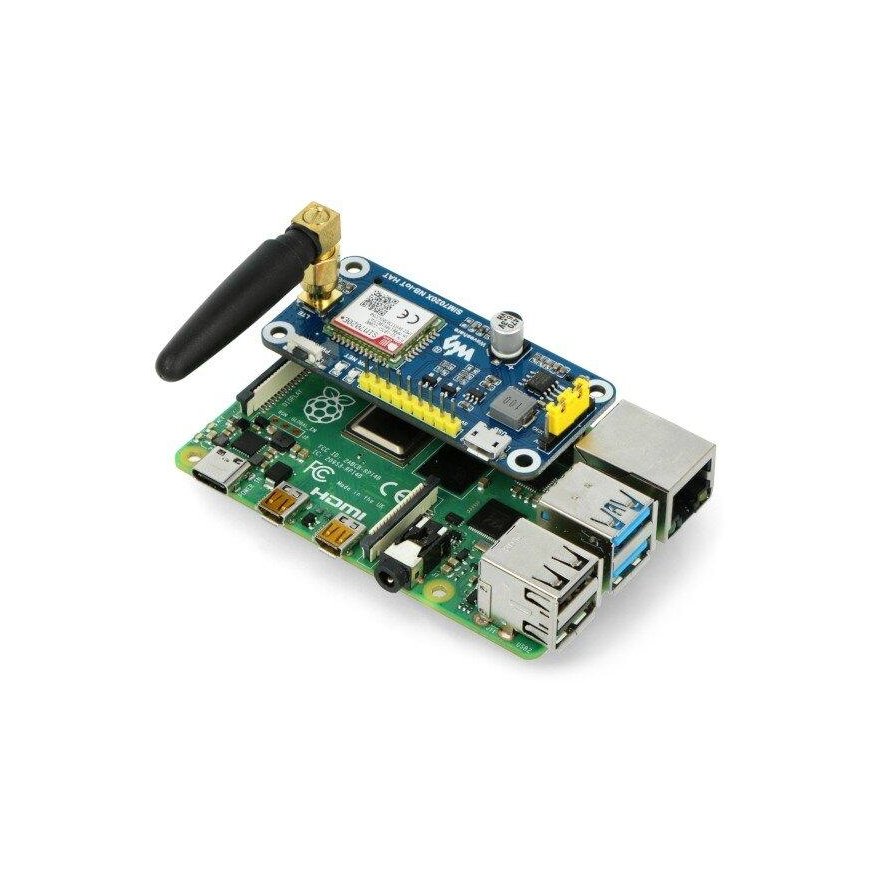

- Compatible with Raspberry Pi 4B / 3B+ / 3B / 2B / Zero WH / Zero W / Zero
- Interaction takes place using LWM2M / COAP / MQTT / TCP / UDP / HTTP / HTTPS
- USB interface for AT command control
- UART interface for interacting with Arduino/STM32
- The built-in voltage converter, 3.3 V by default, can be changed to 5 V with a jumper
- SIM card slot compatible with standard SIM cards and special NB-IoT cards
- LEDs that return the module status
- Bandwidth: 300 to 3686400 bps
Links:
Manufacturer's page
Manual
