Trinket M0 microcontroller, CircuitPython and Arduino IDE, Adafruit 3500
29.00 €
3591025 AN-10873
5904422316921
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

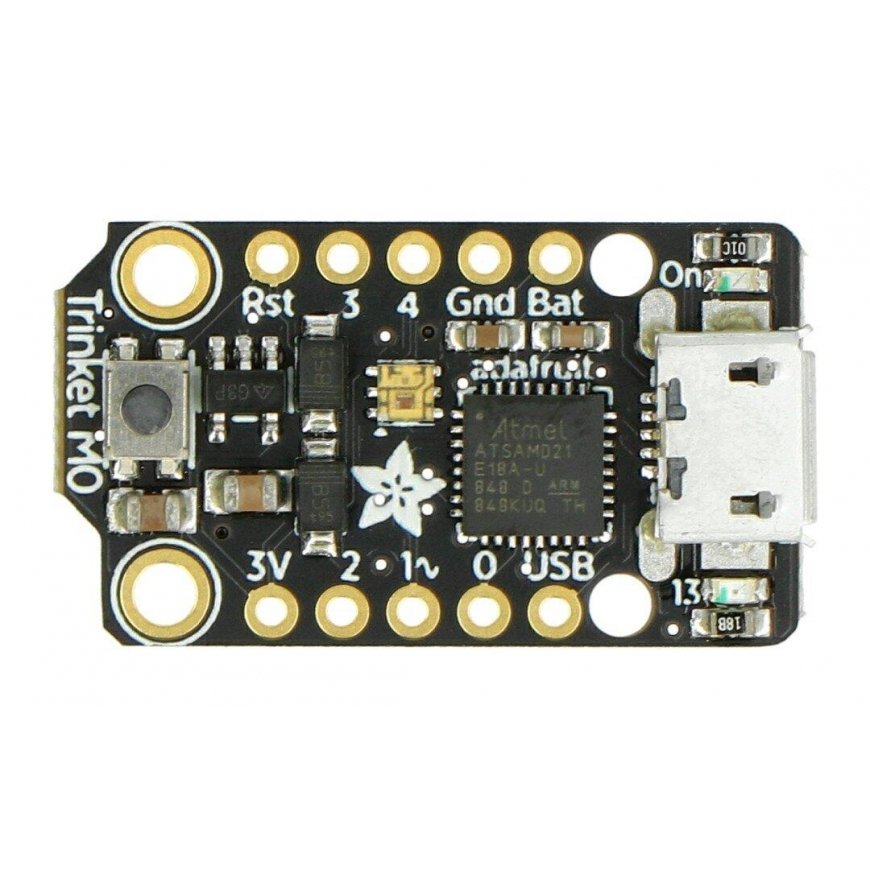

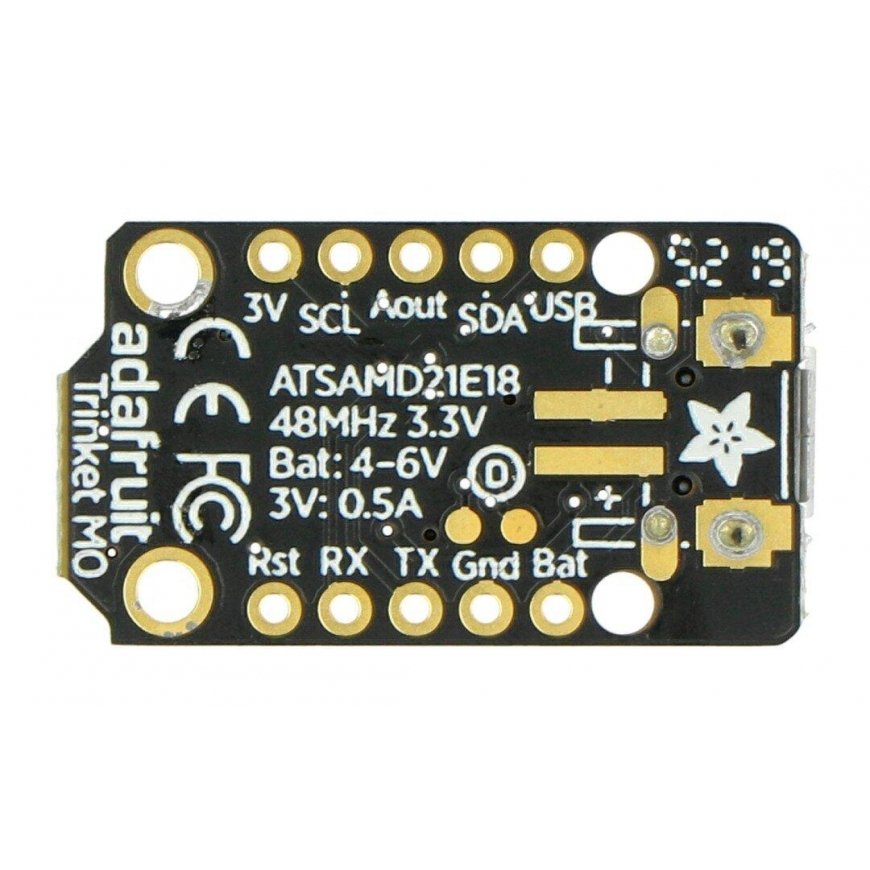

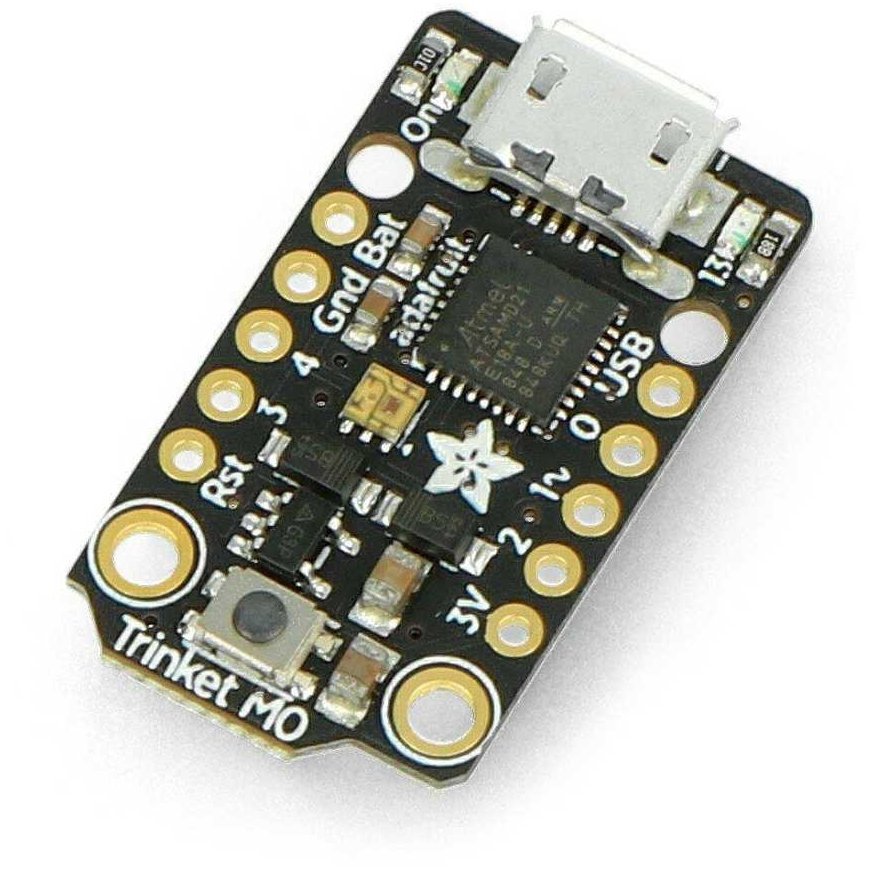

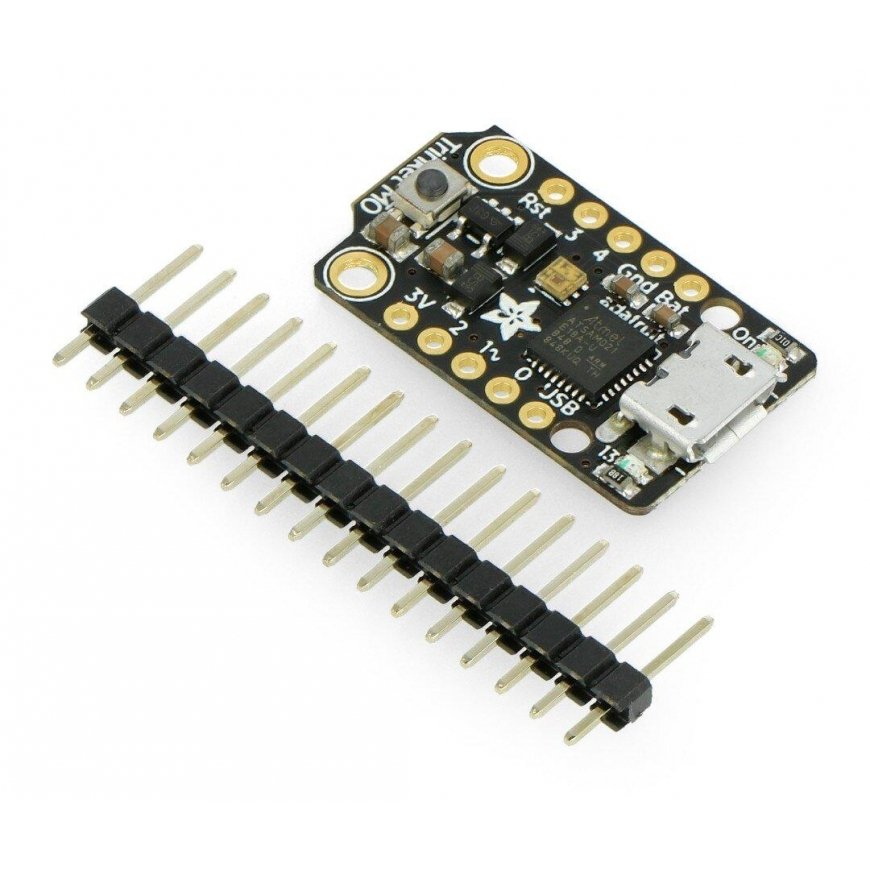

The module is based on the Atmel ATSAMD21 microcontroller with 256 KB Flash memory, 5 digital pins, analog inputs and 2 PWM channels. The board has a microUSB connector, through which the system can be programmed via the CircuitPython environment or the Arduino IDE. This version operates at 3.3 V.
Specifications:
- Atmel ATSAMD21 Microcontroller:
- Flash memory: 256 KB
- SRAM: 32KB
- Clock frequency: 48 MHz
- Operating voltage: 3.3V
- USB bootloader, with the ability to program using Arduino IDE or CircuitPython
- MicroUSB connector for programming
- Three LEDs on the board: green - power, red - for the user, connected to pin 13, and DotStar RGB
- Powered by USB port or external power supply with automatic switching system
- RESET button

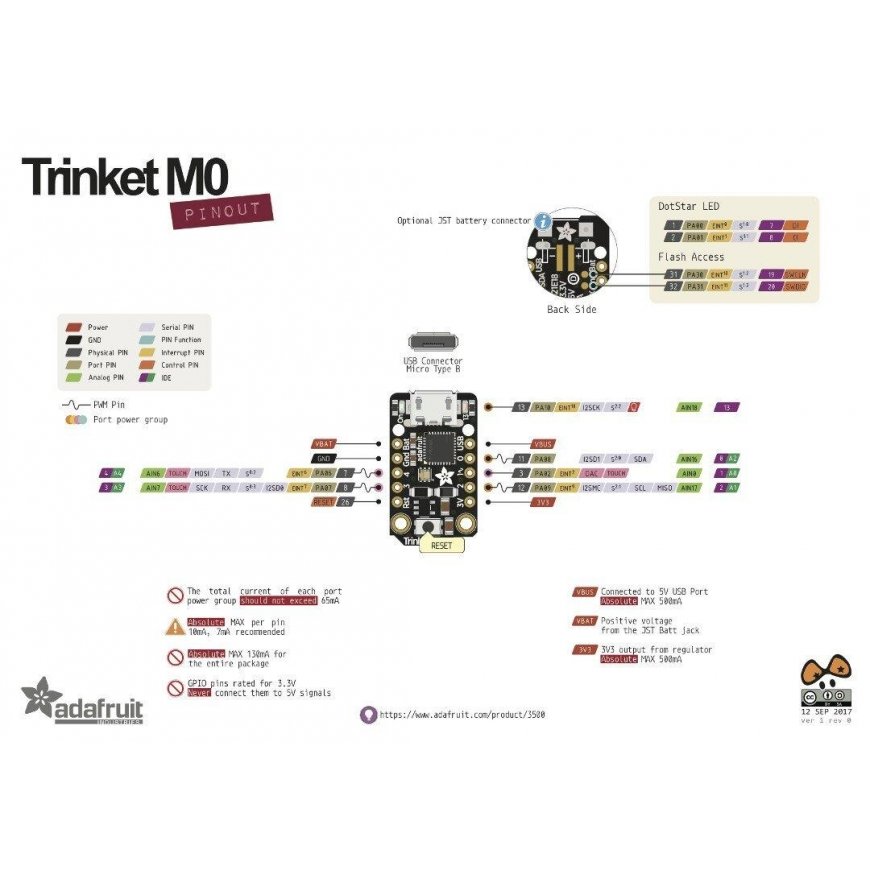

- Digital pins: 5
- Analog inputs: 3
- PWM channels: 2
- Two pins can be used as a mechanical touch sensor
- Four mounting holes
- Dimensions: 27 x 15.3 x 2.75 mm
- Weight: 1.4 g
