CoreInk Proto Base - Self-Assembly Expansion Kit - For CoreInk Display - M5Stack Display
19.70 €
3589104 AN-19420
5904422363697
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

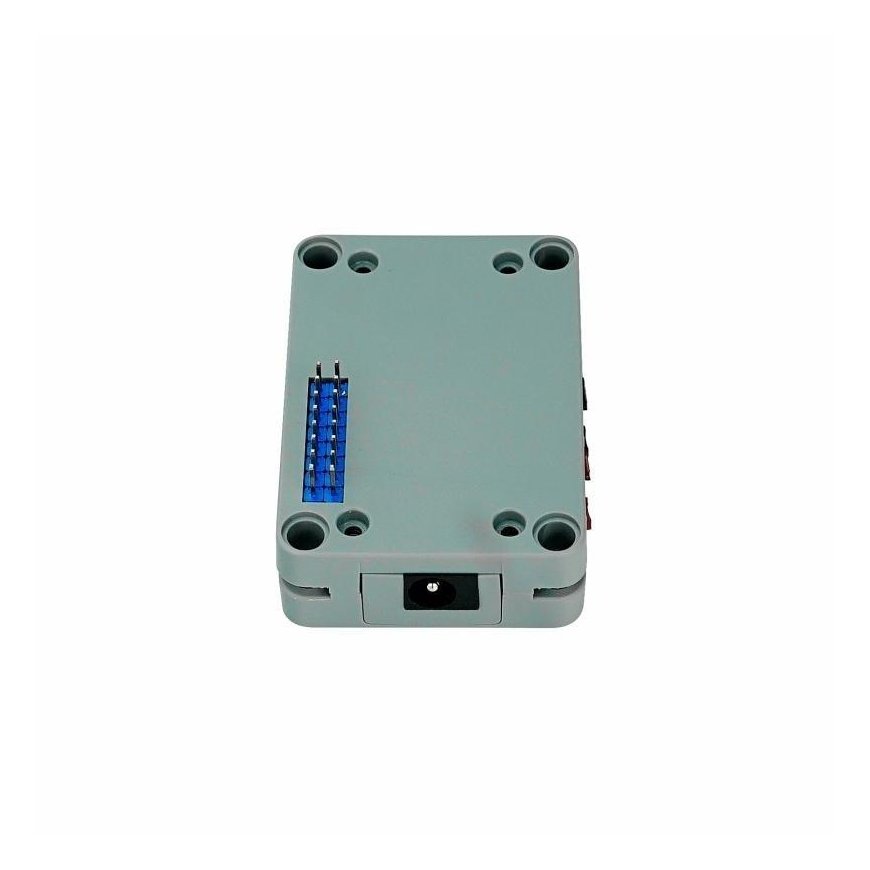

The CoreInk Proto Base is an expansion kit designed for self-assembly, manufactured by M5Stack. It is designed to expand the capabilities of the CoreInk display. When prototyping, the display IO bus is brought out to the Proto Base board via the bottom PIN connector. This allows you to create a custom project tailored to your current needs.Main features:
- Compatible with CoreInk display
- Used for simple prototyping, allows you to create projects using CoreInk and additional peripherals
- Components made of durable plastic
- Type: Expandable kit for self-assembly
- Compatible with CoreInk
- Material: PC plastic

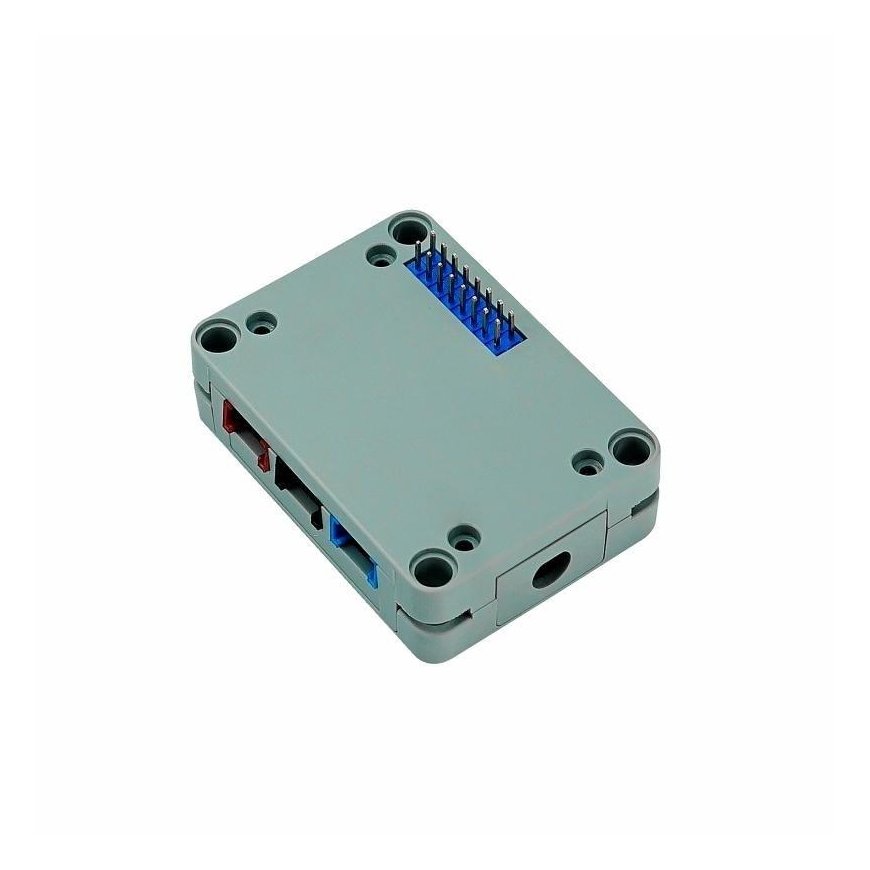

- Dimensions of the assembled module: 56 x 40 x 16 mm
- Weight: 34 g

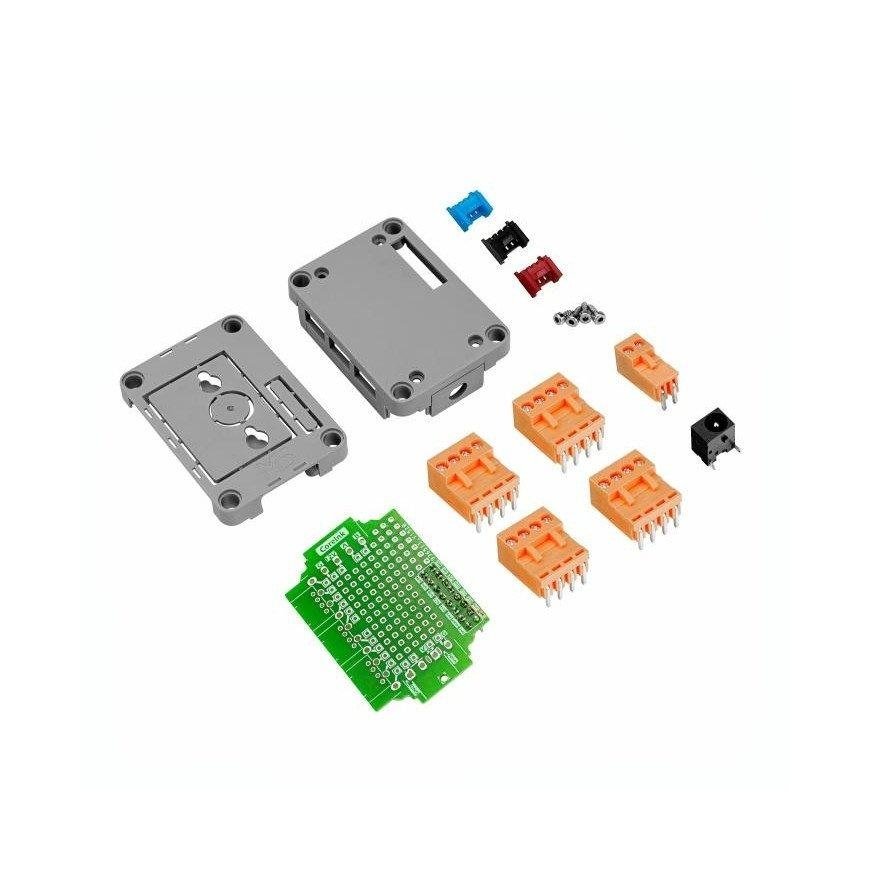

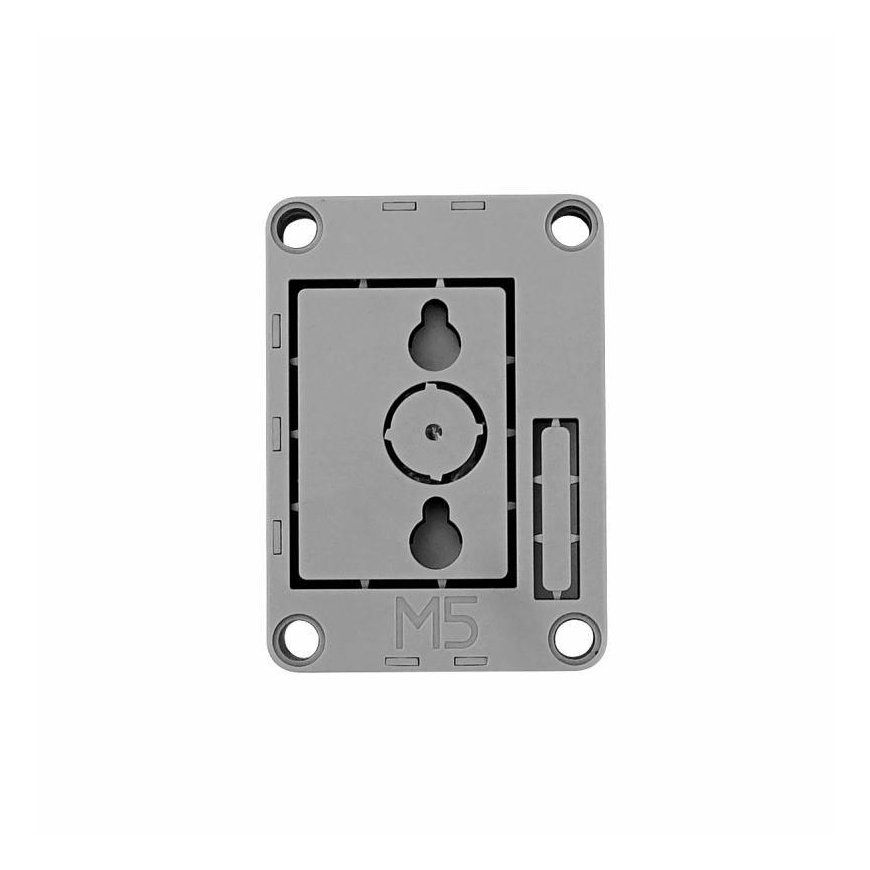

- CoreInk Proto Base - Front Cover and Bottom Pad

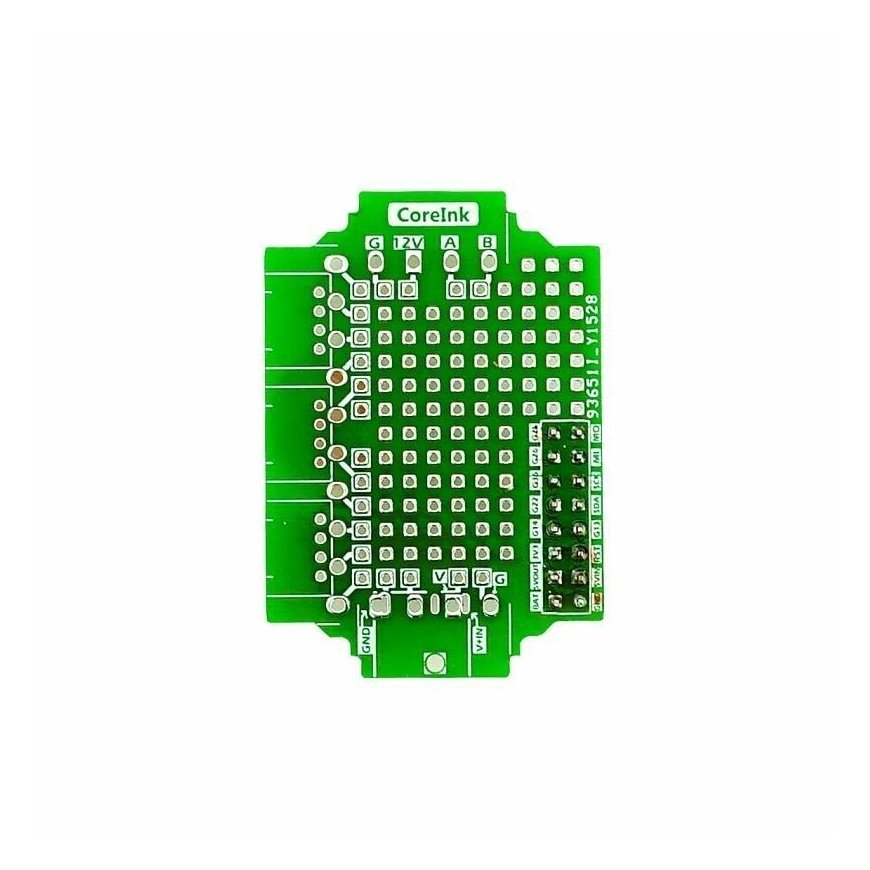

- Proto Board - prototyping board
- Connector HY2.0 - 4 pins - 3 pcs., one each in blue, black and red
- Connection to DC power socket
- Screw connection:
- 2 contacts - 1 pc.
- 4 contacts - 4 pcs.
- Pin connector:
- 2 contacts - 1 pc.
- 4 contacts - 4 pcs.
- Screws M2x6 - 4 pcs.
- Allen wrench
