Elektrobim 4-channel relay 12-24VDC 433 Mhz with 2 control panels RCD-4C
79.00 €
Kuumakse alates 2,93 €
3585844 AN-16011
4772164007602
Tarneaeg 8-12 t.p.
Kauba vastu huvi?
Kõik toote kohta
The remote control was created for simple solutions and less demanding users, while maintaining high quality and reliability. Four NO/NC relay outputs are controlled by the included 433.92 MHz remote control, which demonstrates high quality and resistance to interference. Power supply is 12–24 V DC. Designed for controlling blinds, windows, doors, gates. A 4-channel remote control is required to control gates.
Technical data:
- Receiver sensitivity –100dBm
- Carrier frequency 433.92MHz
- Supply voltage 12-24 V DC
- Maximum load 10A
- Maximum current 40mA
- Current in static operation 8mA
- Memory for up to 50 remote controls
- Temperature range -20'C ~ 60'C
- Dimensions 57.4mm x 40.5mm x 17.1mm

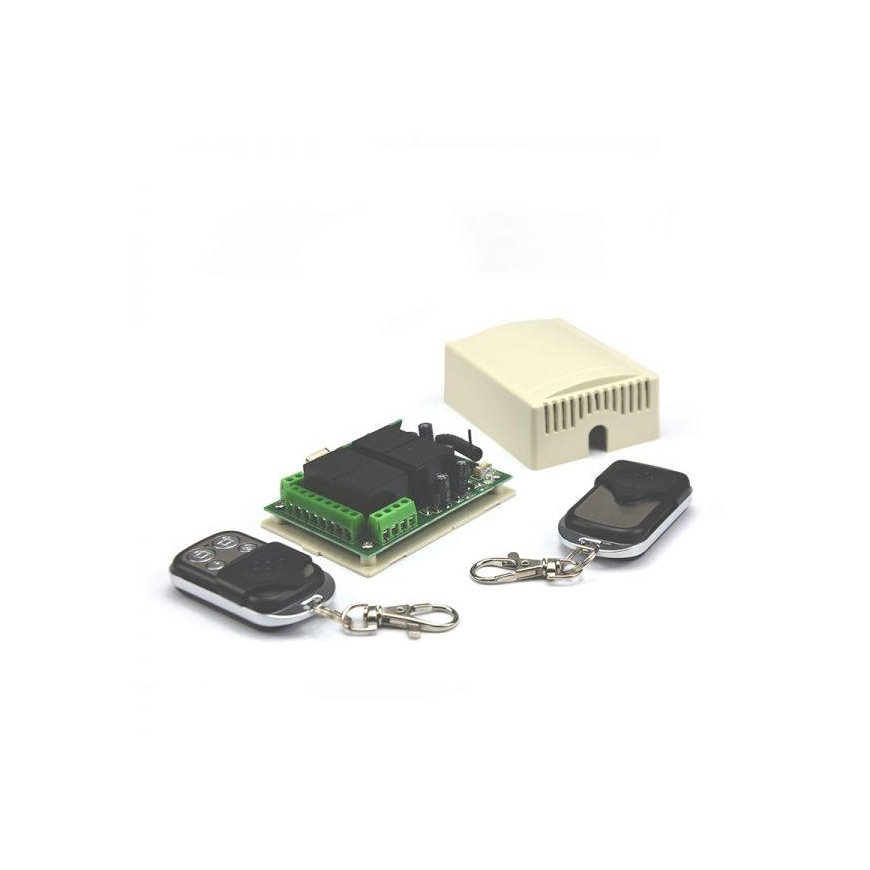

In the kit:
- 2-channel control unit
- Two remote controls 433.92 MHz,
- Operating instructions
- Warranty 12 months.
