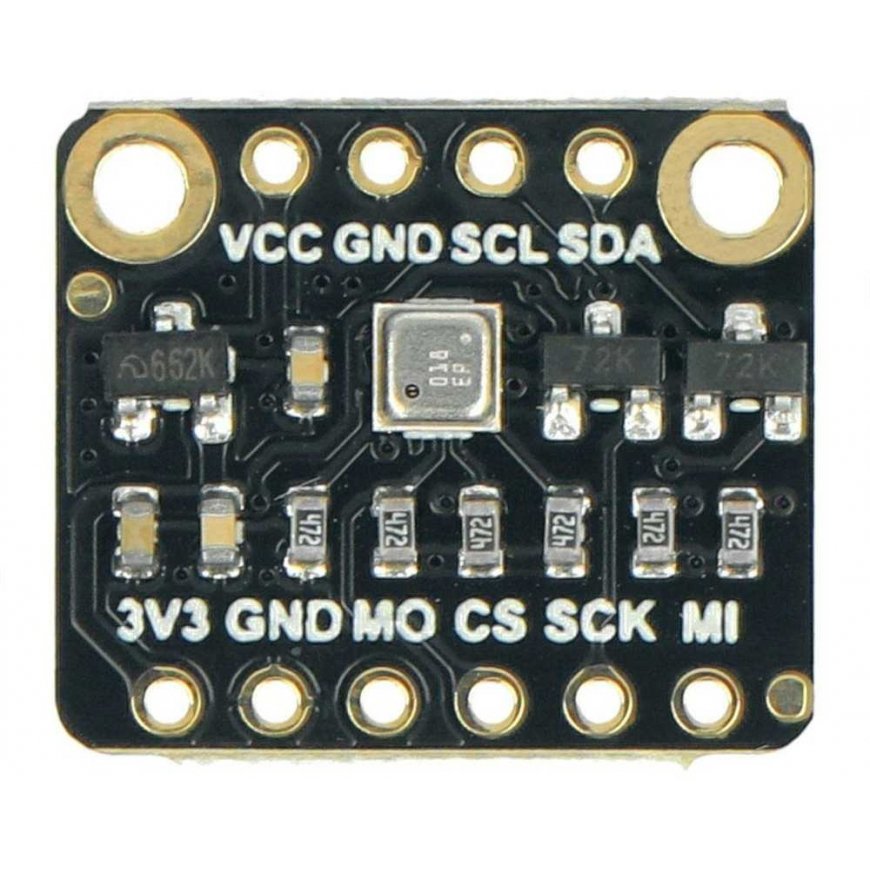

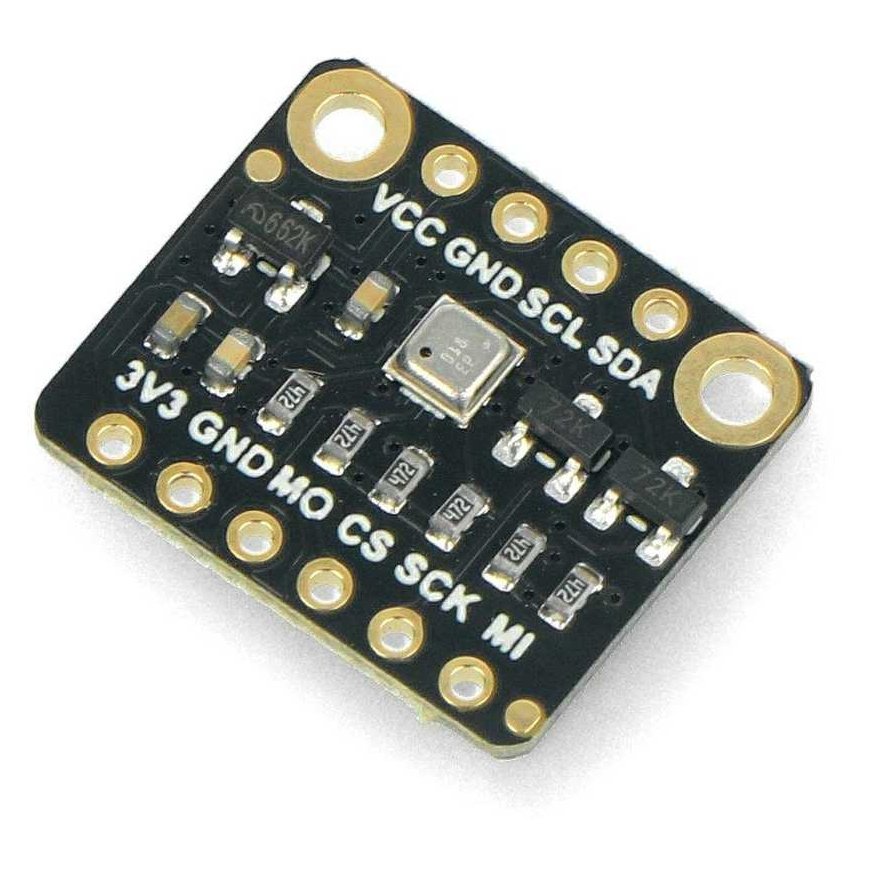

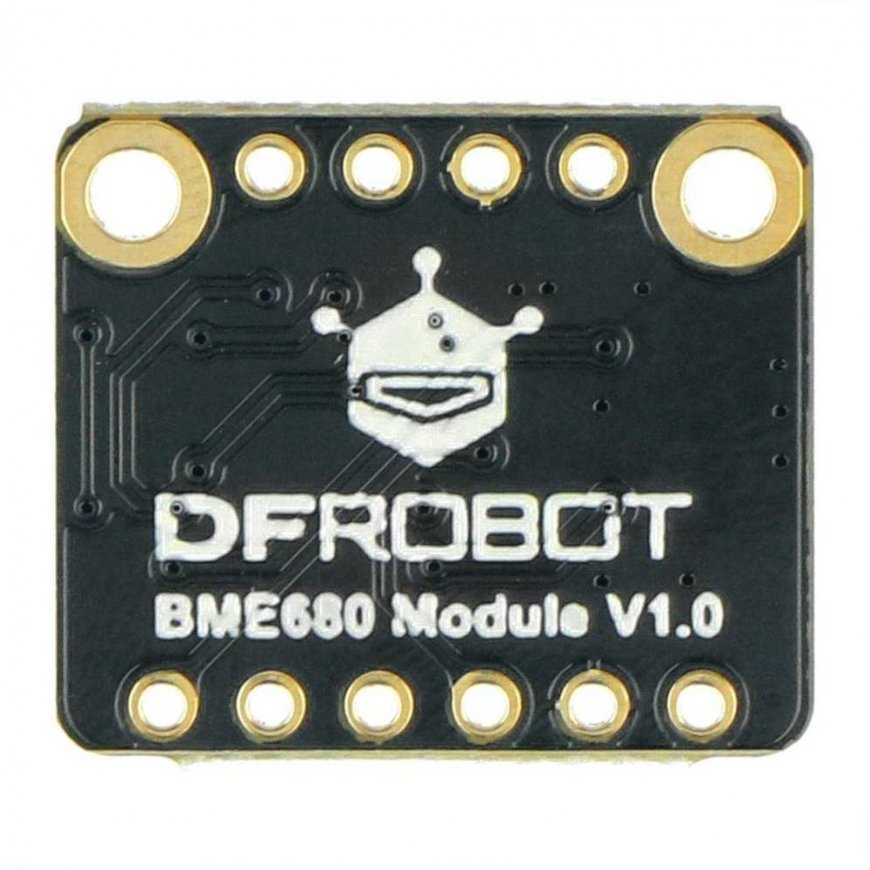

BME680 multifunctional 4in1 environmental sensor, SPI/I2C, DFRobot SEN0375
39.00 €
Kuumakse alates 1,90 €
3583595 AN-19199
5904422379339
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
Multifunctional MEMS 4in1 environmental sensor manufactured by DFRobot. It has an embedded BME680 chip. The module is a combination of a volatile organic compound (VOC) sensor, a temperature sensor, a humidity sensor and a barometer. It is used as an air quality monitoring component and is widely used in environmental monitoring, home automation and control or GPS enhancements. Using MEMS technology and the BME680 chip, the sensor becomes small in size and consumes little power. The temperature measurement range is from -40 °C to 85 °C with an accuracy of +/- 1 °C; for humidity - from 0% to 100% RH, accuracy of +/- 3% RH; for atmospheric pressure - from 300 hPa to 1100 h Pa with a measurement accuracy of +/- 0.6 hPa.Specifications:
- Module: Volatile Organic Compounds (VOC), Temperature, Humidity and Barometer Sensor
- Embedded chip: BME680
- Technology: MEMS
- Input voltage range: 3.3V to 5.5V
- Current consumption: 5 mA (25 mA when measuring VOC)
- Interface: I2C bus / SPI
- I2C bus: 3.3V/5V support
- SPI bus: 3.3V support only
- I2C interface address: 0x76
- Temperature measurement range: -40 °C to 85 °C
- Measurement accuracy: +/- 1 °C (from 0 °C to 65 °C)
- Humidity measurement range: 0% to 100% RH
- Measurement accuracy: +/- 3% RH (ranges from 20% to 80% RH at 25 °C)
- Atmospheric pressure measurement range: from 300 hPa to 1100 hPa
- Measurement accuracy: +/- 0.6 hPa (range 300 hPa to 1100 hPa at 0–65 °C)
- IAQ (indoor air quality) range: 0 to 500 (the higher the score, the worse the air quality)
- Module dimensions: 18 x 15.6 mm

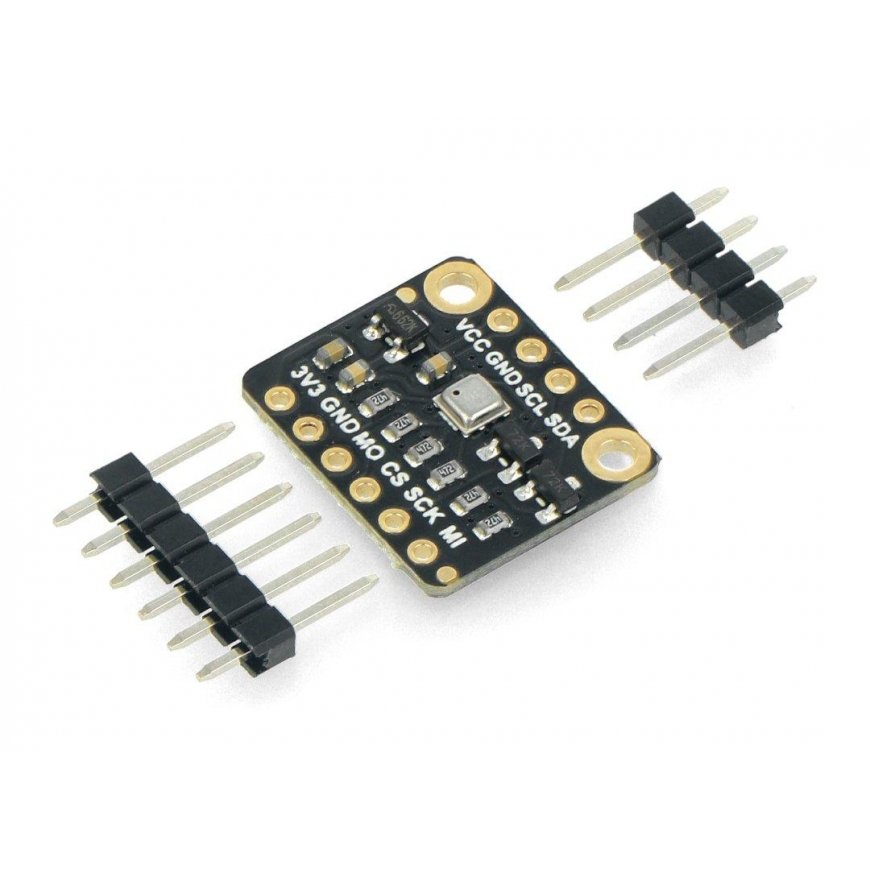

- BME680 4in1 environmental sensor
- Goldpin socket strip 1x4 - 2.54 mm
- Goldpin strip 1x6 - 2.54 mm
