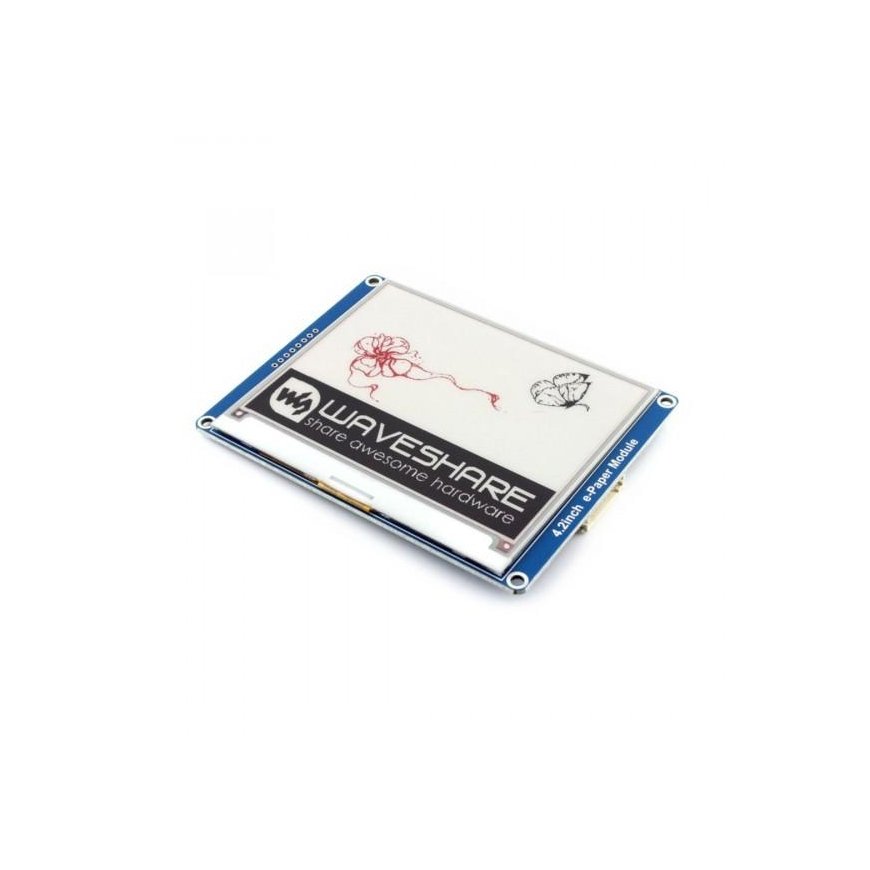

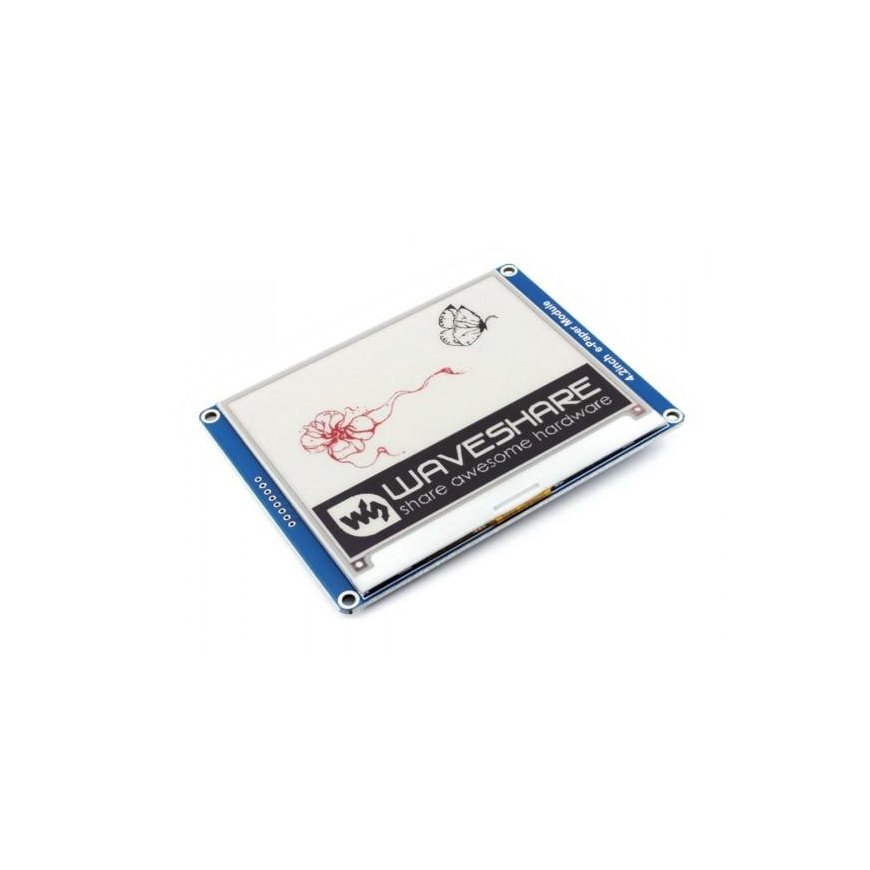

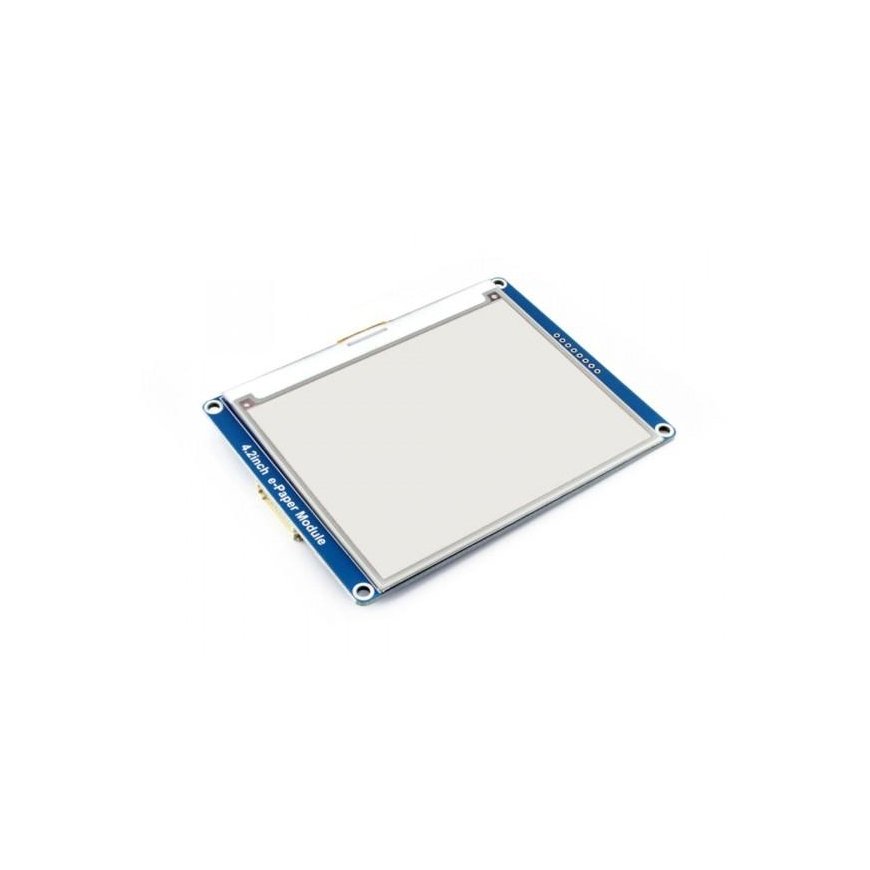

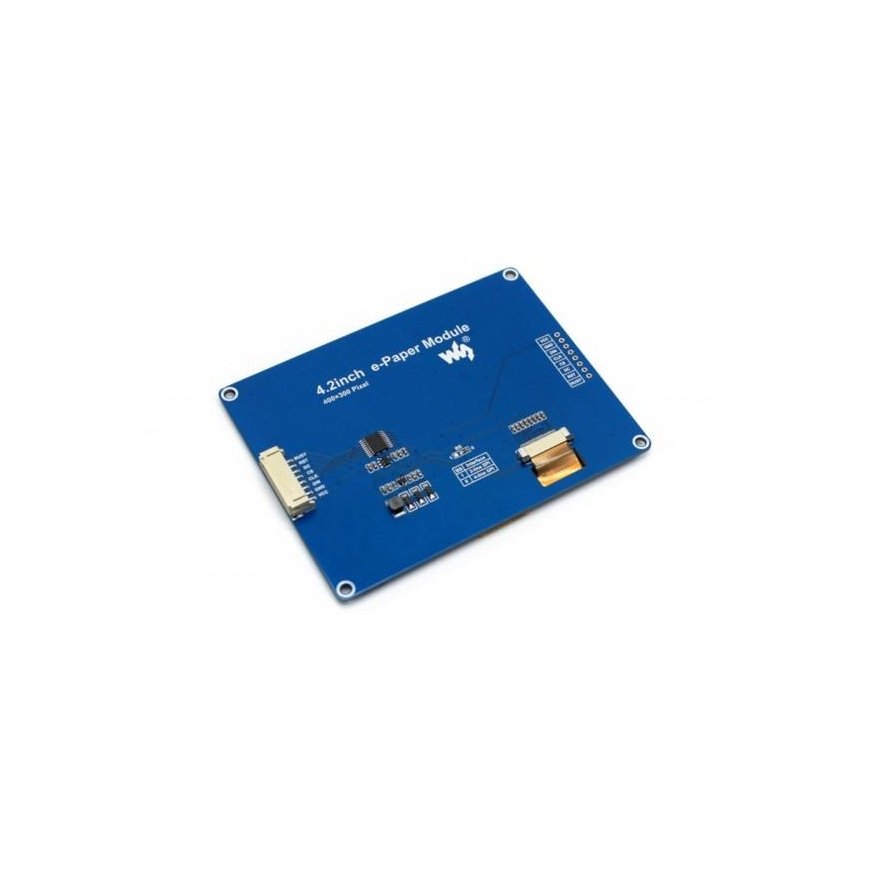

Waveshare E-paper E-Ink (B) 4.2" display for Raspberry Pi microcomputer
59.00 €
Kuumakse alates 2,42 €
3581520 AN-15129
5904422342999
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
Waveshare E-paper E-Ink (B) 4.2" display for Raspberry Pi microcomputer with a resolution of 400 x 300 pixels. Works via SPI interface, e.g. with Arduino or Raspberry Pi. Displays 3 colors: black, white and red.
Technical data:
- The module is compatible with Arduino
- Supply voltage: 3.3V to 5V
- Power consumption (with screen refresh): 26.4 mW
- Interface: SPI
- Grayscale level: 2
- Refresh time: 15 s
- Available colors: black, white and red
- External dimensions: 103 x 78.5 mm
- Screen dimensions: 84.8 x 63.6 mm
- Pixel: 0.212 x 0.212 mm
- Resolution: 400 x 300 pixels
- Connection cable included
- Viewing angle: 170°
In the kit:
- Screen
- Connection cables
