Waveshare E-paper E-Ink 7.8 display for Raspberry Pi microcomputer
219.00 €
Kuumakse alates 6,54 €
3577027 AN-15514
5904422343521
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

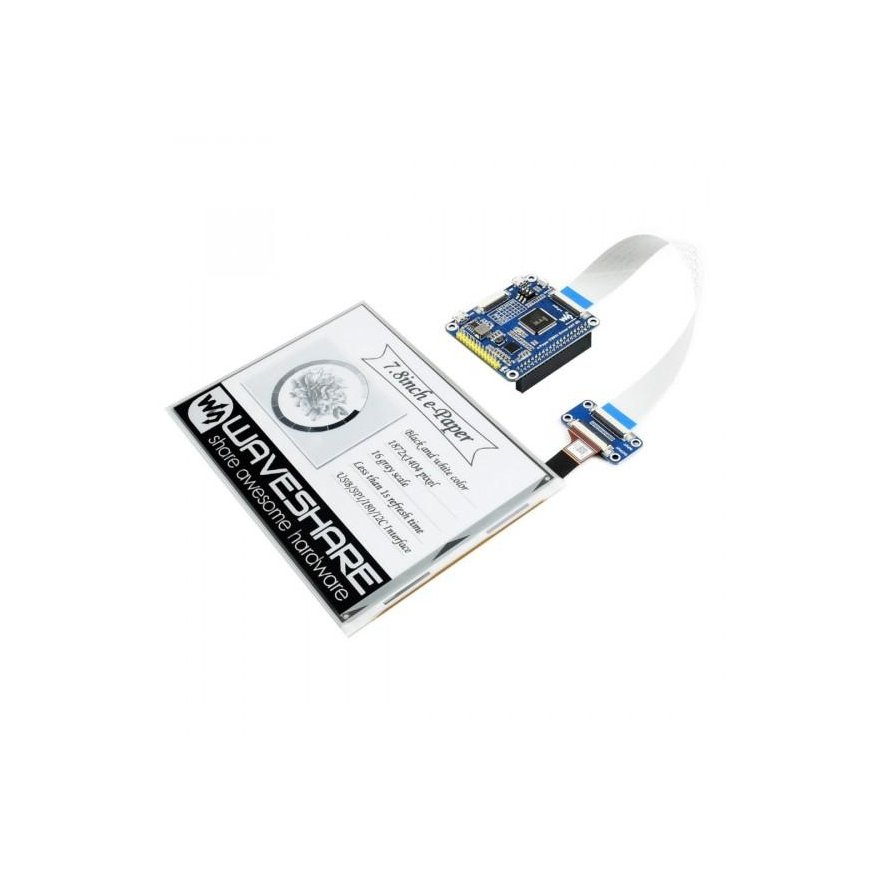

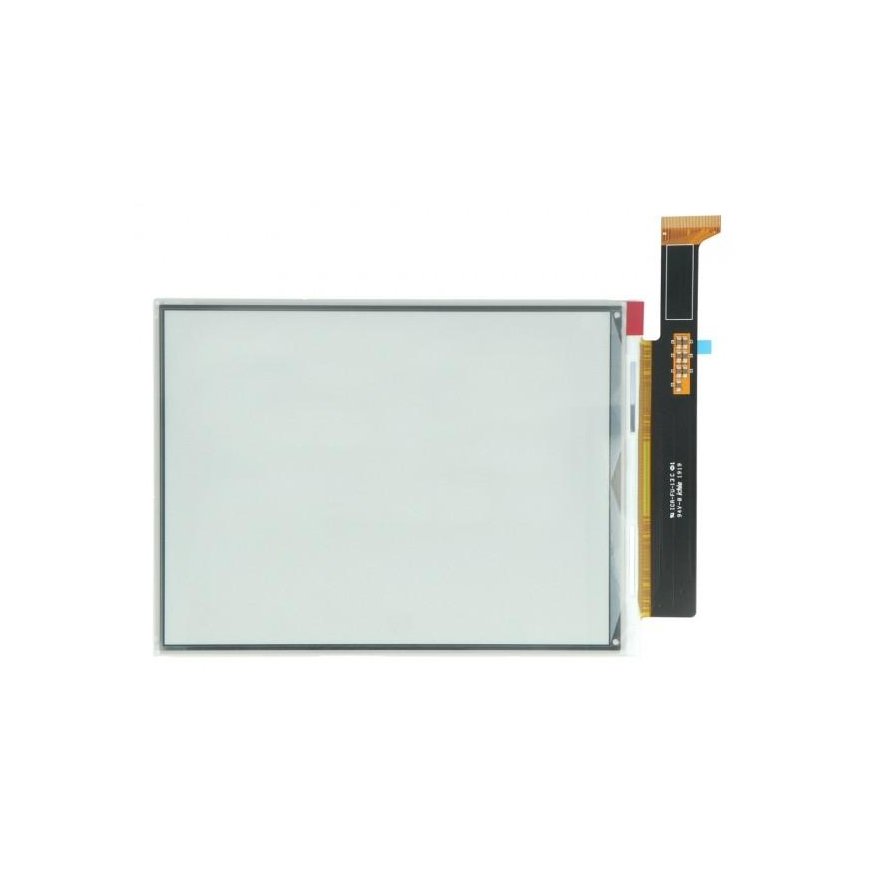

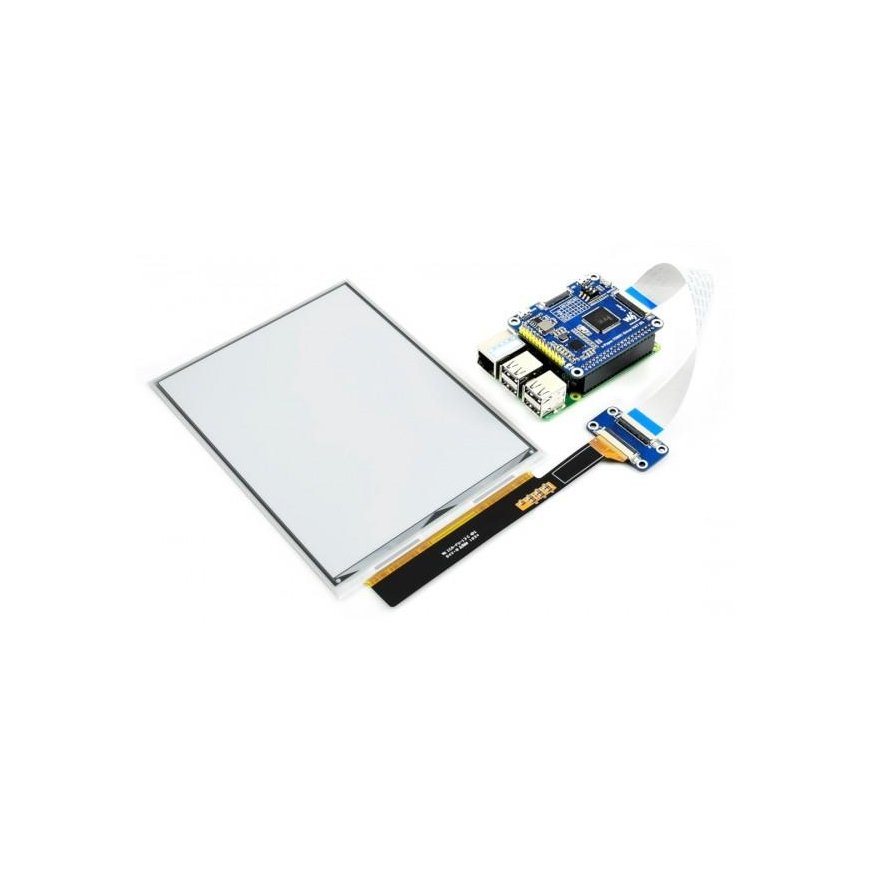

Waveshare E-Ink display, made using electronic paper technology, with a diagonal of 7.8 and a resolution of 1872 x 1404 pixels. This type of display can be used to read electronic books and magazines. The display works with Raspberry Pi. The module communicates via SPI / I2C / USB / I80 interface. The supply voltage is 5 V.
Technical data:
- Supply voltage: 5V
- Screen size: 7.8"
- Resolution: 1872 x 1404 pixels
- Screen dimensions: 158.184 x 118.638 mm
- Pixel size: 0.0845 x 0.0845 mm
- Available colors: black, white
- Gray level: 2 to 16 (1 to 4 bits)
- Total refresh time: 450 ms
- Viewing angle: up to 170°
- Power consumption when updating: 1.2 W
- Power consumption in sleep mode: 0.1 W
- Interface: SPI/I2C/USB/I80
- External dimensions: 173.8 x 127.6 x 0.78 mm
- Overlay dimensions: 65.15 x 56.21 mm

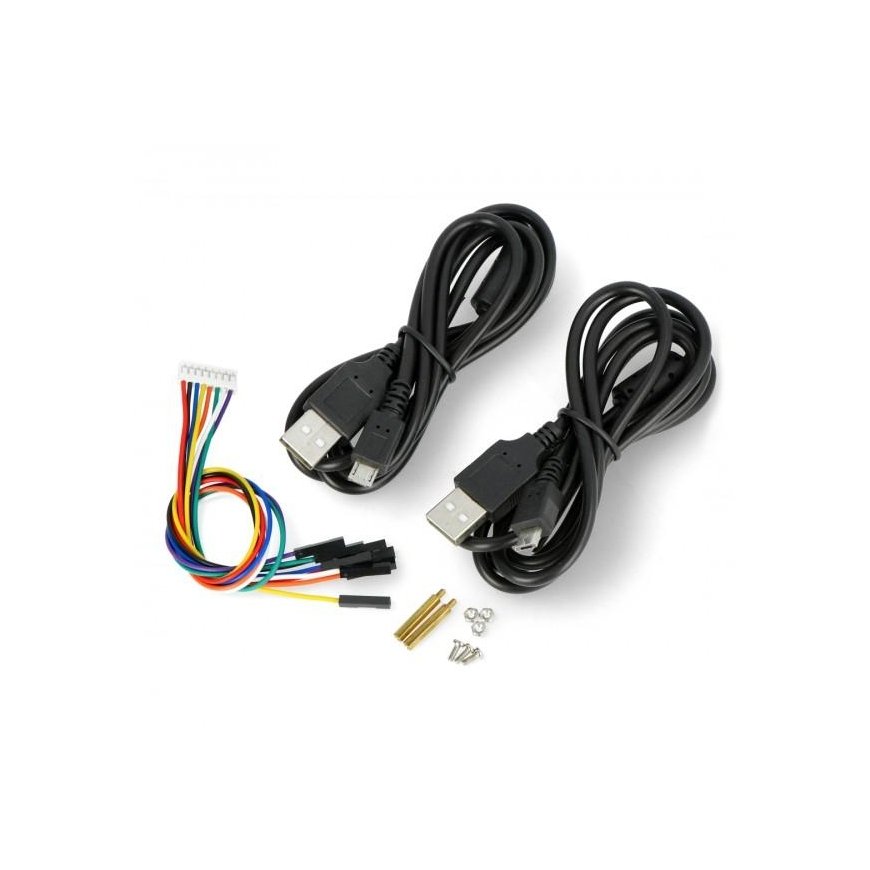

In the kit:
- Waveshare E-paper E-Ink 7.8 screen
- Connection cables
- Screws
