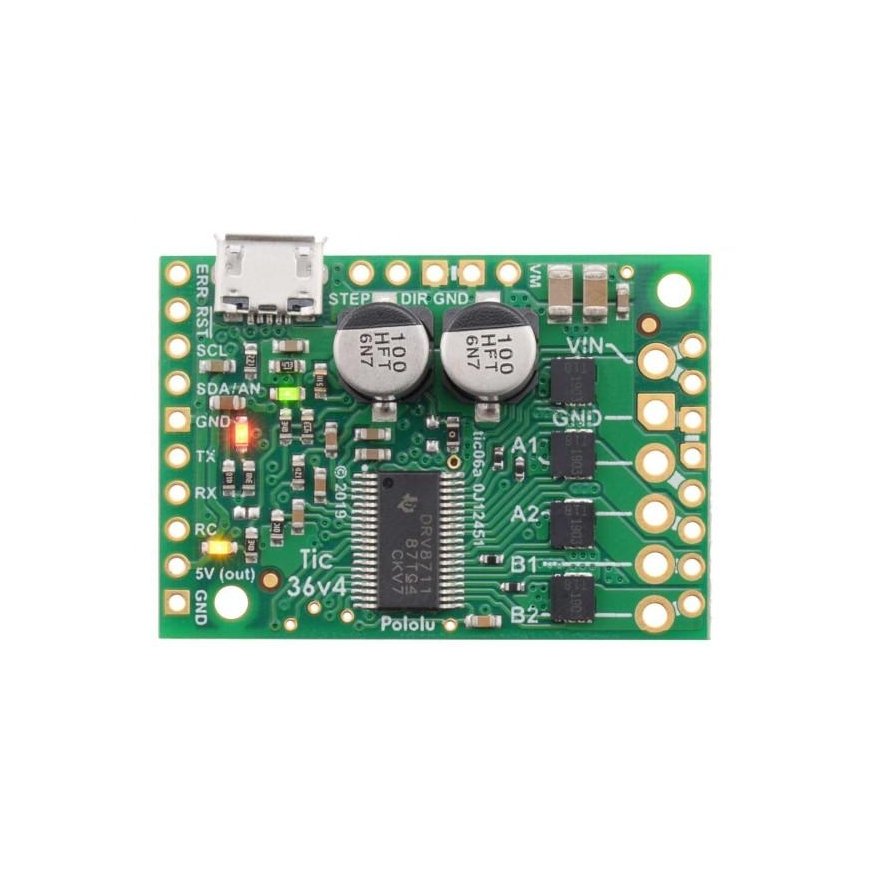

Stepper motor controller USB Tic 36v4 Pololu 3141 50V/4A
3576524 AN-17163
5904422327057
Tarneaeg 8-15 t.p.
Kõik toote kohta
Stepper motor controller USB Tic 36v4 Pololu 3141 50V/4A . The system is based on MOSFET transistors, operates at voltages from 8V to 50V, with current consumption up to 4 A without a radiator or up to 6 A with additional cooling. The maximum step resolution is 1/256. Tic series drivers allow you to easily control bipolar stepper motors. The circuits support six different control interfaces: USB for direct control via a computer, serial TTL and I2C for control with a microcontroller, RC servo system, analog voltage for operation with a potentiometer or joystick, quadrature encoder for use with a rotary encoder. Many settings can be configured using the manufacturer's program for Windows, Linux and macOS.
Technical data:
- System: MOSFET transistors

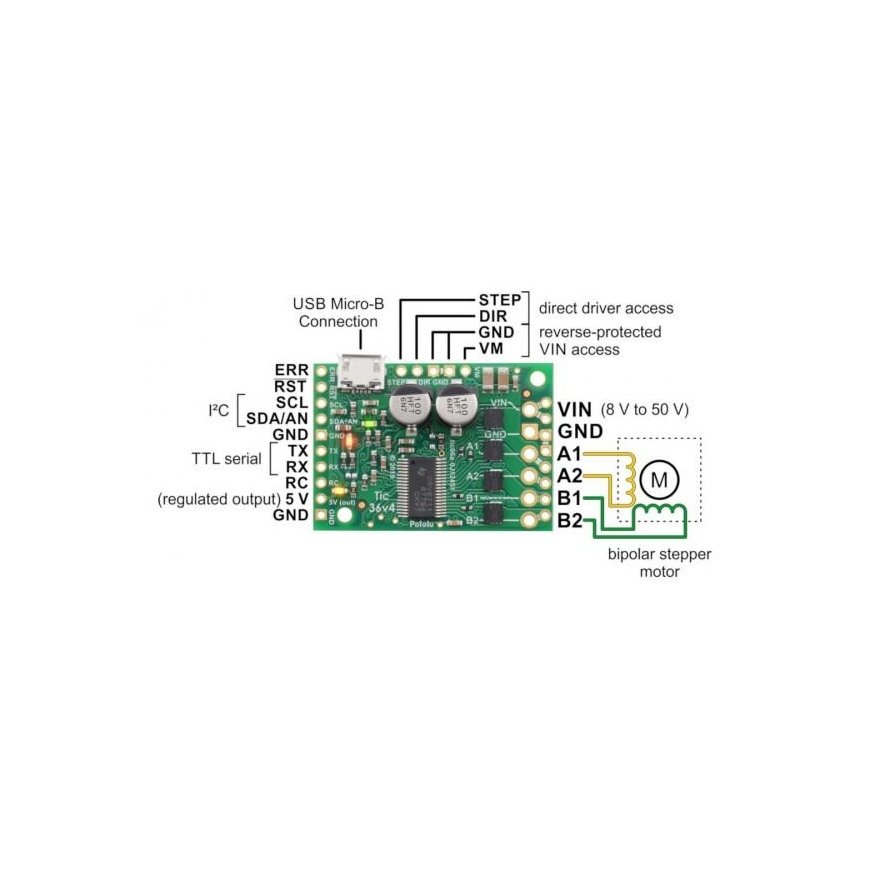

- Interface:
- USB
- serial TTL
- I2C
- RC pulsed
- analog voltage
- quadrature encoder
- Supply voltage: 8 V to 50 V
- Current without cooling: 4 A
- Current with cooling: 6 A
- Maximum number of steps: 5000 PPS
- Step resolution: full, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256
- Reverse polarity protection
- Dimensions: 38.1 x 26.7 x 10.7 mm
- Weight: 6.3 g

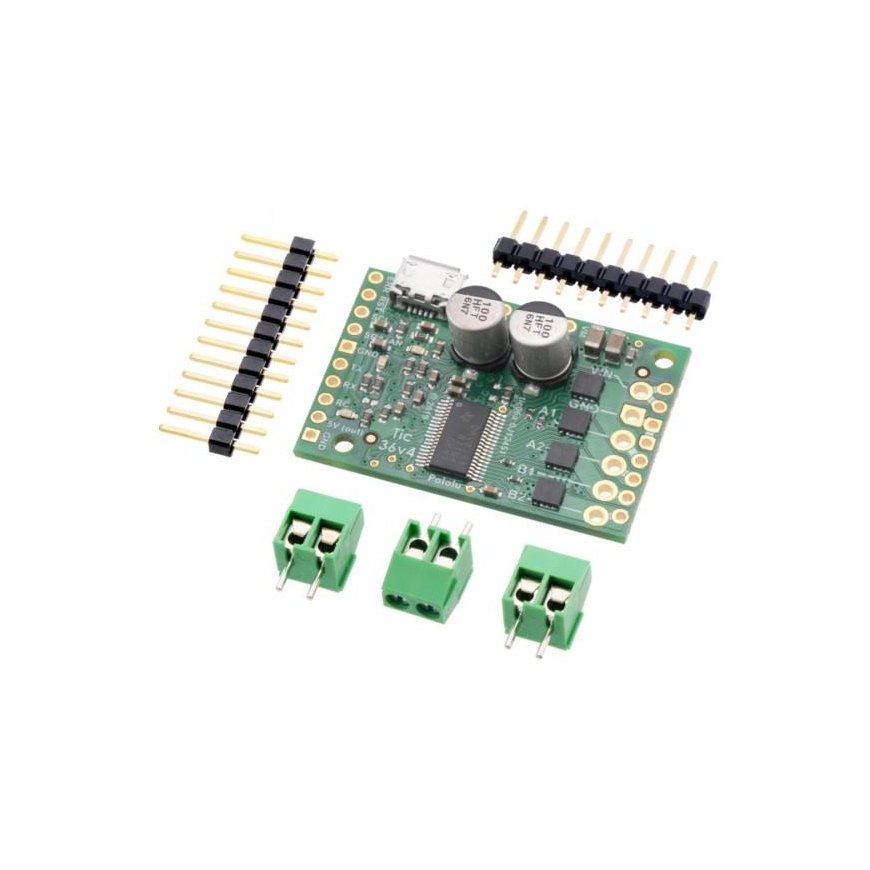

In the set
- Tic 36v4 module
- Clip strips
- Screw connections
