Seeed Studio Wio Terminal - LoRaWAN LoRa-E5, 868MHz GNSS with antenna - Seeedstudio 114992728
49.00 €
Kuumakse alates 2,16 €
3575413 AN-20122
5904422380250
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

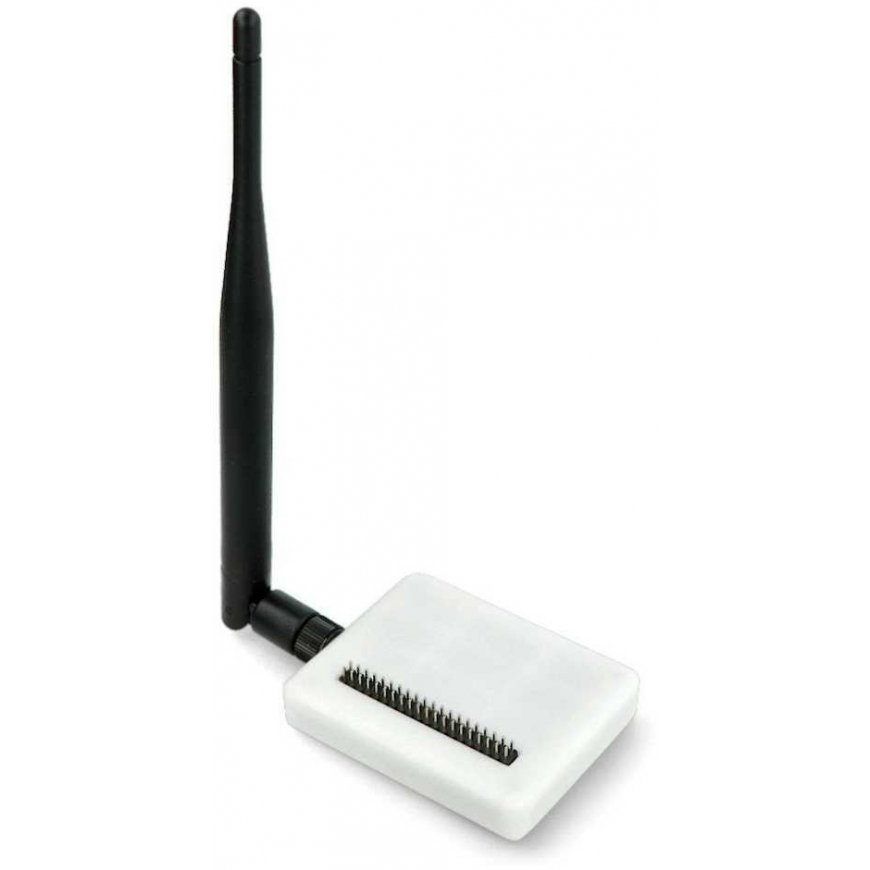

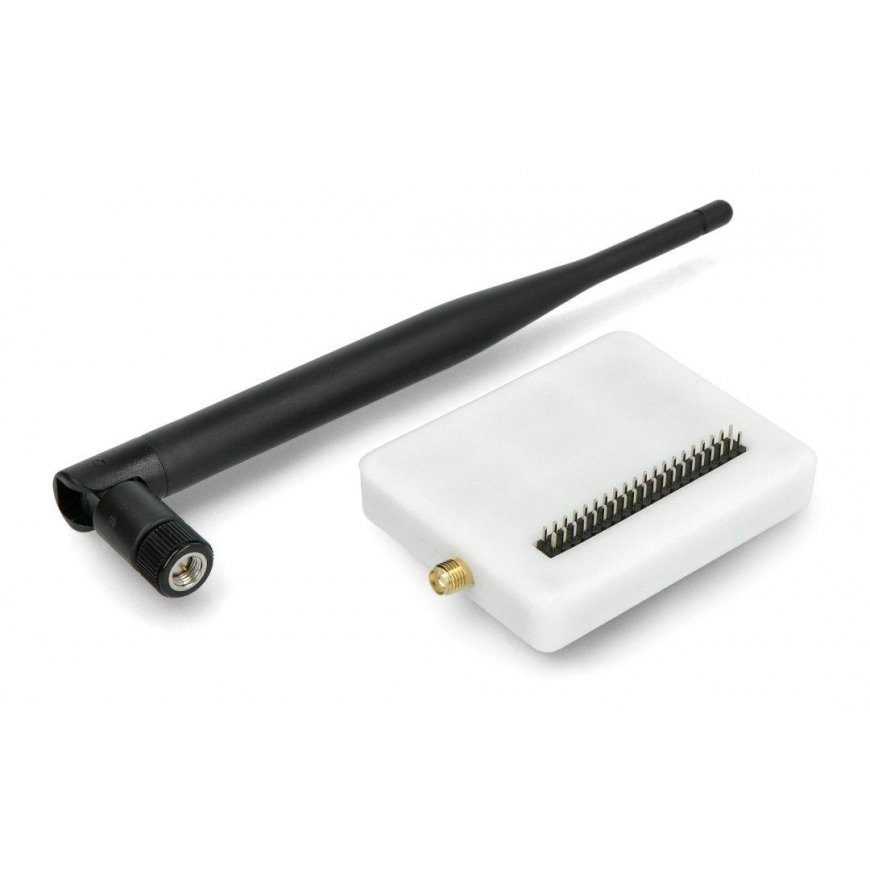

Wio Terminal expansion module for communication in LoRaWAN LoRa-E5 standard and GNSS frequency 868 EU and 915 US. The module is also equipped with an SMA antenna. It is based on the STM32WLE5JC chip, which is the first in the world to integrate long-range LoRa RF communication with an MCU. It is an ARM Cortex-M4 and Semtech SX126X LoRa, supporting both LoRaWAN and LoRa protocols in global frequency and (G)FSK, BPSK, (G)MSK and LoRa modulations. The GNSS is based on the Quectel L76-LB chip and supports GPS, GLONASS, BeiDou and QZSS. With 33 tracking channels, 99 receiving channels and 210 PRN channels, it can find and track any combination of GPS, GLONASS and SBAS signals.Main features:
- Compact and powerful LoRa-E5 module
- Integrated LoRaWAN protocol, AT commands, support for global LoRaWAN frequency plan
- Worldwide compatibility. Wide frequency range including EU868 / US915 / AU915 / AS923 / KR920 / IN865
- Long-distance transmission up to 10 km
- GNSS module (Quectel L76-LB) supports GPS, GLONASS and BeiDou
- Compatible with Arduino
- Very low energy consumption
- Voltage: 3.3V
- LoRa-E5:
- Frequency: EU868/US915/AU915/AS923/KR920/IN865
- Protocol: LoRaWAN
- Sensitivity: -116.5 dBm to -136 dBm
- Modulation: LoRa, (G)FSK, (G)MSK, BPSK
- Quectel L76-LB:
- Bands: GPS L1/Galileo E1 C/A: 1575.42 MHz; GLONASS L1 C/A: 1602.5625 MHz; BeiDou B1 C/A: 1561.098 MHz
- Channels: 33 tracking channels; 99 acquisition channels; 120 PRN channels
- Sensitivity: Receive: -148 dBm; Tracking: -165 dBm; Receiving: -160 dBm

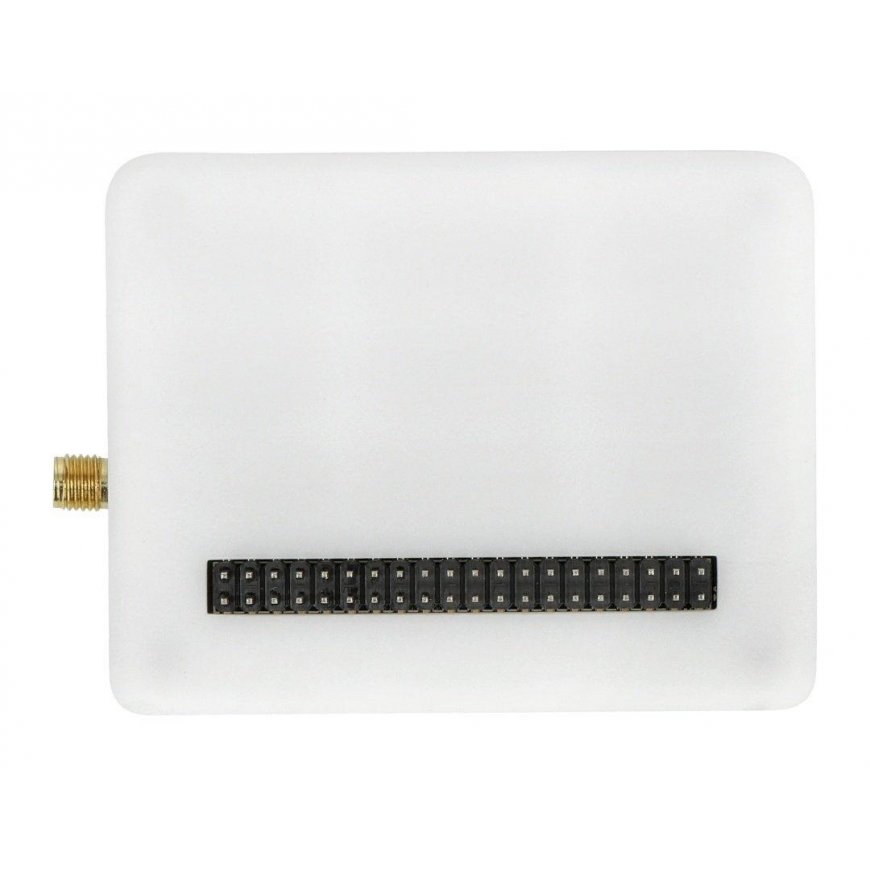

- Interface: 40-pin Wio terminal (2 x 20 pins)

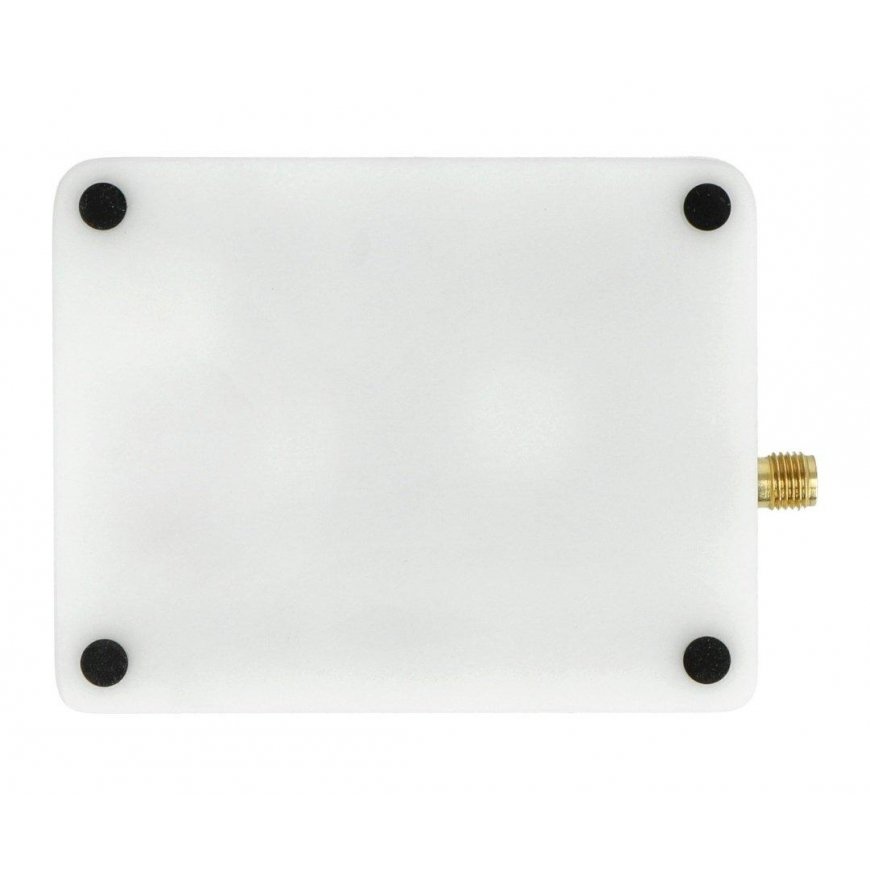

- Body:
- Dimensions: 72 x 57 x 12 mm
- Material: ABS from 3D printing
