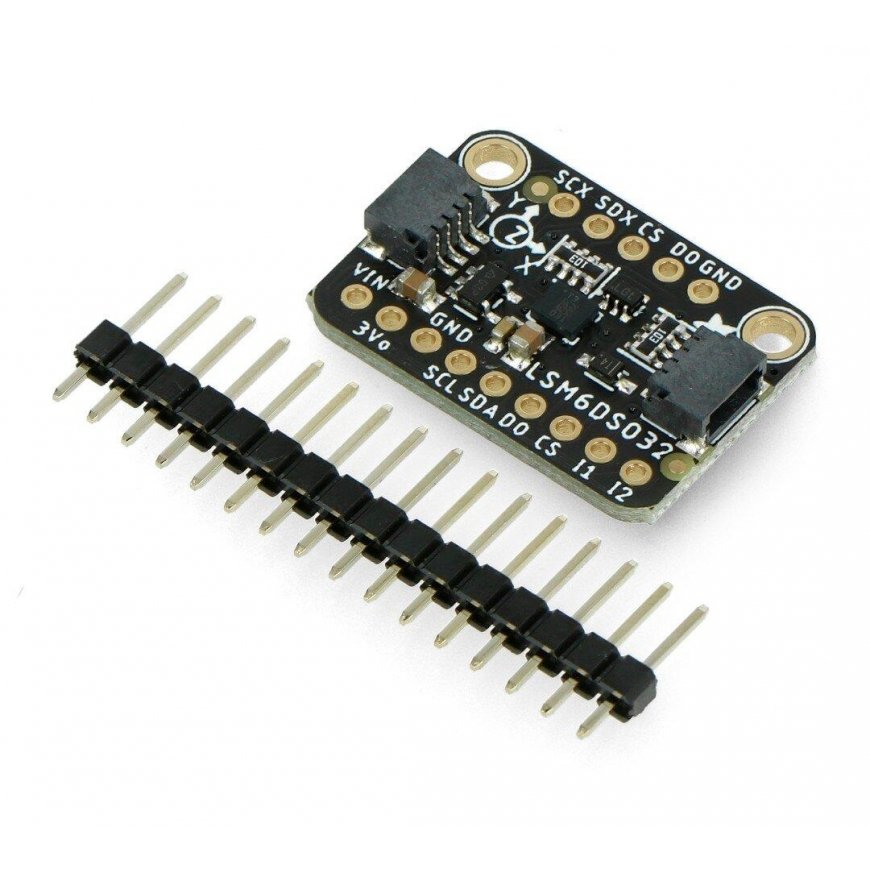

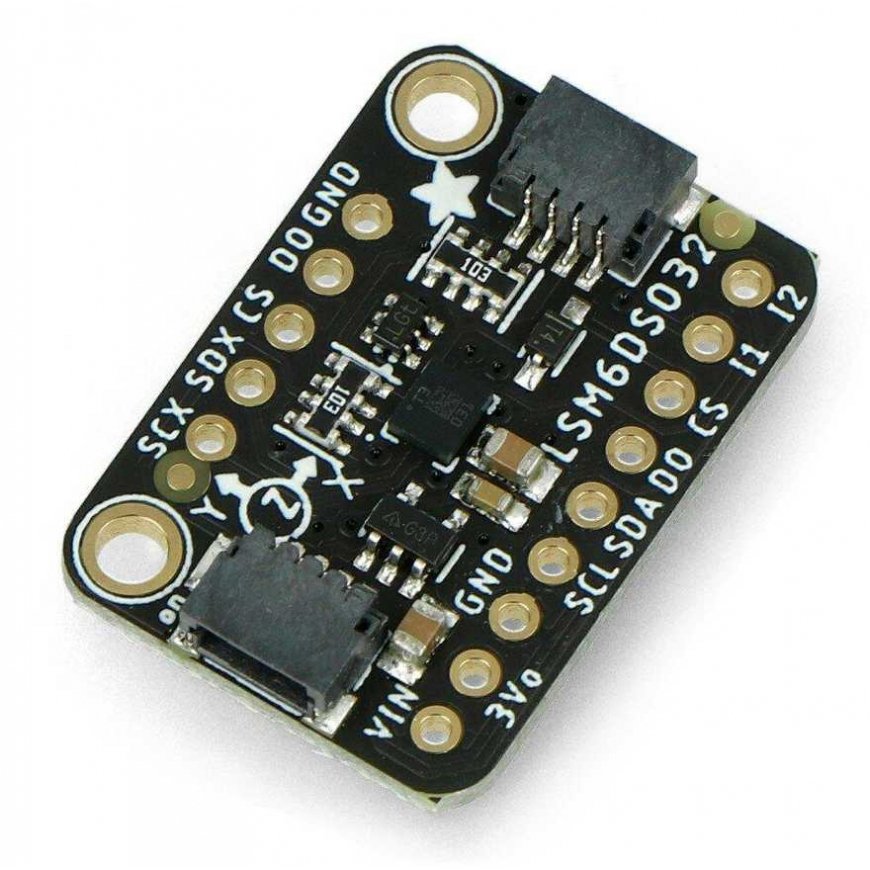

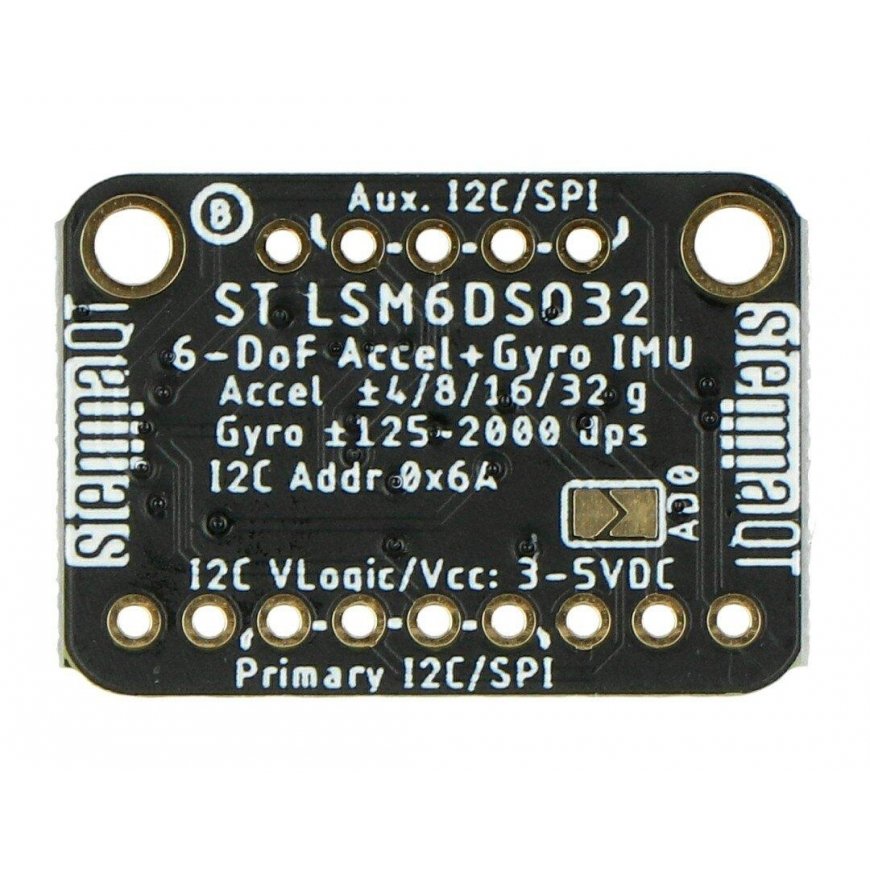

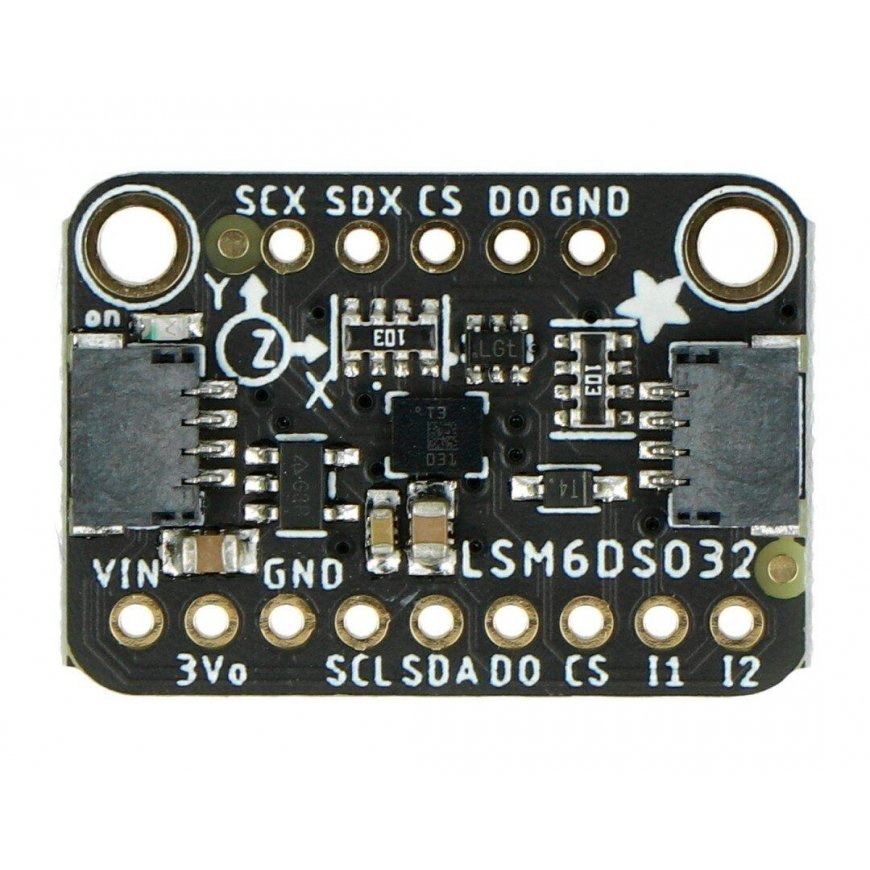

LSM6DSO32 6DoF IMU, 3-axis accelerometer and gyroscope, Adafruit 4692
3574790 AN-18232
5904422378950
Tarneaeg 11-18 t.p.
Kõik toote kohta
The 6DoF LSM6DSO32 is a 3-axis accelerometer and 3-axis gyroscope module from Adafruit. It is used to measure linear acceleration with an accuracy of ±4 / ±8 / ±16 / ±32 g, at a refresh rate of 1.6 Hz to 6.7 KHz, and angular velocity with an accuracy of ±125 / ±250 / ±500 / ±1000 / ±2000 dps, at a frequency of 12.5 Hz to 6.7 KHz. To connect to the main module, you need to use gold-plated connectors (included in the kit) or wires with a STEMMA QT or Qwiic plug. The sensor communicates via I2C and SPI interfaces and can be used with devices powered from 3 V to 5 V.
Specifications:
- Supply voltage: 3 V to 5 V
- Interface: SPI/I2C
- Connector type:
- Bilateral Quick
- Gold pins - 2.54 mm
- Accelerometer:
- 3 axes: X, Y, Z
- Scope: ±4/±8/±16/±32g
- Frequency: 1.6 Hz to 6.7 kHz
- Gyroscope:
- 3 axes: X, Y, Z
- Scope: ±125/±250/±500/±1000/±2000 dps
- Frequency: 12.5 Hz to 6.7 kHz
- Communication interface: I2C/SPI
- I2C interface address: 0x6A
Included:
- MPM3610 converter module
- Goldpin connectors 2.54 mm
