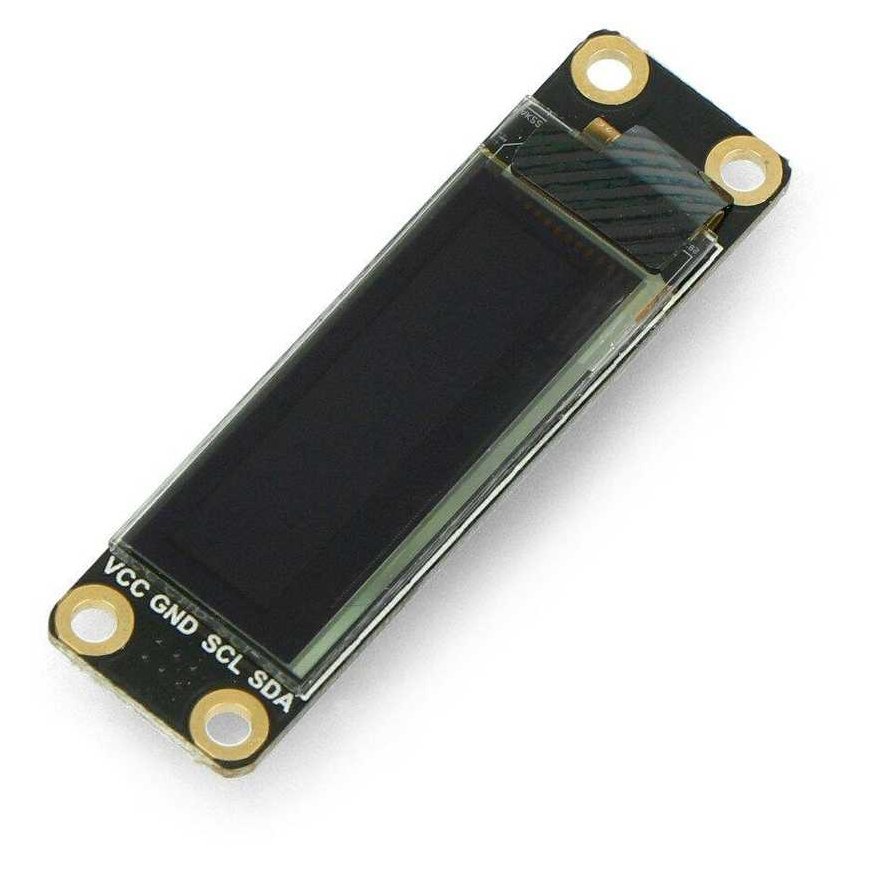

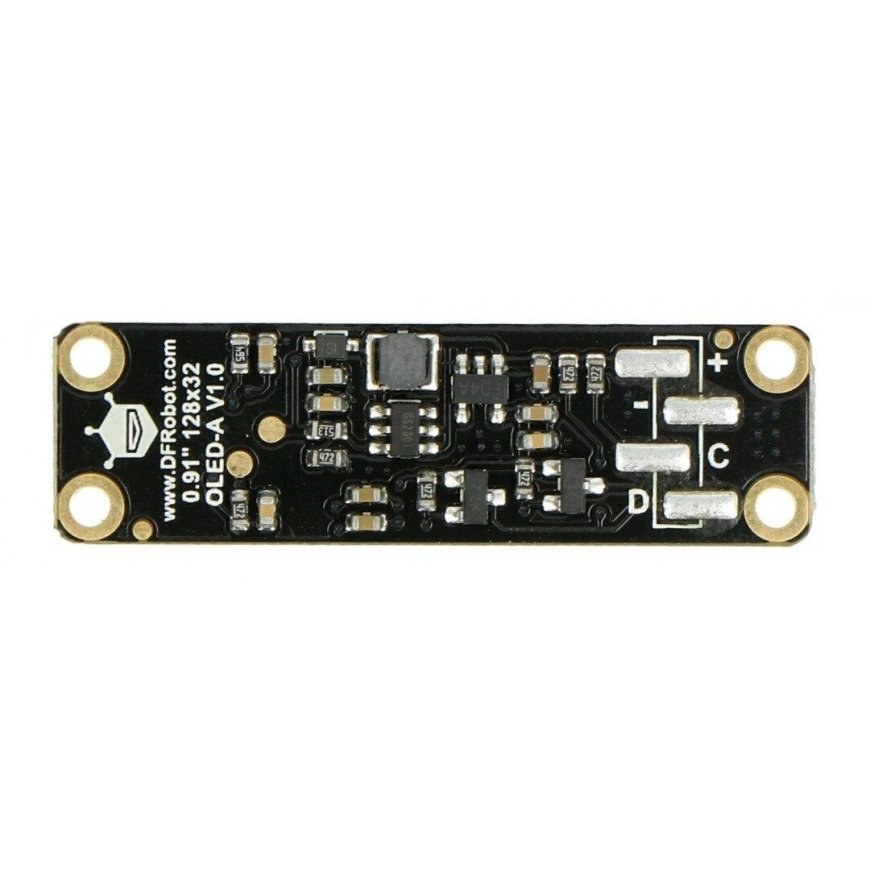

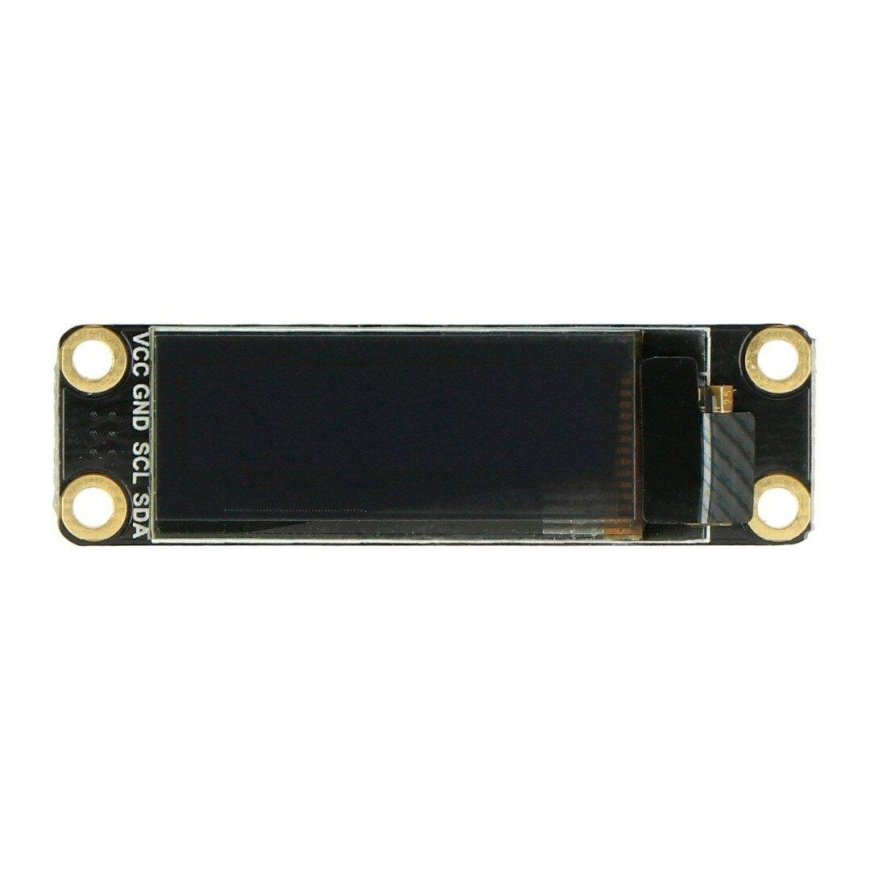

OLED monochrome display 0.91” 128 x 32 px, I2C, with chip pad, DFRobot DFR0647
3573893 AN-17382
5904422327408
Tarneaeg 11-18 t.p.
Kõik toote kohta
The monochrome OLED 0.91" display uses an I2C interface for communication, operates on the basis of the SSD1306 drive system. It has a 128 x 32 px display, and OLED technology provides high contrast and low power consumption. Compatible with Arduino UNO, Leonardo, ESP32 / ESP826, FireBeetle-M0 controllers. Small size, easy connection and low power consumption allow the device to be used in many applications, such as a thermometer, weather measurement or Mini Game Console.
Specifications:
- Operating voltage: 3.3 to 5 V
- Character color: white
- Number of pixels: 128 x 32
- Interface: I2C
- Drive system: SSD1306
- Brightness: 180 Cd/m²
- Full screen backlight power: Approx. 25 mA (3.3 V) 25 mA (5 V)
- Power consumption when the screen is off: Approx. 2 mA (3.3 V) 2 mA (5 V)
- Operating temperature: -30 °C to 70 °C
- Screen area: 22.38 x 5.58 mm
- Mounting hole diameter: 2 mm
- Dimensions: 41 x 12 mm
- Weight: 2.2 g
Included:

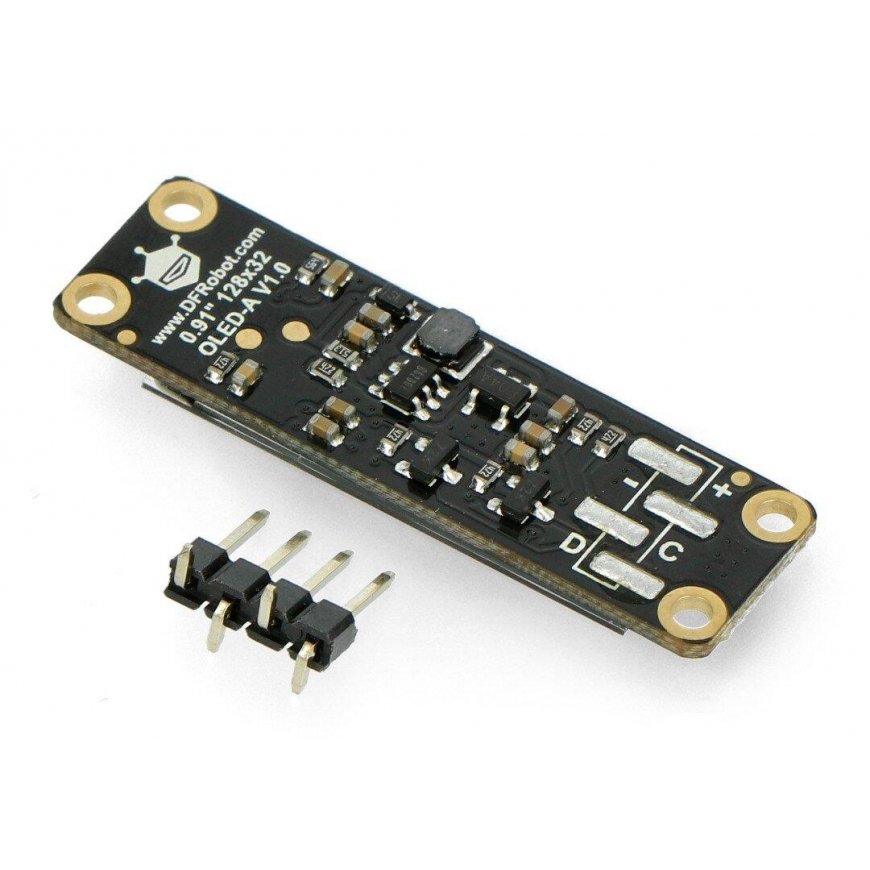

- 2.54 - 4P mounting pin
Links:
Manufacturer's page
Manual
