VL6180X time-of-flight, distance and ambient light sensor I2C, Pololu 2489

39.00 €
Kuumakse alates 1,90 €
3573715

AN-04856

5904422308575

Tarneaeg 11-18 t.p.

Kauba vastu huvi?
(Lugege teenusetingimusi)

Kõik toote kohta

Digital sensor combining time-of-flight proximity measurement and ambient light intensity measurement. It operates up to 10 cm with 1 mm resolution. Interacts via I2C bus (TWi), powered from 2.7 to 5.5 V.

Specifications:

  • Supply voltage: 2.7 to 5.5 V
  • Power consumption: 5 mA
  • Measuring range: 0 to 10 cm
  • Resolution: 1mm
  • Interface: I2C (TWI)

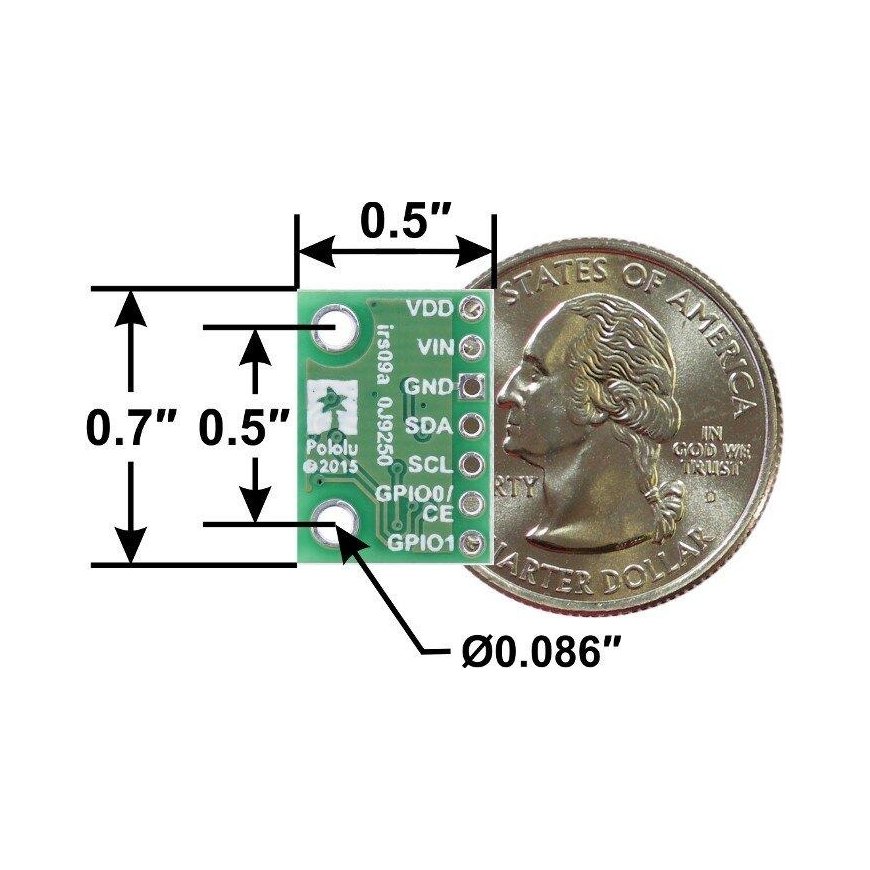

  • Board dimensions: 13 x 18 x 2 mm
  • Weight: 5 g

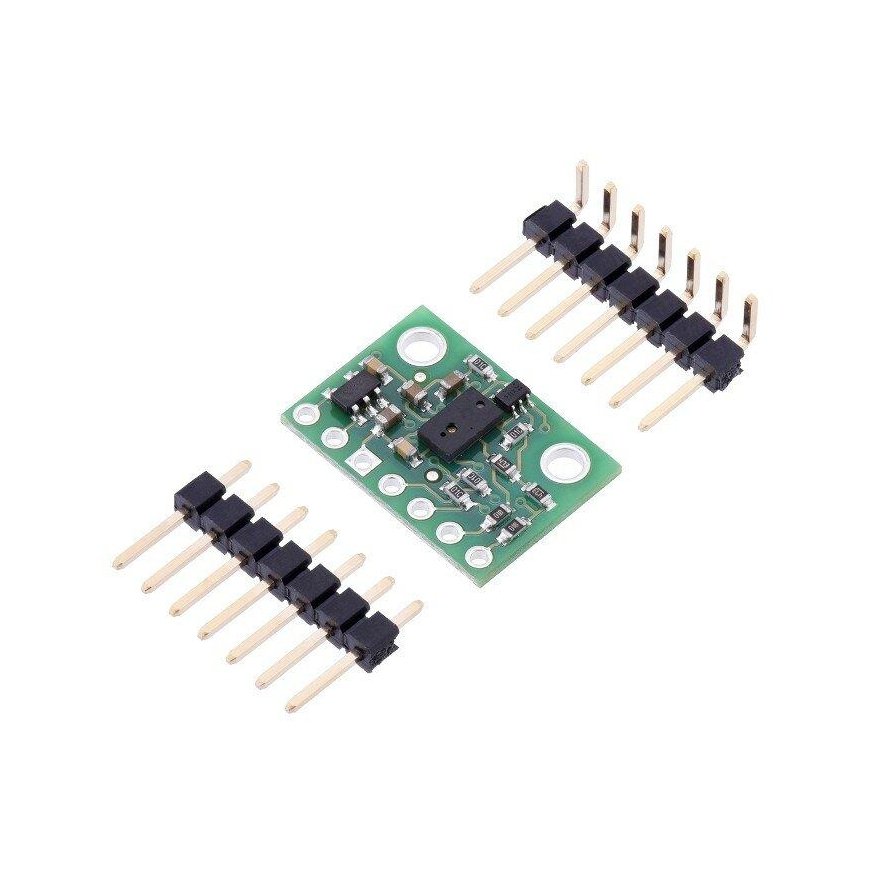

  • There are also gold pins

Links:
Manufacturer's page
Manual
