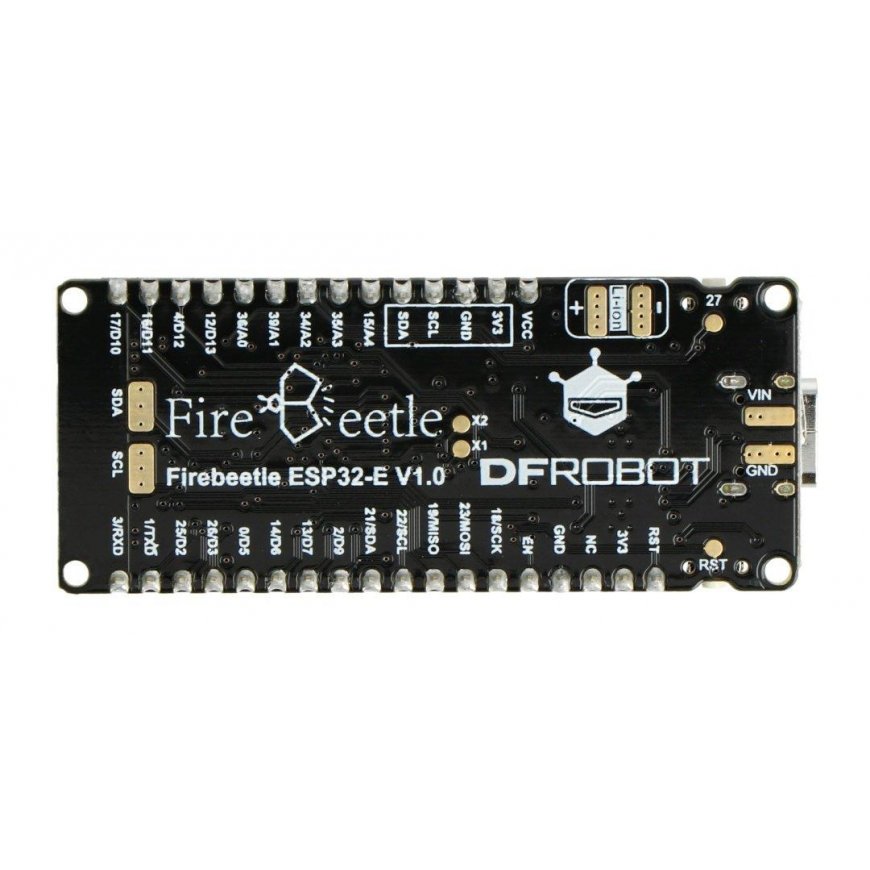

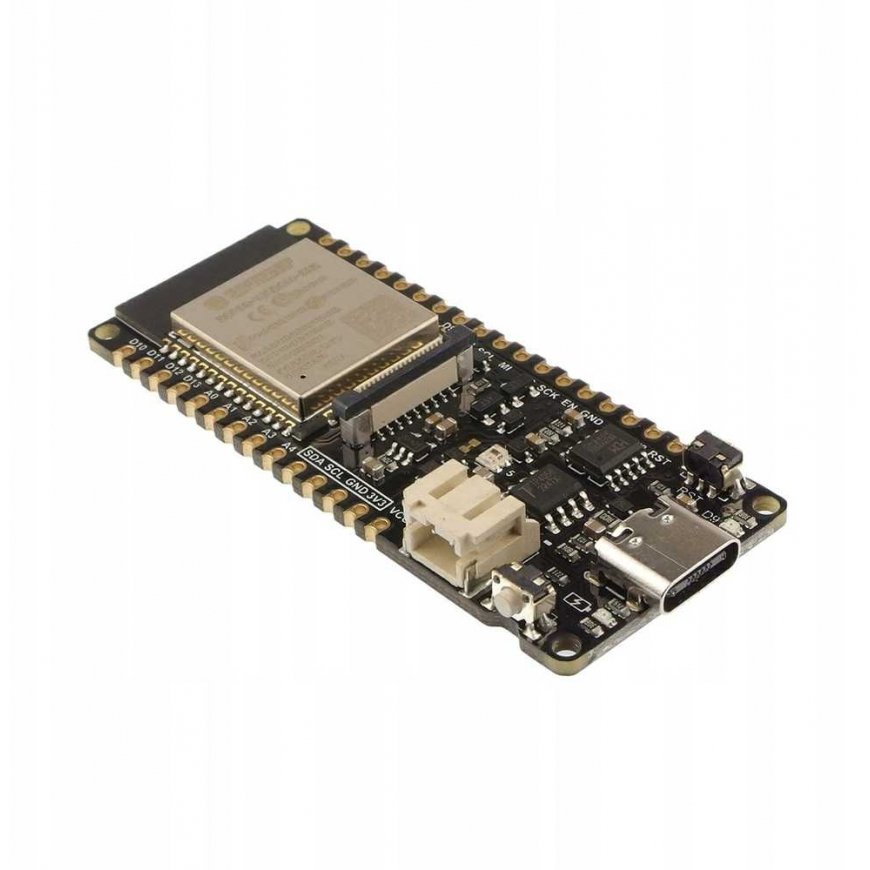

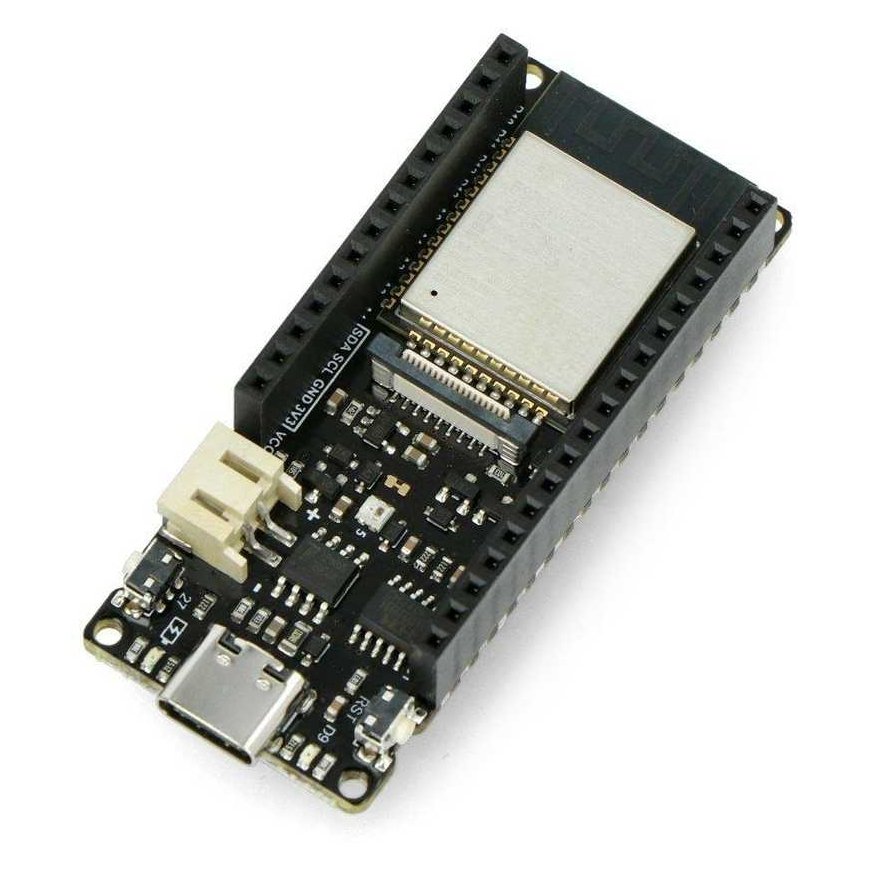

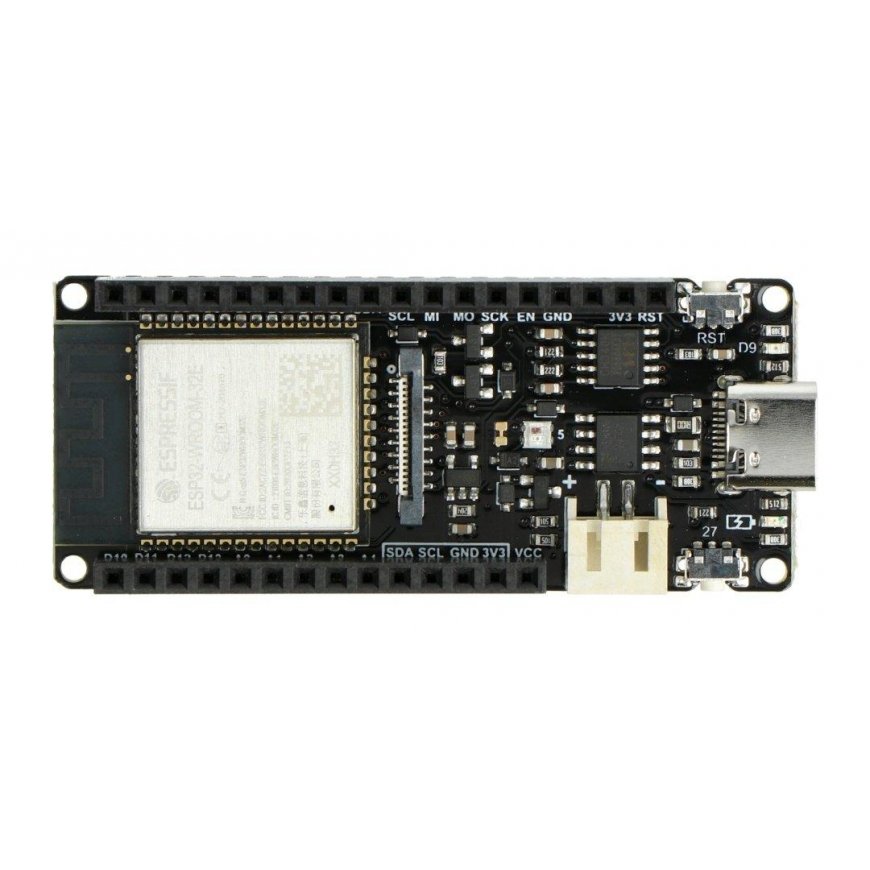

FireBeetle ESP32-E, IoT Microcontroller with Connectors, DFRobot DFR0654-F
29.00 €
3571938 AN-19903
5903351245661
Tarneaeg 8-15 t.p.
Kauba vastu huvi?
Kõik toote kohta
FireBeetle ESP32-E is a microcontroller module compatible with the FireBeetle V2 series modules. It can be programmed using the Arduino IDE environment. The FireBeetle ESP32-E module with an integrated dual-core ESP-WROOM-32 supports communication in MCU mode, WiFi and Bluetooth. The microcontroller has 4 MB Flash memory and 520 kB SRAM memory. The processor clock frequency is 240 MHz. The board also has a USB Type-C connector and a GDI connector for connecting a display. Built-in RGB LEDs indicate the operating status of the FireBeetle ESP32-E.Main features:
- Compatible with the FireFeet V2 product series from DFRobot
- Programmable using Arduino IDE environment
- Equipped with ESP32-E dual-core processor
- GDPI connector for convenient display connection
- Chip: ESP-WROOM-32
- Processor:
- Dual-core Tensilica LX6
- Clock speed: 240 MHz
- Flash memory: 4MB
- SRAM memory: 520 kB
- WiFi standard: 802.11 b/g/n/d/e/i/k/r
- Supported frequency range: 2.4 GHz to 2.5 GHz
- Bluetooth protocol: compliant with Bluetooth v4.2 BR/EDR and BLE standards
- Connector: USB Type-C
- USB charging supported
- USB to UART converter: CH340K
- Supply voltage: 3.3V/5V
- Power consumption: 10 µA
- Exits:
- Analog pins - x5
- Digital pins - x10
- UART - x1
- I2C - x1
- SPI - x1
- GDI - x1
- Signaling: built-in RGB LEDs
- Connectors compatible with FireBeetle V2 series
- Operating temperature range: -40°C to 85°C
- Mounting hole diameter: 2 mm
- PCB dimensions: 25.4mm x 60mm
- Weight: 23 g

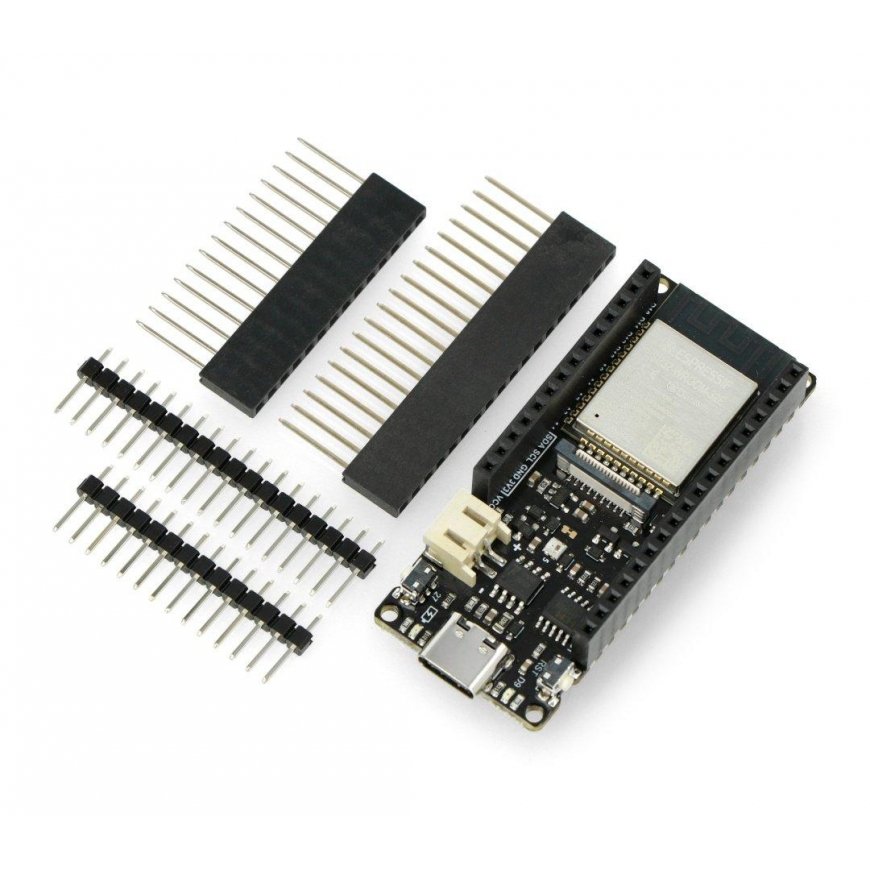

- FireBeetle ESP32-E board with connectors
- 1x14 pin header - 2.54 mm
- 1x18 pin header - 2.54 mm
- Goldpin 1x14 pin connector, 2.54 mm
- Goldpin 1x18 pin connector, 2.54 mm
