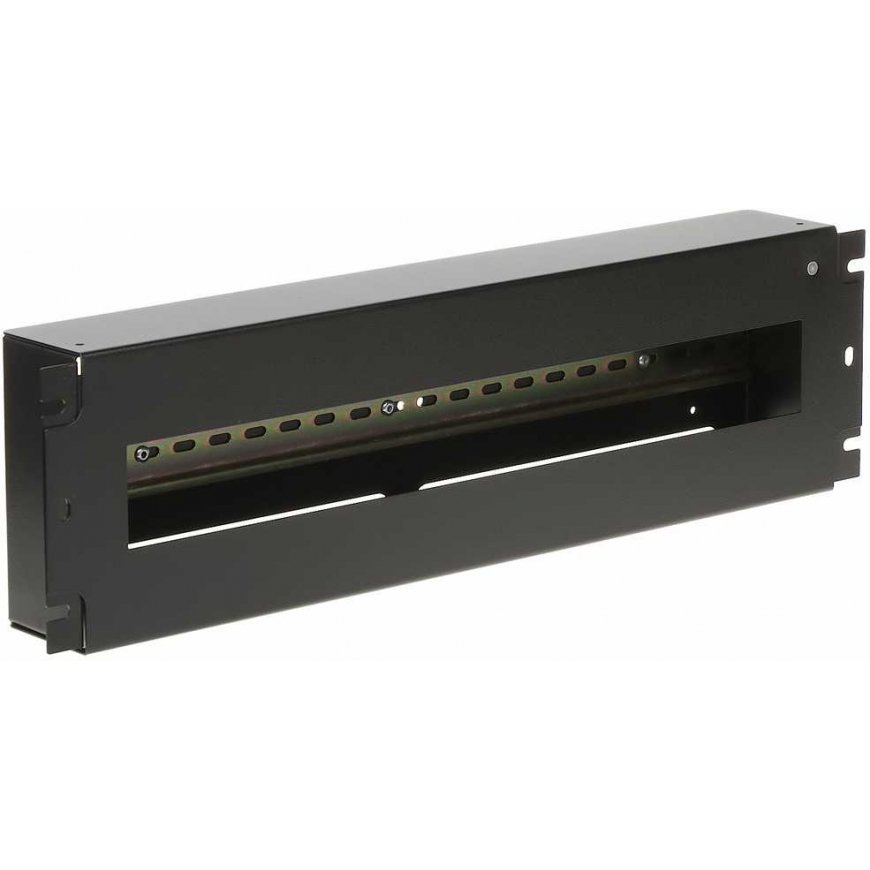

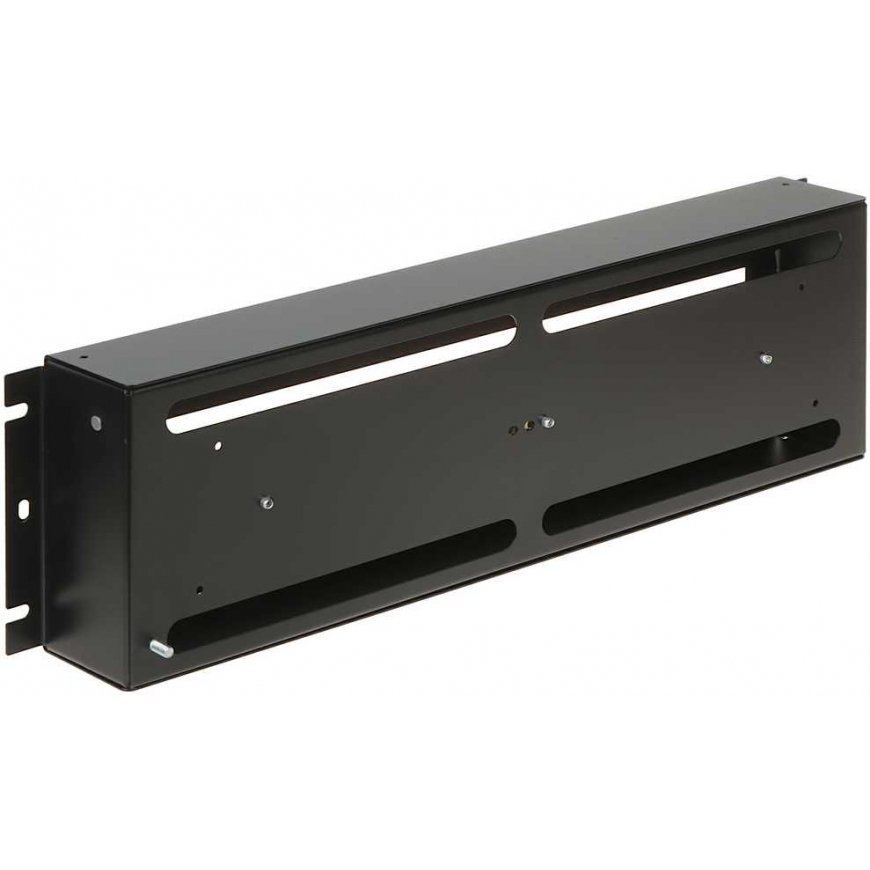

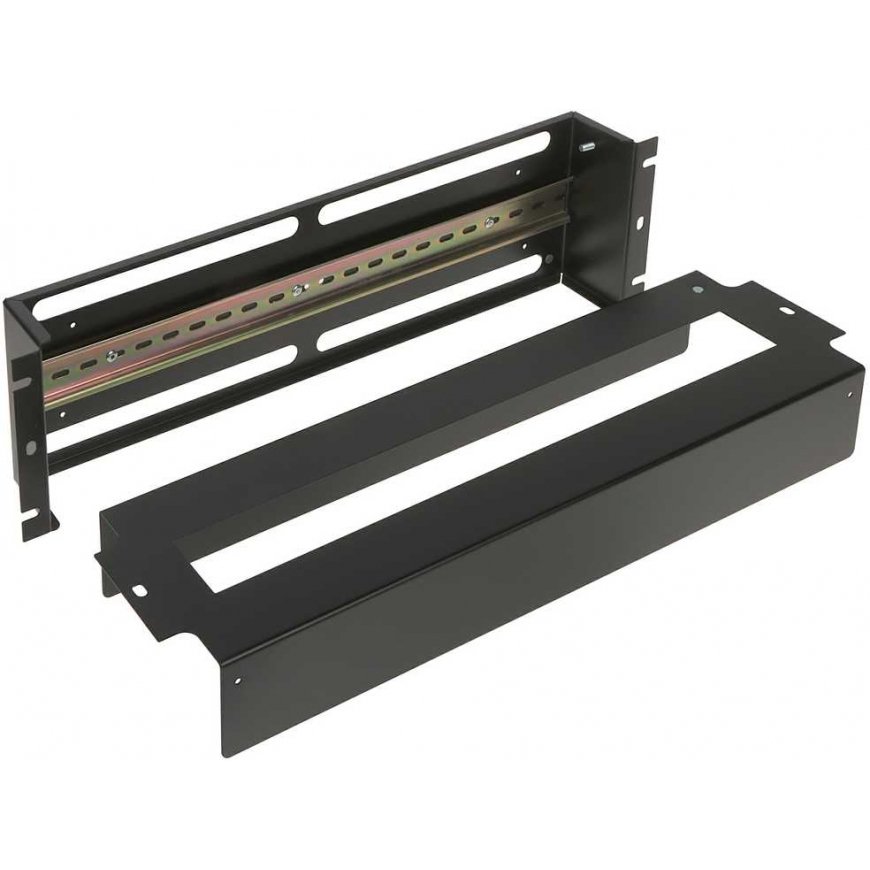

Lexi Net POWER DISTRIBUTION PANEL VDP19-3U-B
49.00 €
Kuumakse alates 2,16 €
3560847 LX19-3U-B
5903351260565
Tarneaeg 12-16 t.p.
Kauba vastu huvi?
Kõik toote kohta
Enclosure with DIN rail, for RACK cabinets, designed for mounting devices in DIN enclosures, RACK 19" cabinets.
The housing has a DIN rail with a length of 24x1S.
The height of the mounted module cannot exceed 160 mm.
A maximum of 24 fuses with a width of 1 S can be placed in the housing.
| Width : | 19 " |
| Height : | 3 U |
| Material : | Powder-coated steel |
| Color : | Black (RAL 9005) |
| Purpose : | RACK 19" |

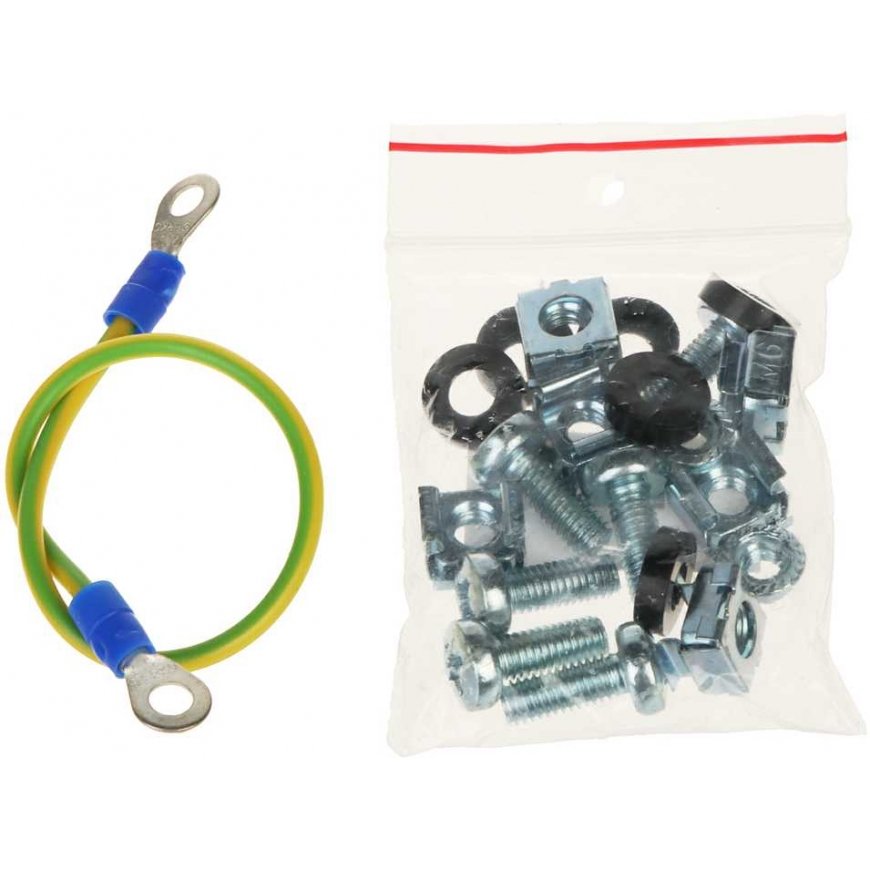

| Main features : | DIN TS-35 rail Corrosion resistance 24 fuses with a width of 1 S mounting option Connection 6-point front to RACK profiles Included 6 screws M6 with baskets Main cable entries at the rear of the housing |
| Weight : | 1.48 kg |

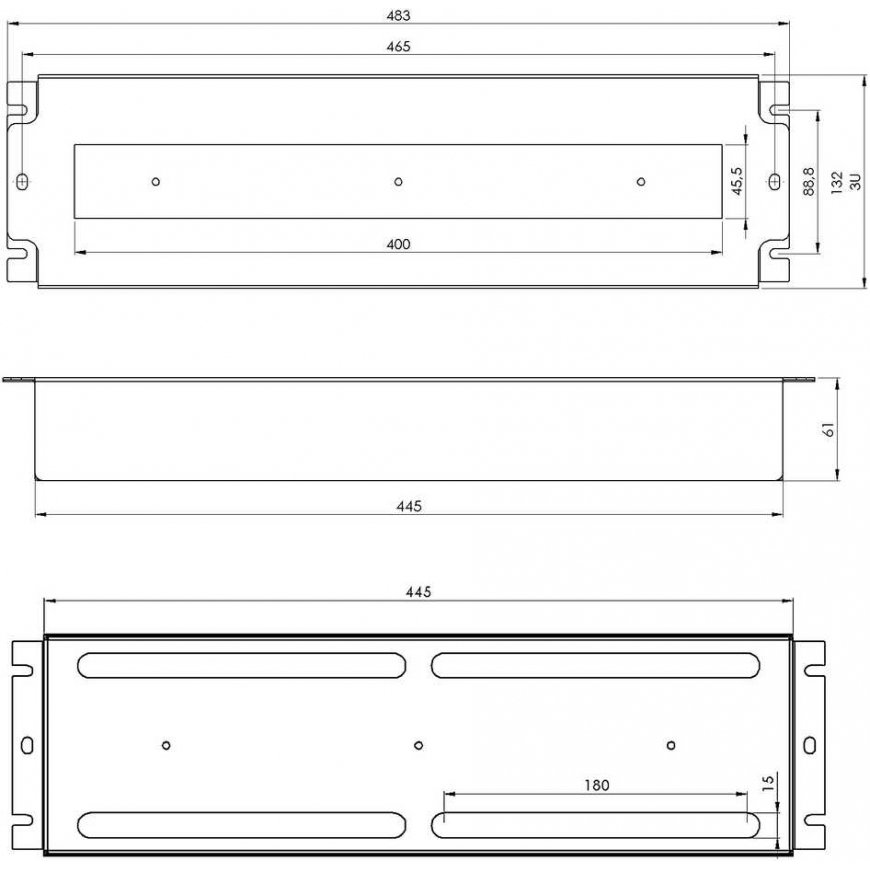

| Dimensions : | 445 x 127 x 59 mm Internal dimensions 485 x 130 x 61 mm External dimensions |
| Warranty : | 2 years |
