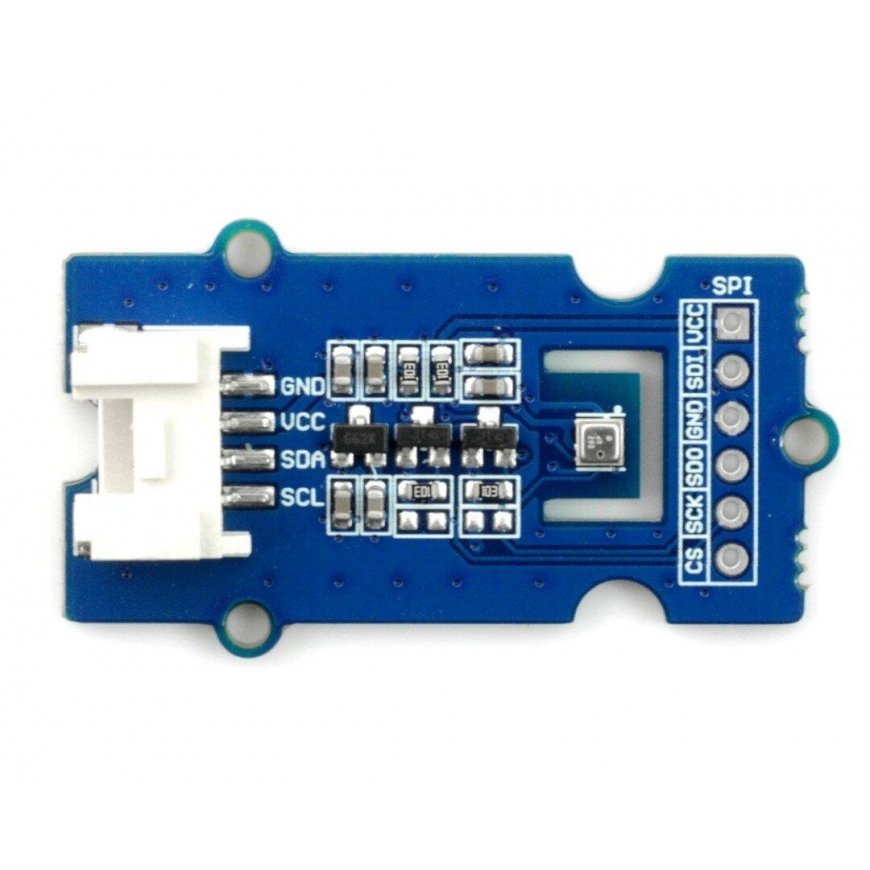

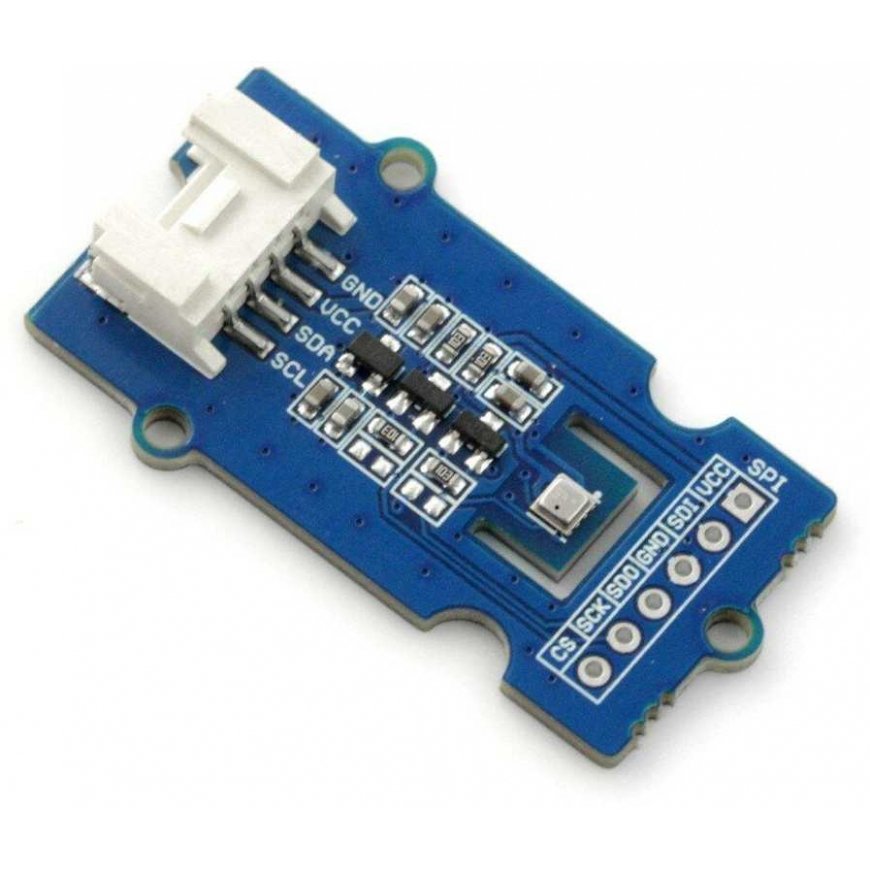

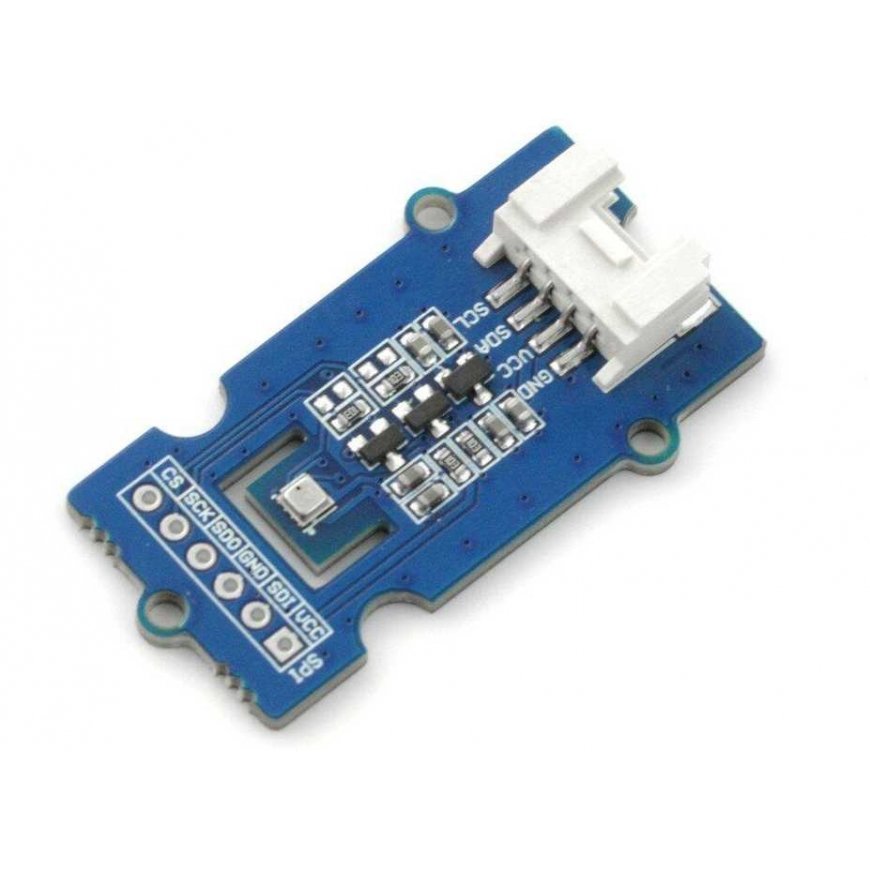

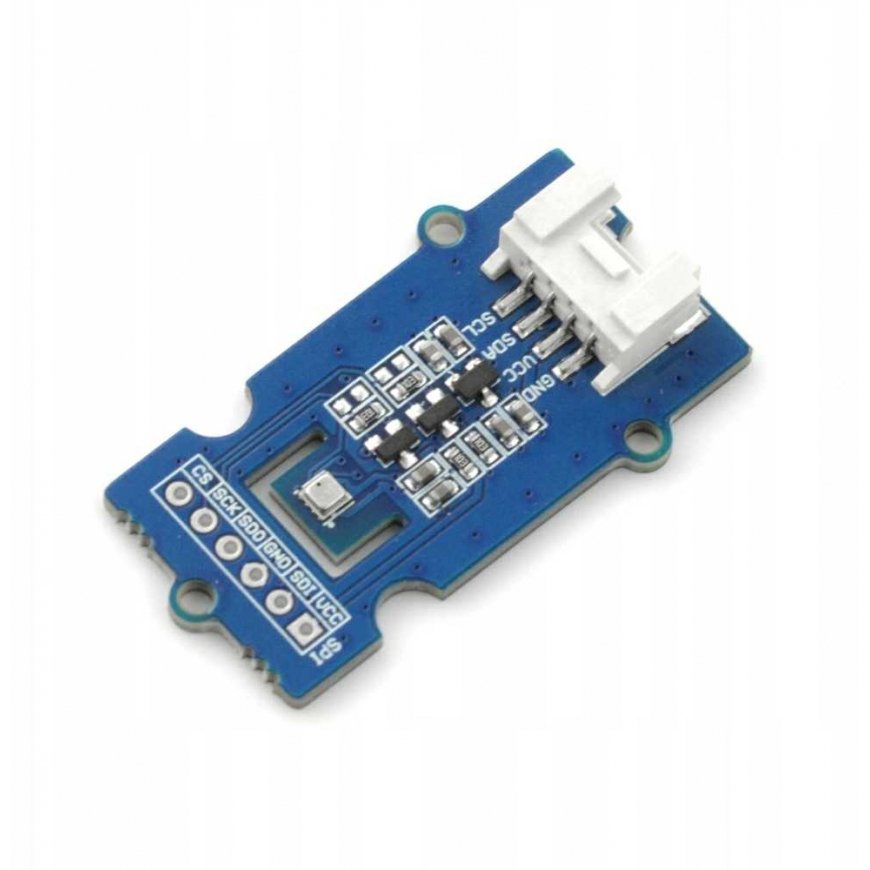

Seeed Studio Grove, BME280, humidity, temperature and pressure sensor 110kPa I2C 3-5V
31.35 €
3557224 AN-11355
5904422340070
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
The Grove module contains a humidity, temperature and pressure sensor powered by 3.3V to 5V with I2C and SPI interfaces. Measurement range: temperature: -40°C to 85°C, humidity: 0% RH to 100% RH, pressure: 300hPa to 1100hPa. The kit also includes a cable suitable for the Seeedstudio Base Shield v2.0.
Specifications:
- Supply voltage: 3.3V to 5V
- Operating current: 0.4 mA
- Operating temperature: -40°C to 85°C
- Operating range of pressure sensor: from 300 hPa to 1100 hPa (accuracy +/- 1 hPa)
- Temperature sensor operating range: -40 °C to 85 °C (accuracy +/- 1 °C)
- Humidity sensor range: 0% to 100% (accuracy +/- 3%)
- System: BME280
- Interface: I2C, SPI

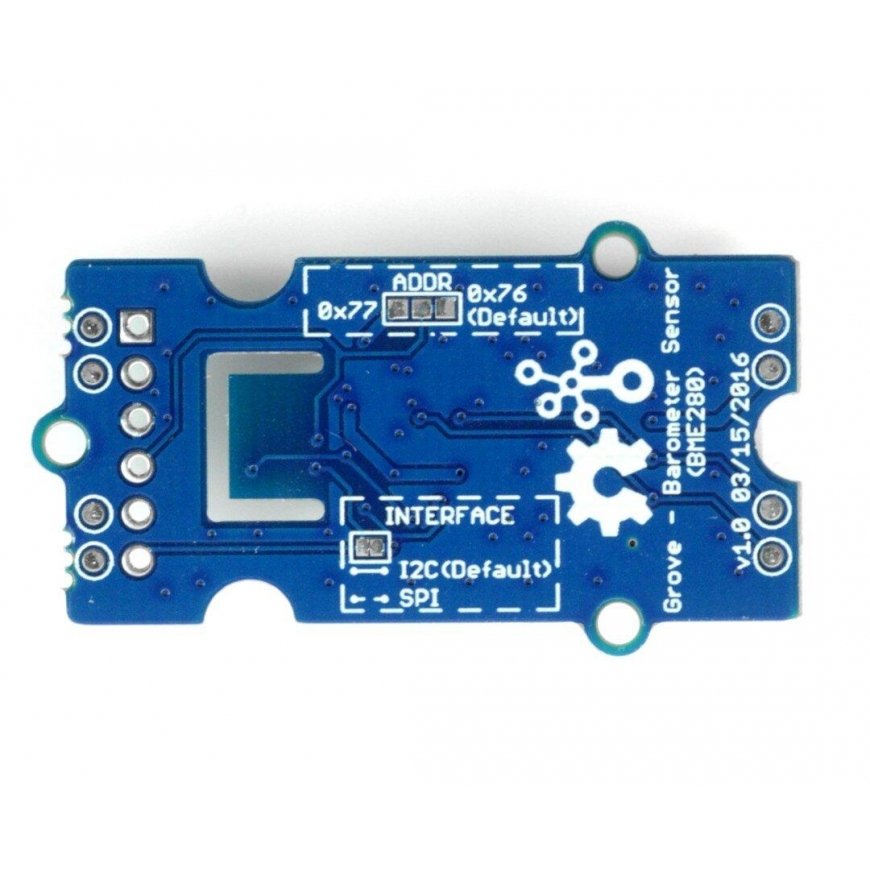

- I2C address: 0x76 (default) 0x77
- Dimensions: 40 x 20 mm
- Weight 10 g
