MP6500 stepper motor controller, digital current control, 2A, Pololu 2968
19.20 €
3554988 AN-10880
5904422316969
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta

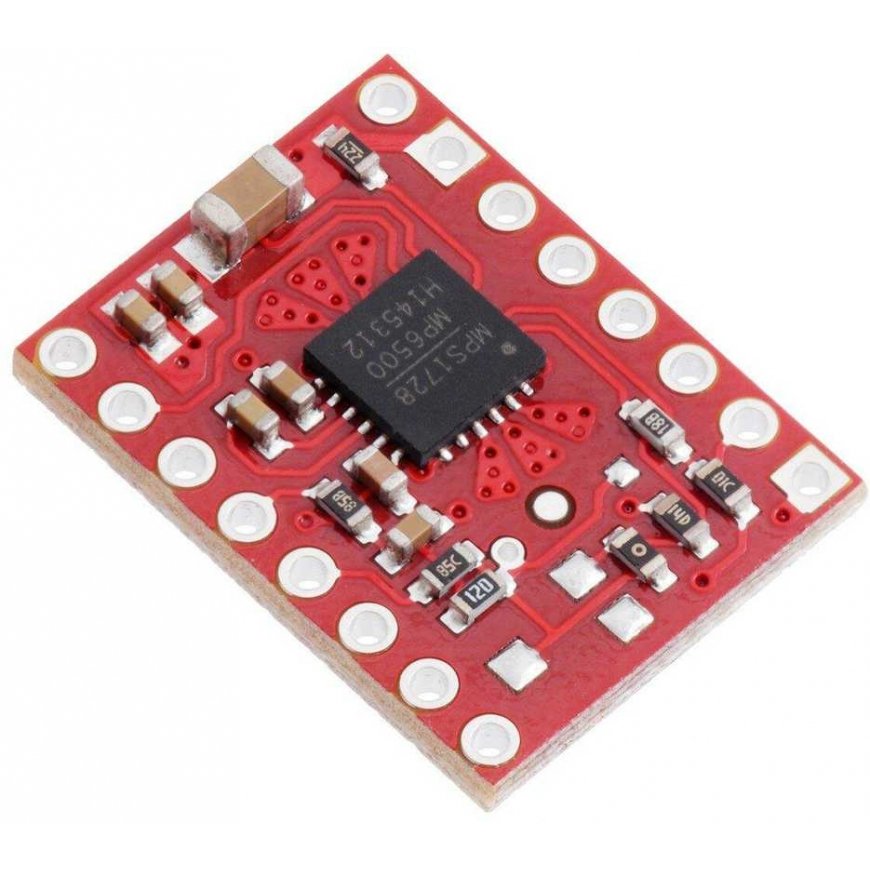

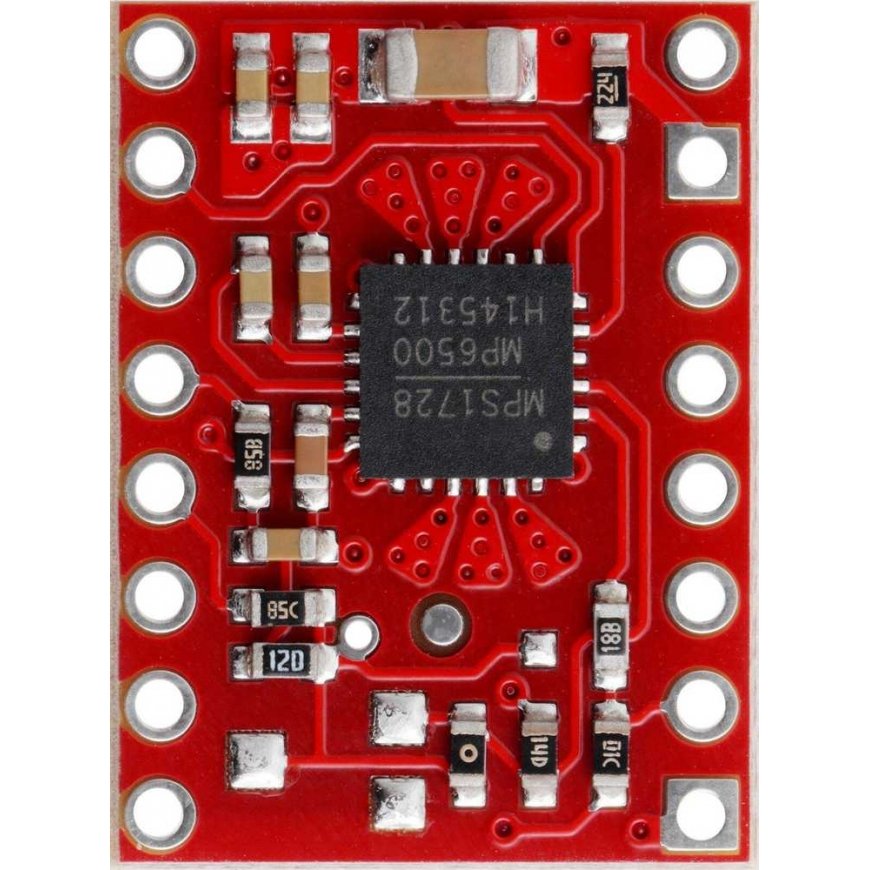

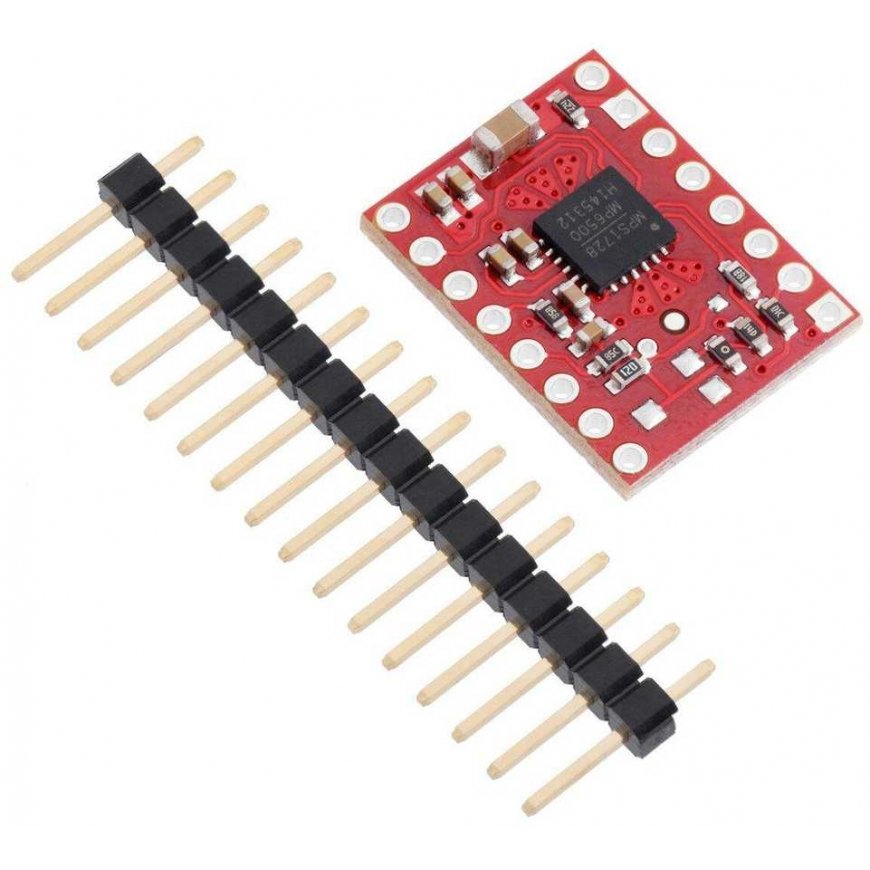

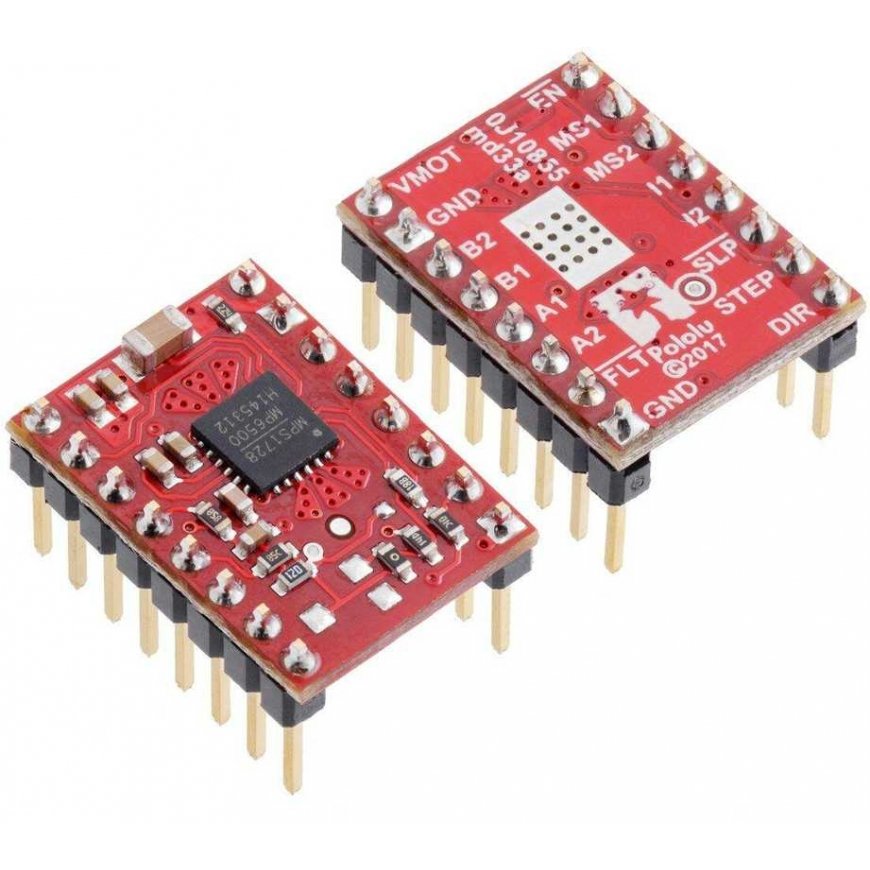

Stepper motor controller based on the MP6500 system. Powered from 4.5 V to 35 V, maximum current consumption - 2 A per coil. Maximum resolution: 1/8 step. The module allows up to 1.8 A current flow without a heatsink. The current is controlled digitally.
Specifications:
- Motor supply voltage: from 4.5 V to 35 V
- Current: max. 1.8 A coil (with cooling down to 2 A)
- Logic supply voltage: 3.3 V to 5 V
- Simple control interface
- Operates in 4 different modes: full step, 1/2, 1/4 and 1/8
- Digital current control
- System overheating protection

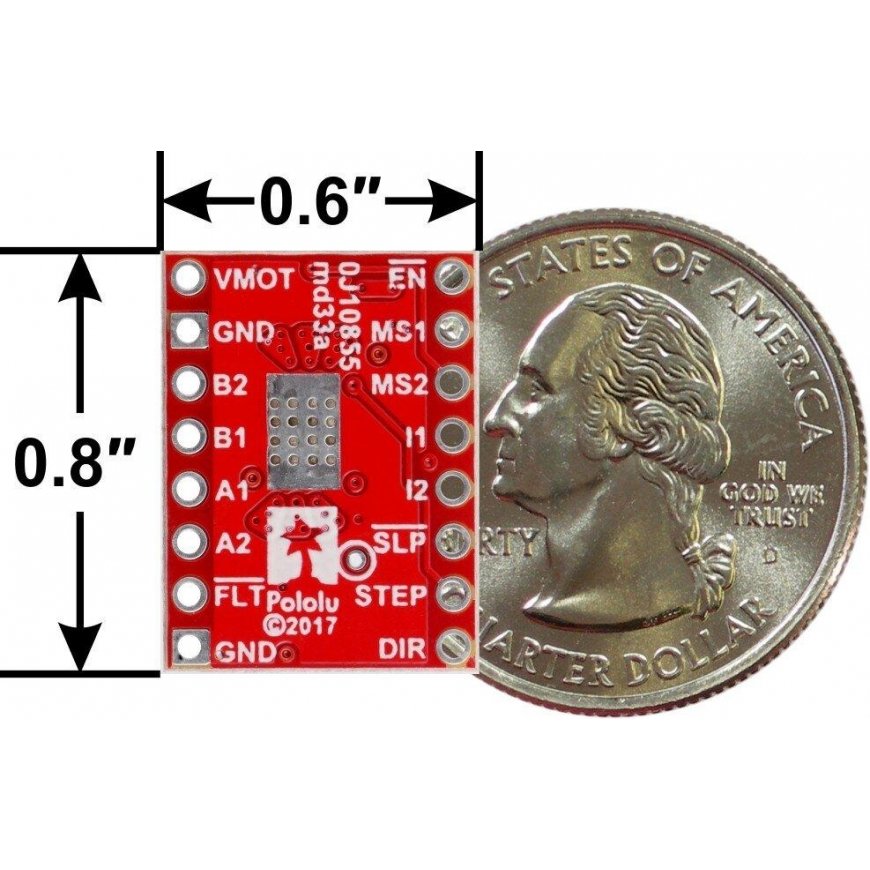

- Module dimensions: 20 x 15 mm
Links:
Manufacturer's page
