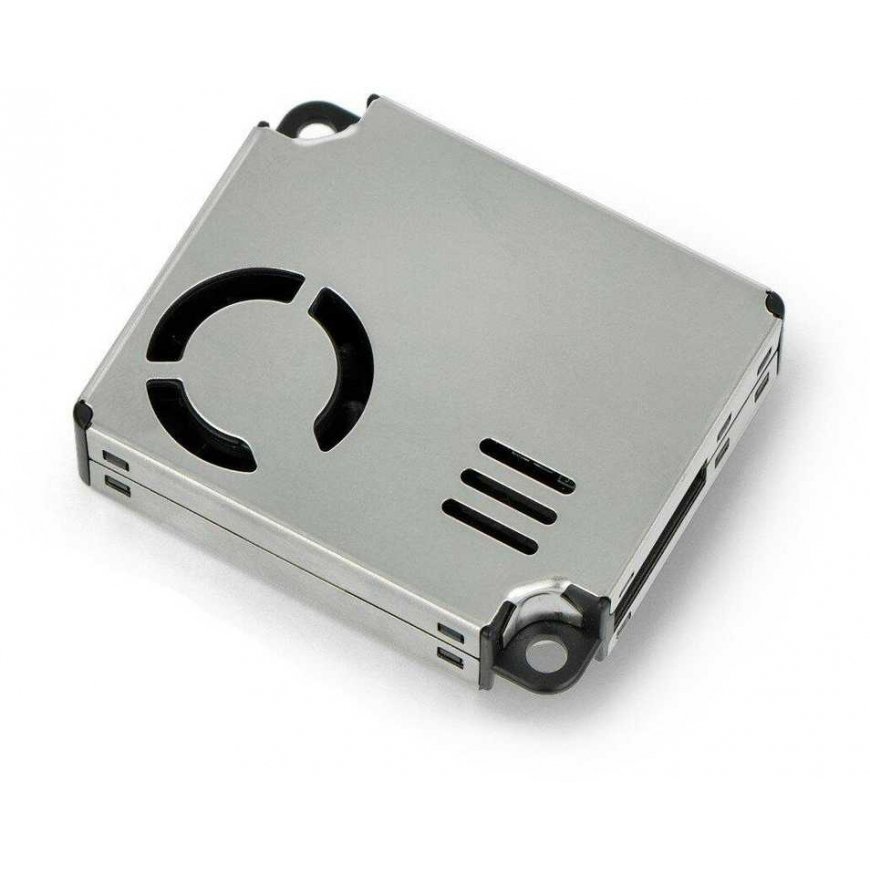

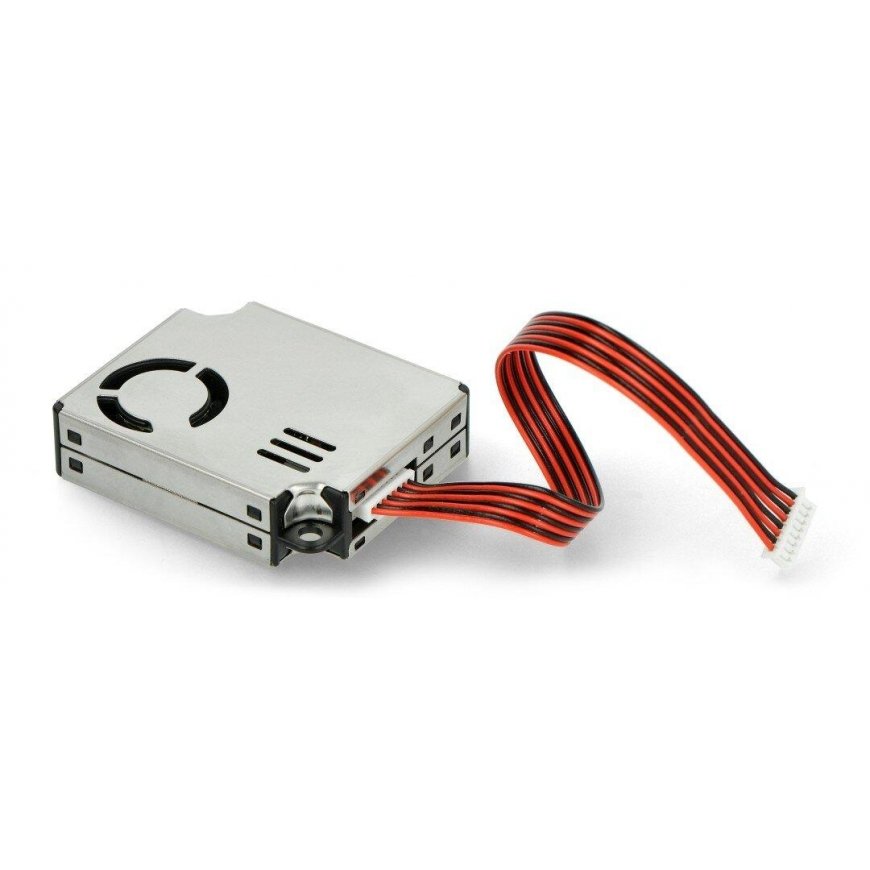

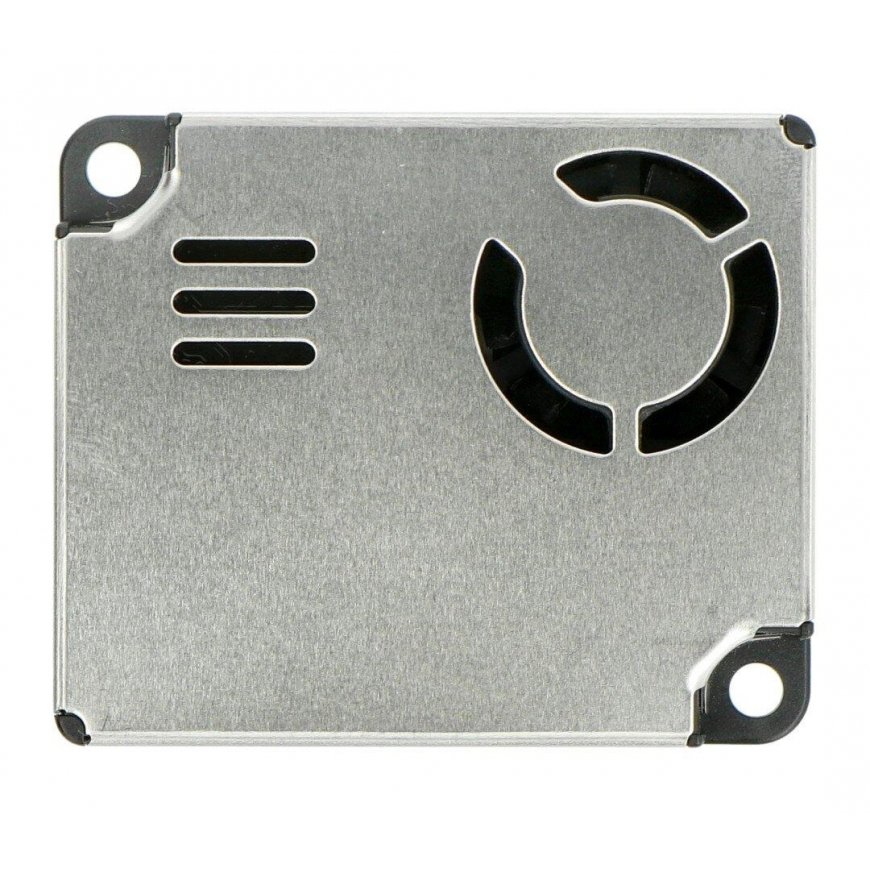

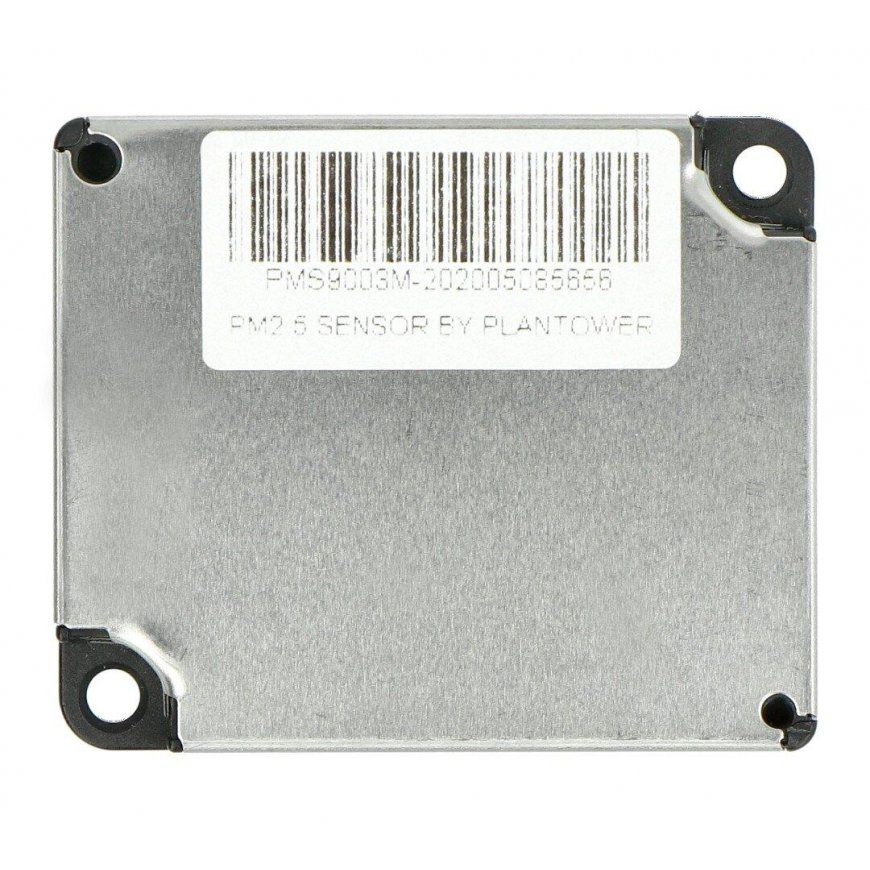

Dust/air quality sensor PM2.5 - 5V UART - PlanTower PMS9103M
39.00 €
Kuumakse alates 1,90 €
3552010 AN-17768
5904422365868
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
The dust sensor module allows you to determine the air quality. It measures the concentration of PM2.5 particles and detects particles with a diameter of 0.3 μm, such as cigarette smoke. The PMS9103M requires a 5 V stabilized voltage supply. The sensor interacts with the microcontroller via a UART interface, which operates at a logic level of 3.3 V.Specifications:
- Manufacturer: PlanTower
- Supply voltage: 3.3V to 5V
- Current consumption: up to 100 mA
- Measurement range:
- from 0.3 µm to 1.0 µm
- from 1.0 µm to 2.5 µm
- from 2.5 µm to 10 µm
- Sensitivity:
- 50% 0.3 µm
- 98% for 0.5 µm and larger
- Operating temperature: -5 °C to 60 °C
- Response time: less than 10 seconds
- Data interface level: 3.3 V
- Connector: 8-pin 1.25 mm
- Dimensions: 48 x 40 x 12 mm
- PMS9103M sensor
- Cable with JST connector
