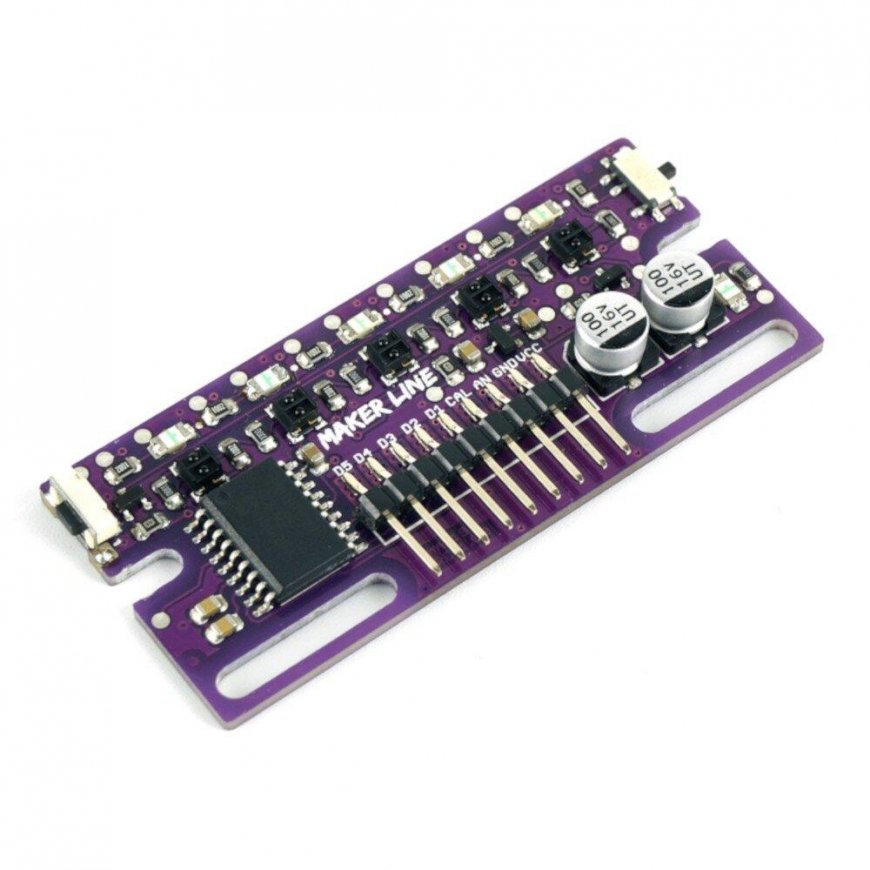

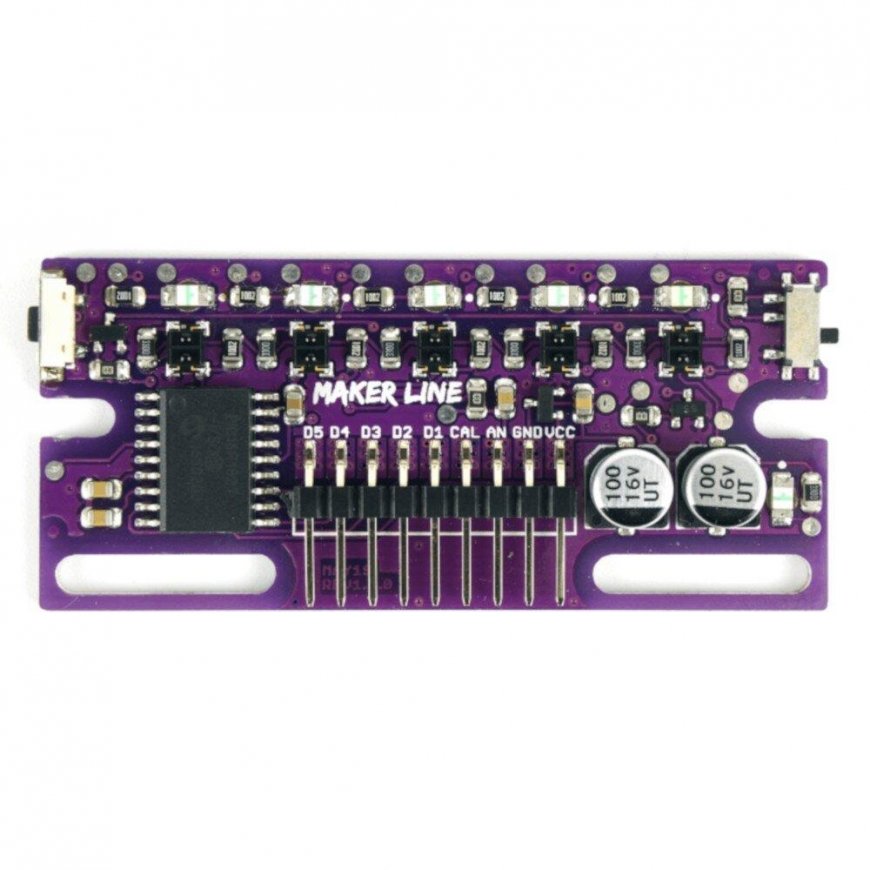

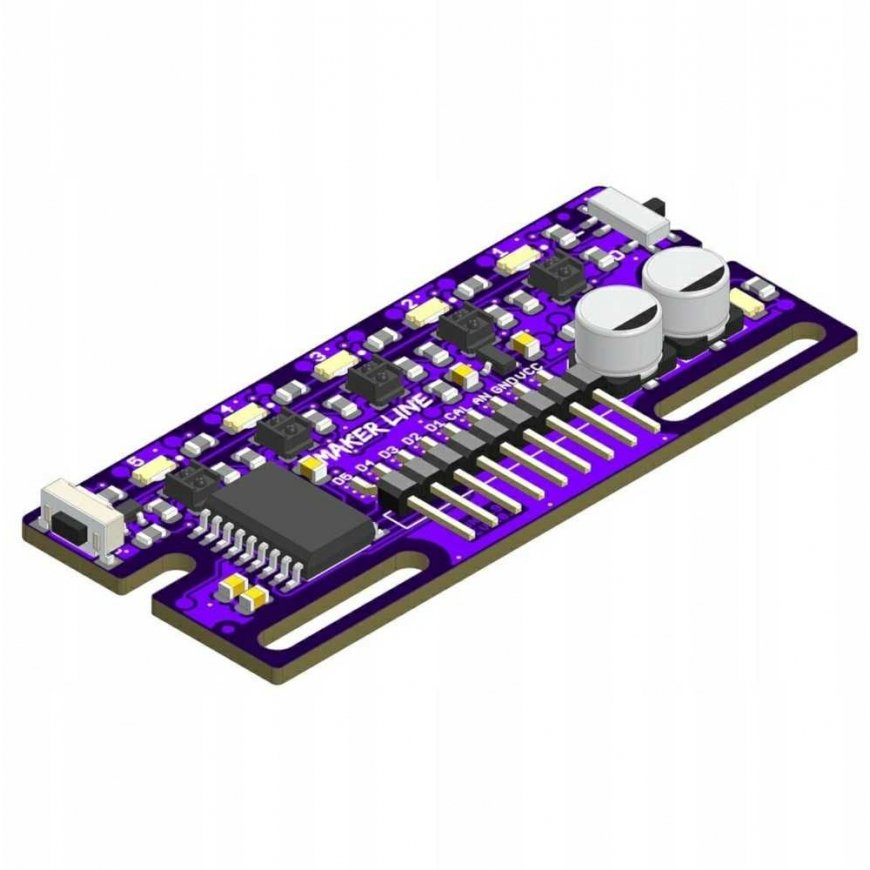

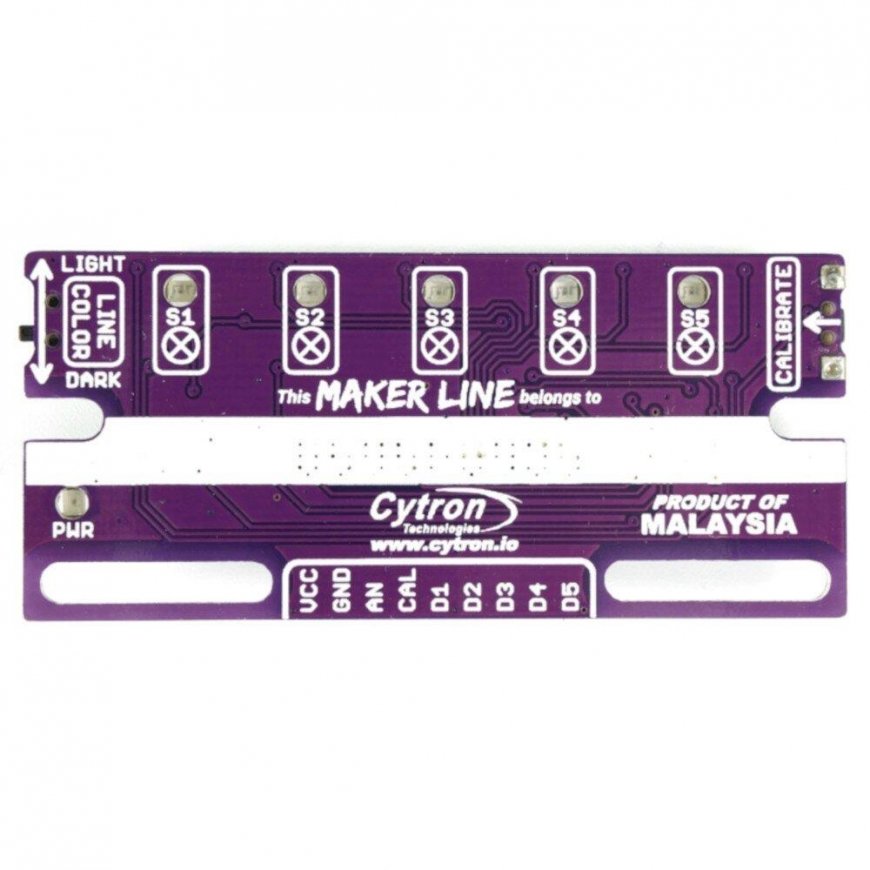

Cytron Maker Line - strip with reflective sensors
23.81 €
3549282 AN-15462
5904422365905
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
Cytron module with 5 reflective sensors (pair: IR diode and phototransistor) can track white and black lines from 13 to 30 mm wide. The sensor has 2 types of signal outputs, digital, for each of the 5 sensors separately and one common for an analog signal, thanks to this solution the sensor is compatible with many controllers such as Arduino or Raspberry. The module operates with 3.3 and 5 V voltage. In addition, the module is protected against reverse polarity.Specifications:
- Supply voltage: 3.3V and 5V
- Digital outputs: D1 to D5
- Low state: 0 to 0.5 V
- High state: 0.7 V to VCC
- Analog output:
- 0V to VCC
- Detection distance:
- From 4 to 40 mm
- Refresh rate: 200 Hz
- Detected line width:
- 13-30mm
- Dimensions: 68 x 28 x 7 mm
- Weight: 14 g
