Non-contact capacitive liquid level sensor, DFRobot SEN0368
3549031 AN-19247
5904422358877
Tarneaeg 11-18 t.p.
Kõik toote kohta

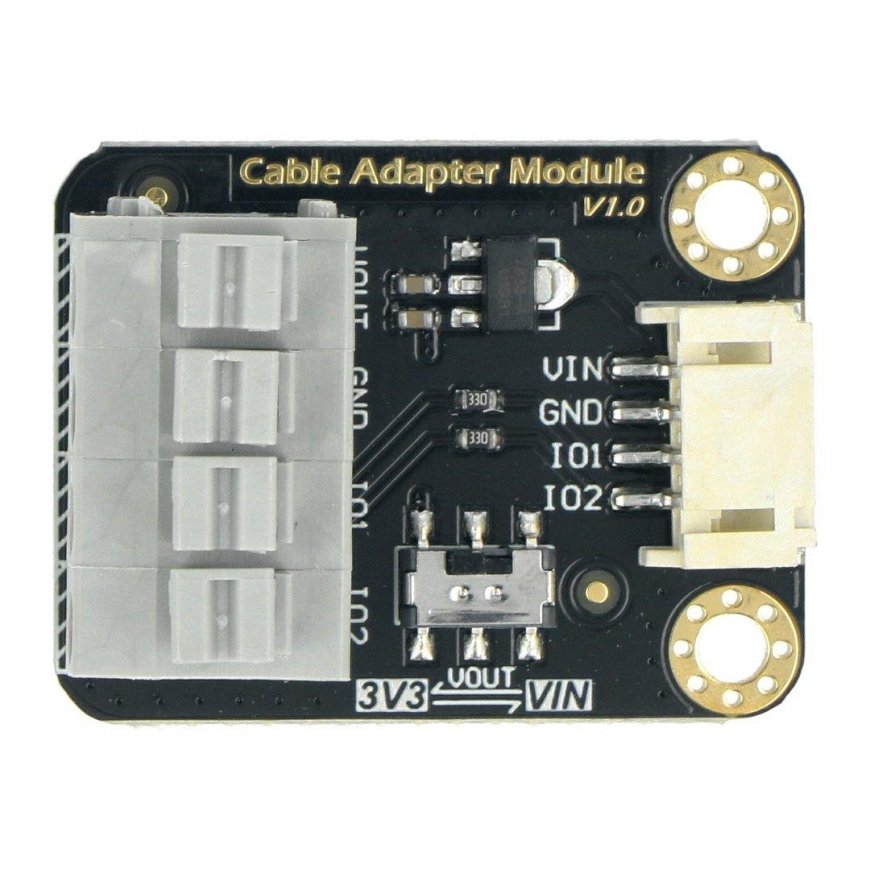

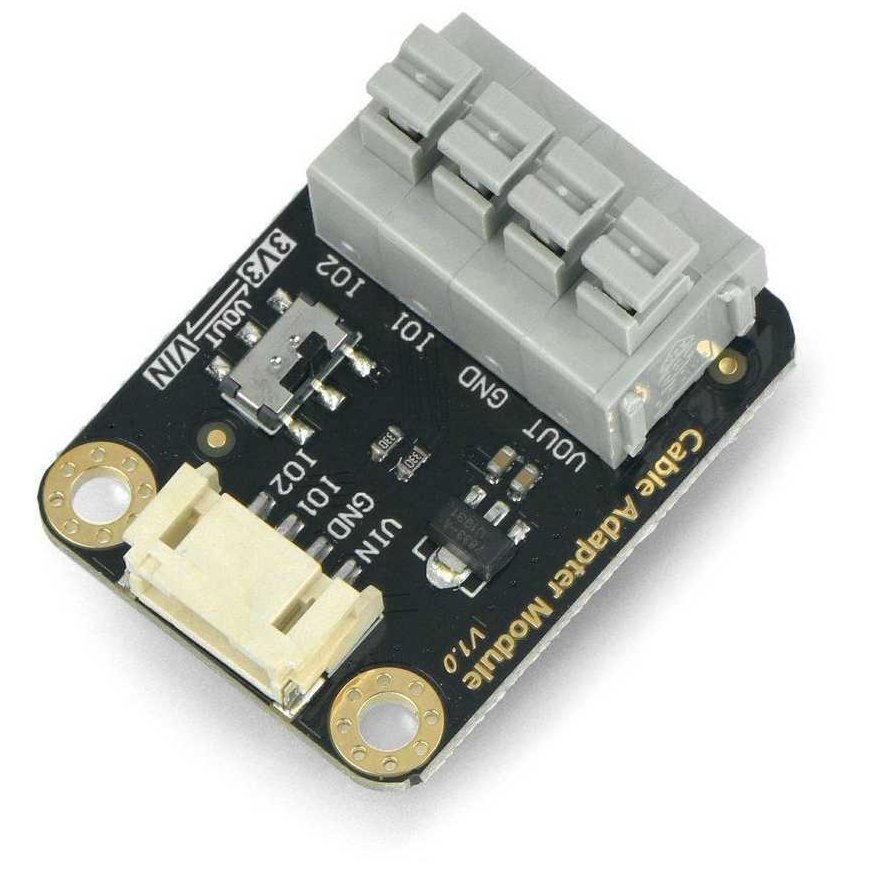

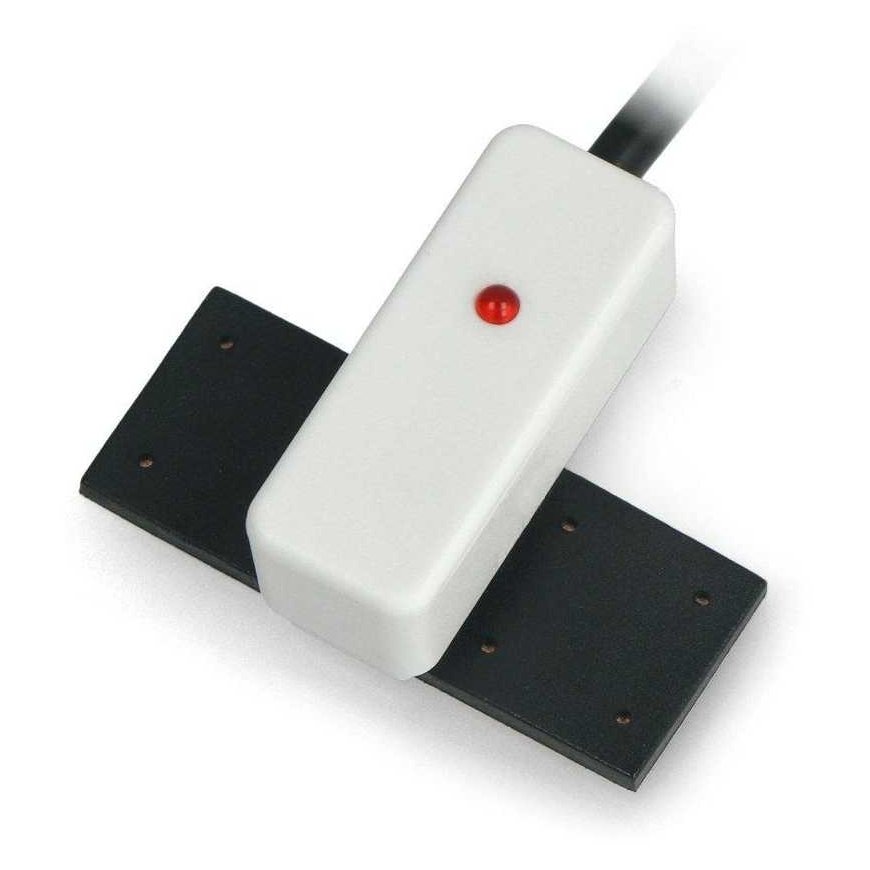

Manufactured by DFRobot. The non-contact capacitive liquid level sensor features a status indicator and adjustable sensitivity. This product can be used to detect liquids in non-metallic containers or pipes (with an outer diameter greater than 11 mm). The sensor status feedback is provided in real time. In addition, this sensor features a 4-pin adapter that allows direct digital signal collection, convenient for connecting to Arduino or other microcontrollers. This product is widely applicable to detecting liquid in a tank, water dispenser, etc. This non-contact liquid level sensor is designed with advanced signal processing technology using a high-speed chip. The measurement is not affected by the thickness of the container walls, contamination, and the presence of acids and alkalis.
Main features:
- Suitable for use in all types of non-metallic containers, such as plastic, glass, ceramic and other containers
- Maximum wall thickness of the container containing the liquid being tested - 20 mm
- Wide voltage range from 5 to 12V, suitable for different circuits or applications
- High stability and sensitivity
- Sensitivity adjustment
- Sensor status indicator
- Stable performance and long service life
- Resistant to external interference
Specifications:
- Power supply from 5 to 12 V
- Response time 500 ms
- Operating temperature: -5 to 105 °C
- Suitable pipe diameter: up to 11 mm
- Liquid level error: ± 1.5 mm
- Material: ABS
- Water resistance: IP65

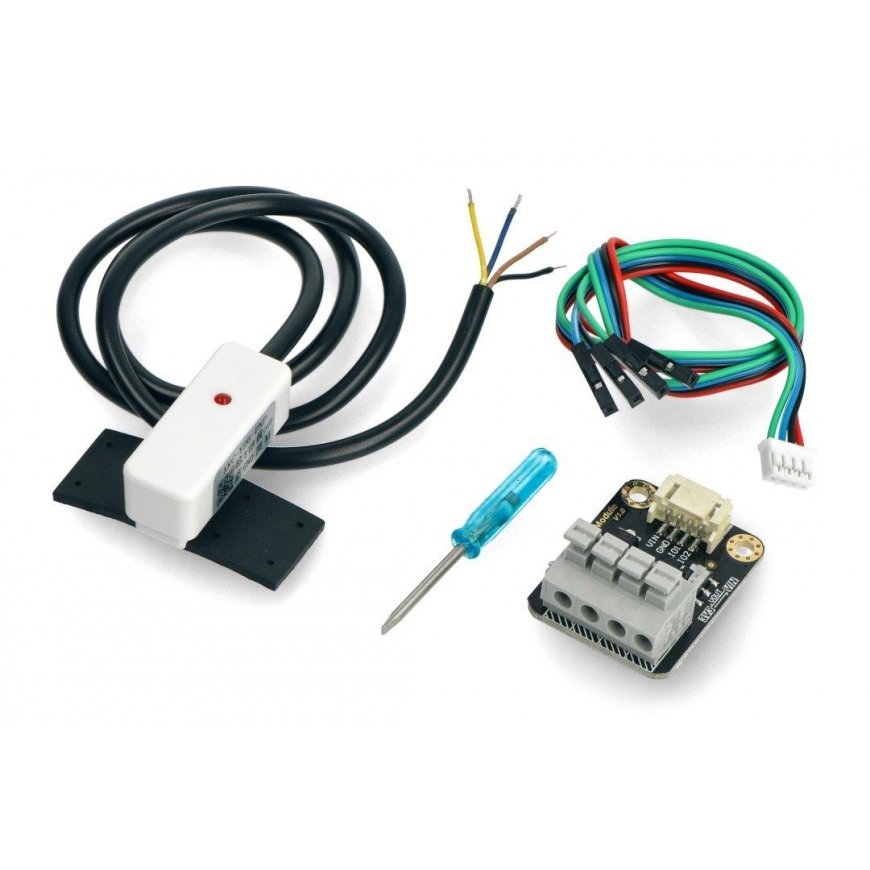

Included:
- Non-contact capacitive sensor x1
- Gravity: 4-pin sensor adapter x1
- Screwdriver x1
- Black wire X1
Links:
Manufacturer's page
Manual
