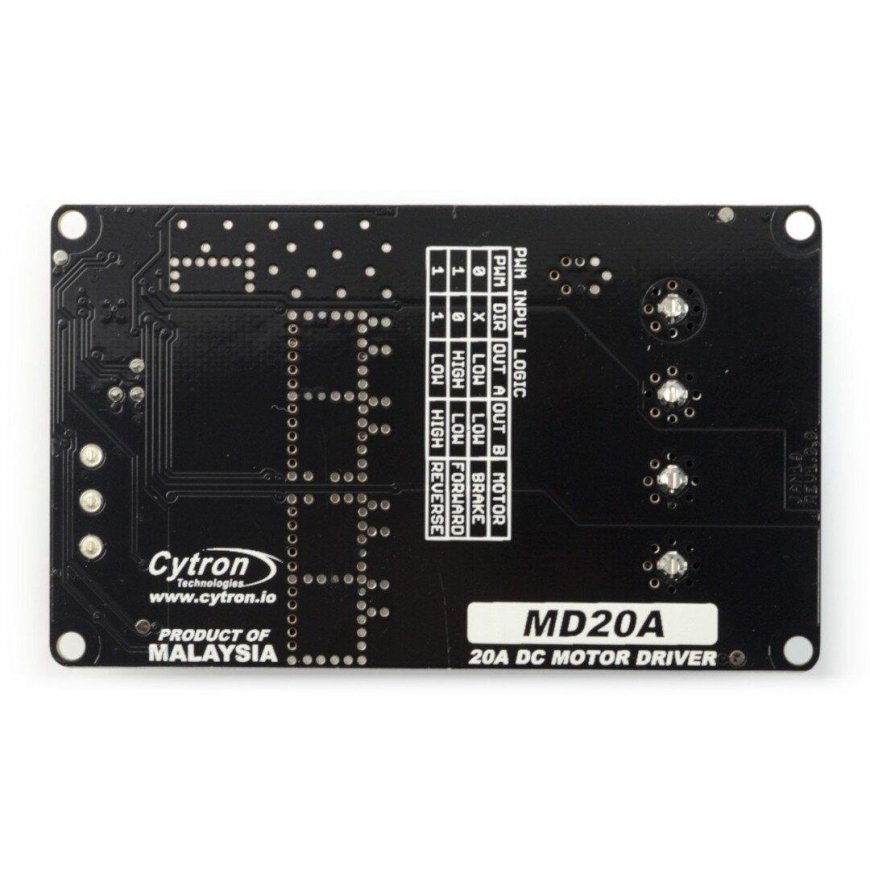

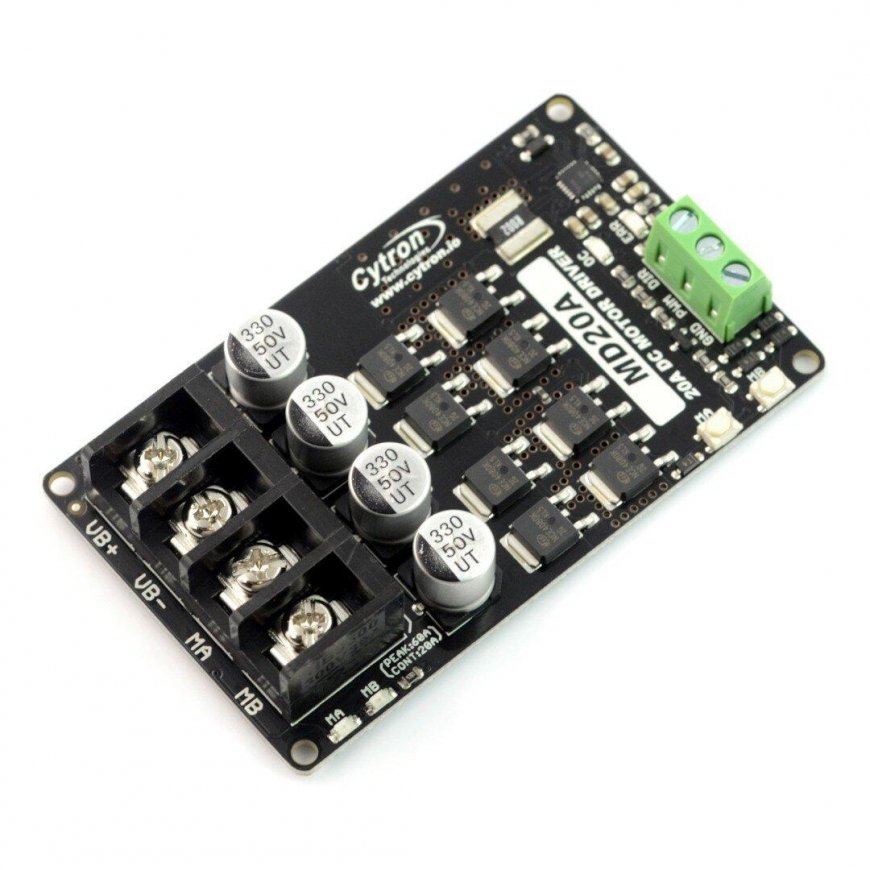

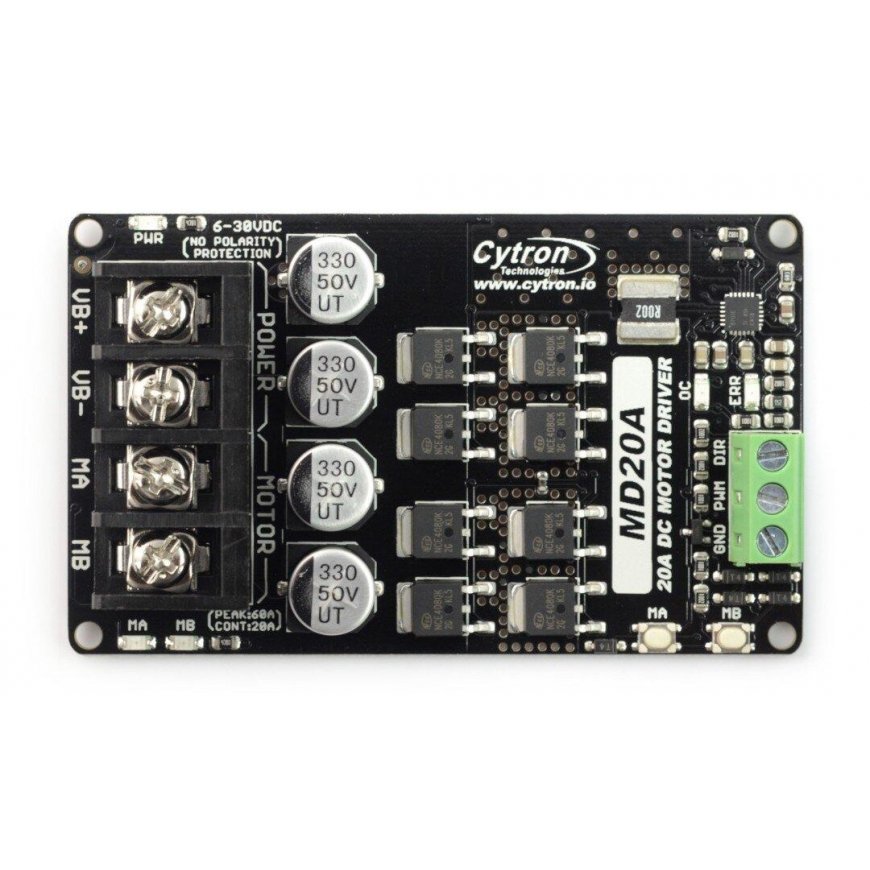

Cytron MD20A - single channel motor controller 30V/20A
39.00 €
Kuumakse alates 1,90 €
3548616 AN-14000
5904422342326
Tarneaeg 8-12 t.p.
Kauba vastu huvi?
Kõik toote kohta
Single-channel DC motor controller based on MOSFET transistors. Allows you to control the motor speed via the PWM channel. The continuous current of one channel is 20 A (60 A instantaneous). Supply voltage from 6 V to 30 V.Specifications:
- Controlling the direction of rotation of a single DC motor
- Motor supply voltage: from 6 V to 30 V
- Maximum continuous current: 20 A
- Current: 60 A
- Function test buttons
- Motor output status LEDs
- PWM and DIR inputs
- 1.8V/3.3V/12V logic compatible input
- PWM frequency up to 20 kHz (output frequency is the same as input frequency)
- Compatible with sign-size and locked antiphase PWM operations
- Overcurrent protection with active current limit
- Temperature protection
- Low voltage protection
- DC motor controller Cytron MD20A
- 4x Gasket
