MSW Manual pipe bending machine

Kõik toote kohta

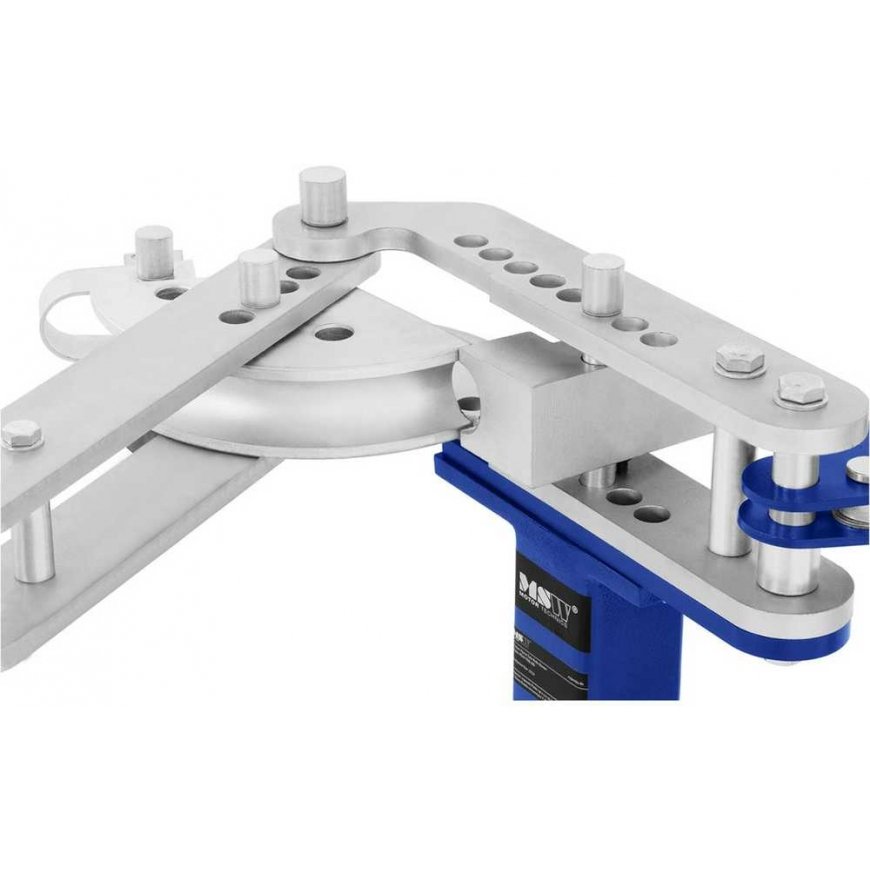

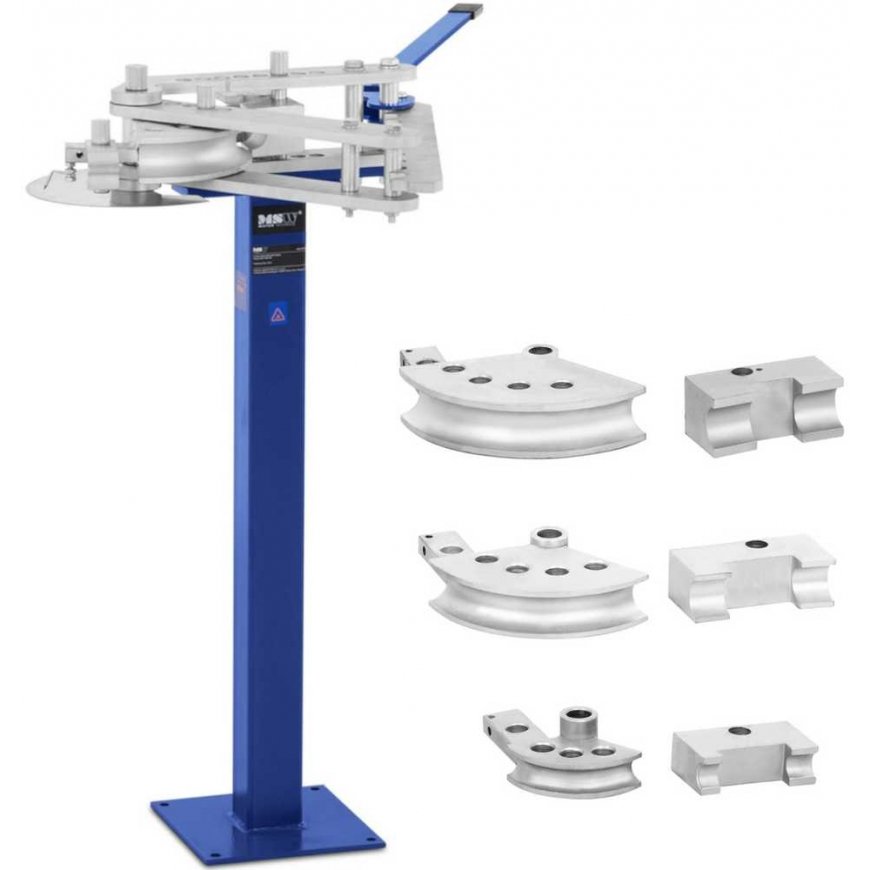

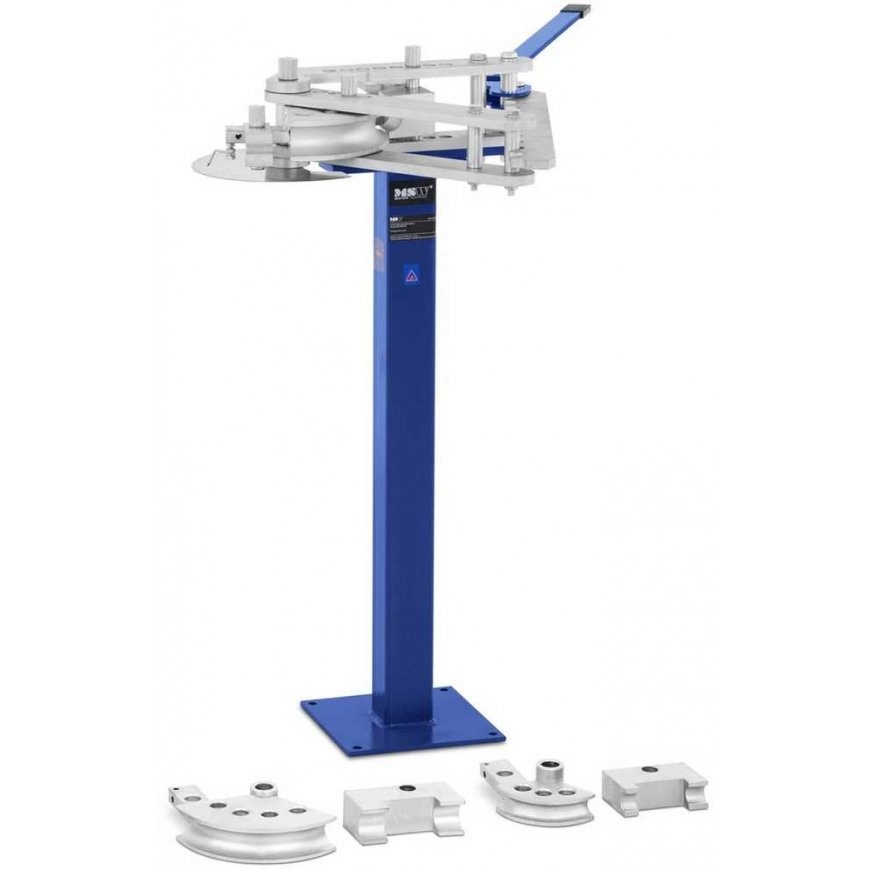

Manual pipe bending machine, perfect for metalworking in construction, automotive workshops or hobby workshops. This device allows you to shape pipes with a wall thickness of 1.5 to 4 mm, and the maximum bending angle reaches 120 degrees. The kit includes three matrices with dimensions of 25 x 75 mm, 38 x 125 mm and 45 x 150 mm, allowing you to adapt the machine to various materials. The device is manually operated using a lever and is made of durable low-carbon steel. Mounting holes with a diameter of 13 mm allow you to attach the equipment to the base.

• Matrix standard dimensions (25 x 75 mm, 38 x 125 mm, 45 x 150 mm)
• For pipes with wall thicknesses from 1.5 to 4 mm
• Simple manual control
• Quick matrix change
• Made of low carbon steel

Technical parameters:

• Maximum bending width: 25 x 75 mm, 38 x 125 mm, 45 x 150 mm
• Material: low carbon steel
• Bending range: up to 120 degrees
• Maximum pipe wall thickness: 4 mm
• Instruction: yes
• Dimensions (LxWxH): 150.00 x 41.00 x 130.00 cm
• Weight: 67.50 kg
• Shipping dimensions (LxWxH): 107.00 x 37.00 x 39.00 cm
• Shipping weight: 79.00 kg

Package:

• Pipe bending machine
• Lever

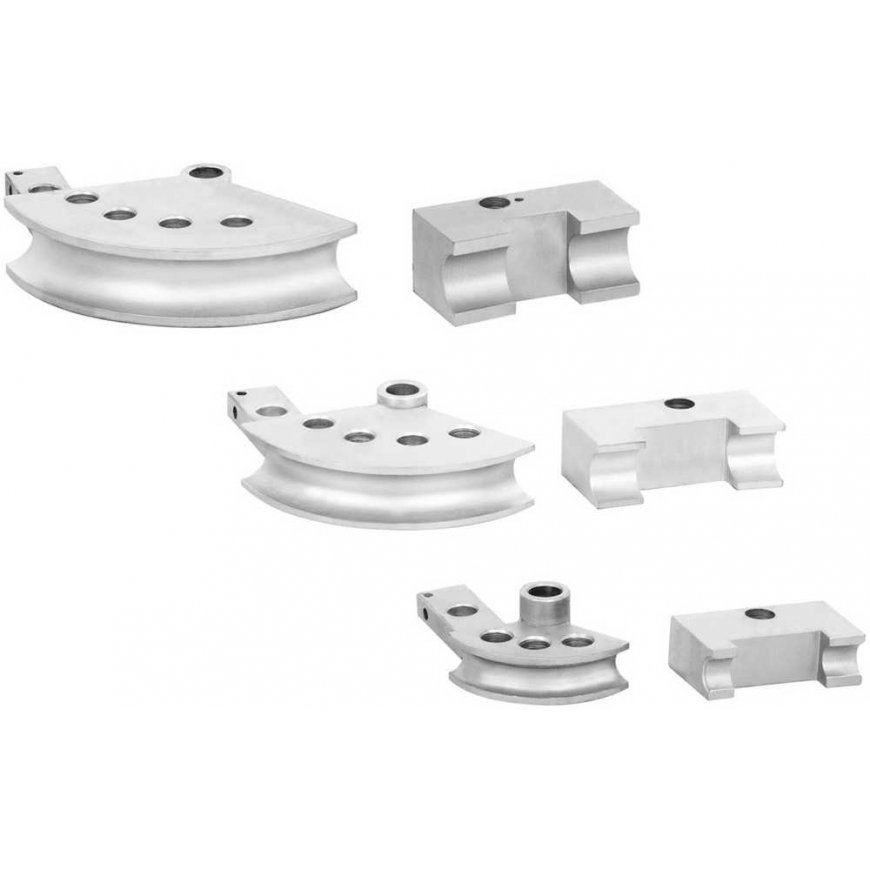

• Matrices (25 x 75 mm, 38 x 125 mm, 45 x 150 mm up to 120 degrees) – 3 pcs.
• Protractor up to 210 degrees
• Allen keys (M4 + M5) – 2 pcs.
• Screws for attaching the handle (M10 x 35 mm)
• Blocking plates (26 mm, 40 mm, 48 mm) – 3 pcs.
• Instructions for use
