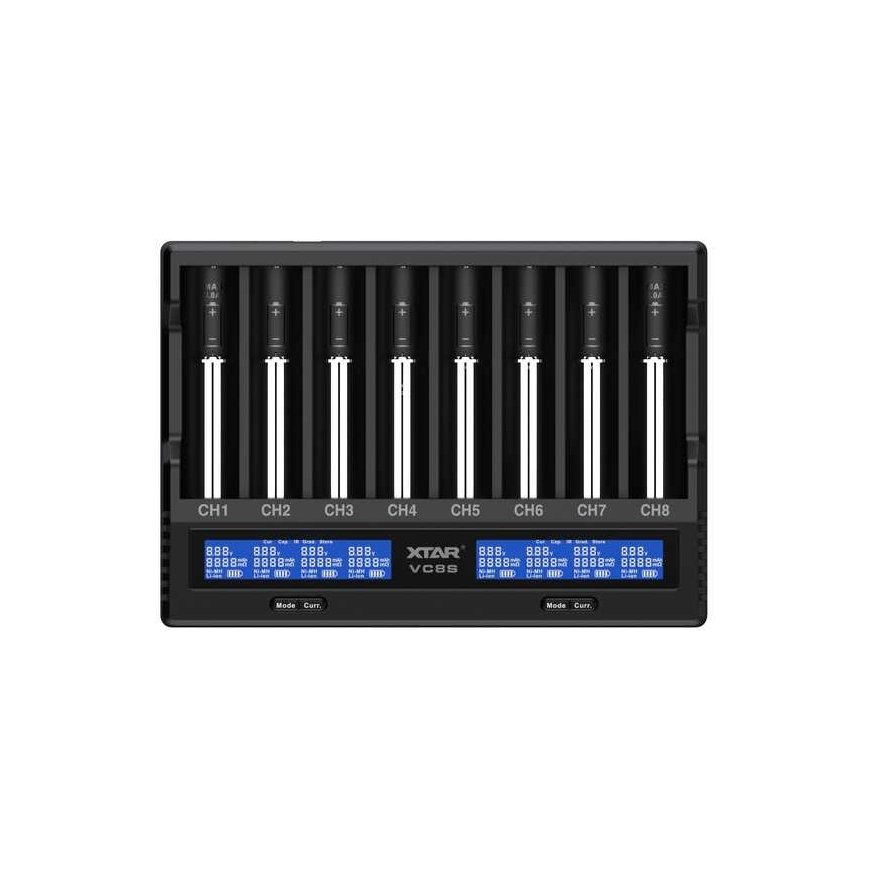

Xtar universal 8 x Li-ion and Ni-MH battery charger with LCD display VC8S

Kõik toote kohta

Main features:

• Eight independent charging channels - batteries of different sizes, capacities or chemical compositions can be charged at the same time

• Processor-controlled three-stage charging process for Li-ion batteries (TC/CC/CV)
• Processor controlled charging process for Ni-MH batteries (0△V and -△V)

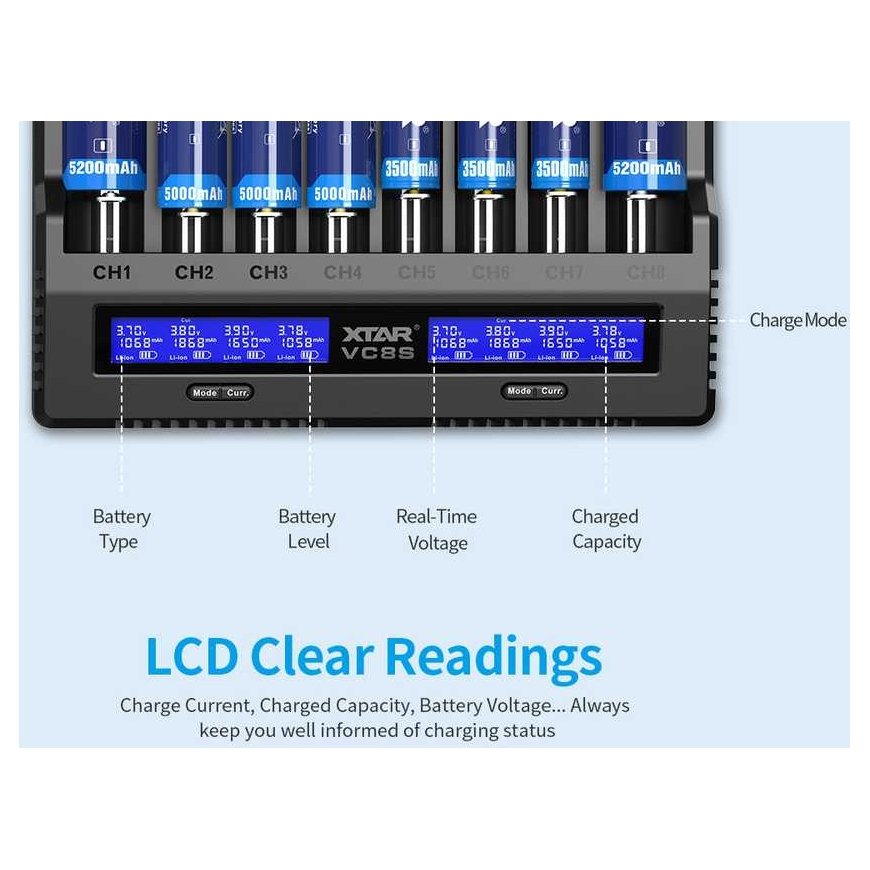

• Detailed LCD screen showing detailed readings of rechargeable batteries

• Support up to 3.0A Li-ion battery charging current (per charging channel) or selectable charging current 3A/2A/1A/0.5A/0.25A

• Powered by a USB connection - can be connected to any USB converters or computer terminals. Recommended power supply - PD3.0 (15V 3A)

• The function of reviving fully discharged cells
  *Attention. In some cases, it is impossible to revive completely discharged cells. Avoid fully discharging lithium-ion batteries - this significantly reduces their service life and capacity. If it is not possible to control the discharge level of the battery, use batteries with an installed PCB controller.

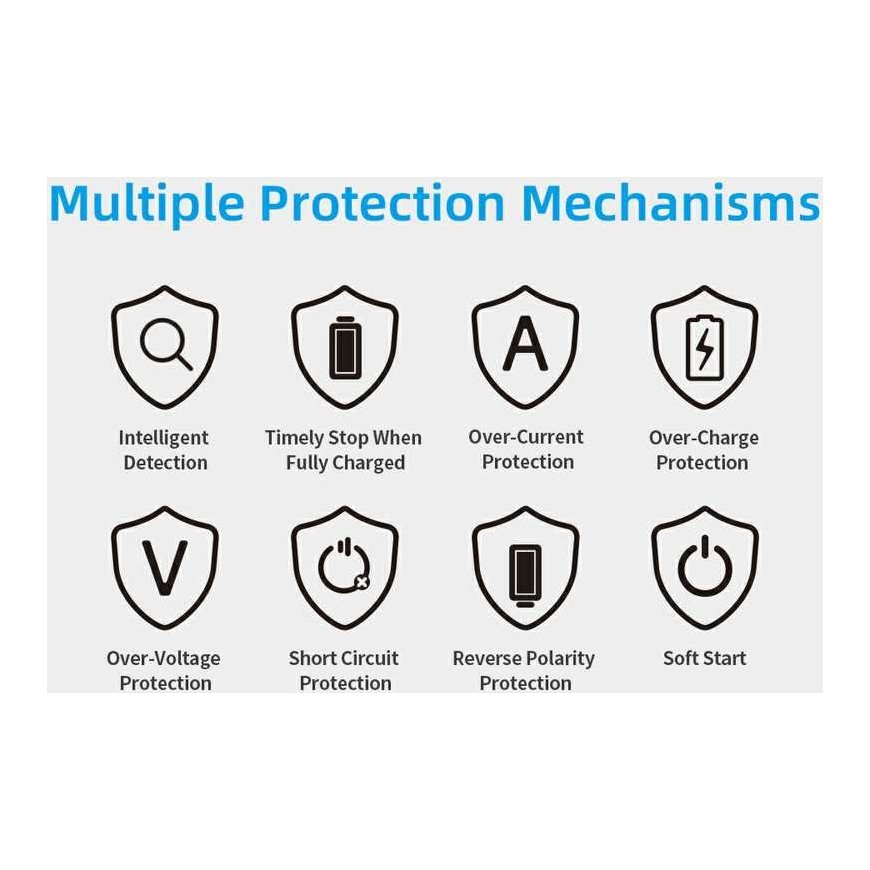

• Protection against short circuit, incorrect polarity and overheating
• Suitable for charging all 3.6V - 3.7V 10440 - 26650 lithium ion batteries and AAA / AA / SC / C type Ni-MH batteries
  Also suitable for charging protected (with PCB controller) type 20700/21700 batteries.

• The external power source used reduces the temperature rise of the charger during charging, thus protecting the battery from additional heating. The design of the charger ensures a temperature rise of no more than 15C during charging.
• Battery real capacity testing function (all charging channels)
• Internal resistance measurement function (all charging channels)
• Storage function (all charging channels)

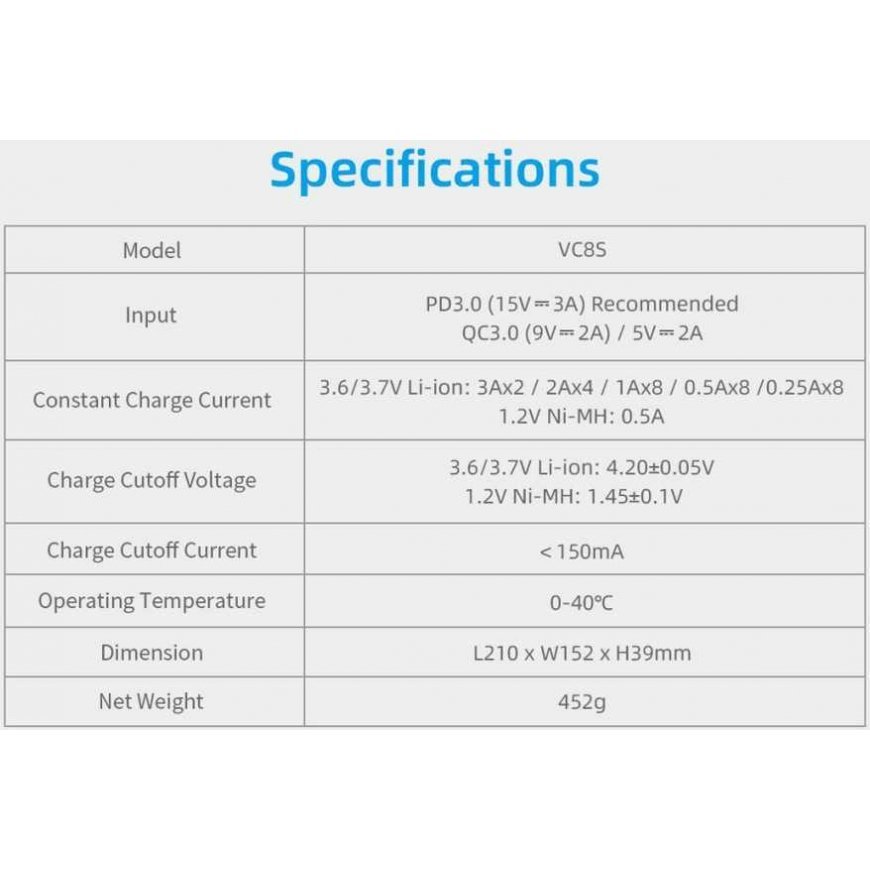

Technical characteristics:

• Types of rechargeable cells: Li-ion 3.6V-3.7V (both simple batteries and with PCB controller) and Ni-MH 1.2V

• Sizes of rechargeable cells:

• • All charging channels: 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650, C, SC, AAA , AA

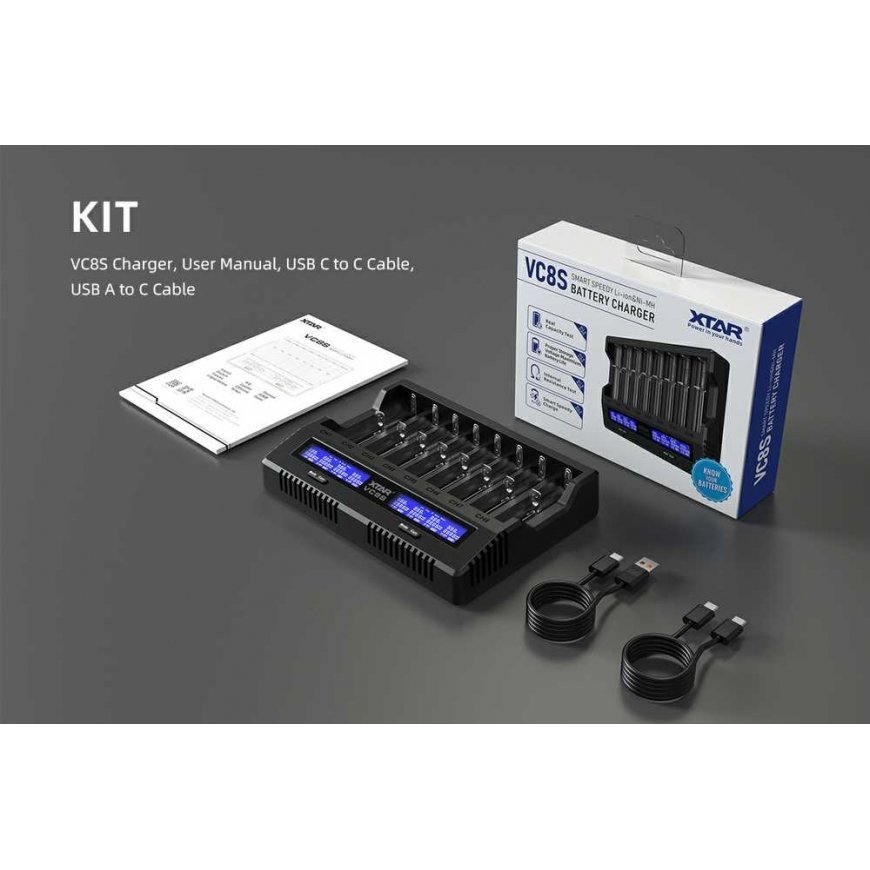

• Power source: USB-C connector (USB-A -> USB-C and USB-C -> USB-C cables are included); power source is not included

• Recommended USB power supply: PD3.0 (15V 3A)

• Charging method: TC/CC/CV for Li-ion batteries; 0△V and -△V for Ni-MH batteries

• Full charge cut-off voltage: 4.2V ± 0.05V for Li-ion batteries; 1.45V ± 0.10V for Ni-MH batteries

• Dimensions: 210 x 152 x 39mm
• Weight: 452g
