Distribution Panel Tibox 440x300x115mm 1x16mod., Ip54, Sublime
42.72 €
Kuumakse alates 2,00 €
3092672 AE116
9990000992720
Tarneaeg 2-4 t.p.
Kauba vastu huvi?
Kõik toote kohta

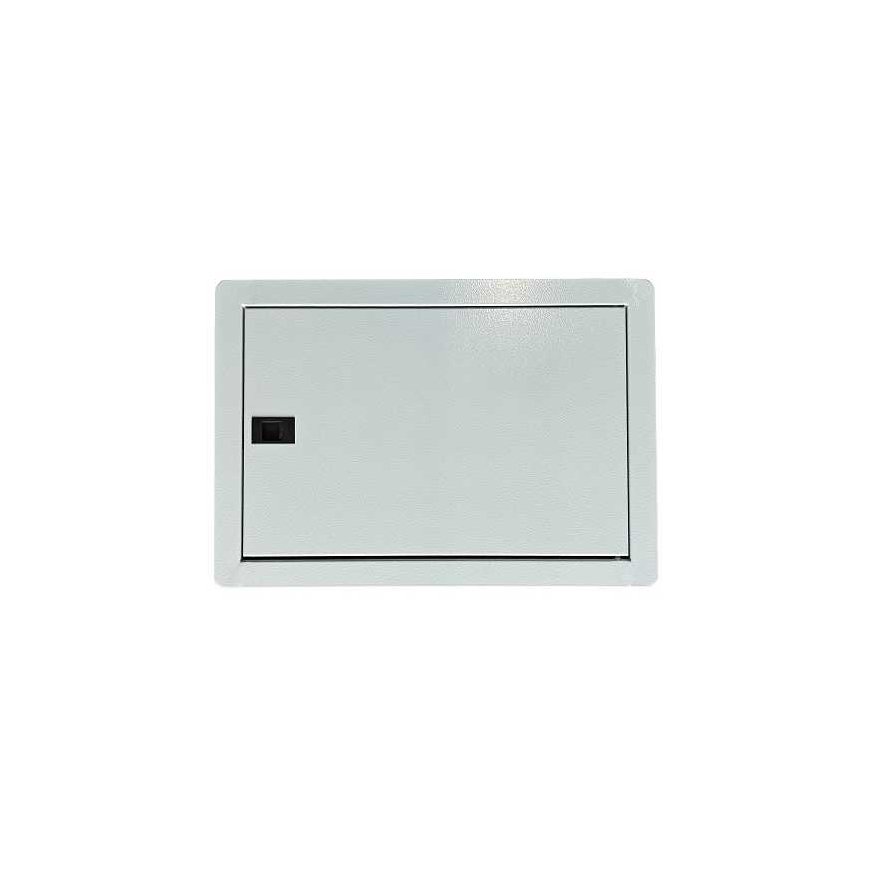

Distribution panel 440x300x115mm, 1 DIN x16P, recessed, metal, IP54. Flush mounting metal distribution box with DIN rail specially designed for installation of circuit breakers.
Features:
- The metal distribution box is intended for the installation of electrical switches in residential or industrial premises. The DIN rail holds up to 16 contacts, the frame with cutouts on all sides allows you to neatly hide the wires.
- Safety class IP54 (resistance to moisture and dust).
- The package includes a box body, a door with a tongue, a DIN rail and a front frame with cutouts.
- The body is covered with epoxy coating with polyester powder texture, color RAL 7035 - light gray.

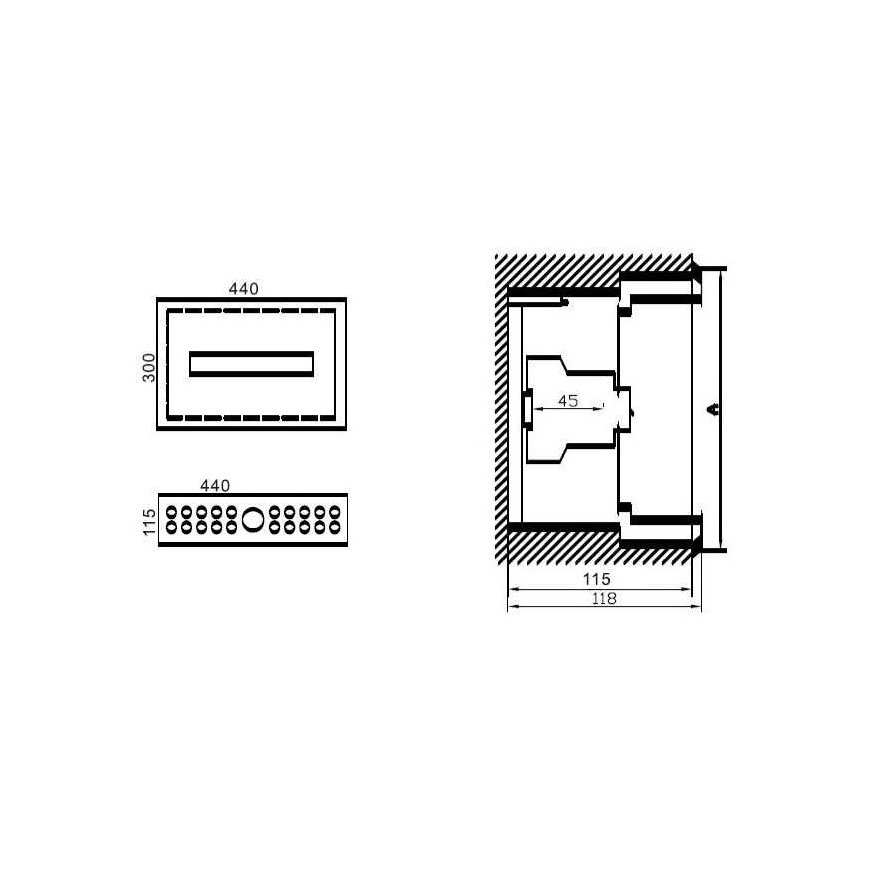

Technical data:
- Number of modules: 1 row x 16 modules.
- Body material: sheet steel.
- Installation: recessed.
- Safety class: IP54.
- Color: RAL 7035 light gray.
- Height: 300mm.
- Width: 440mm
- Depth: 115mm.
- Wall and door thickness: 1.2mm.
