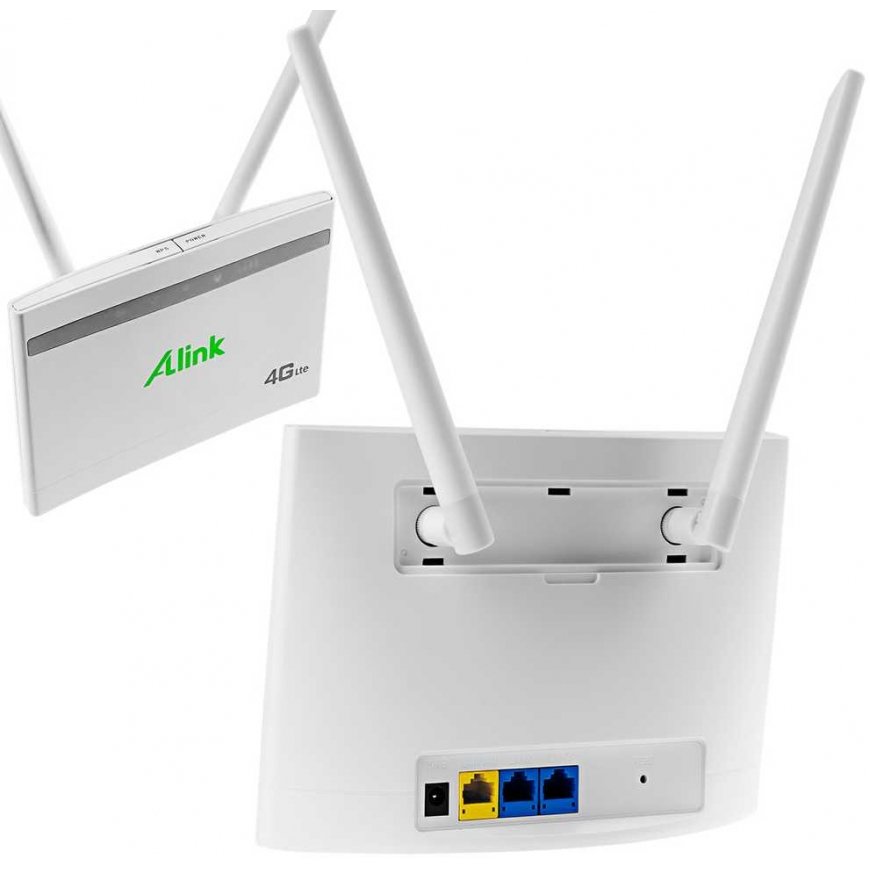

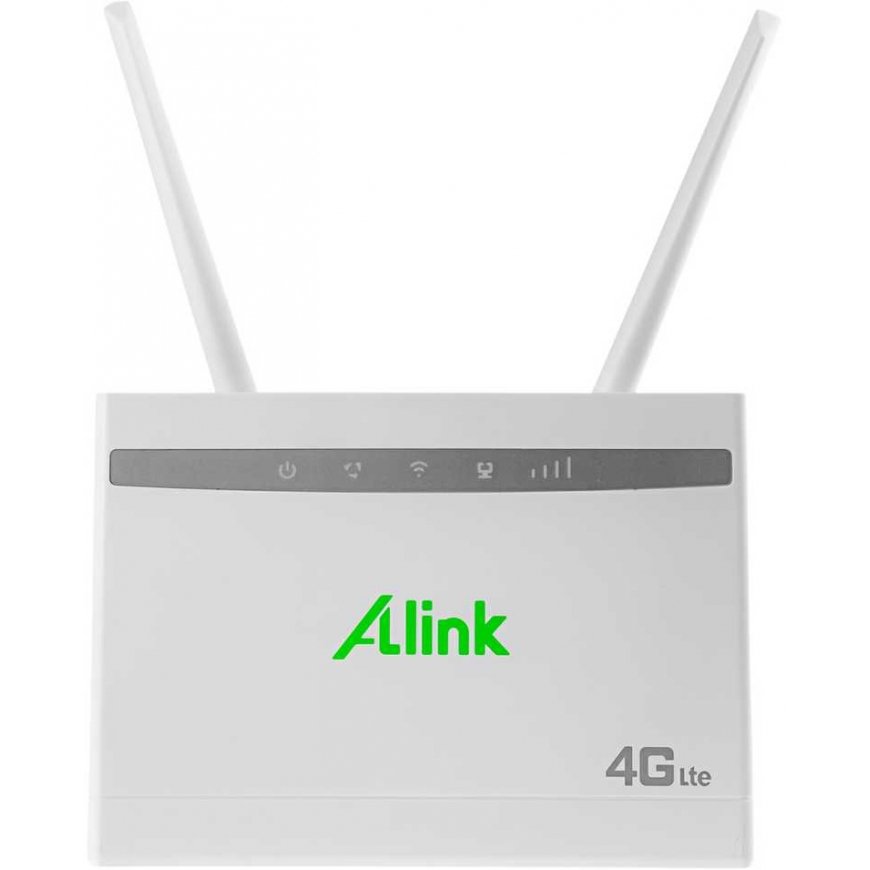

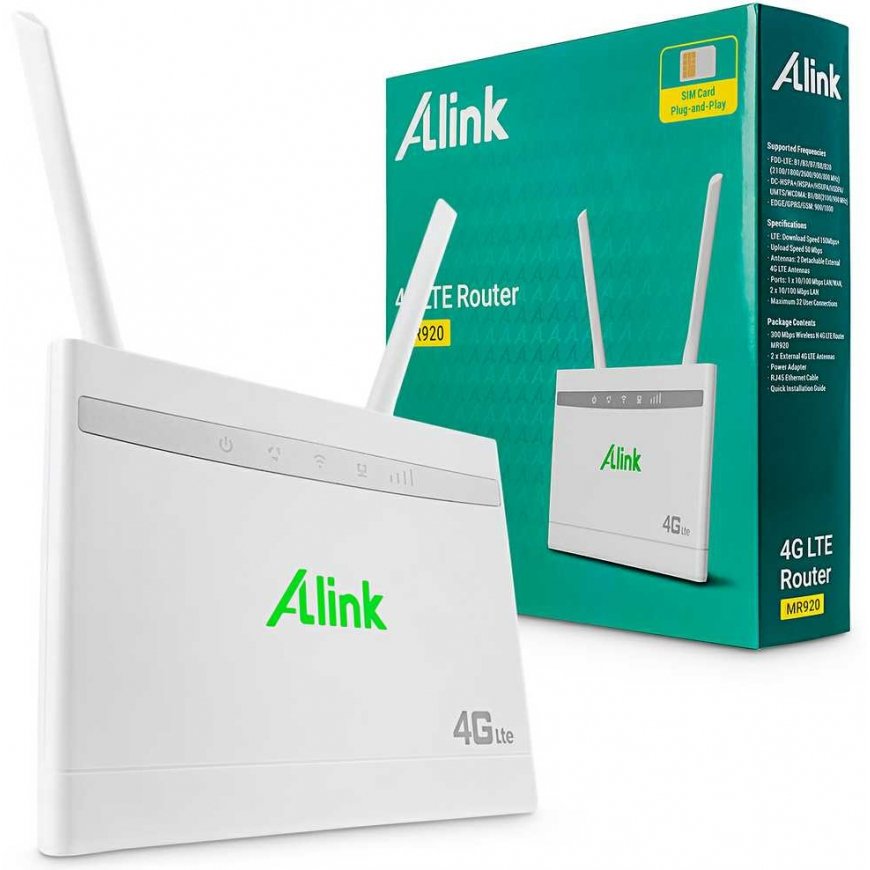

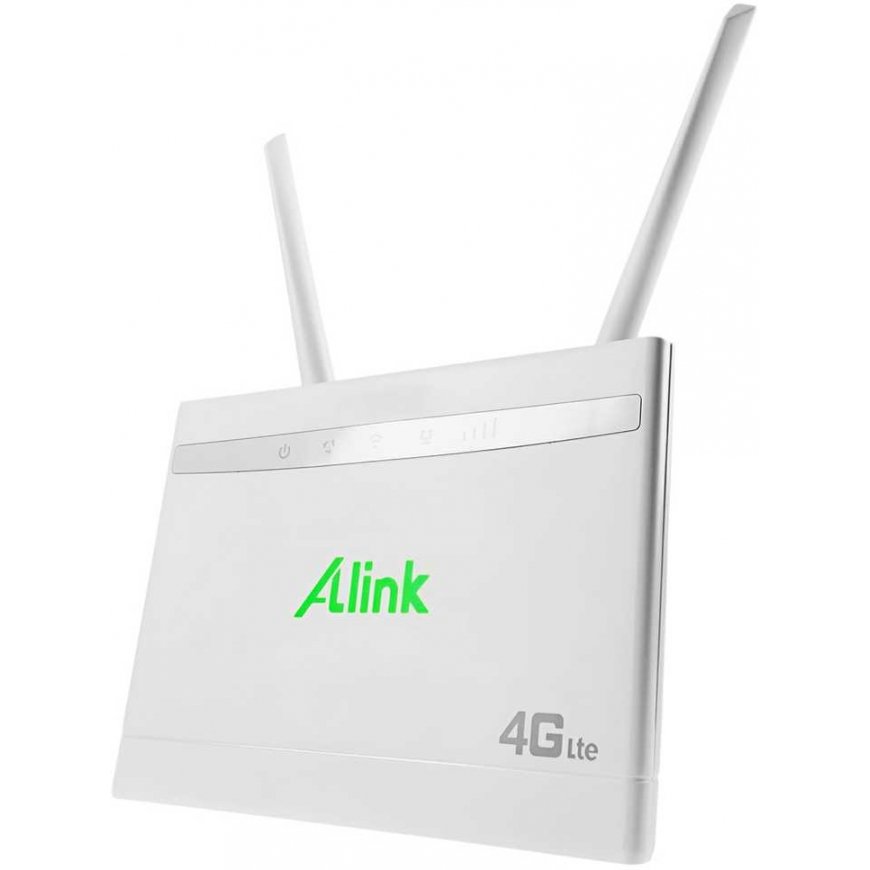

Alink MR920 4G LTE 300Mbps Router

The Alink MR920 router allows you to download data using LTE technology up to 300 Mb/s. This means lightning-fast loading of websites, convenient viewing of videos online or listening to music via streaming services. The files will be downloaded instantly. Therefore, it is an excellent device not only for home use, but also for medium-sized businesses. The device allows you to connect 2 more devices using a standard LAN port and a modem or another device using a LAN/WAN port (change in the administration panel). This functionality is perfect if you often work outside and need to provide mobile Internet access to several devices at the same time.

High-speed 4G LTE with reliable Wi-Fi

The MR920 uses 4G LTE technology to achieve download speeds of up to 100 Mbps and upload speeds of up to 50 Mbps. It also provides the highest 300Mbps Wi-Fi 2.4GHz band for gaming, streaming and more.

Designed for maximum coverage

Thanks to two tall external 4G LTE antennas (so-called sticks, they are included), you ensure an efficient and stable connection with each device, creating a wide Wi-Fi network for your home.

Plug and Play SIM card

Just insert the SIM card into the built-in slot, turn it on and start browsing. If it contains a PIN, the device will ask you to enter it. The auto-configuration process will then begin, and the Alink MR920 will automatically set up the appropriate access points (APNs) and get ready to go.

WAN connection backup

With a fully functional WAN/LAN port, you can use multiple types of backup connections, including cable, fiber, and DSL modems.

Specification:

Hardware

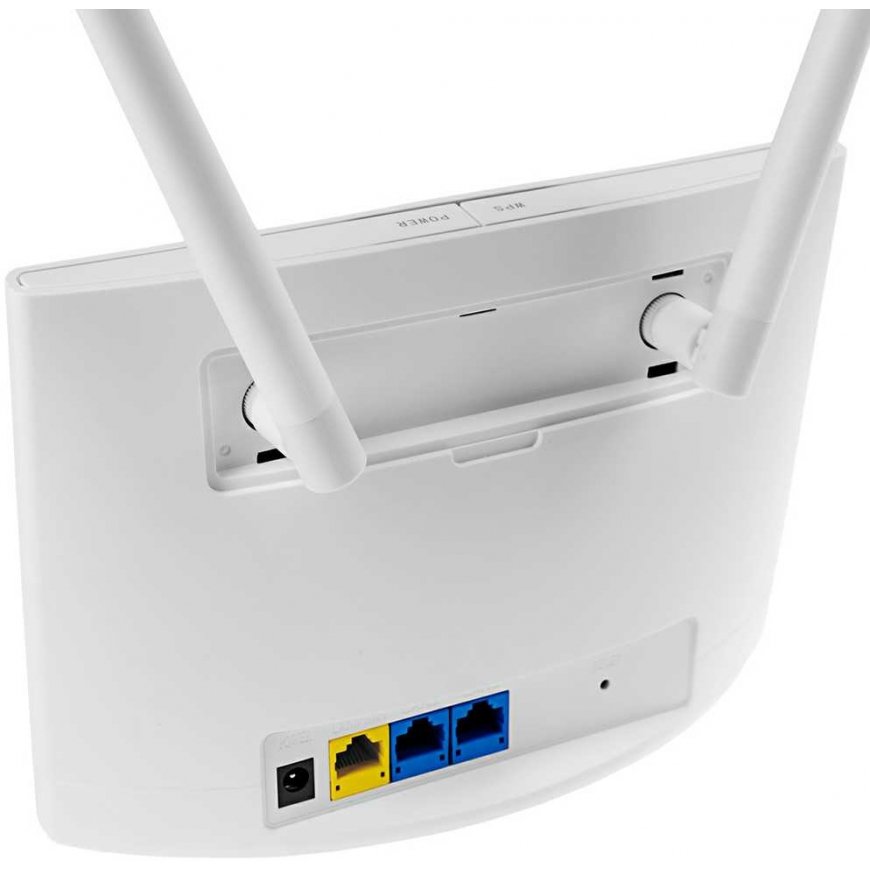

- Ports: 1x100Mbps LAN/WAN, 2x100Mbps LAN, 1x SIM card
- Buttons: 1x Power, 1x Reset, 1x WPS
- 12V/1A or 5V/2A power source with micro USB
- Antenna: 2x external 8dBi antenna (stick)
- Control panel at 192.168.1.1 , login details on the box (available languages: English and Chinese)
Network
– 4G: FDD-LTE: B1/B3/B7/B8/B20/B28 (2100/1800/2600/900/800/700MHz)
– 4G: TDD-LTE: B38 / B40 / B41 (2600 / 2300 / 2500 MHz)
– 3G: DC-HSPA+/HSPA/UMTS: B1/B8 (2100/900MHz)
- Standards: IEEE 802.11 b/g/n 2.4GHz
- Frequency: 2.4 GHz
- Wireless speed: up to 300 Mbps (2.4 GHz)
- Transmit power: <27 dBm (2.4 GHz)
- Reception sensitivity: 11g54Mbps: -74dBm, 11nHT20 MCS7: -71dBm, 11nHT40 MCS7: -67dBm
- Security: WPA-PSK/WPA2-PSK support, MAC address filtering, SSID
- WAN connection: DHCP. PPPoE, static IP
- DHCP: server, client, DHCP list
The rest
- Certificates: RoHS, CE
- Compatible systems: Windows10/8/7/Vista/Xp, Mac OS, Androis, iOS
- Operating temperature: 0 - 40 C
- Storage temperature: -40 - +70 C
- Working humidity: 10% - 90%
- Storage humidity: 5% - 90%

Graphics from the control panel:

Including:

- Alink MR920 router
- Charger
- RJ45 cable
- User Guide
